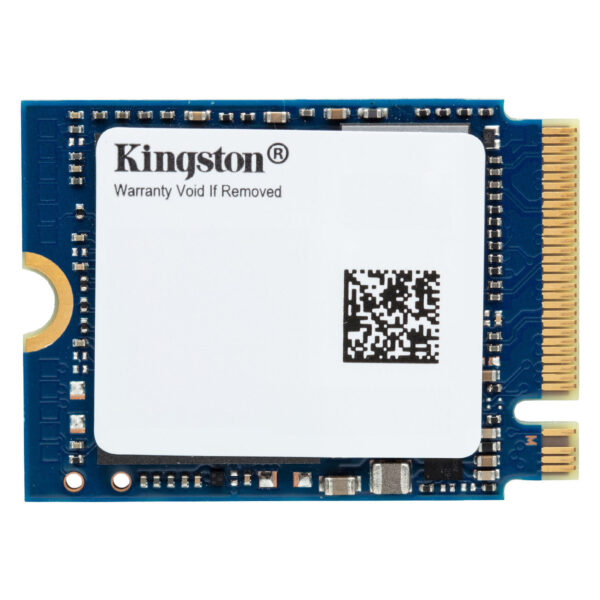

Kingston Technology 512GB M.2 2230 PCIe NVMe
- Controlled BOM and firmware – Ensures there are no changes to key components after customer qualification
- PCN support – All generational changes and firmware updates are handled through a controlled and timed process
- Engineering support – Customers have a direct contact to their regional Kingston Field Application Engineering teams for fast response to storage requirement questions and support requests
- Global support – Kingston can coordinate SSD deliveries with a customer’s
- Original Design Manufacturers (ODMs) or Contract Manufacturers (CMs) in other regions of the world, if required
Kingston Industrial SSDs
Perfect storage solutions for system designers and builders
Kingston® offers a high-quality line of Industrial SATA and NVMe solid-state drives created specifically for system designers and builders.
Kingston Industrial SSDs incorporate advanced controllers that automatically perform wear-levelling, garbage collection and other NAND flash management features. Kingston’s 2.5” SATA SSDs are a drop-in replacement for hard drives and deliver up to 20x greater performance, as well as high reliability. Industrial SSDs incorporate next-generation 3D TLC NAND flash for the best cost and reliability.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 1500000 h |
| Random write (4KB) | 690000 IOPS |
| Random read (4KB) | 460000 IOPS |
| Write speed | 3400 MB/s |
| Read speed | 4700 MB/s |
| M.2 SSD size | 2230 (22 x 30 mm) |
| Component for | Universal |
| Memory type | TLC |
| NVMe | Yes |
| Interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| SSD capacity | 512 GB |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 70 °C |
