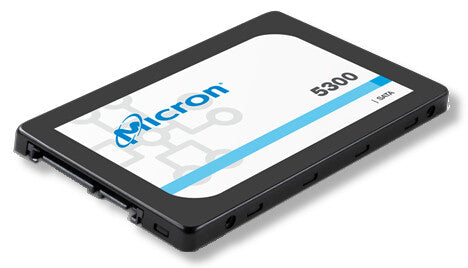

Lenovo 4XB7A17077 internal solid state drive 960 GB 2.5″ Serial ATA III 3D TLC NAND
- Industry standard 2.5-inch or 3.5-inch form factors
- New generation 96-layer 3D TLC NAND flash memory
- 6 Gbps SATA host interface
- High reliability and enhanced ruggedness
- MTTF of 3 million device hours – 50% more than most drives
- Absence of moving parts to reduce potential failure points in the server
- S.M.A.R.T. support
- Advanced Encrypting Standard (AES) 256-bit encryption
The 5300 Entry SATA solid-state drives (SSDs) are new SSDs for ThinkSystem servers. The drives use Micron 96-layer 3D NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
| Features | |
|---|---|
| Mean time between failures (MTBF) | 3000000 h |
| Hot-swap | Yes |
| Write latency | 100 µs |
| Read latency | 175 µs |
| Random write (4KB) | 35 IOPS |
| Random read (4KB) | 95 IOPS |
| Write speed | 520 MB/s |
| Read speed | 540 MB/s |
| Data transfer rate | 6 Gbit/s |
| Security algorithms | 256-bit AES |
| Hardware encryption | Yes |
| Component for | Server/workstation |
| Memory type | 3D TLC NAND |
| NVMe | No |
| Interface | Serial ATA III |
| SSD form factor | 2.5″ |
| SSD capacity | 960 GB |
| Power | |
|---|---|
| Power consumption (write) | 3.4 W |
| Power consumption (read) | 2.8 W |
| Weight & dimensions | |
|---|---|
| Weight | 70 g |
| Operational conditions | |
|---|---|
| Vibration resistance | 3.13 G |
| Operating relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -40 – 85 °C |
| Operating temperature (T-T) | 0 – 70 °C |
| Other features | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
