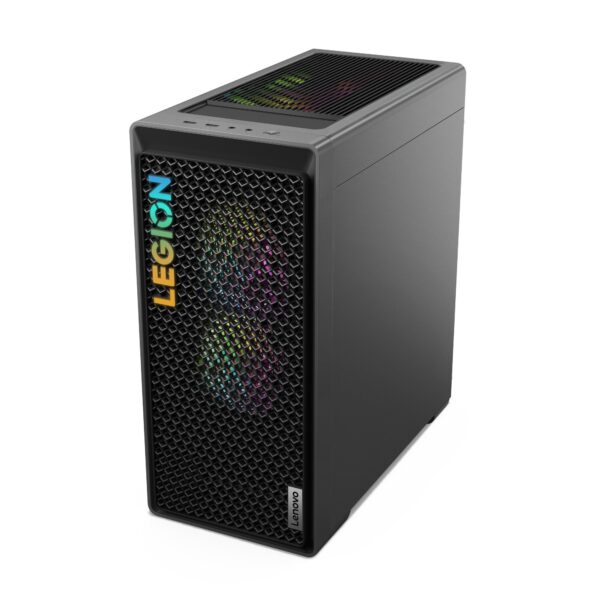

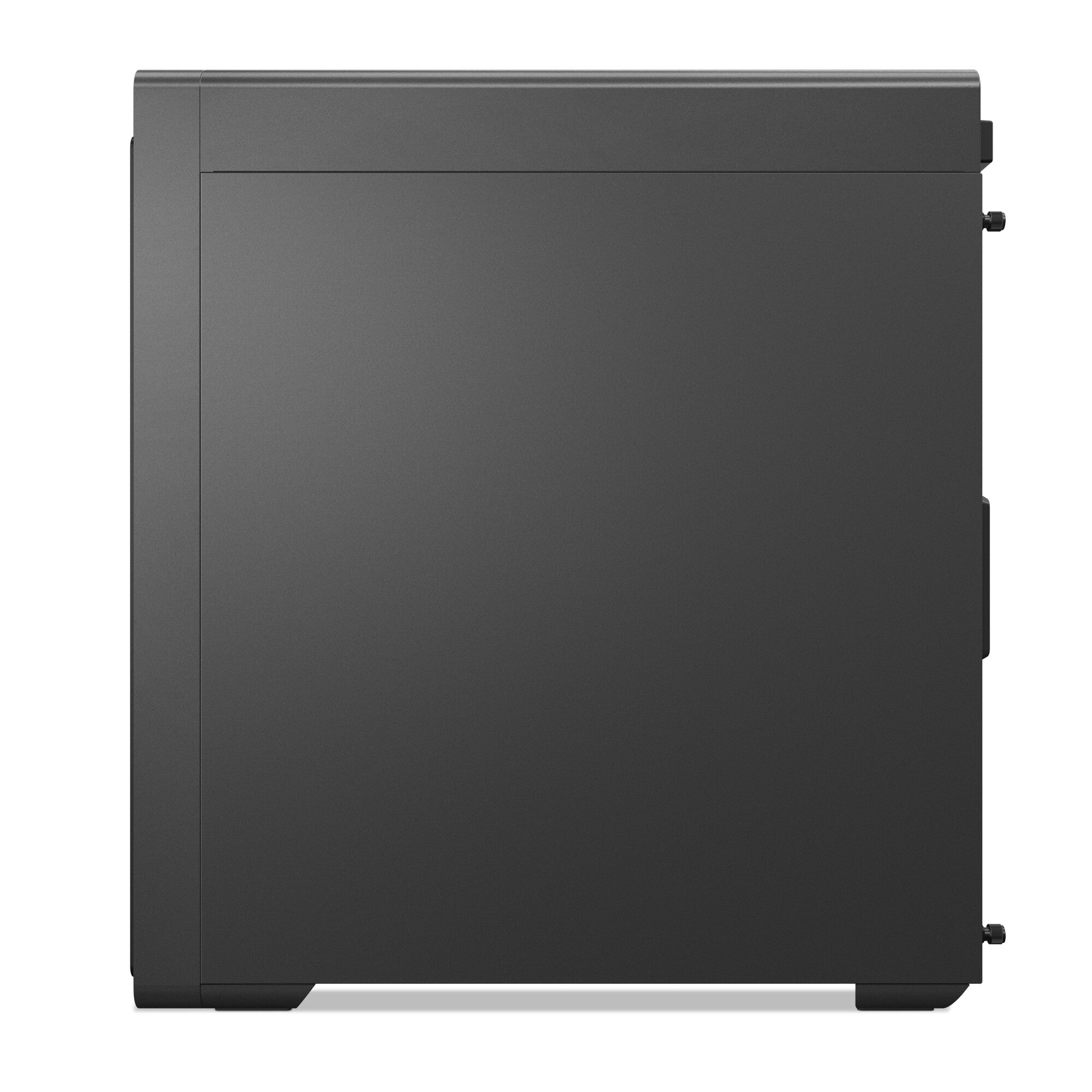

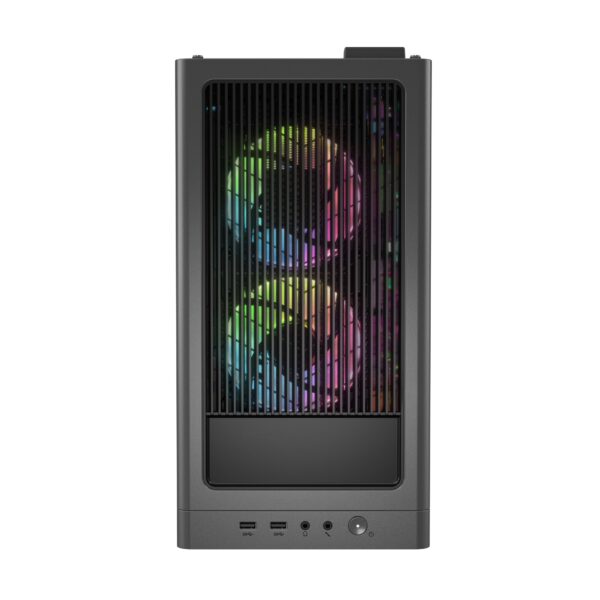

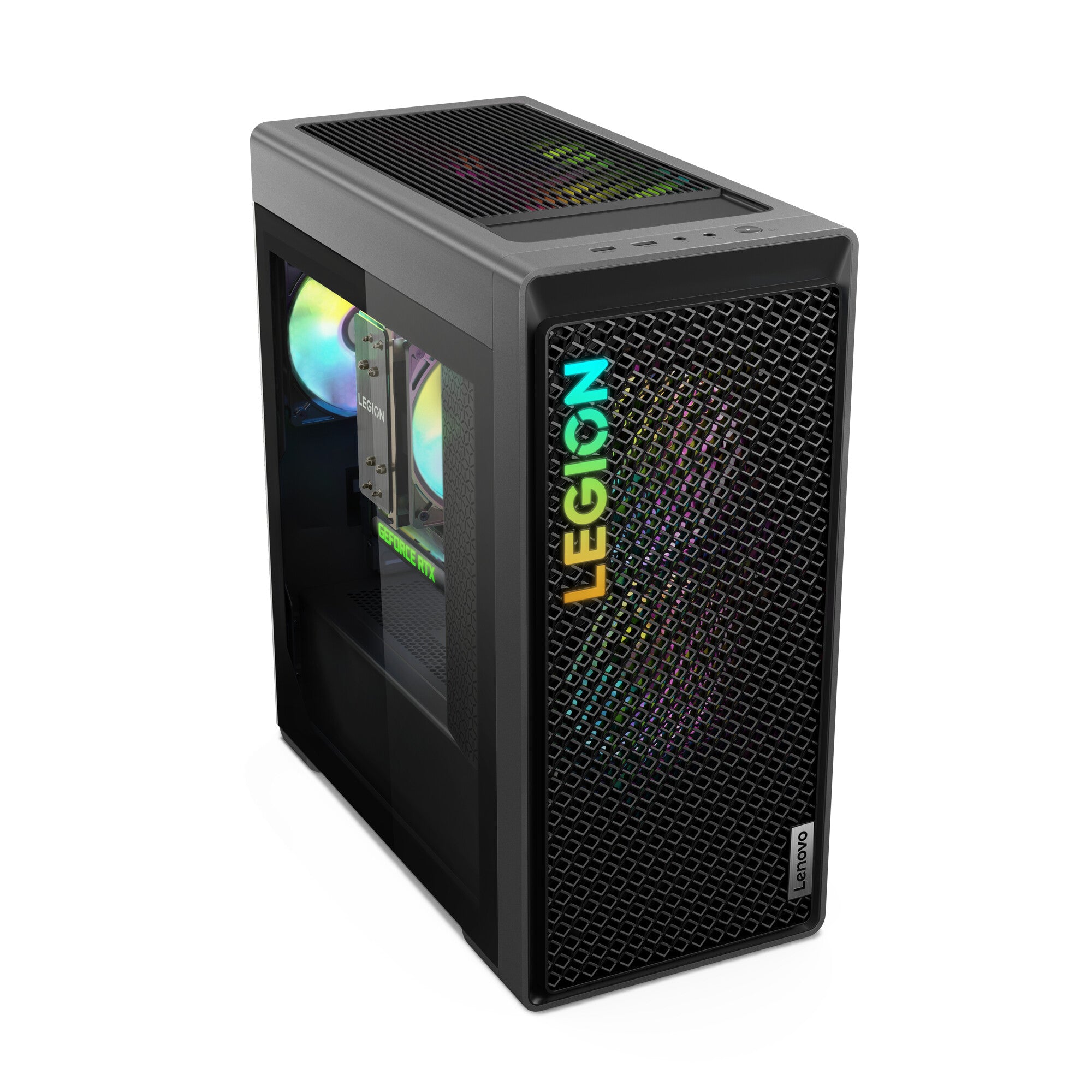

Lenovo Legion T5 26IRB8 Intel® Core™ i7 i7-14700KF 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4070 SUPER Windows 11 Home Tower PC Grey
- Intel Core i7-14700KF, 20C (8P + 12E)/28T, Max Turbo up to 5.6GHz, P-core 3.4/5.5GHz, E-core 2.5/4.3GHz, 33MB
- 2x 8GB UDIMM DDR5-5600
- 1TB SSD M.2 2280 PCIe 4.0×4 NVMe
- NVIDIA GeForce RTX 4070 SUPER 12GB 568 AI TOPS
- Windows 11 Home
The towering future of gaming
– Built for great gaming—today & tomorrow
– Battle-ready Intel® Core™ processors
– NVIDIA® GeForce RTX™ 40 Series graphics
– New-look chassis with mesh-vented front bezel
– Air cooling up to 180W for intense game action
– Eye-catching RGB lighting & optional glass panel
| Processor |
| Processor base power |
125 W |
| Maximum turbo power |
253 W |
| Number of processors installed |
1 |
| Processor cache type |
Smart Cache |
| Processor cache |
33 MB |
| Efficient-core base frequency |
2.5 GHz |
| Performance-core base frequency |
3.4 GHz |
| Efficient-core Max Turbo Frequency |
4.3 GHz |
| Performance-core Max Turbo Frequency |
5.5 GHz |
| Efficient cores |
12 |
| Performance cores |
8 |
| Processor boost frequency |
5.6 GHz |
| Processor threads |
28 |
| Processor cores |
20 |
| Processor model |
i7-14700KF |
| Processor generation |
Intel® Core™ i7 (14th gen) |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Memory clock speed |
5600 MHz |
| Memory slots |
4x DIMM |
| Memory layout (slots x size) |
2 x 8 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
64 GB |
| Internal memory |
16 GB |
| Storage |
| Card reader integrated |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
1 TB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
1 TB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
1 TB |
| Graphics |
| On-board graphics card model |
Not available |
| Number of discrete graphics cards |
1 |
| Discrete graphics memory type |
GDDR6X |
| Discrete graphics card memory |
12 GB |
| Discrete graphics card model |
NVIDIA GeForce RTX 4070 SUPER |
| Discrete GPU manufacturer |
NVIDIA |
| On-board graphics card |
No |
| Discrete graphics card |
Yes |
| Network |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
4 |
| Design |
| Product colour |
Grey |
| Placement supported |
Vertical |
| Volume |
26 L |
| Colour name |
Storm Grey |
| Chassis type |
Tower |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Audio system |
High Definition Audio |
| Audio chip |
Realtek ALC897-Q |
| Motherboard chipset |
Intel B660 |
| Market positioning |
Gaming |
| Product type |
PC |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Home |
| Power |
| Power supply input frequency |
50 – 60 Hz |
| Power supply input voltage |
100 – 240 V |
| Power supply |
850 W |
| Operational conditions |
| Non-operating altitude |
-15.2 – 12192 m |
| Operating altitude |
-15.2 – 3048 m |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-40 – 60 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Certificates |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Package weight |
16 kg |
| Package height |
580 mm |
| Package depth |
502 mm |
| Package width |
325 mm |
| Weight |
14 kg |
| Height |
425.9 mm |
| Depth |
396.9 mm |
| Width |
205 mm |
| Packaging content |
| Display included |
No |
| General |
| Product family |
Legion |
