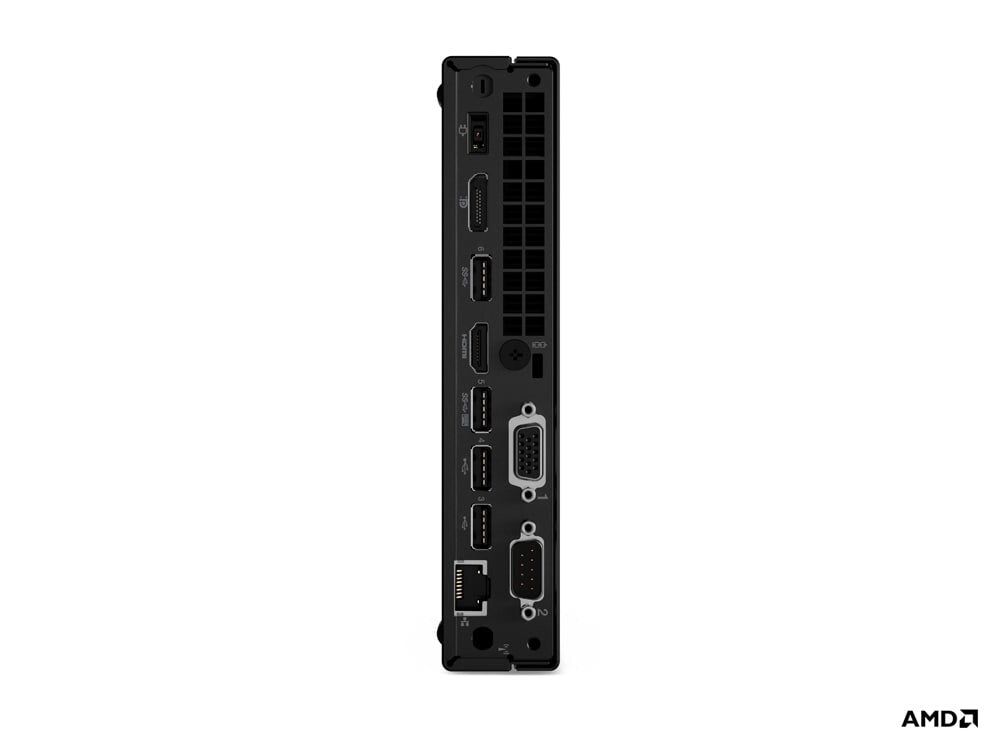

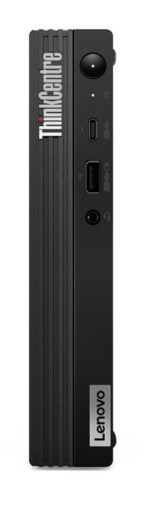

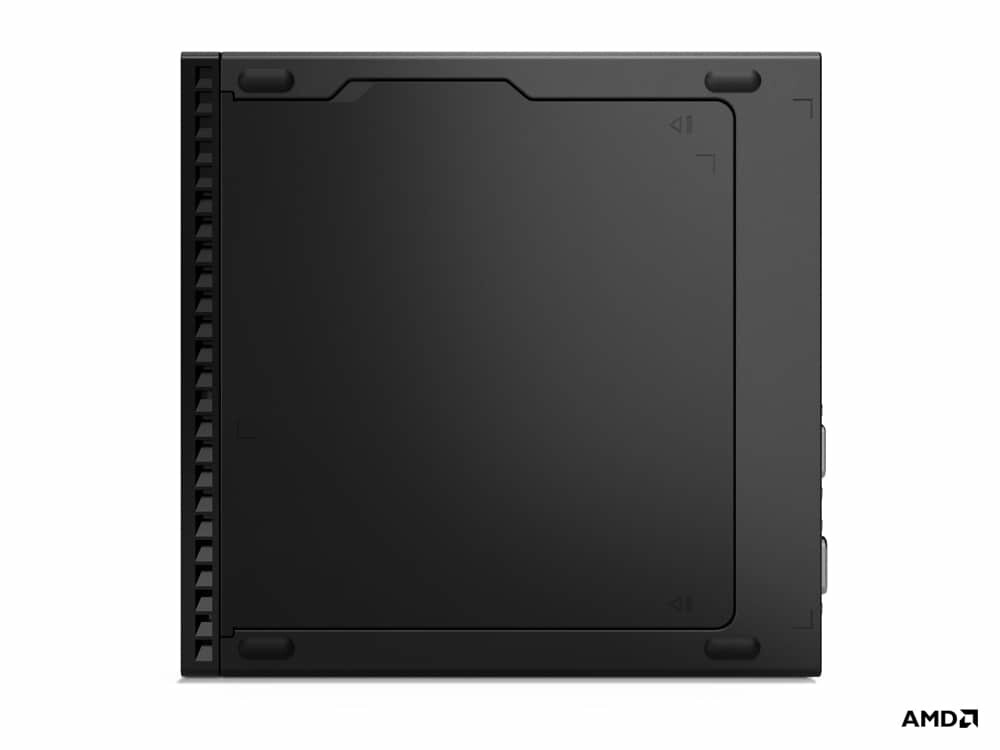

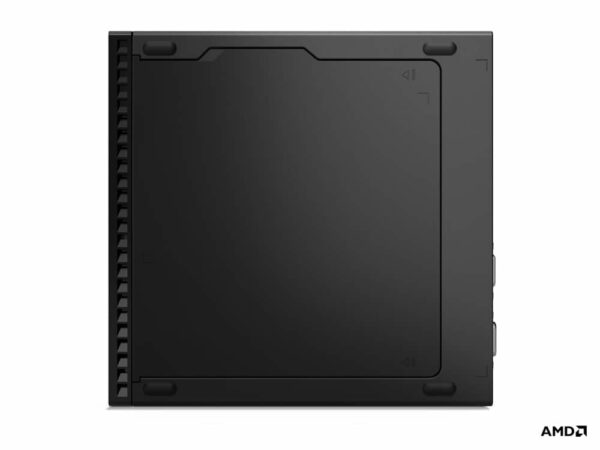

Lenovo ThinkCentre M75q AMD Ryzen™ 5 5600GE 8 GB DDR4-SDRAM 256 GB SSD Windows 11 Pro Mini PC Black
- AMD Ryzen 5 5600GE (6C/12T, 3.4/4.4GHz, 3MB L2/16MB L3)
- 1x 8GB SO-DIMM DDR4-3200
- 256GB SSD M.2 2280 PCIe NVMe Opal 2.0
- AMD Radeon Graphics
- Windows 11 Pro
Tiny technology, big output
The 1L ThinkCentre M75q Gen 2 Tiny desktop PC is built to do big things. It will fit anywhere in your workspace, where its powerful AMD PRO performance will keep your business going. It’s also easy to manage and expand, with a durable design and convenient features.
| Processor |
| Number of processors installed |
1 |
| Processor cache type |
L3 |
| Processor cache |
16 MB |
| Processor frequency |
3.4 GHz |
| Processor boost frequency |
4.4 GHz |
| Processor threads |
12 |
| Processor cores |
6 |
| Processor model |
5600GE |
| Processor generation |
AMD Ryzen 5000 Series |
| Processor family |
AMD Ryzen™ 5 |
| Processor manufacturer |
AMD |
| Memory |
| Memory channels |
Dual-channel |
| Memory clock speed |
3200 MHz |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
1 x 8 GB |
| Internal memory type |
DDR4-SDRAM |
| Maximum internal memory |
64 GB |
| Internal memory |
8 GB |
| Storage |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express |
| NVMe |
Yes |
| SSD capacity |
256 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
256 GB |
| Number of storage drives installed |
1 |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
256 GB |
| Graphics |
| On-board graphics card model |
AMD Radeon Graphics |
| On-board graphics card family |
AMD Radeon Graphics |
| On-board GPU manufacturer |
AMD |
| Discrete graphics card model |
Not available |
| On-board graphics card |
Yes |
| Discrete graphics card |
No |
| Network |
| Wake-on-LAN ready |
Yes |
| Bluetooth version |
5.0 |
| Bluetooth |
Yes |
| Antenna type |
2×2 |
| WLAN controller model |
Realtek RTL8822CE |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi |
Yes |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI version |
1.4b |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 2.0 ports quantity |
2 |
| Design |
| Viewing window |
No |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Water cooling system |
No |
| Placement supported |
Horizontal/Vertical |
| Volume |
1 L |
| Colour name |
Black |
| Chassis type |
Mini PC |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Password protection type |
Power on, Supervisor, HDD |
| Password protection |
Yes |
| Number of speakers |
1 |
| Built-in speaker(s) |
Yes |
| Audio system |
High Definition Audio |
| Audio chip |
Realtek ALC222 |
| Motherboard chipset |
AMD PRO 500 |
| Product type |
Mini PC |
| Software |
| Operating system language |
English |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
| Power supply input frequency |
50 – 60 Hz |
| Power supply input voltage |
100 – 240 V |
| Power supply |
65 W |
| Operational conditions |
| Non-operating altitude |
0 – 12192 m |
| Operating altitude |
0 – 3048 m |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-40 – 60 °C |
| Operating temperature (T-T) |
10 – 35 °C |
| Certificates |
| Certification |
ErP Lot 3 |
| Compliance certificates |
RoHS |
| Sustainability |
| Sustainability certificates |
ENERGY STAR, TCO |
| Weight & dimensions |
| Weight |
1.25 kg |
| Height |
37 mm |
| Depth |
183 mm |
| Width |
179 mm |
| Packaging content |
| Keyboard included |
Yes |
| Mouse included |
Yes |
| Display included |
No |
| General |
| Product family |
ThinkCentre |
| Product series |
M |
