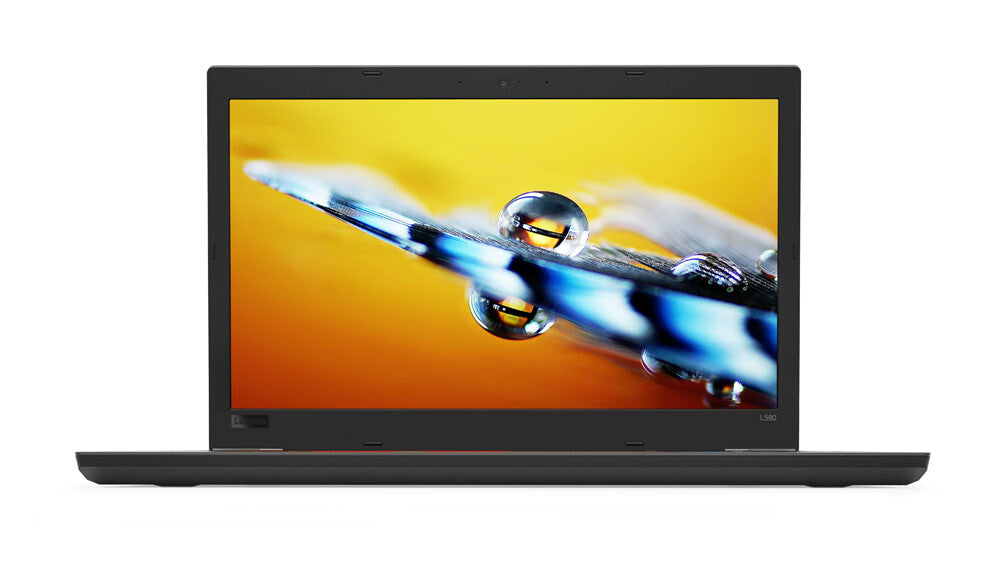

Lenovo ThinkPad L580 Intel® Core™ i7 i7-8550U Laptop 39.6 cm (15.6″) Full HD 8 GB DDR4-SDRAM 256 GB SSD Wi-Fi 5 (802.11ac) Windows 10 Pro Black
- Business Laptop Clamshell Black
- Intel® Core™ i7 i7-8550U 1.8 GHz Processor cores: 4
- 39.6 cm (15.6″) Full HD 1920 x 1080 pixels IPS LED backlight Matt 16:9
- 8 GB DDR4-SDRAM 2400 MHz 1 x 8 GB
- 256 GB SSD
- Intel® UHD Graphics 620
- Wi-Fi 5 (802.11ac) Ethernet LAN 10,100,1000 Mbit/s Bluetooth 4.1
- Lithium-Ion (Li-Ion) 45 Wh 12 h 65 W
- Windows 10 Pro 64-bit
Ready for business, ready for anything
You work hard to get the job done, no matter where the job takes you. The 15.6-inch ThinkPad L580 has the versatility, power, and portability to keep up – and to make your job easier. The perfect business partner!
Keeps IT departments as happy as their users
Your IT staff will rest easy with the optional infrared camera and touch fingerprint reader, knowing they give the L580 greater security. And it’s been fully redesigned for productivity, meaning IT won’t have to listen to complaints about a slow laptop. The discrete graphics option gives users greater ability to do more without additional strain on the CPU. And its mobility is enhanced by its global LTE-A WWAN, offering more connectivity in remote places, and by the RapidCharge function, allowing users to get up to an 80% charge in just an hour. The L580 will make your employees’ jobs easier, a favor they will return to your IT department. Additional details on these features are available below.
Works hard, to make your work easy
The L580 will take on your full workload, thanks to the latest Intel® Core™ processors (with optional Intel® vPro™ technology for advanced security and manageability), optional AMD Radeon™ discrete graphics, a choice of the fast file access of SSD storage or the high capacity of HDD storage, and great memory capacity. Its 2×2 AC WiFi, LTE-A, and full array of ports will keep you connected to the internet and a variety of external devices. Get ready to have a much shorter to-do list.
Stay one step ahead, no matter where you go
At 15% lighter and 19% thinner than the previous model, the L580 is easy to take home at the end of the day. Its optional backlit keyboard – with white LEDs – lets you use it in low-light surroundings and complete even the most urgent of tasks despite the late hours. The antiglare IPS FHD display is also easy on the eyes. With up to 11 hours of life in its battery, you’ll get a lot of uninterrupted time without worrying about electrical outlets – and even if you need to plug in, its RapidCharge feature will give you 80% battery capacity in an hour. And when you come back, the new USB-C mechanical side docking makes it easy to reconnect at your desk.
More connectivity, more productivity

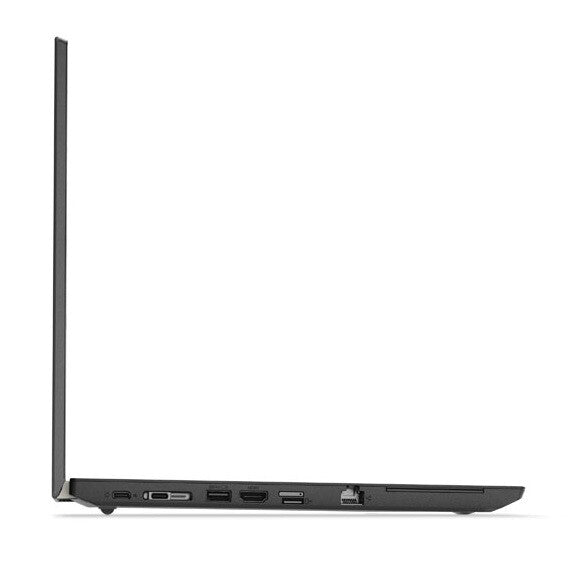

Whether you need to get online or use a peripheral device, the L580 can connect you. Extensive I/O ports such as USB Type-C, USB 3.0, and HDMI make it easy to plug in most peripheral devices, while Near Field Communication (NFC) technology gives you the luxury of wireless communication between your laptop and other nearby NFC devices. Dual Band AC (2×2) and Bluetooth® 4.2 make wireless online connectivity a snap, but even if you’re not near a router, integrated global mobile broadband LTE-A will keep you connected.
Forget your password – and your worries
With the option of an integrated touch fingerprint reader and infrared camera, you’ll never need to remember your password again! Simply touch the fingerprint scanner to access your L580, or use your face with Windows Hello facial recognition software to log in automatically. What’s more, the fingerprint reader thwarts biometric hacking with anti-spoofing technology—that means the fingerprint image is saved inside the chip, and as such, it’s not sent out for login authentication when you sign in.
Your data is protected too, with the discrete Trusted Platform Module (dTPM), which encrypts your information. Lastly, Fast Identity Online (FIDO) enables hardened authentication that wraps your access info in three layers of security. FIDO authentication pertains to your online credentials, when you sign in to websites like Facebook or Google, or make payments via PayPal, Visa, etc. This global solution creates better security for online services, reduces costs for organizations, and is simpler and safer for users.
Let your assistant do the heavy lifting
Start with Windows 10 Pro for your L580, which includes your own personal assistant, Cortana. With an 8th Generation Intel® Core™ processor, you’ll get powerful performance and speed. Plus, you’ll never have to hunt for files or photos or meetings again – let Cortana do the work for you! Integrate Cortana with your calendar and you can even search by when and with whom you worked on a file, rather than having to remember file names.
Lasts long enough to have its own career
The L580 was built to last and tested for durability. It packs the renowned ThinkPad reliability and is backed by a one- or two-year base warranty, with up to three years total available (see the Services tab for information on Extensions).
Design | |
---|---|
Intel® vPro™ Platform Eligibility | No |
Market positioning | Business |
Housing material | Acrylonitrile butadiene styrene (ABS) |
Form factor | Clamshell |
Product colour | Black |
Product type | Laptop |
Display | |
---|---|
Contrast ratio (typical) | 800:1 |
Dual-screen | No |
Display brightness | 250 cd/m² |
Display surface | Matt |
Native aspect ratio | 16:9 |
LED backlight | Yes |
Panel type | IPS |
HD type | Full HD |
Touchscreen | No |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 39.6 cm (15.6″) |
Processor | |
---|---|
ECC supported by processor | No |
Maximum number of PCI Express lanes | 12 |
PCI Express slots version | 3.0 |
PCI Express configurations | 1×2+2×1, 1×4, 2×2, 4×1 |
Tjunction | 100 °C |
Configurable TDP-down | 10 W |
Configurable TDP-down frequency | 0.8 GHz |
Configurable TDP-up | 25 W |
Configurable TDP-up frequency | 2 GHz |
Thermal Design Power (TDP) | 15 W |
Stepping | Y0 |
Bus type | OPI |
Processor codename | Kaby Lake R |
Processor operating modes | 64-bit |
Processor lithography | 14 nm |
Processor socket | BGA 1356 |
Processor cache | 8 MB |
System bus rate | 4 GT/s |
Processor frequency | 1.8 GHz |
Processor boost frequency | 4 GHz |
Processor threads | 8 |
Processor cores | 4 |
Processor model | i7-8550U |
Processor generation | 8th gen Intel® Core™ i7 |
Processor family | Intel® Core™ i7 |
Processor manufacturer | Intel |
Memory | |
---|---|
Maximum internal memory | 32 GB |
Memory slots | 2x SO-DIMM |
Memory layout (slots x size) | 1 x 8 GB |
Memory clock speed | 2400 MHz |
Memory form factor | SO-DIMM |
Internal memory type | DDR4-SDRAM |
Internal memory | 8 GB |
Storage | |
---|---|
Compatible memory cards | MicroSD (TransFlash) |
Card reader integrated | Yes |
Optical drive type | No |
SSD form factor | M.2 |
SSD capacity | 256 GB |
Number of SSDs installed | 1 |
Storage media | SSD |
Total storage capacity | 256 GB |
Graphics | |
---|---|
On-board graphics card ID | 0x5917 |
On-board graphics card OpenGL version | 4.4 |
On-board graphics card DirectX version | 12.0 |
On-board graphics card base frequency | 300 MHz |
Maximum on-board graphics card memory | 32 GB |
On-board graphics card dynamic frequency (max) | 1150 MHz |
On-board graphics card model | Intel® UHD Graphics 620 |
On-board graphics card family | Intel® UHD Graphics |
Discrete graphics card model | Not available |
Discrete graphics card | No |
On-board graphics card | Yes |
Audio | |
---|---|
Built-in microphone | Yes |
Speaker power | 2 W |
Number of built-in speakers | 2 |
Audio system | Dolby Audio |
Audio chip | Realtek ALC3287 |
Camera | |
---|---|
Front camera resolution | 1280 x 720 pixels |
Front camera HD type | HD |
Front camera signal format | 720p |
Front camera | Yes |
Network | |
---|---|
Bluetooth version | 4.1 |
Bluetooth | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN | Yes |
Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
Wi-Fi | Yes |
Ports & interfaces | |
---|---|
USB Sleep-and-Charge ports | 1 |
USB Sleep-and-Charge | Yes |
SmartCard slot | Yes |
Docking connector | Yes |
Combo headphone/mic port | Yes |
Microphone in | No |
Headphone outputs | 1 |
HDMI version | 1.4b |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Performance | |
---|---|
Motherboard chipset | Intel SoC |
Keyboard | |
---|---|
Windows keys | Yes |
Spill-resistant keyboard | Yes |
Numeric keypad | Yes |
Keyboard backlit | Yes |
Pointing device | ThinkPad UltraNav |
Software | |
---|---|
Operating system architecture | 64-bit |
Operating system installed | Windows 10 Pro |
Processor special features | |
---|---|
Conflict-Free processor | Yes |
CPU configuration (max) | 1 |
Enhanced Intel SpeedStep Technology | Yes |
Intel Clear Video Technology | Yes |
Intel TSX-NI | No |
Intel 64 | Yes |
Intel® Smart Response Technology | Yes |
Intel® Identity Protection Technology (Intel® IPT) | Yes |
Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
Intel® Turbo Boost Technology | 2.0 |
Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
Intel® InTru™ 3D Technology | Yes |
Intel® Quick Sync Video Technology | Yes |
Intel® AES New Instructions (Intel® AES-NI) | Yes |
Intel Enhanced Halt State | Yes |
Intel® Secure Key | Yes |
Intel® OS Guard | Yes |
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
Thermal Monitoring Technologies | Yes |
Processor package size | 42 x 24 mm |
Intel® My WiFi Technology (Intel® MWT) | Yes |
Intel TSX-NI version | 0.00 |
Intel Identity Protection Technology version | 1.00 |
Intel Smart Response Technology version | 1.00 |
Intel Secure Key Technology version | 1.00 |
Intel Flex Memory Access | Yes |
Intel Trusted Execution Technology | No |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Execute Disable Bit | Yes |
Processor ARK ID | 122589 |
Embedded options available | No |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
Intel Software Guard Extensions (Intel SGX) | Yes |
Idle States | Yes |
Battery | |
---|---|
Fast charging | Yes |
Battery life (max) | 12 h |
Battery capacity | 45 Wh |
Battery technology | Lithium-Ion (Li-Ion) |
Power | |
---|---|
AC adapter input voltage | 100 – 240 V |
AC adapter frequency | 50 – 60 Hz |
AC adapter power | 65 W |
Security | |
---|---|
Password protection type | HDD, Power on, Supervisor |
Password protection | Yes |
Trusted Platform Module (TPM) | Yes |
Cable lock slot | Yes |
Certificates | |
---|---|
Certification | MIL-STD-810G |
Compliance certificates | RoHS |
Sustainability | |
---|---|
Sustainability certificates | EPEAT Gold, ENERGY STAR |
Weight & dimensions | |
---|---|
Height | 22.9 mm |
Depth | 254.5 mm |
Width | 376.5 mm |
Weight | 2 kg |
General | |
---|---|
Product family | ThinkPad |
Product series | L |
Packaging content | |
---|---|
Manual | Yes |
AC adapter included | Yes |
Other features | |
---|---|
Maximum internal memory (64-bit) | 32 GB |
