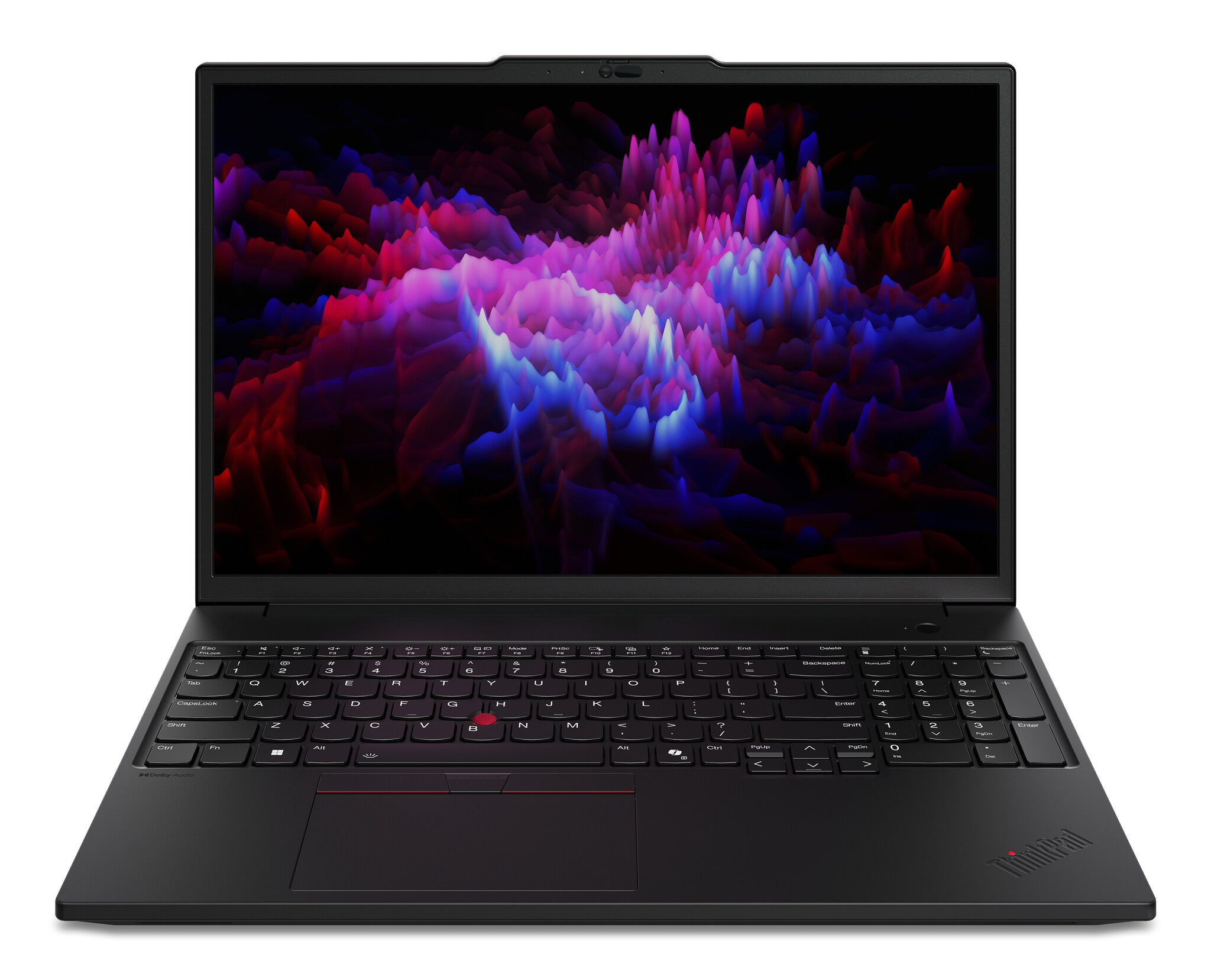

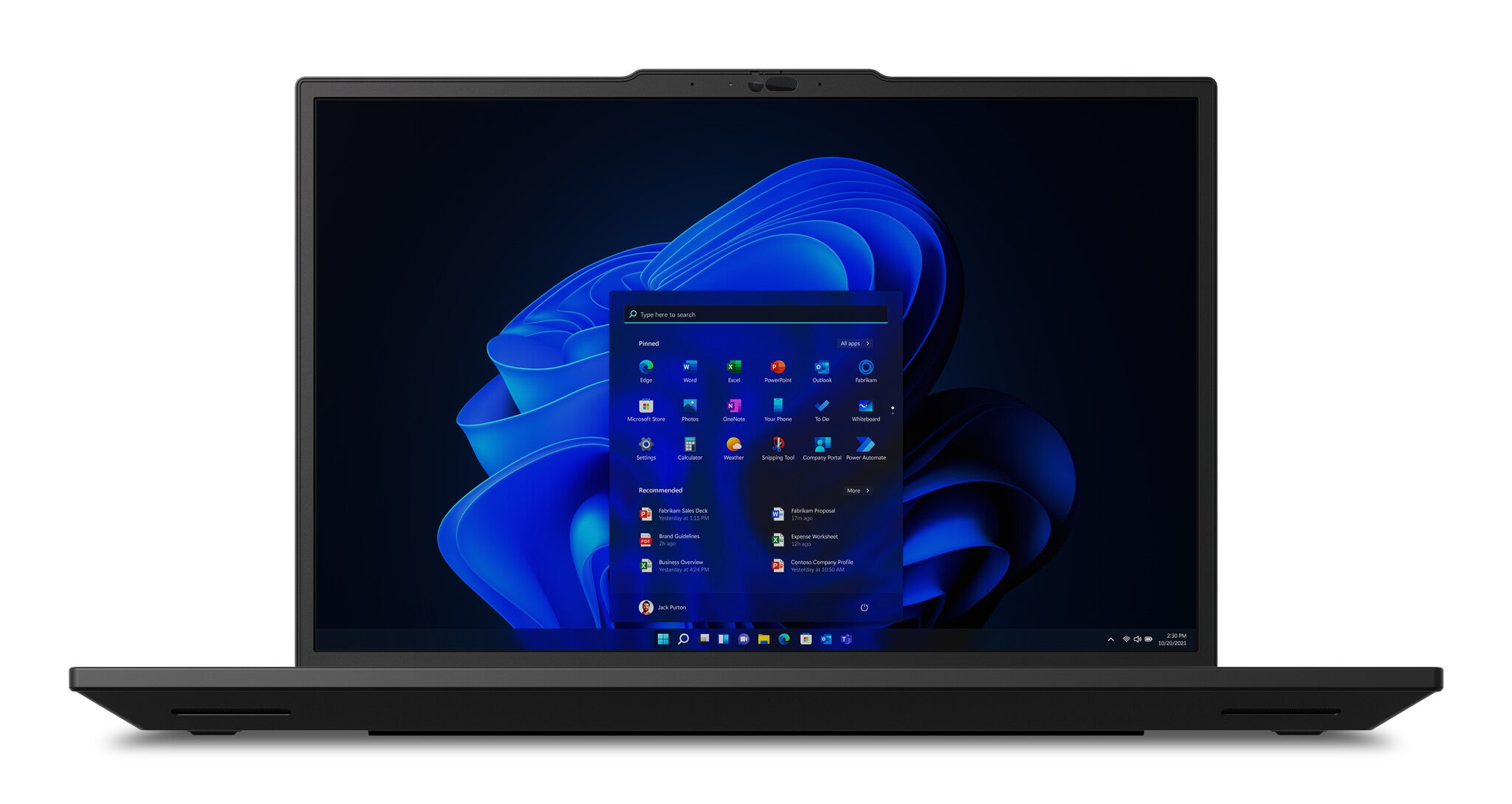

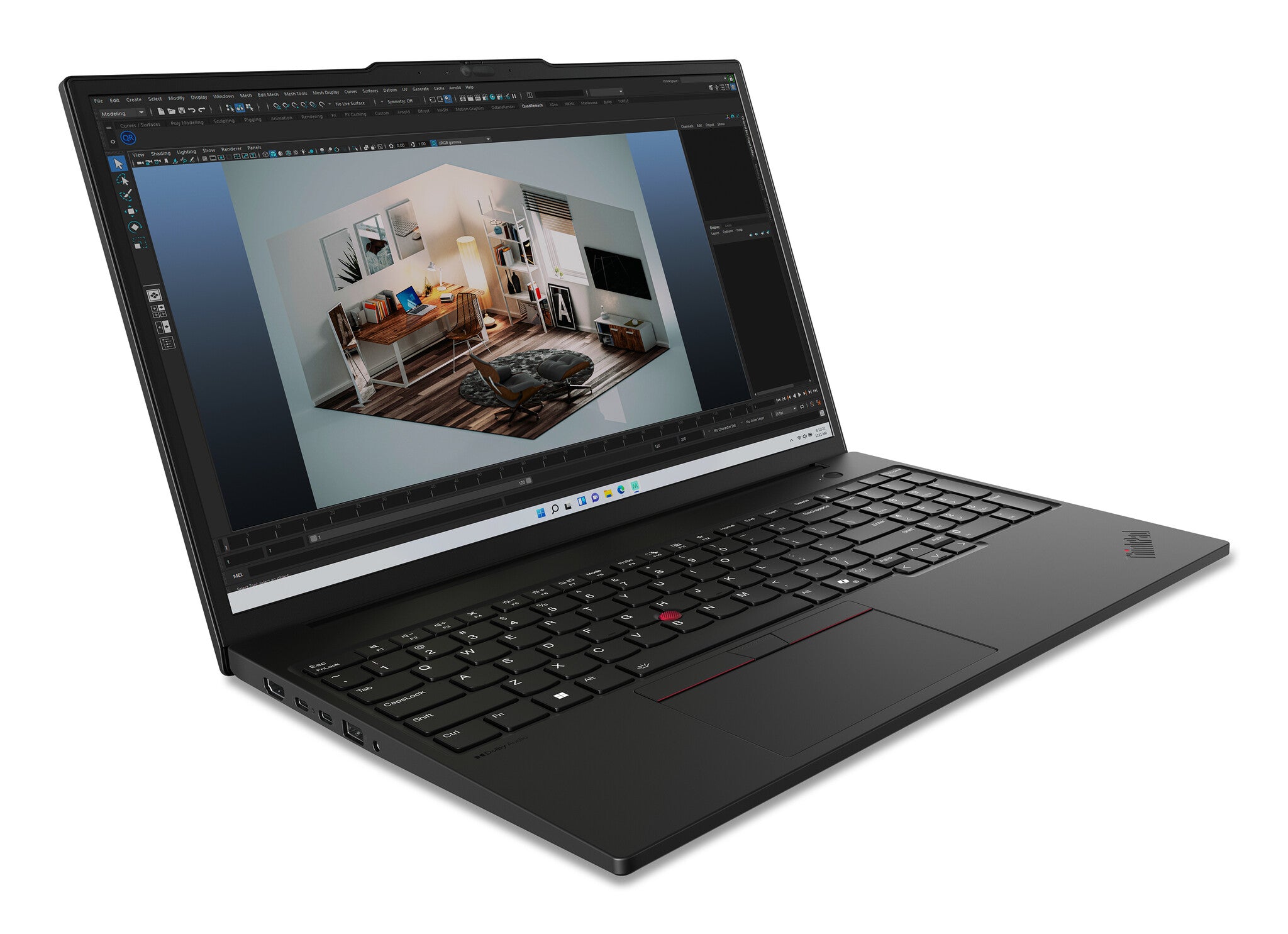

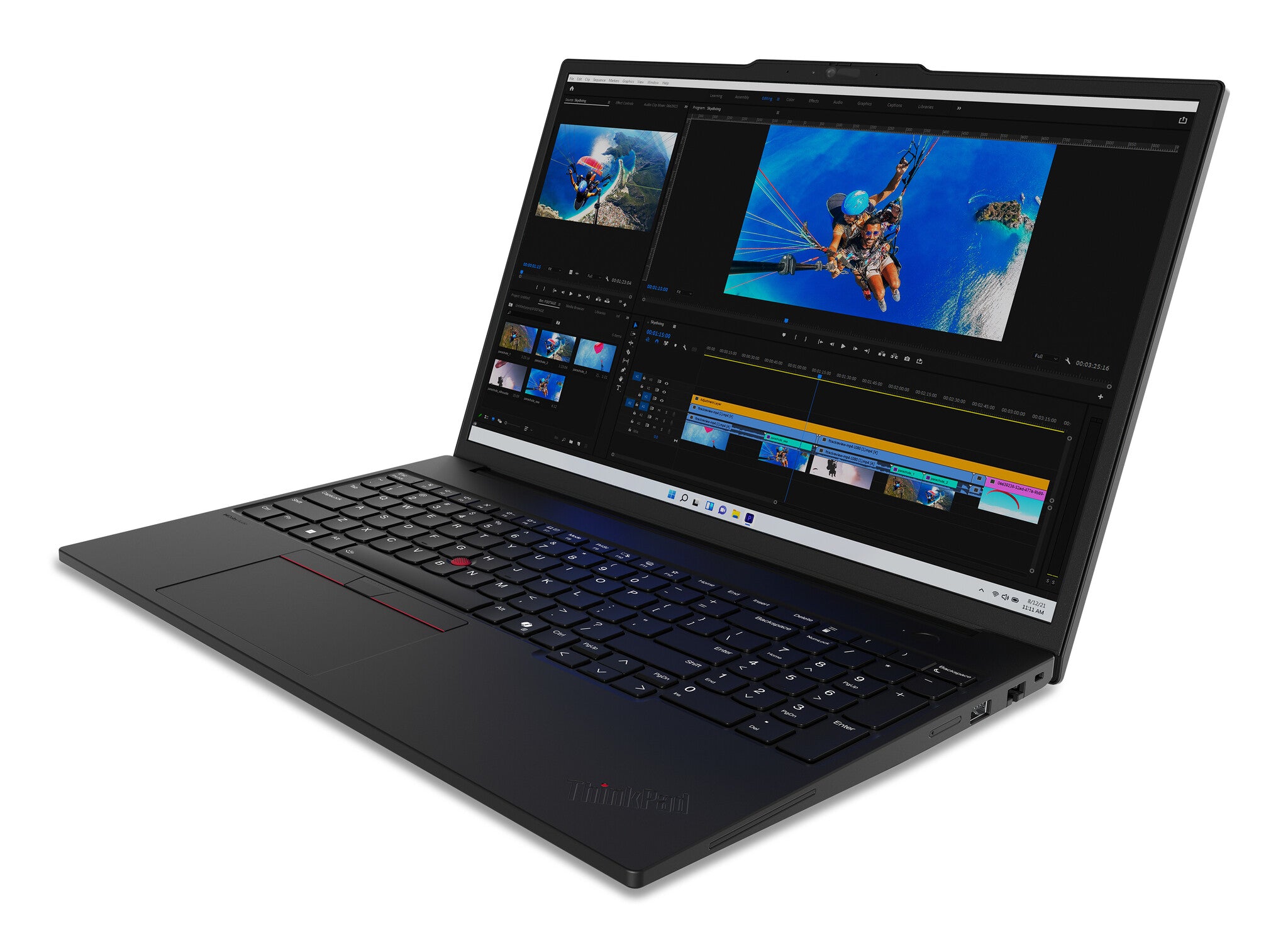

Lenovo ThinkPad P16s Gen 3 (Intel) Intel Core Ultra 7 155H Mobile workstation 40.6 cm (16″) WUXGA 16 GB DDR5-SDRAM 512 GB SSD NVIDIA RTX 500 Ada Wi-Fi 6E (802.11ax) Windows 11 Pro UK English Black
- Intel Core Ultra 7 155H, 16C (6P + 8E + 2LPE)/22T, Max Turbo up to 4.8GHz, 24MB
- 16″ WUXGA (1920×1200) IPS 300nits 45% NTSC
- 1x 16GB SO-DIMM DDR5-5600 Non-ECC
- 512GB SSD M.2 2280 PCIe 4.0×4 NVMe Opal 2.0
- NVIDIA RTX 500 Ada Generation 4GB
- Windows 11 Pro
Break New Ground: Performance & Power On the Go
– 16” high-powered mobile workstation for professionals on the move
– AI-assisted productivity unlocked with Intel® Core™ Ultra processor
– Independent software vendor (ISV) certifications like Adobe®, AVID®, Altair®
– Ideal for architects, administrators, engineers, 2D & entry-level 3D creators
| Design |
| Housing material |
Aluminium |
| Form factor |
Clamshell |
| Colour name |
Black |
| Product colour |
Black |
| Product type |
Mobile workstation |
| Display |
| RGB colour space |
NTSC |
| Colour gamut |
45% |
| Display brightness |
300 cd/m² |
| Anti-glare screen |
Yes |
| Native aspect ratio |
16:10 |
| LED backlight |
Yes |
| Panel type |
IPS |
| HD type |
WUXGA |
| Touchscreen |
No |
| Display resolution |
1920 x 1200 pixels |
| Display diagonal |
40.6 cm (16″) |
| Processor |
| Processor base power |
28 W |
| Maximum turbo power |
115 W |
| Processor cache type |
Smart Cache |
| Processor cache |
24 MB |
| Low Power Efficient-core Base Frequency |
700 MHz |
| Efficient-core base frequency |
0.9 GHz |
| Performance-core base frequency |
1.4 GHz |
| Low Power Efficient-core Max Turbo Frequency |
2.5 GHz |
| Efficient-core Max Turbo Frequency |
3.8 GHz |
| Performance-core Max Turbo Frequency |
4.8 GHz |
| Low Power Efficient-cores |
2 |
| Efficient cores |
8 |
| Performance cores |
6 |
| Processor boost frequency |
4.8 GHz |
| Processor threads |
22 |
| Processor cores |
16 |
| Processor model |
155H |
| Processor generation |
Intel® Core™ Ultra (Series 1) |
| Processor family |
Intel Core Ultra 7 |
| Processor manufacturer |
Intel |
| Neural processor unit (NPU) |
| AI software frameworks supported by NPU |
DirectML, ONNX RT, OpenVINO, Windows ML |
| AI datatype support on NPU |
FP16, FP32, Int8 |
| Windows Studio effects support |
Yes |
| Sparsity support |
Yes |
| Maximum frequency NPU |
1.4 GHz |
| Neural processor unit (NPU) |
Intel AI Boost |
| Memory |
| Maximum internal memory |
96 GB |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Memory clock speed |
5600 MHz |
| Memory form factor |
SO-DIMM |
| Internal memory type |
DDR5-SDRAM |
| Internal memory |
16 GB |
| Storage |
| Card reader integrated |
No |
| Optical drive type |
No |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel Arc Graphics |
| On-board graphics card family |
Intel Arc Graphics |
| On-board GPU manufacturer |
Intel |
| Discrete graphics memory type |
GDDR6 |
| Discrete graphics card memory |
4 GB |
| Discrete graphics card model |
NVIDIA RTX 500 Ada |
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Audio |
| Built-in microphone |
Yes |
| Number of microphones |
2 |
| Speaker power |
2 W |
| Number of built-in speakers |
2 |
| Audio chip |
Realtek ALC3287 |
| Camera |
| Privacy type |
Privacy shutter |
| Privacy camera |
Yes |
| Infrared (IR) camera |
Yes |
| Front camera resolution (numeric) |
5 MP |
| Network |
| WWAN |
Not installed |
| Near Field Communication (NFC) |
No |
| Bluetooth version |
5.3 |
| Bluetooth |
Yes |
| Ethernet LAN |
Yes |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| WLAN controller manufacturer |
Intel |
| Antenna type |
2×2 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Mobile network connection |
No |
| Ports & interfaces |
| USB Sleep-and-Charge |
Yes |
| Combo headphone/mic port |
Yes |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Performance |
| Motherboard chipset |
Intel SoC |
| Keyboard |
| Keyboard backlit |
Yes |
| Keyboard language |
UK English |
| Pointing device |
ThinkPad UltraNav |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Battery |
| Battery capacity |
75 Wh |
| Battery technology |
Lithium Polymer (LiPo) |
| Power |
| AC adapter input voltage |
100 – 240 V |
| AC adapter frequency |
50/60 Hz |
| AC adapter power |
135 W |
| Security |
| Trusted Platform Module (TPM) |
Yes |
| Trusted Platform Module (TPM) version |
2.0 |
| Windows Hello |
Yes |
| Smart card reader |
Yes |
| Fingerprint reader |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Operational conditions |
| Maximum shipping altitude |
3048 m |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating relative humidity (H-H) |
8 – 95% |
| Storage temperature (T-T) |
5 – 43 °C |
| Operating temperature (T-T) |
5 – 35 °C |
| Weight & dimensions |
| Height |
21.1 mm |
| Depth |
248.6 mm |
| Width |
361.5 mm |
| Weight |
1.82 kg |
| General |
| Product family |
ThinkPad |
| Product series |
P |
