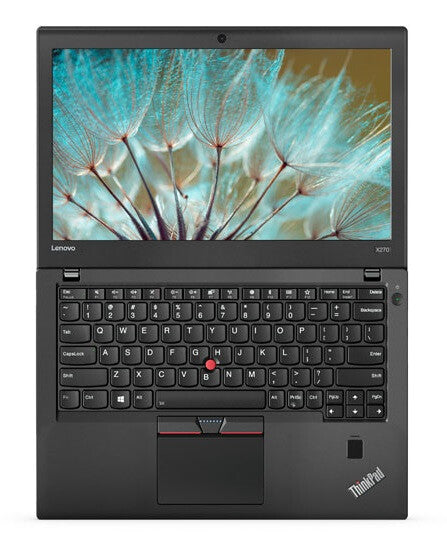

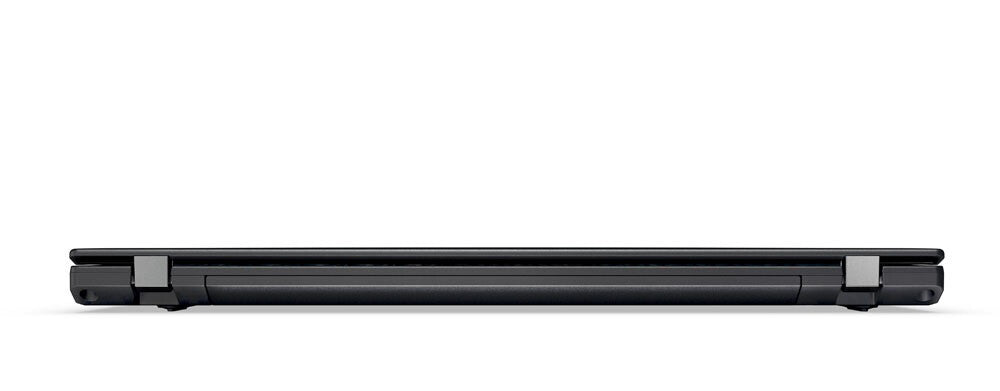

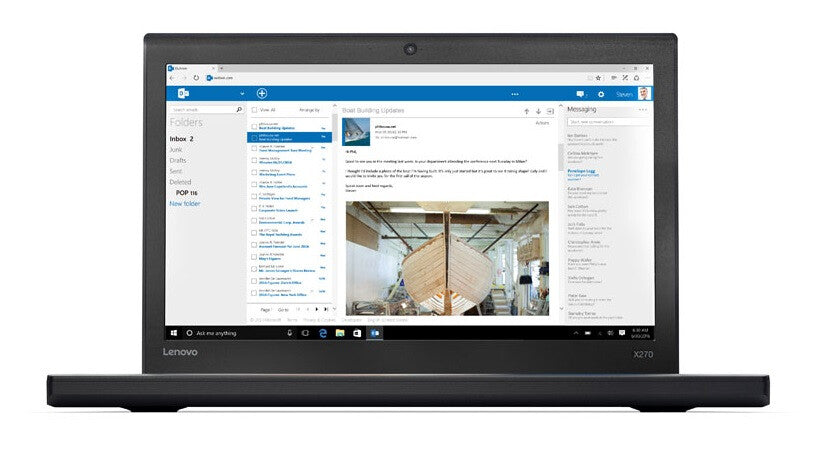

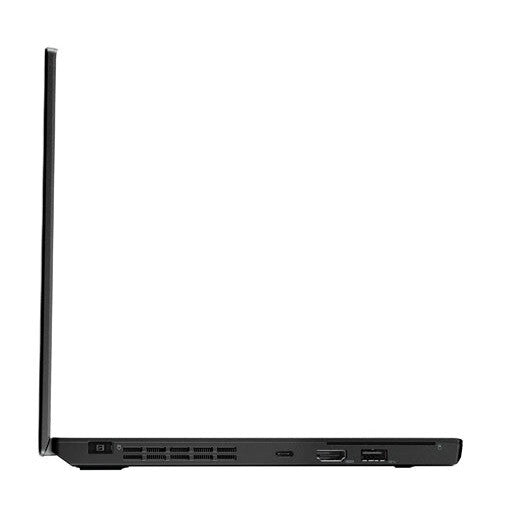

Lenovo ThinkPad X270 Intel® Core™ i7 i7-6600U Laptop 31.8 cm (12.5″) Full HD 16 GB DDR4-SDRAM 512 GB SSD Windows 7 Professional Black
- Business Laptop Clamshell Black
- Intel® Core™ i7 i7-6600U 2.6 GHz Processor cores: 2
- 31.8 cm (12.5″) Full HD 1920 x 1080 pixels IPS LED backlight Matt 16:9
- 16 GB DDR4-SDRAM 2133 MHz 1 x 16 GB
- 512 GB SSD
- Intel® HD Graphics 520
- Ethernet LAN 10,100,1000 Mbit/s Bluetooth 4.1 4G
- 45 W
- Windows 7 Professional 64-bit
Performance You Can Count On
With the responsiveness and efficiency of 7th generation Intel® Core™ processors, you can switch effortlessly between your favorite apps. What’s more, with a solid-state drive (SSD)—unlike with a regular mechanical hard drive—there are no moving parts and it performs faster. Boot up time is nearly three times quicker, while opening files is up to 30% faster. Even transferring files takes significantly less time. So in addition to delivering powerful performance, the X270 is quieter and more reliable.
Built for Business—Tested for Your Lifestyle
Tested against 12 military-grade requirements and passing more than 200 quality checks, the X270 is engineered to survive the bumps and bruises of life.
It Does the Heavy Lifting So You Don’t Have To
The X270 features convenient setup and deployment, as well as being highly manageable for when you need to service, upgrade, or secure. These laptops are engineered to make life—and work—easier for everyone, from the business professional to the IT technician.
Sacrifice Nothing for Portability
With two batteries and Power Bridge technology, the X270 affords great flexibility. And it’s lightweight, starting at just under three pounds. Feel free to leave the adapter behind and forget about searching for power outlets. Imagine instead what you could do with up to 21 hours* of battery life.
* Based on testing with MobileMark 2014. Battery life varies significantly with settings, usage, and other factors.
Go Ahead—Forget Your Password!
With Windows Hello, you’ll never have to remember another password. Simply touch the fingerprint scanner to log in to your X270
Less Really Is More
ThinkPad X270 is available with Microsoft Windows 10 Pro Signature Edition. No more trialware or unwanted apps. No more distractions—and easy provisioning for IT pros.
Up & Running Even If You’re Not
Even when WiFi is out of range, the X270 has LTE-A available—so you’ll always have connectivity and access to all your data and apps in the cloud.
Look Sharp. Sound Sharper
No matter where you are when you need to make a conference call, the HD webcam and noise-cancelling microphones on the X270 always ensure a great call experience. Plus, the 12.5” FHD display delivers sharp, vibrant visuals—perfect for working on the go or kicking back to enjoy a movie.
No Mouse Required
Based on customer feedback, we’ve refined both the TrackPoint and the TrackPad on our award-winning ThinkPad keyboard. With an improved design that lessens jumps and gaps when scrolling, our navigation technology delivers a smoother, cleaner, and more accurate experience. Interact the way you want to. And don’t be surprised if you find your productivity on the rise.
We Mean ALWAYS Covered
The ThinkPad X270 comes with a standard worldwide warranty, which means that you can get help in 160 countries around the globe. We work around the world so your business can too.
Design | |
---|---|
Market positioning | Business |
Housing material | Glass-reinforced plastic (GRP) |
Form factor | Clamshell |
Colour name | Black |
Product colour | Black |
Product type | Laptop |
Display | |
---|---|
Contrast ratio (typical) | 700:1 |
Display brightness | 300 cd/m² |
Screen shape | Flat |
Display surface | Matt |
Native aspect ratio | 16:9 |
LED backlight | Yes |
Panel type | IPS |
HD type | Full HD |
Touchscreen | No |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 31.8 cm (12.5″) |
Processor | |
---|---|
ECC supported by processor | No |
Maximum number of PCI Express lanes | 12 |
PCI Express slots version | 3.0 |
PCI Express configurations | 1×4, 4×1 |
Tjunction | 100 °C |
Configurable TDP-down | 7.5 W |
Configurable TDP-down frequency | 0.8 GHz |
Configurable TDP-up | 25 W |
Configurable TDP-up frequency | 2.8 GHz |
Thermal Design Power (TDP) | 15 W |
Stepping | D1 |
Bus type | OPI |
Processor codename | Skylake |
Processor series | Intel Core i7-6600 Mobile Series |
Processor operating modes | 64-bit |
Processor lithography | 14 nm |
Processor socket | LGA 1356 (Socket B2) |
Processor cache type | Smart Cache |
Processor cache | 4 MB |
Processor frequency | 2.6 GHz |
Processor boost frequency | 3.4 GHz |
Processor threads | 4 |
Processor cores | 2 |
Processor model | i7-6600U |
Processor generation | 6th gen Intel® Core™ i7 |
Processor family | Intel® Core™ i7 |
Processor manufacturer | Intel |
Memory | |
---|---|
Maximum internal memory | 16 GB |
Memory slots | 1x SO-DIMM |
Memory layout (slots x size) | 1 x 16 GB |
Memory clock speed | 2133 MHz |
Memory form factor | SO-DIMM |
Internal memory type | DDR4-SDRAM |
Internal memory | 16 GB |
Storage | |
---|---|
Compatible memory cards | MMC, SD, SDHC, SDXC |
Card reader integrated | Yes |
Optical drive type | No |
SSD form factor | M.2 |
SSD capacity | 512 GB |
Number of SSDs installed | 1 |
Storage media | SSD |
Total storage capacity | 512 GB |
Graphics | |
---|---|
On-board graphics card ID | 1916 |
On-board graphics card OpenGL version | 4.4 |
On-board graphics card DirectX version | 12.0 |
On-board graphics card base frequency | 300 MHz |
Maximum on-board graphics card memory | 32 GB |
On-board graphics card dynamic frequency (max) | 1050 MHz |
On-board graphics card model | Intel® HD Graphics 520 |
On-board graphics card family | Intel® HD Graphics |
Discrete graphics card model | Not available |
Discrete graphics card | No |
On-board graphics card | Yes |
Audio | |
---|---|
Built-in microphone | Yes |
Speaker power | 1.5 W |
Number of built-in speakers | 2 |
Audio chip | Realtek ALC3268 |
Camera | |
---|---|
Front camera signal format | 720p |
Front camera | Yes |
Network | |
---|---|
WWAN | Installed |
Bluetooth version | 4.1 |
Bluetooth | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN | Yes |
Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Wi-Fi | Yes |
4G standard | LTE |
Mobile network generation | 4G |
Mobile network connection | Yes |
Ports & interfaces | |
---|---|
USB Sleep-and-Charge ports | 1 |
USB Sleep-and-Charge | Yes |
SmartCard slot | Yes |
Docking connector | Yes |
Combo headphone/mic port | Yes |
Microphone in | No |
DVI port | No |
HDMI version | 1.4b |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Performance | |
---|---|
Motherboard chipset | Intel SoC |
Keyboard | |
---|---|
Windows keys | Yes |
Full-size keyboard | No |
Spill-resistant keyboard | Yes |
Numeric keypad | No |
Keyboard backlit | Yes |
Pointing device | ThinkPad UltraNav |
Software | |
---|---|
Recovery operating system | Windows 10 Pro |
Operating system architecture | 64-bit |
Operating system installed | Windows 7 Professional |
Processor special features | |
---|---|
Conflict-Free processor | Yes |
CPU configuration (max) | 1 |
Enhanced Intel SpeedStep Technology | Yes |
Intel Clear Video Technology | Yes |
Intel TSX-NI | Yes |
Intel 64 | Yes |
Intel Stable Image Platform Program (SIPP) | Yes |
Intel Smart Connect Technology | Yes |
Intel® Smart Response Technology | Yes |
Intel® Identity Protection Technology (Intel® IPT) | Yes |
Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
Intel® Turbo Boost Technology | 2.0 |
Intel® Small Business Advantage (Intel® SBA) | Yes |
Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
Intel® InTru™ 3D Technology | Yes |
Intel® Insider™ | Yes |
Intel® Quick Sync Video Technology | Yes |
Intel® AES New Instructions (Intel® AES-NI) | Yes |
Intel Enhanced Halt State | Yes |
Intel® Secure Key | Yes |
Intel® OS Guard | Yes |
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
Thermal Monitoring Technologies | Yes |
Processor package size | 42 X 24 mm |
Intel® My WiFi Technology (Intel® MWT) | Yes |
Processor code | SR2F1 |
Intel TSX-NI version | 1.00 |
Intel Identity Protection Technology version | 1.00 |
Intel Smart Response Technology version | 1.00 |
Intel Stable Image Platform Program (SIPP) version | 1.00 |
Intel Secure Key Technology version | 1.00 |
Intel Small Business Advantage (SBA) version | 1.00 |
Intel Flex Memory Access | Yes |
Intel Trusted Execution Technology | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Execute Disable Bit | Yes |
Processor ARK ID | 88192 |
Embedded options available | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
Graphics & IMC lithography | 14 nm |
Intel Software Guard Extensions (Intel SGX) | Yes |
Idle States | Yes |
Intel® Wireless Display (Intel® WiDi) | Yes |
Battery | |
---|---|
Number of battery cells | 3+3 |
Power | |
---|---|
DC-in jack | Yes |
AC adapter input voltage | 100 – 240 V |
AC adapter frequency | 50 – 60 Hz |
AC adapter power | 45 W |
Security | |
---|---|
Password protection type | HDD, Power on, Supervisor |
Password protection | Yes |
Trusted Platform Module (TPM) | Yes |
Fingerprint reader | Yes |
Cable lock slot | Yes |
Certificates | |
---|---|
Compliance certificates | RoHS |
Sustainability | |
---|---|
Sustainability certificates | ENERGY STAR |
Weight & dimensions | |
---|---|
Height | 20.3 mm |
Depth | 208.5 mm |
Width | 305.5 mm |
Weight | 1.36 kg |
General | |
---|---|
Product family | ThinkPad |
Product series | X |
Packaging content | |
---|---|
Quick start guide | Yes |
Manual | Yes |
Power cord included | Yes |
AC adapter included | Yes |
Other features | |
---|---|
Maximum internal memory (64-bit) | 16 GB |
3D | No |
