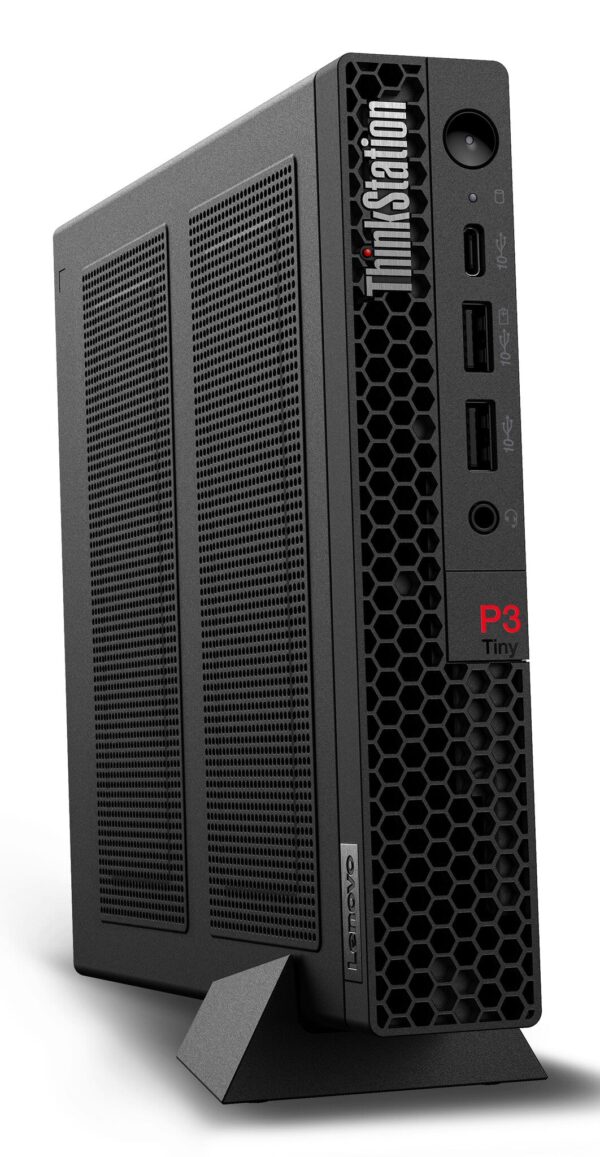

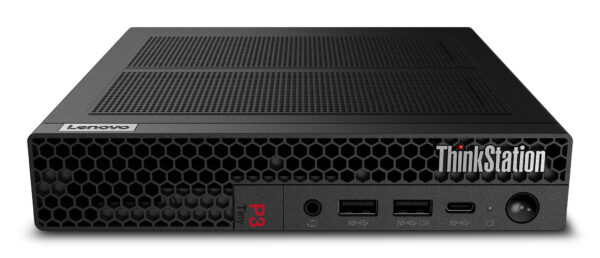

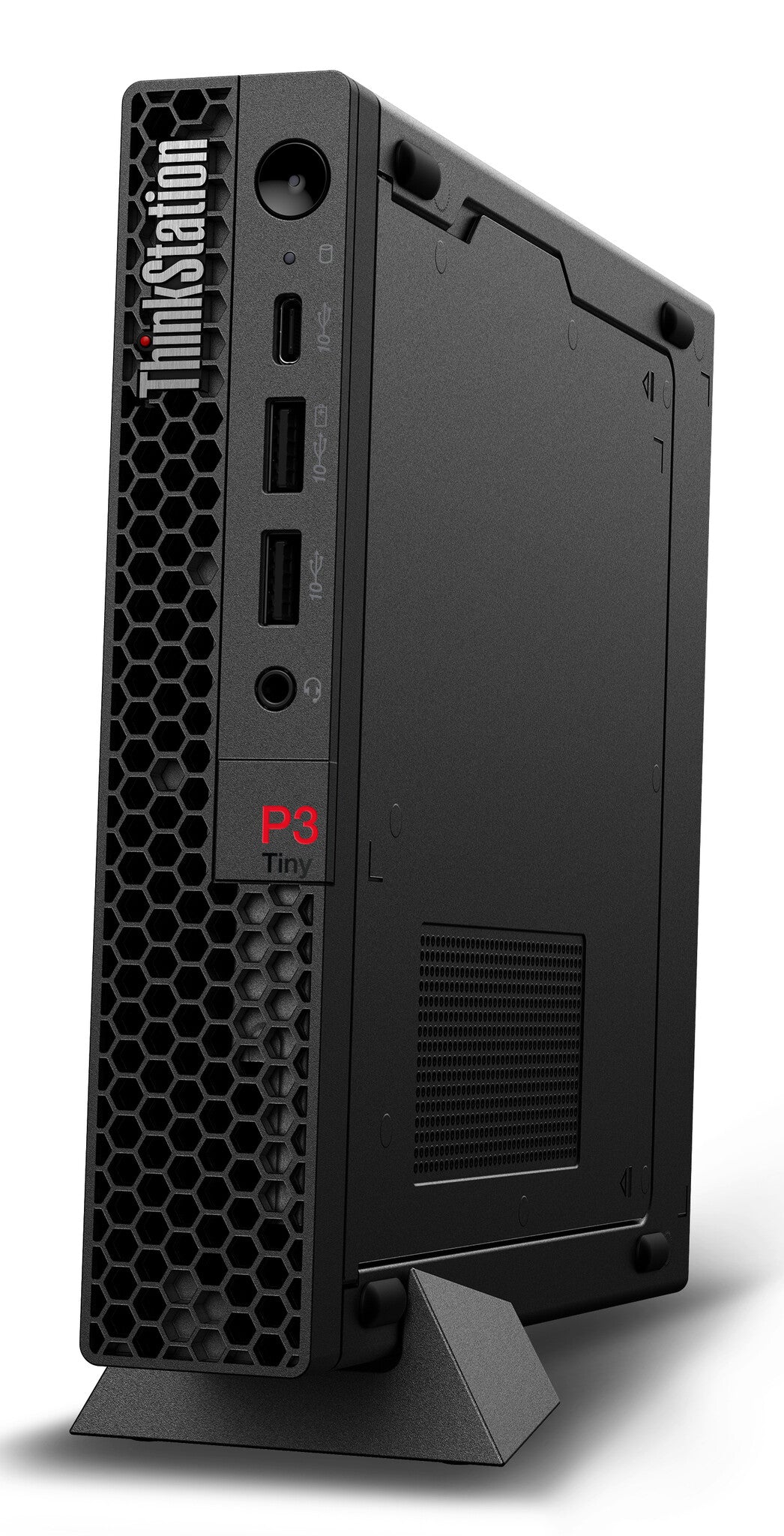

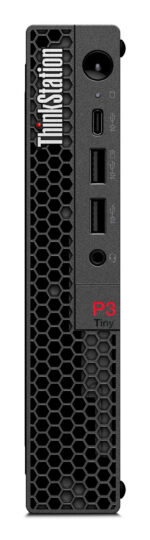

Lenovo ThinkStation P3 Tiny Intel® Core™ i7 i7-14700 16 GB DDR5-SDRAM 512 GB SSD NVIDIA T400 Windows 11 Pro Mini PC Workstation Black
- Intel Core i7-14700, 20C (8P + 12E)/28T, Max Turbo up to 5.4GHz, P-core 2.1/5.3GHz, E-core 1.5/4.2GHz, 33MB
- 1x 16GB SO-DIMM DDR5-5600 Non-ECC
- 1x 512GB SSD M.2 2280 PCIe 4.0×4 NVMe Opal
- 1x NVIDIA T400 4GB
- Windows 11 Pro
Meet the world’s smallest workstation
– Compact, efficient Tiny with all the power of a regular workstation
– 96% smaller than a traditional desktop, can go where other PCs can’t
– Blazingly-fast Intel® Core™ processors with Intel vPro® optional discrete graphics
– Reliable, easy-to-deploy, & versatile, ISV-certified, supports up to 6 displays
– Ideal for architecture, engineering, finance, healthcare, & STEM education
| Processor |
| Processor base power |
65 W |
| Maximum turbo power |
219 W |
| Processor cache type |
Smart Cache |
| Processor cache |
33 MB |
| Efficient-core base frequency |
1.5 GHz |
| Performance-core base frequency |
2.1 GHz |
| Efficient-core Max Turbo Frequency |
4.2 GHz |
| Performance-core Max Turbo Frequency |
5.3 GHz |
| Efficient cores |
12 |
| Performance cores |
8 |
| Processor boost frequency |
5.4 GHz |
| Processor threads |
28 |
| Processor cores |
20 |
| Processor model |
i7-14700 |
| Processor generation |
Intel® Core™ i7 (14th gen) |
| Processor family |
Intel® Core™ i7 |
| Processor manufacturer |
Intel |
| Memory |
| Memory clock speed |
5600 MHz |
| Memory slots |
2x SO-DIMM |
| Memory layout (slots x size) |
1 x 16 GB |
| Internal memory type |
DDR5-SDRAM |
| Maximum internal memory |
64 GB |
| Internal memory |
16 GB |
| Storage |
| SSD form factor |
M.2 |
| SSD interface |
PCI Express 4.0 |
| NVMe |
Yes |
| SSD capacity |
512 GB |
| Number of SSDs installed |
1 |
| Total SSDs capacity |
512 GB |
| Storage media |
SSD |
| Optical drive type |
No |
| Total storage capacity |
512 GB |
| Graphics |
| On-board graphics card model |
Intel UHD Graphics 770 |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board GPU manufacturer |
Intel |
| Number of discrete graphics cards |
1 |
| Discrete graphics card memory |
4 GB |
| Discrete graphics card model |
NVIDIA T400 |
| Discrete GPU manufacturer |
NVIDIA |
| On-board graphics card |
Yes |
| Discrete graphics card |
Yes |
| Network |
| Bluetooth version |
5.1 |
| Bluetooth |
Yes |
| Antenna type |
2×2 |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer |
Intel |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| Combo headphone/mic port |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Design |
| Product colour |
Black |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Placement supported |
Horizontal/Vertical |
| Volume |
1 L |
| Colour name |
Black |
| Chassis type |
Mini PC |
| Performance |
| Trusted Platform Module (TPM) |
Yes |
| Audio system |
High Definition Audio |
| Motherboard chipset |
Intel Q670 |
| Product type |
Workstation |
| Software |
| Operating system architecture |
64-bit |
| Operating system installed |
Windows 11 Pro |
| Power |
| Power supply input frequency |
50 – 60 Hz |
| Power supply input voltage |
100 – 240 V |
| Power supply |
300 W |
| Operational conditions |
| Non-operating altitude |
0 – 12192 m |
| Operating altitude |
0 – 3048 m |
| Storage relative humidity (H-H) |
10 – 90% |
| Operating relative humidity (H-H) |
20 – 80% |
| Storage temperature (T-T) |
-40 – 60 °C |
| Operating temperature (T-T) |
10 – 35 °C |
| Weight & dimensions |
| Weight |
1.4 kg |
| Height |
37 mm |
| Depth |
182.9 mm |
| Width |
179 mm |
| Packaging content |
| Keyboard included |
Yes |
| Mouse included |
Yes |
| Display included |
No |
| General |
| Product family |
ThinkStation |
| Product series |
P |
