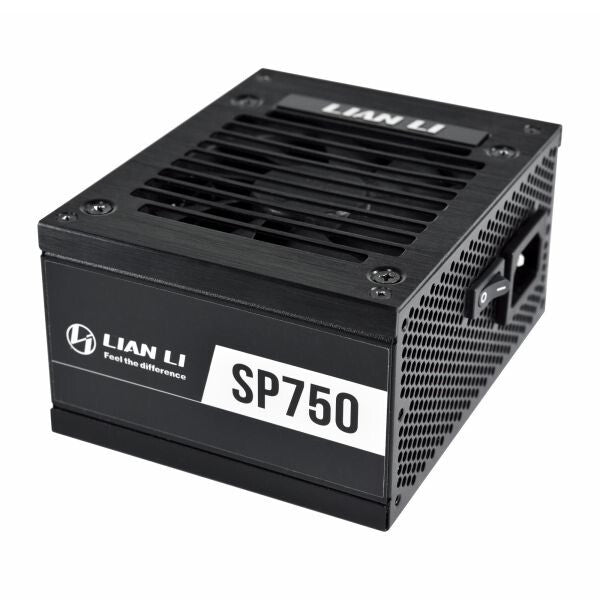

Lian Li SP750 power supply unit 750 W 20-pin ATX SFX Black
- 80 PLUS GOLD Efficiency
- Fully modular braided cables for a clean look
- Japanese electrolytic capacitors for high durability
- ZERO RPM mode under 40% load for silent operation
- Sleek and classic exterior with brushed aluminum housing
The SP750 is a stylish high-performance PSU that perfectly fits small-form-factor PCs while supporting power-hungry components.
80 PLUS Gold Certificate
SP750 guarantees up to 92% efficiency, ensuring less power wastage.
Cooling in Silence
The SP750 features a 92mm hydraulic bearing fan that operates at zero RPM mode until 40% load in order to achieve minimal acoustic levels.

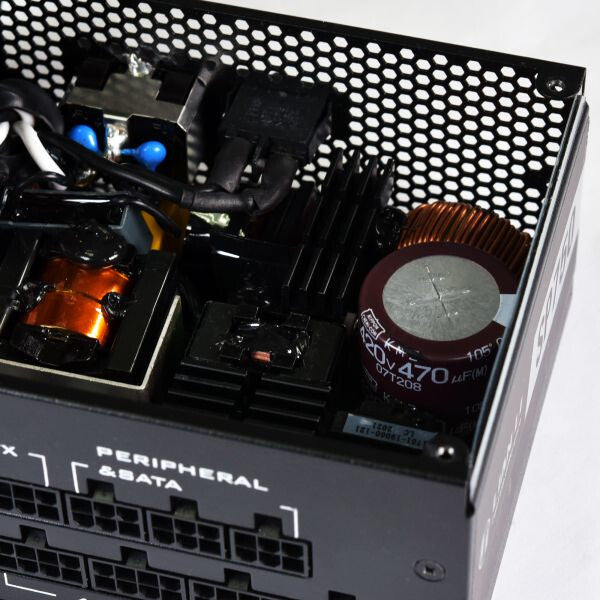

Japanese Electrolytic Capacitors
Premium Japanese electrolytic capacitors provide great durability and long-term reliability, as well as offering the highest stability.
Sleek Look with Aluminum Housing
Carrying along the same visual identity and quality as LIAN LI cases, the SP750 integrates a brushed aluminum top housing for a sleek, elegant, and modern look.
Fully Modular Connection and Included Braided Cables
The fully modular power supply provides all necessary braided cables right out of the box, ensuring less cable clutter and more aesthetics.
| Power | |
|---|---|
| Efficiency | 91.89% |
| Combined power (+5V) | 100 W |
| Combined power (+12V) | 744 W |
| Combined power (+3.3V) | 100 W |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Total power | 750 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| CPU power cable length | 45 cm |
| CPU P4 connector (4-pin) | 1 |
| PCI Express power cable length | 40 cm |
| PCI Express power connectors (8-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 120 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| SATA power cable length | 120 mm |
| Number of SATA power connectors | 2 |
| Motherboard power cable length | 30 cm |
| Motherboard power connector | 20-pin ATX |
| Performance | |
|---|---|
| Bearing technology | FDB |
| Noise level | 31.8 dB |
| Silent mode | Yes |
| Supported motherboard form factors | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | SFX |
| Purpose | PC |
| Design | |
|---|---|
| Product colour | Black |
| Safety regulation & standards | |
|---|---|
| Safety | OCP/ OPP/ UVP/ OVP/ OTP/ SCP |
| Packaging content | |
|---|---|
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
|---|---|
| Height | 125 mm |
| Depth | 100 mm |
| Width | 63.5 mm |
