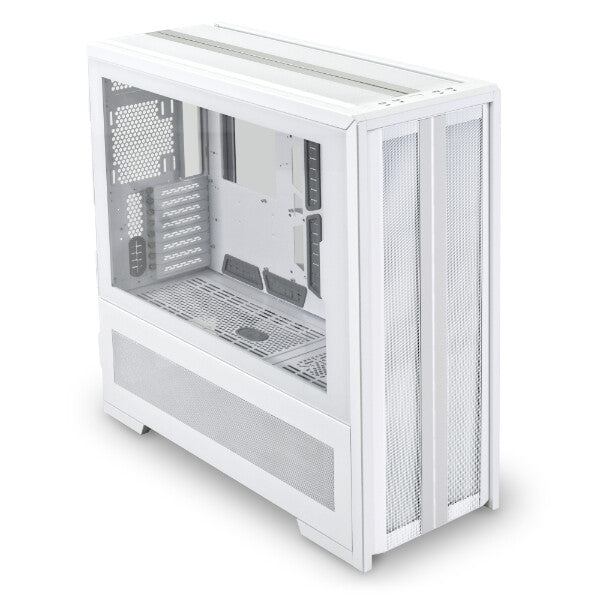

Lian Li V3000PW computer case Full Tower White
- Full tower chassis with 3 modes: Standard/ Rotate/ Dual-System
- Capability to support an EEB motherboard and an ITX motherboard
- Supports up to 4×480 + 1×360 radiators and a maximum of 16 fans
- Two reservoir plates accommodate large D5/ DDC pump
- Stores up to 16 storage drives at drive cages and trays
- Modular removable brackets offer flexibility for builds
- Cable management friendly with 7 Velcro straps
THE LEGEND RETURNS
V3000 PLUS, the legend’s continuation, is an eye-catching full tower chassis. Designed for enthusiasts, the V3000 PLUS offers a great building process and improved thermal control.
IDENTIFY YOUR MODE
V3000 PLUS is designed with flexibility and possibilities in mind. Thanks to a removable motherboard tray and an adaptable PSU shroud compartment, the V3000 PLUS can be set in Mode 1 as a standard build, Mode 2 for a rotated motherboard with a unique look, or Mode 3, as a dual system.
Standard Mode
A spacious case for housing large components.
Rotated Mode
Benefits GPU cooling with direct airflow.
Dual System Mode
Accommodates 2 full systems at a time.
IN PURSUIT OF PERFORMANCE
V3000 PLUS is designed with enthusiast-level custom water-cooling in mind, leveraging its spacious room for custom loops and endless possibilities.
POWERFUL POTENTIAL
2 reservoir mounting plates are included for D5 or DDC pump, allowing configuration personalization.
RAISE THE LIMITS
The V3000 PLUS implements 1. relocatable drive cage (in the PSU shroud compartment or main chamber), 2. SSD plates (besides the motherboard), and 3. toolless SSD drive trays (behind the motherboard) for all kinds of storage needs.
TOOL-FREE INSTALLATION
The toolless SSD trays behind the motherboard simplifies the mounting of SSDs.
CABLE ROUTING SPACE
With cable management in mind, V3000 PLUS offers 5 small Velcro straps and 2 large multi-layer ones to create a clear routing path. In addition, the rear tempered glass panel features a dark tint to keep the cables as hidden as possible.
HOT SWAP DRIVE MODULE
Enables the removal and replacement of the hard drives in the drive cage without unplugging any cables.
VERTICAL GPU PCIE 4.0 RISER CABLE
The 200mm 90° to 180° connection riser cable is necessary for installing the GPU vertically.
DUAL GPU PCIE 4.0 RISER CABLE
The 240mm 90° to 90° connection riser cable is necessary for installing a 2nd GPU in the PSU shroud compartment.
| Design | |
|---|---|
| Maximum PSU length | 22 cm |
| Maximum CPU cooler height | 19.8 cm |
| On/off button | Yes |
| Reset button | Yes |
| Anti-dust filter | Yes |
| Side window | Yes |
| Number of expansion slots | 8 |
| Number of 2.5″ bays | 8 |
| Number of 3.5″ bays | 8 |
| Supported motherboard form factors | ATX, EATX, EEB, micro ATX, Micro-ITX |
| Product colour | White |
| Material | Aluminium, Steel, Tempered glass |
| Type | PC |
| Form factor | Full Tower |
| Power supply | |
|---|---|
| Supported power supply form factors | ATX, SFX, SFX-L |
| Ports & interfaces | |
|---|---|
| Audio output | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Cooling | |
|---|---|
| Top radiator sizes supported | 420,480 mm |
| Rear radiator sizes supported | 240,360 mm |
| Front radiator sizes supported | 420,480 mm |
| Bottom fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 4 |
| Top fans diameters supported | 120,140,200 mm |
| Number of top fans supported (max) | 4 |
| Rear fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Number of front fans supported (max) | 4 |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5″ |
| Weight & dimensions | |
|---|---|
| Height | 674 mm |
| Depth | 678.5 mm |
| Width | 278 mm |
