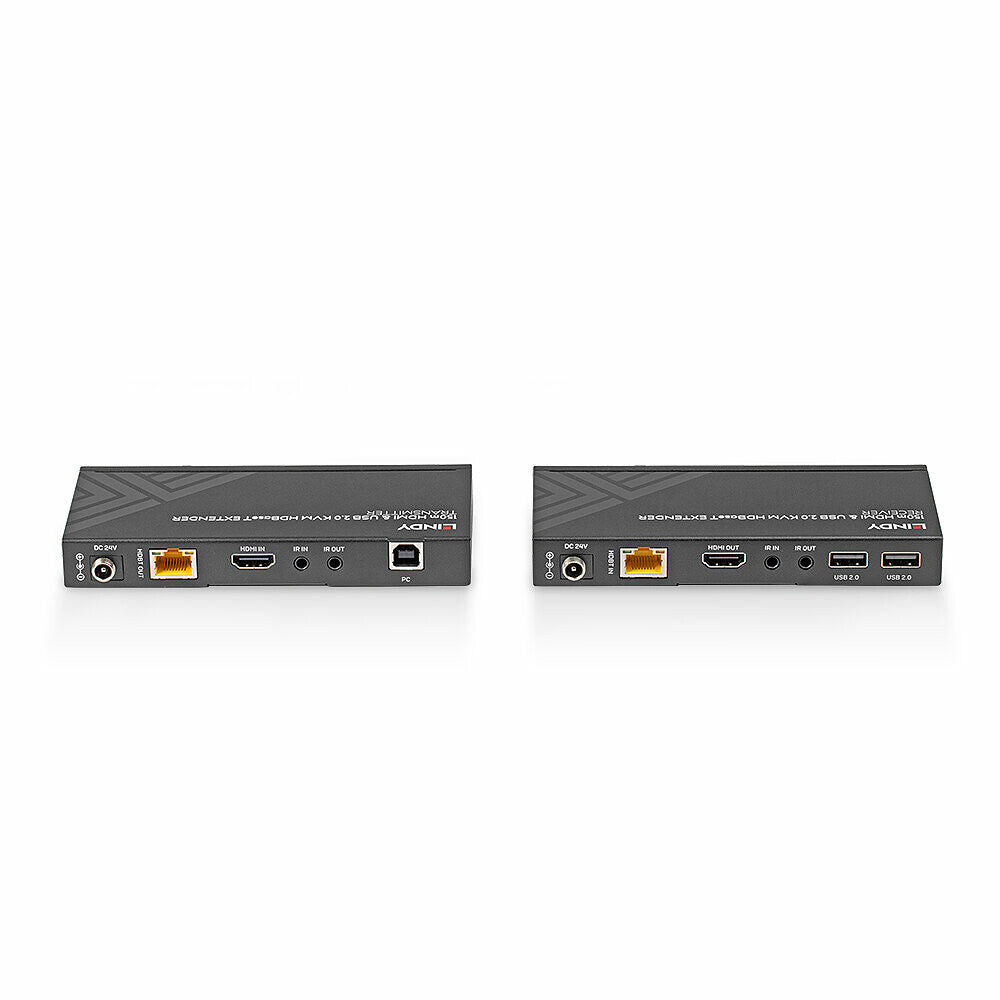

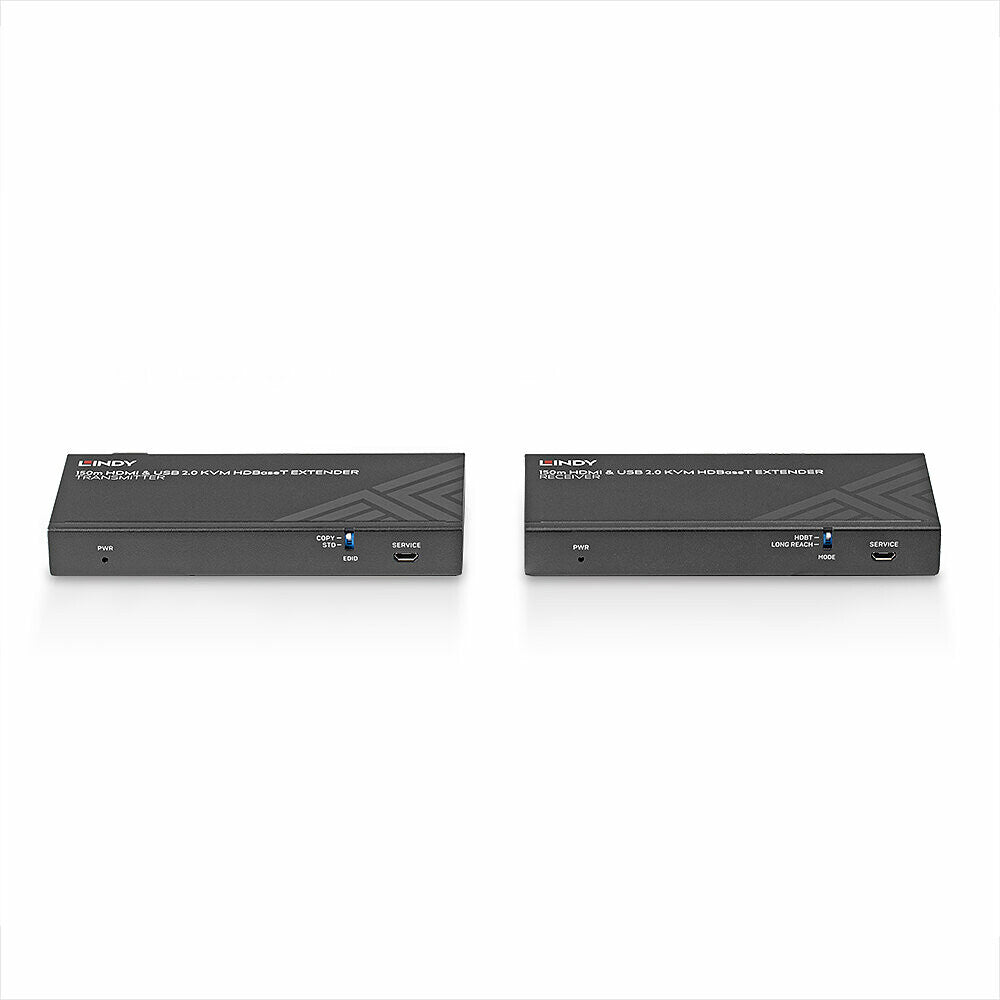

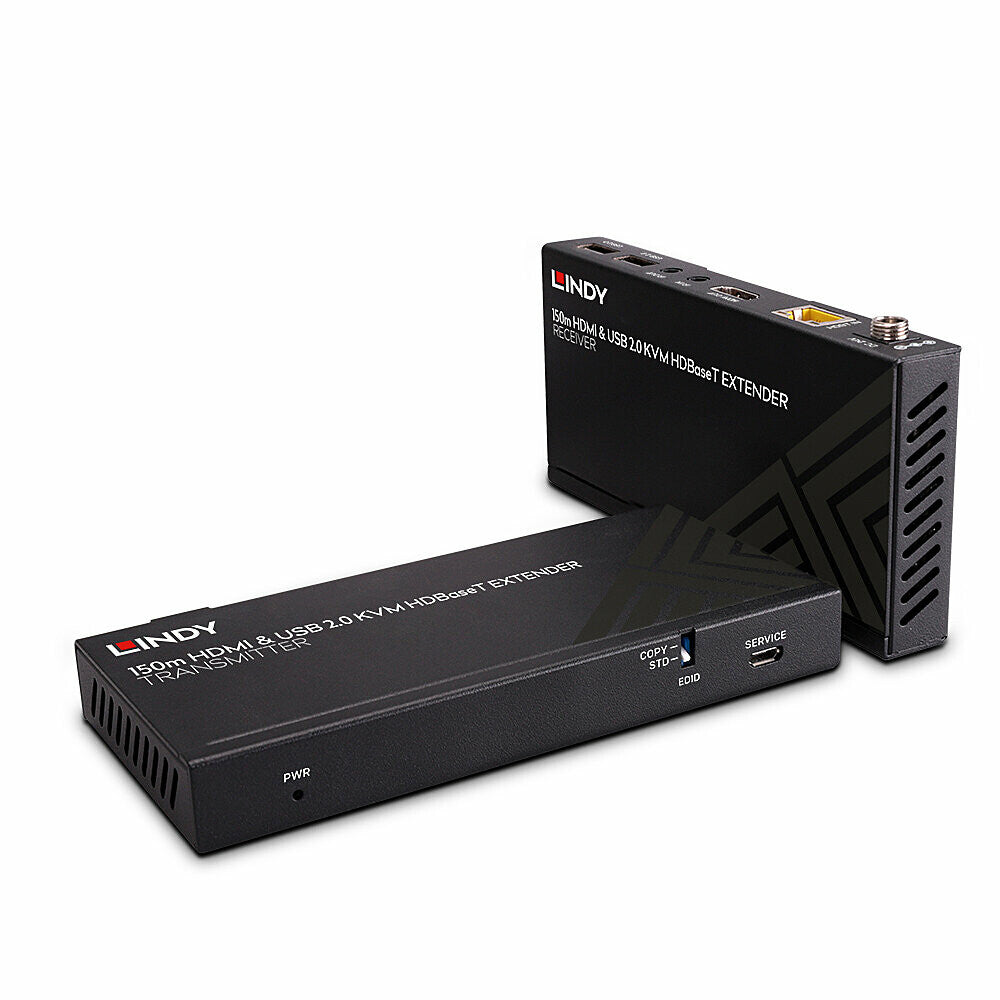

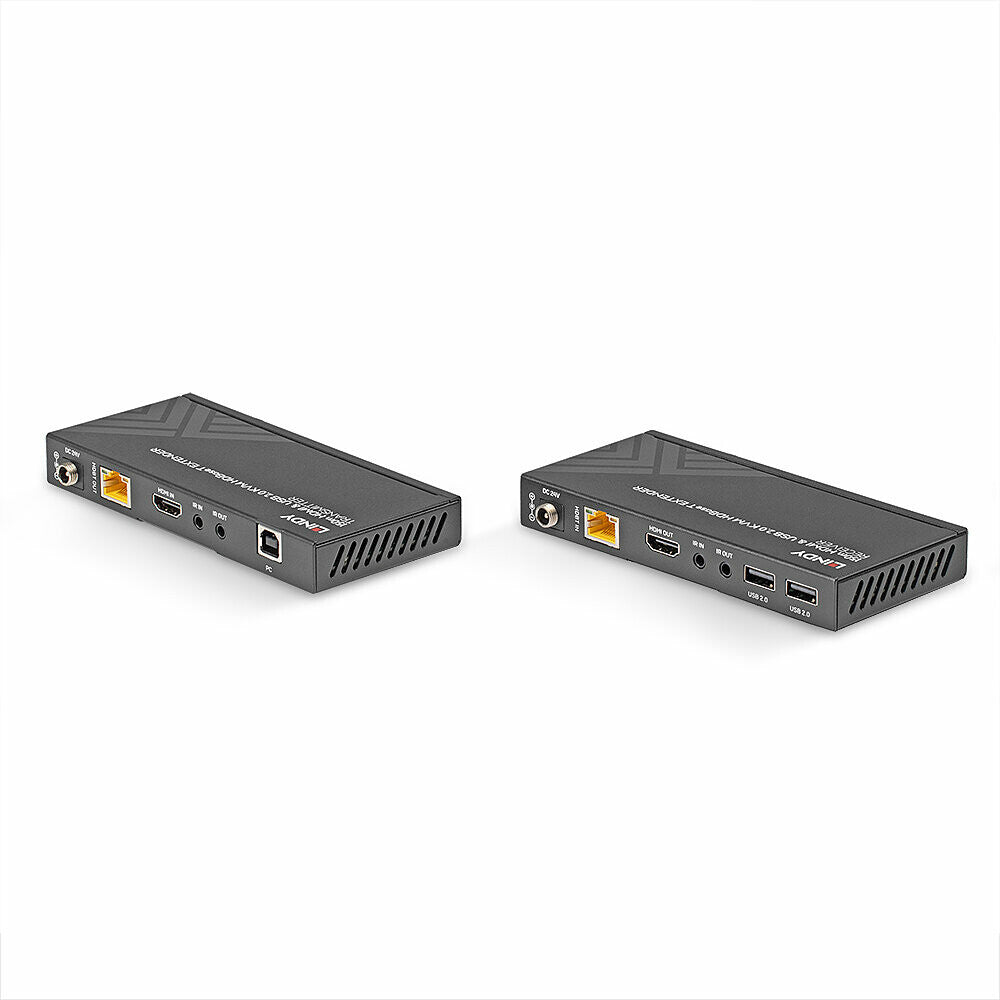

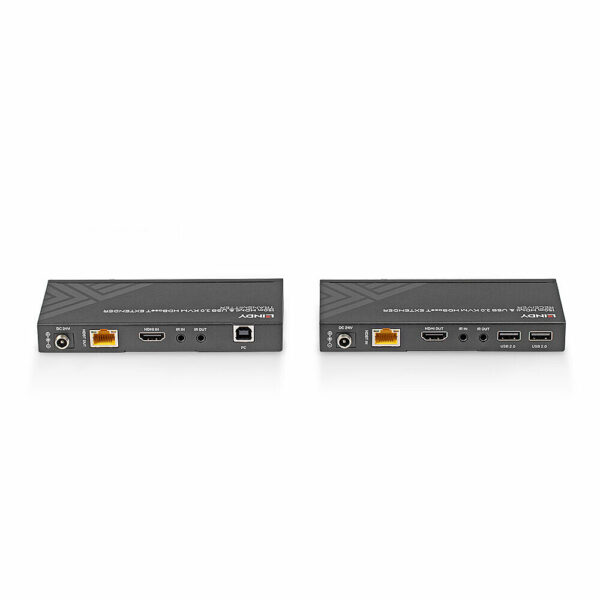

Lindy 150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender
- Distributes HDMI resolutions up to 150m over Cat.6 network cable via HDBaseT technology with Long Reach mode
- Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
- Supports USB 2.0 & bi-directional IR for control
- Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation
The Lindy 150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender is a complete end to end high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.
Setting up HDBT mode, this extender supports USB 2.0 devices like mouse, keyboard, and other peripherals to be connected to the receiver to control a source device such as a PC or laptop or for data transfer while in Long Reach mode only USB HID devices are supported. Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT_ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
| Features | |
|---|---|
| Chipset | VS010-A0 |
| Material | Metal |
| Product colour | Black |
| Supported resolutions | 3840 x 21601920 x 1080 |
| Colour depth | 12 bit |
| Maximum refresh rate | 60 Hz |
| Maximum digital resolution | 3840 x 2160 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 150 m |
| Connectivity technology | Wired |
| Type | Transmitter & receiver |
| Transmitter | |
|---|---|
| RJ-45 ports quantity (transmitter) | 1 |
| Transmitter USB Type-B ports quantity | 1 |
| Transmitter Micro-USB ports quantity | 1 |
| Transmitter local video port type | HDMI |
| Transmitter local video port | Yes |
| Receiver | |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver USB Type-A ports quantity | 2 |
| Receiver Micro-USB ports quantity | 1 |
| Receiver local video port type | HDMI |
| Ports & interfaces | |
|---|---|
| Remote (IR) input | 2 |
| Remote (IR) output | 2 |
| HDMI version | 2.0 |
| Power | |
|---|---|
| DC-in jack | Yes |
| Power consumption (receiver) (max) | 13.2 W |
| Power consumption (transmitter) (max) | 13.2 W |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Weight & dimensions | |
|---|---|
| Receiver weight | 790 g |
| Receiver height | 1.8 cm |
| Receiver depth | 6.5 cm |
| Receiver width | 14 cm |
| Transmitter weight | 790 g |
| Transmitter height | 1.8 cm |
| Transmitter depth | 6.5 cm |
| Transmitter width | 14 cm |
| Packaging data | |
|---|---|
| Package weight | 1.02 kg |
| Package height | 75 mm |
| Package depth | 185 mm |
| Package width | 245 mm |
| Packaging content | |
|---|---|
| Screws included | Yes |
| Included power plug types | AU, EU, UK, US |
| Manual | Yes |
| Cables included | IR, USB Type-A to USB Type-B |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 90% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Other features | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Bandwidth | 18 Gbit/s |
| Infrared (IR) frequency range | 20 – 60 kHz |
| Extended display identification data (EDID) | Yes |
| HDCP version | 2.2 |
| HDCP | Yes |
