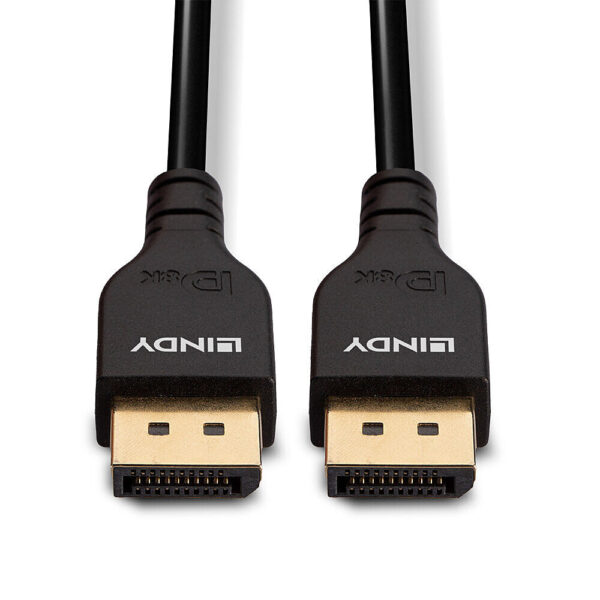

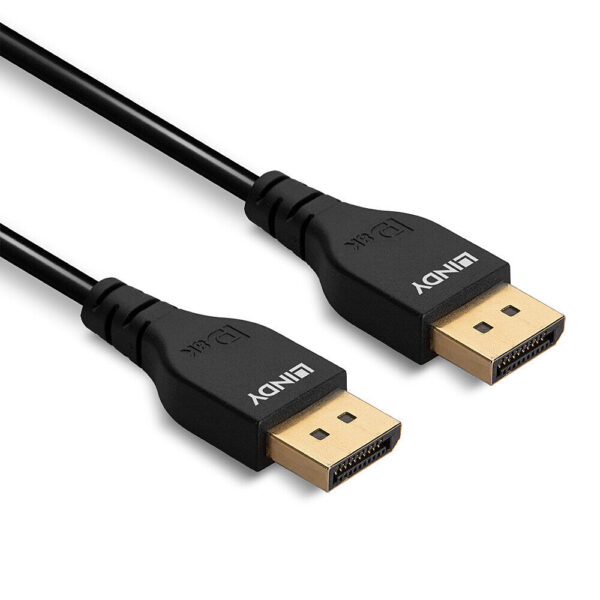

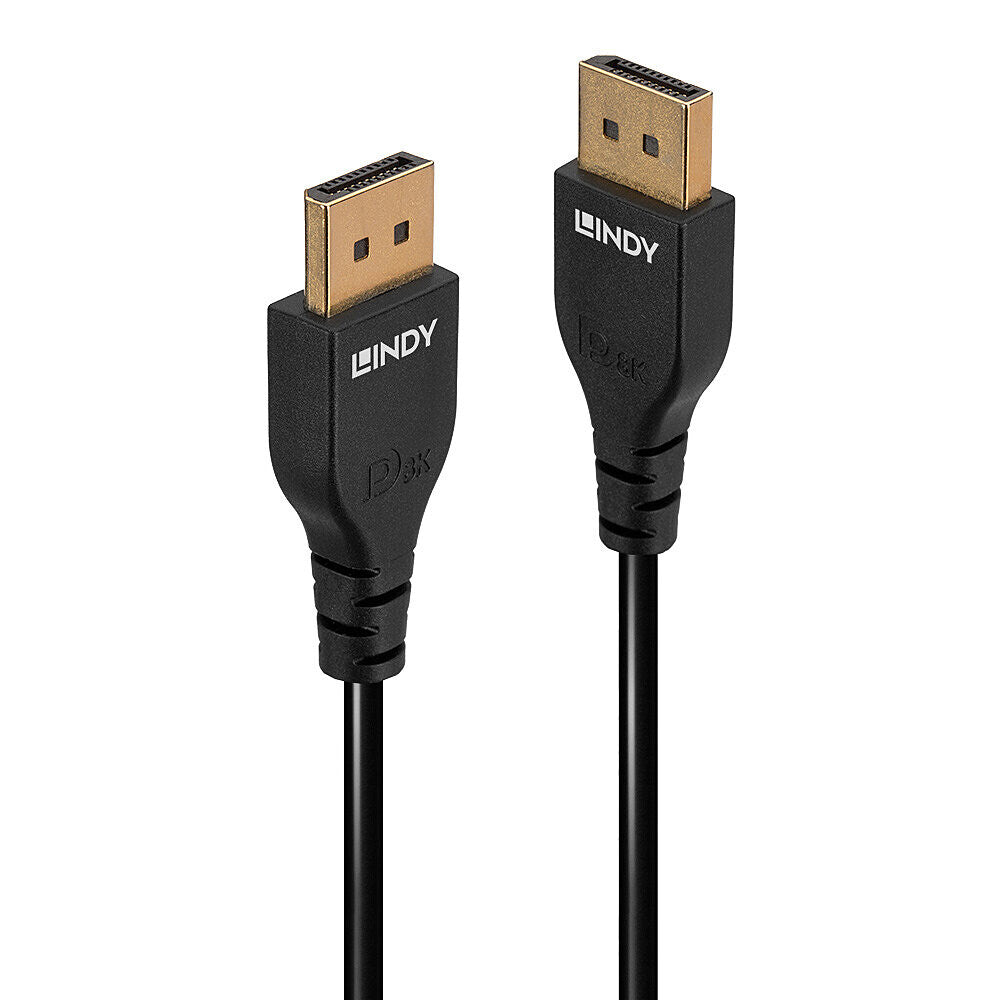

Lindy 2m Slim DisplayPort 1.4 Cable
- Professional choice slim DisplayPort 1.4 cable with low profile connectors
- Supports UHD resolutions up to 8K 7680×4320@60Hz 4:2:2 8bit and 4K 4096×2160@144Hz 4:2:2 10bit
- Robust ABS housing with 24K gold-plated connectors and contacts
- Triple shielded cable, corrosion resistant tinned copper 30AWG conductors
- 10-year warranty
Lindy’s range of slim DisplayPort cables provide a more flexible and high-quality DP connection solution, utilising a specially designed compact, low profile connector and a smaller diameter cable structure.
With their compact, high performance design, these cables are ideal for situations where space is limited around source and display ports, such as with gaming monitors or graphics cards. Their triple shielded 30AWG pure copper conductors ensure overall improved performance, while gold-flashed phosphor bronze pins protect against corrosion and fatigue. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
Supporting DP 1.4 resolutions including 8K@60Hz and 4K@144Hz, these cables are great for high-level gaming setups, whether in the home or in an eSports arena, or alternatively with small-scale, digital signage installs such as Shop-in-Shops or concession stands. With lengths available in 0.5, 1, 2 and 3m, they are also a versatile solution for collaborative huddle spaces or engaging education setups when combined with a touch panel or LFD (large format display).
Features | |
---|---|
Cable type | Round cable |
Contact material | Phosphor bronze |
Data transfer rate | 32.4 Gbit/s |
AWG wire size | 30 |
Jacket material | Polyvinyl chloride (PVC) |
Number of shielding layers | 3 |
Cable shielding | Copper |
Product colour | Black |
Maximum refresh rate | 144 Hz |
Supported video modes | 4320p |
Supported graphics resolutions | 4096 x 2160, 7680 x 4320 |
Maximum resolution | 7680 x 4320 pixels |
DisplayPort version | 1.4 |
Connector contacts plating | Gold |
Connector 2 form factor | Straight |
Connector 1 form factor | Straight |
Connector 2 gender | Male |
Connector 1 gender | Male |
Connector 2 | DisplayPort |
Connector 1 | DisplayPort |
Cable length | 2 m |
Operational conditions | |
---|---|
Storage temperature (T-T) | 0 – 80 °C |
Operating temperature (T-T) | 10 – 80 °C |
Certificates | |
---|---|
Compliance certificates | REACH, RoHS |
Packaging data | |
---|---|
Package type | Polybag |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
