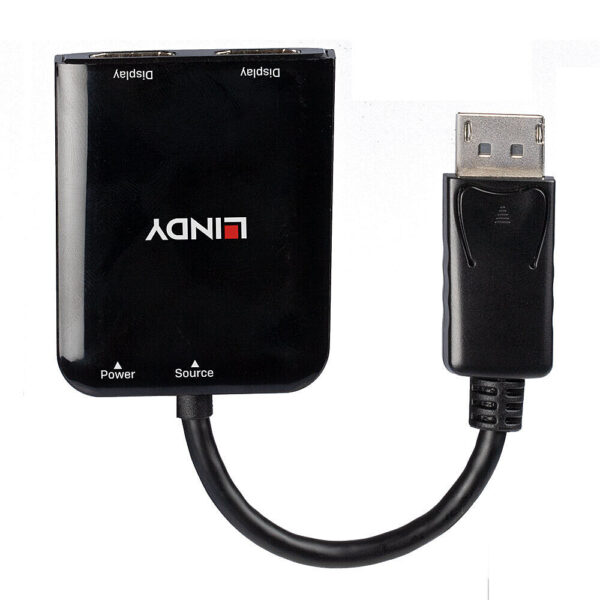

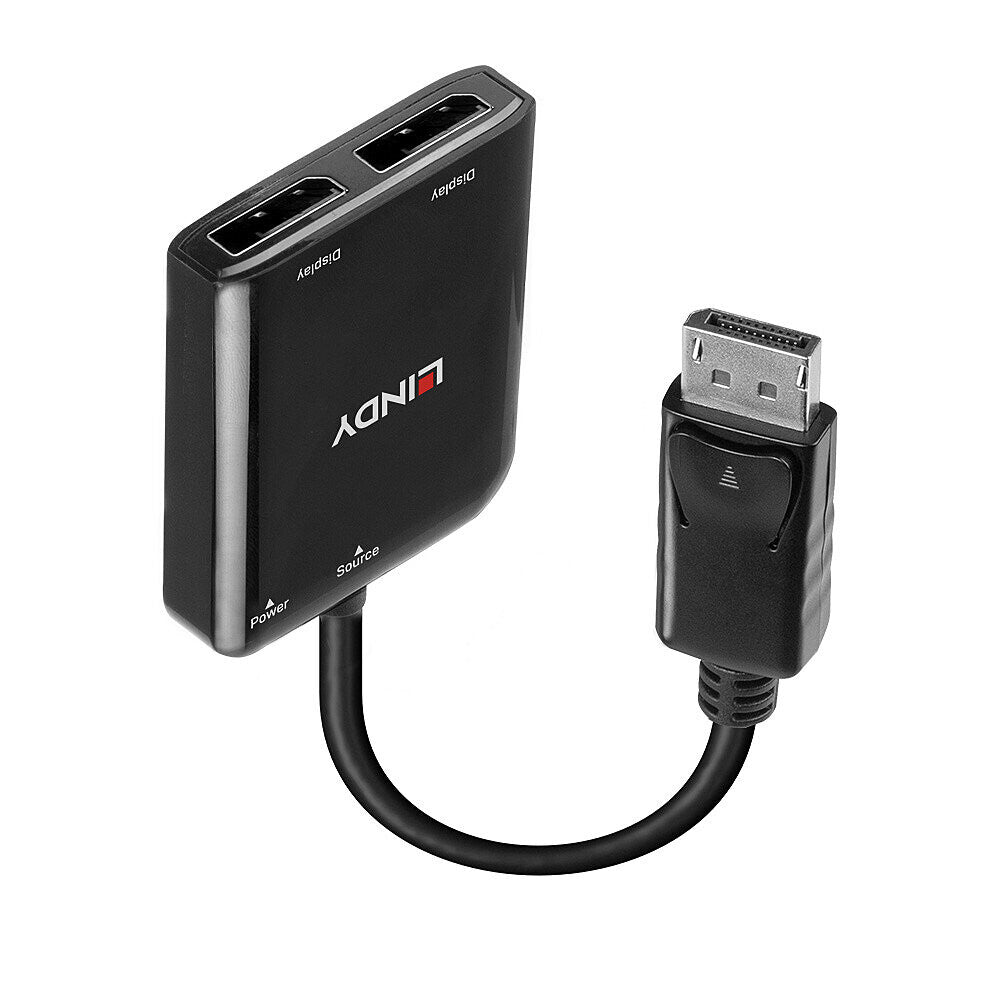

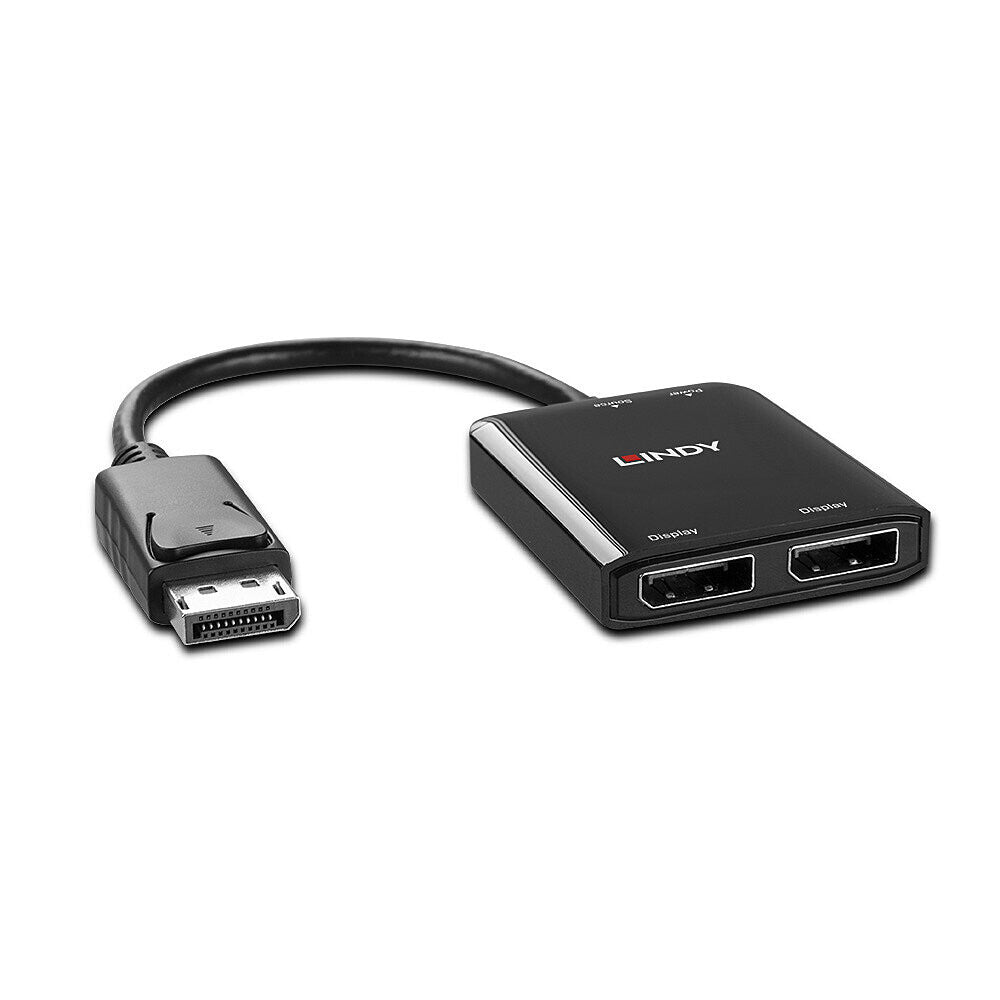

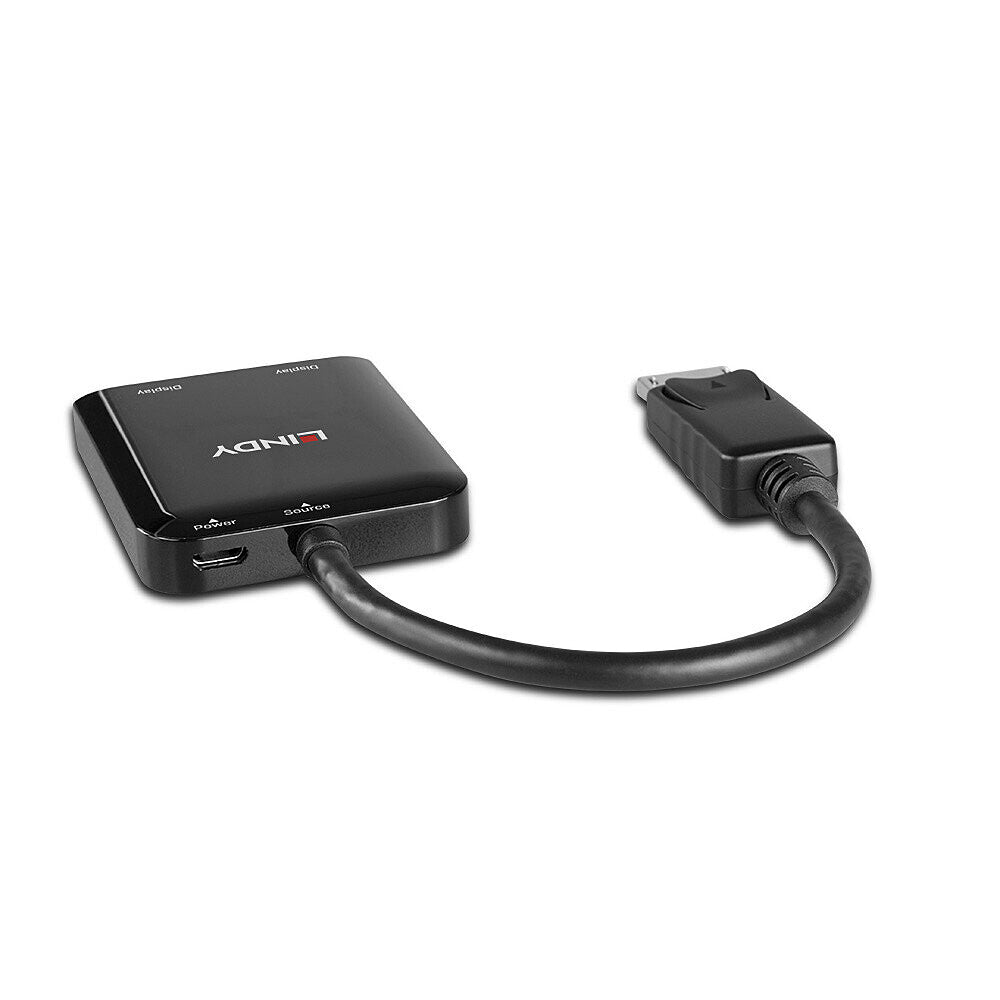

Lindy 38430 interface hub DisplayPort 21600 Mbit/s Black
- Connect 2 DisplayPort displays to a DisplayPort computer or laptop
- Expand, duplicate or display independent DP signals over dual DP monitors
- Supports resolutions up to 4K 30Hz, and audio up to 7.1CH
- Compatible with various graphics cards including AMD Eyefinity, NVIDIA Surround and Intel Collage
The Lindy 2 Port DP MST Hub is an ideal solution for expanding or duplicating DisplayPort signals across 2 DisplayPort monitors. MST hubs allow for the connection of a single DP source device including computers, laptops or notebooks to 2 separate DP displays, while also providing the ability to visualise content in multiple ways. Signals can be expanded across both displays to show large scale spreadsheets, create immersive panoramic gaming experiences or eye-catching digital signage in retail. Content can also be, independently shown on either display, great for developing a productive, multi-tasking working environment, or duplicated on both displays for use in hospitality, retail or educational scenarios.
With support up to 3840×2160@30Hz 4:4:4 8bit, content can be viewed in ultra-realistic quality, ideal for applications that require a high resolution output such as graphic design, while compatibility with a variety of graphics cards including AMD Eyefinity, ensures issue free multi-screen playback.
Ports & interfaces |
DisplayPort version |
1.2 |
DisplayPorts quantity |
2 |
Hub interfaces |
DisplayPort |
Host interface |
DisplayPort |
Ports quantity |
2 |
Features |
HDCP version |
1.4 |
HDCP |
Yes |
Product colour |
Black |
Housing material |
Acrylonitrile butadiene styrene (ABS) |
Maximum resolution (HDMI) |
3840 x 2160 pixels |
Data transfer rate |
21600 Mbit/s |
Power |
Output current |
0.5 A |
Output voltage |
5 V |
Power supply type |
USB |
Weight & dimensions |
Weight |
55 g |
Height |
49 mm |
Depth |
10 mm |
Width |
254 mm |
Packaging data |
Quantity per pack |
1 pc(s) |
Operational conditions |
Operating relative humidity (H-H) |
5 – 90% |
Storage temperature (T-T) |
-40 – 80 °C |
Maximum operating temperature |
40 °C |
Minimum operating temperature |
-20 °C |
Sustainability |
Sustainability compliance |
Yes |
Technical details |
Compliance certificates |
CE |
- CE Declaration of Conformity
