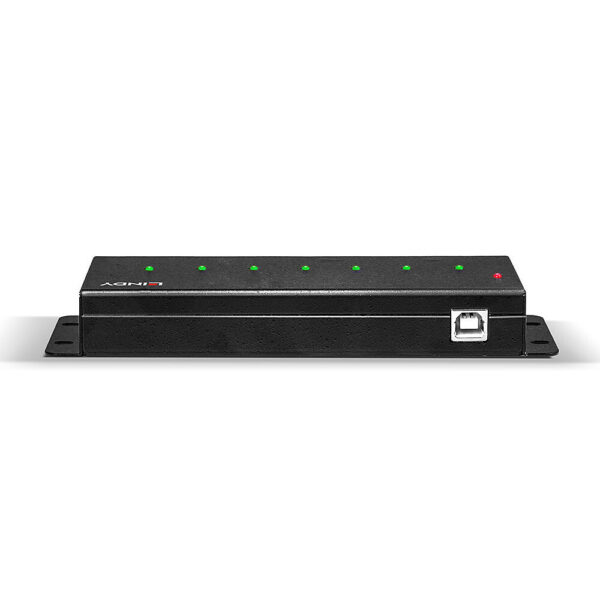

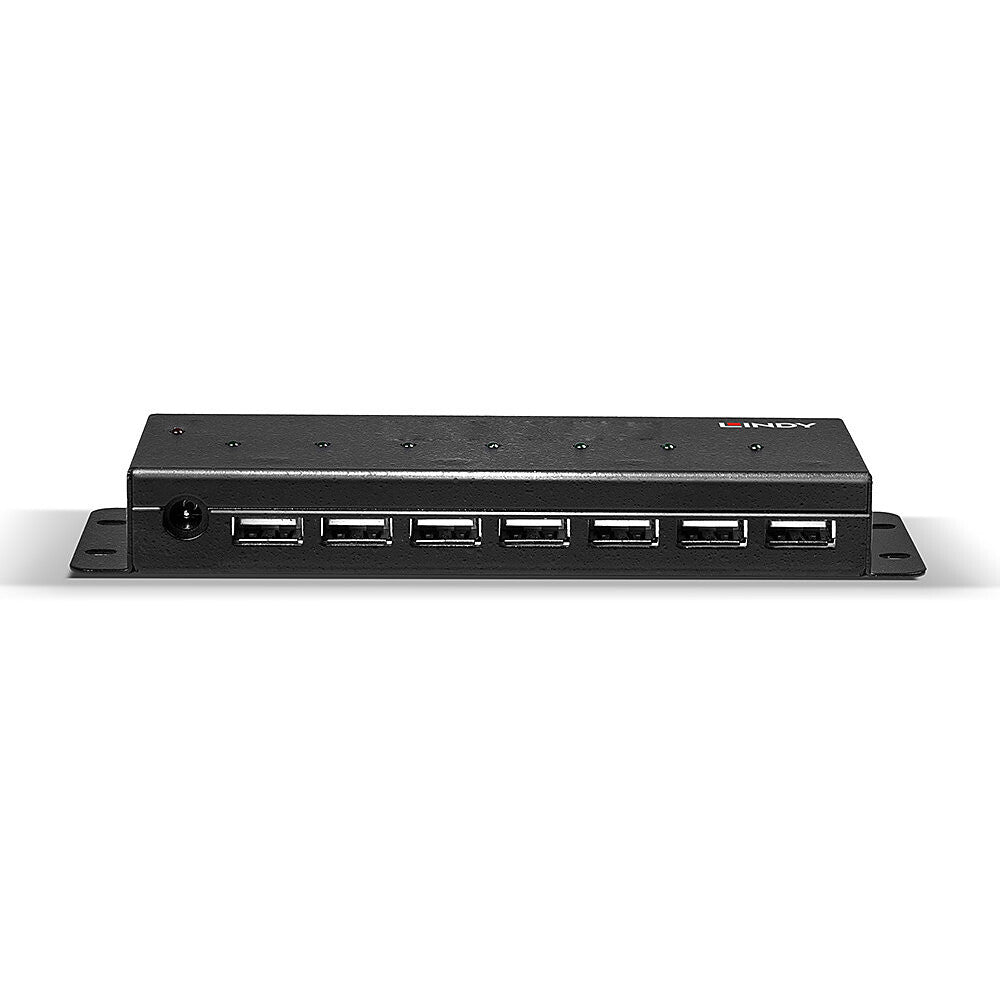

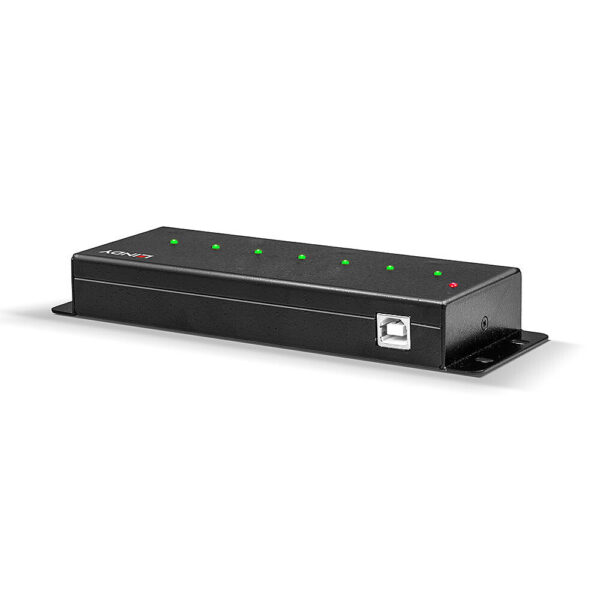

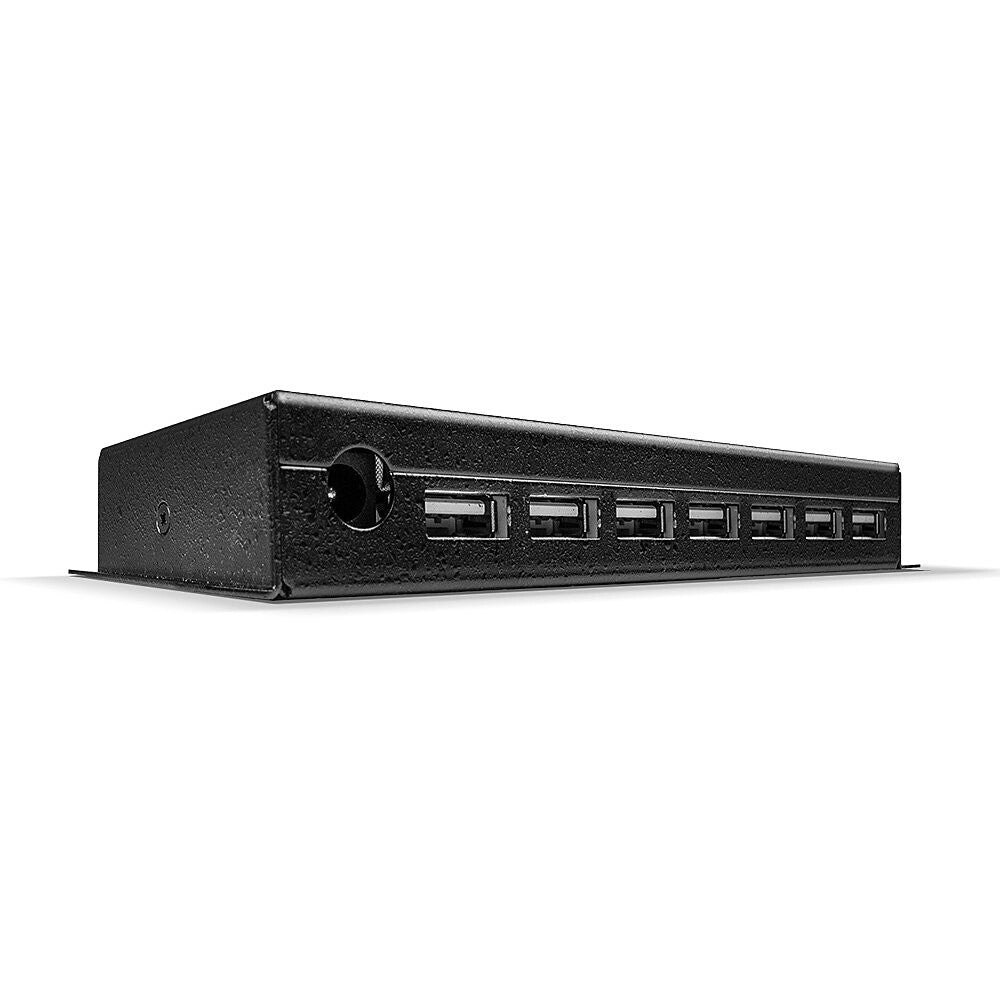

Lindy 7 Port USB 2.0 Metal Hub
- Provides 7 USB 2.0 High Speed ports with data rates up to 480Mbps
- Hard-wearing USB Hub – Perfect for industrial applications
- Robust metal housing with high EMC protection and integrated brackets for mounting
- USB bus-powered, or can be externally powered
- 2 years warranty
The Lindy 7 Port USB 2.0 Metal Hub has been designed to provide reliable performance in demanding operating environments.
This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this Hub is the ideal solution for industrial environments.
Each USB port port features individual short circuit protection. The included power supply ensures secure and uninterrupted electricity supplies.
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB 2.0 ports quantity | 7 |
| Hub interfaces | USB 2.0 |
| Host interface | USB 2.0 Type-B |
| Ports quantity | 7 |
| Features | |
|---|---|
| Certification | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Cable length | 1.8 m |
| LED indicators | Yes |
| Product colour | Black |
| Housing material | Metal |
| Data transfer rate | 480 Mbit/s |
| Power | |
|---|---|
| Power note | 5.5/2.1mm DC |
| Output current | 3.2 A |
| Output voltage | 5 V |
| Power supply type | DC |
| Weight & dimensions | |
|---|---|
| Weight | 251 g |
| Height | 24 mm |
| Depth | 48 mm |
| Width | 165 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 648 g |
| Package height | 40 mm |
| Package depth | 156 mm |
| Package width | 222 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Cables included | USB Type-A to USB Type-B |
| Included power plug types | AU, EU, UK, US |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 – 90% |
| Operating relative humidity (H-H) | 0 – 90% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Maximum operating temperature | 50 °C |
| Minimum operating temperature | 0 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84719000 |
| Other features | |
|---|---|
| Chipset | FE 2.1 |
- CE Declaration of Conformity
