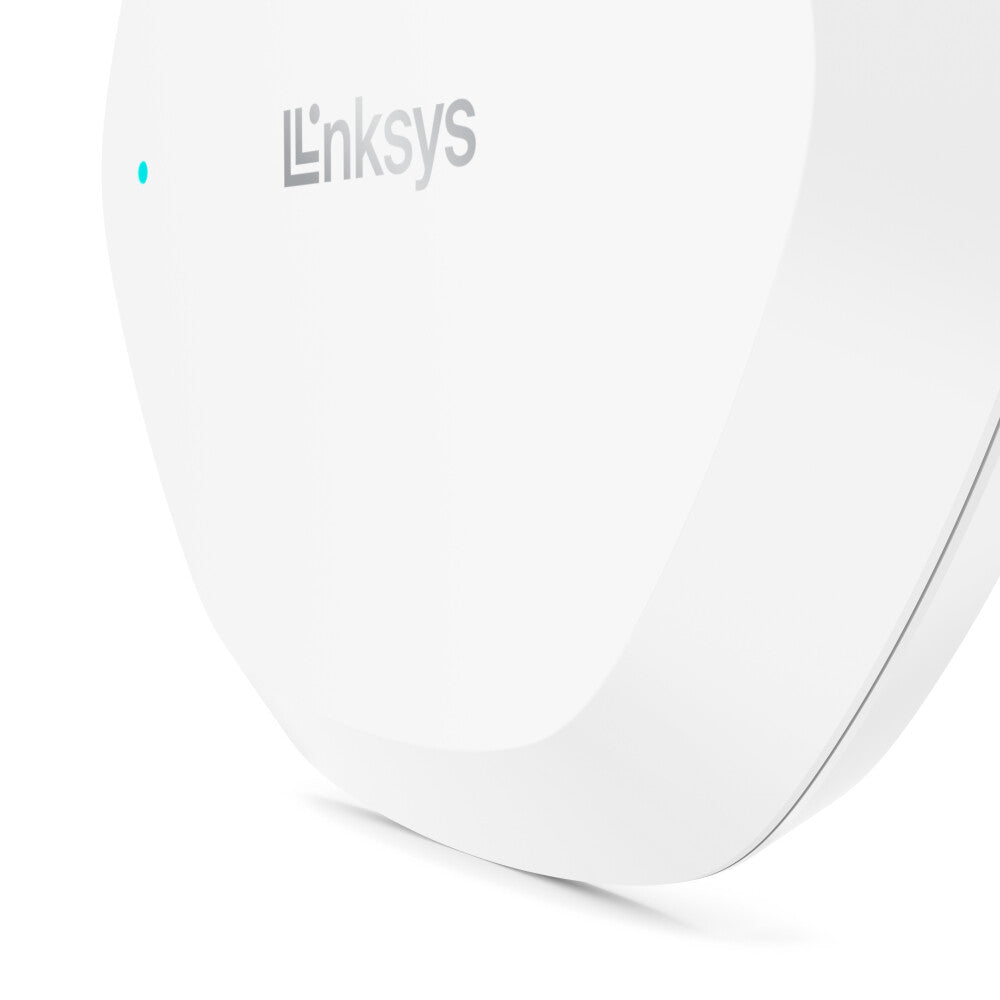

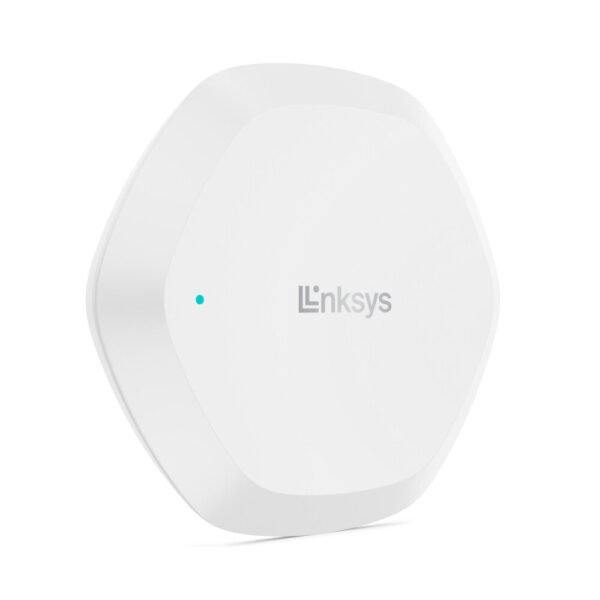

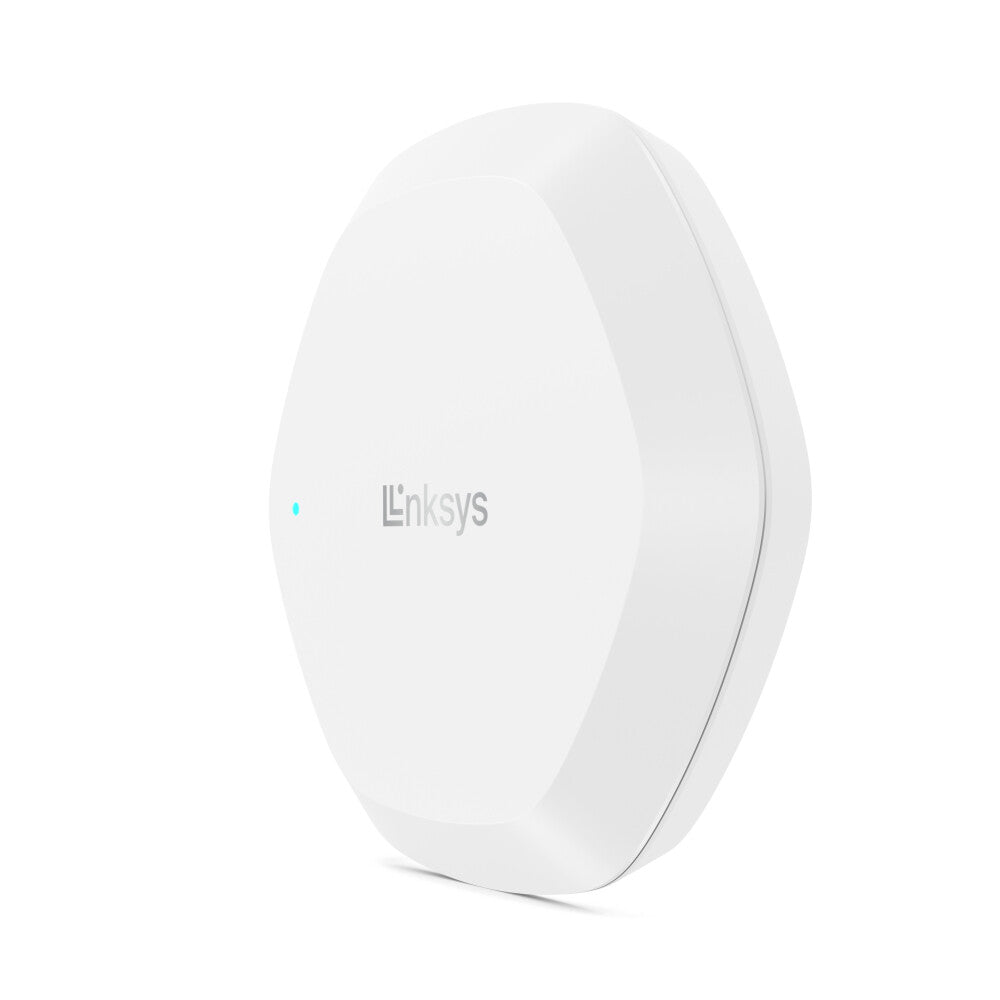

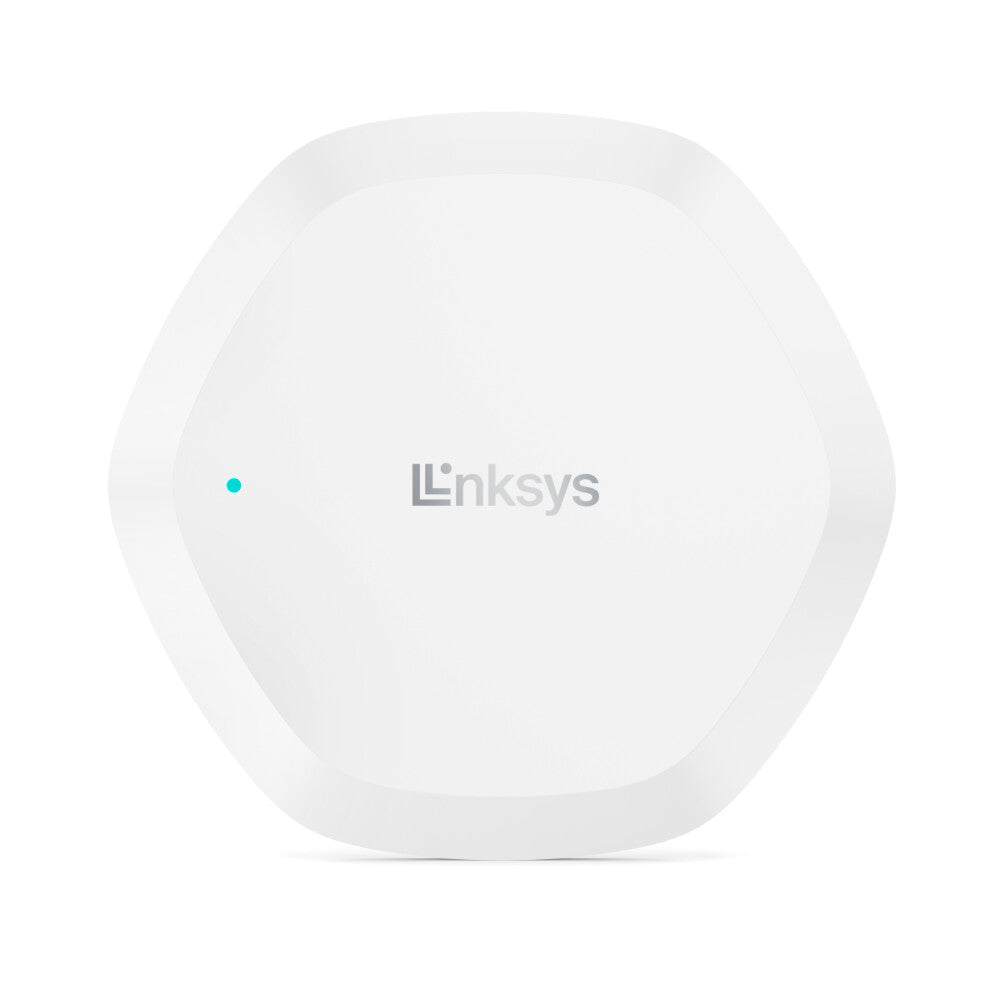

Linksys LAPAC1300C wireless access point 1300 Mbit/s White Power over Ethernet (PoE)
- 1 Gigabit Ethernet Uplink Port
- 802.3af PoE and 802.3at PoE+ Compliant
- Limited Lifetime Cloud Management
- 8 Wireless SSIDs
- WPA2 PSK/Enterprise
- 802.11k/r/v for Seamless Client Roaming
- Cloud Hosted Captive Portal Splash Page
- DHCP/NAT Mode + Wired LAN Isolation for Network Segmentation
- Bandwidth Limit per SSID and per Client
- Batch Remote Firmware Upgrade
- Two-Factor Authentication for Cloud Account Login
EMOTELY MANAGE YOUR ACCESS POINTS THROUGH THE CLOUD
The Linksys LAPAC1300C AC1300 WiFi 5 MU-MIMO Cloud Managed Wireless Access Point is an 802.11AC Wave 2 Dual-Band WiFi Access Point (2.4GHz + 5GHz) designed with 2×2 internal antennas for 1300 Mbps* total WiFi speed. Perfect for businesses of all sizes, every cloud access point comes with free cloud management so you can have access to an enterprise-class cloud-native management solution without the recurring fees. Zero Touch Provisioning reduces the need for on-site installation/configuration, saving you time and travel costs. With Linksys Cloud Manager 2.0, you get instant scalability with no limit to the number of networks and devices you can manage.
CLOUD-NATIVE CENTRALIZED MANAGEMENT
All of our cloud managed access points can be configured remotely or with Zero Touch Provisioning using our Cloud-Native management portal. Powered by AWS Microservices, our cloud communication is secure, lightweight and extremely fast compared to outdated server or controller architectures. With Linksys Cloud Manager 2.0, you get instant scalability with no limit to the number of networks and devices you can manage.
CLOUD HOSTED CAPTIVE PORTAL FOR SECURE GUEST WIFI ACCESS
Traditional captive portals are hosted in the local device with extremely limited space for graphics, logos and text. Linksys Cloud Manager 2.0 does it better with a built-in captive portal editor that allows you to upload logos and graphics of any size, so the only limit is your imagination. Easily create a terms of service agreement or lock WiFi access with an extra passcode, at no additional cost.
POE+ FOR STREAMLINED INSTALLATION
Thanks to Power over Ethernet support (802.3af PoE or 802.3at PoE+), the LAPAC1300C can draw both power and data from a single Ethernet cable. This allows you to mount on a ceiling, wall, or pole easily without having to source an AC outlet. This also eliminates a separate power adapter, reducing waste and saving the environment.
Features | |
---|---|
Transmitting power (FCC) | 17 dBm |
Wireless isolation | Yes |
Wi-Fi Multimedia (WMM)/(WME) | Yes |
MIMO type | Multi User MIMO |
MIMO | Yes |
Cabling technology | 10/100/1000Base-T(X) |
Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
Frequency band | 2.4 – 5 GHz |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Maximum data transfer rate (5 GHz) | 867 Mbit/s |
Maximum data transfer rate (2.4 GHz) | 400 Mbit/s |
Maximum data transfer rate | 1300 Mbit/s |
5 GHz | Yes |
6 GHz | No |
2.4 GHz | Yes |
Security | |
---|---|
Security algorithms | WPA, WPA2 |
Protocols | |
---|---|
DHCP client | Yes |
DHCP server | Yes |
Ports & interfaces | |
---|---|
DC-in jack | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Power | |
---|---|
Power consumption (max) | 11 W |
Input current | 1 A |
AC input voltage | 100 – 240 V |
DC voltage range | 12 V |
AC input frequency | 50/60 Hz |
Power over Ethernet (PoE) | Yes |
Design | |
---|---|
LED indicators | System |
Reset button | Yes |
Product colour | White |
Placement | Ceiling, Wall |
Antenna | |
---|---|
Antenna gain level (max) | 5 dBi |
Antennas quantity | 4 |
Antenna type | Internal |
Certificates | |
---|---|
Certification | FCC Class B, CE Class B, UKCA Class B |
Weight & dimensions | |
---|---|
Weight | 390 g |
Height | 35.1 mm |
Depth | 165.1 mm |
Width | 172.7 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 550 g |
Package height | 45 mm |
Package depth | 178.1 mm |
Package width | 315 mm |
Packaging content | |
---|---|
AC adapter included | Yes |
Quantity per pack | 1 pc(s) |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 0 – 90% |
Storage temperature (T-T) | -20 – 70 °C |
Operating temperature (T-T) | 0 – 40 °C |
Operating relative humidity (H-H) | 0 – 90% |
Logistics data | |
---|---|
Country of origin | Taiwan |
Harmonized System (HS) code | 85176990 |
