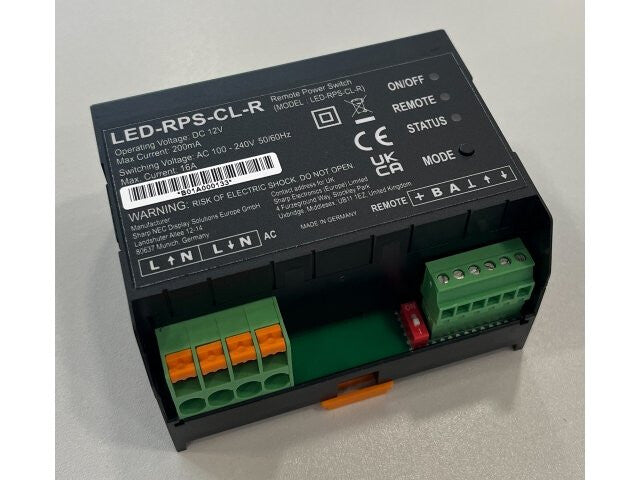

NEC LED-RPS-CL-R Controller switch Black
- Remote Power Switching – switchable by most Room Management Systems thanks to easy integration via RS-485 or potential-free contacts
- Safe Operation – inrush current limiting minimizes the impact on the facility electricity systems and lowers the amount of supply lines
- Easy installation – standardized DIN rail mounting and compact form factor allow an easy integration into an electrical power distributions
Remote Power Switch
Remote Power Control for LED walls
The Remote Power Switch adds a remote power control to any LED wall while limiting the inrush current and eliminating standby power loss.
| Features | |
|---|---|
| Product colour | Black |
| Indication light | Yes |
| Connectivity technology | Wired |
| Type | Controller switch |
| Power | |
|---|---|
| Nominal current output | 16 A |
| DC voltage range | 12 V |
| AC input voltage | 100 – 240 V |
| Weight & dimensions | |
|---|---|
| Weight | 170 g |
| Height | 51 mm |
| Depth | 75 mm |
| Width | 90 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 – 85% |
| Storage temperature (T-T) | -20 – 45 °C |
| Operating relative humidity (H-H) | 10 – 80% |
| Operating temperature (T-T) | -20 – 40 °C |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
