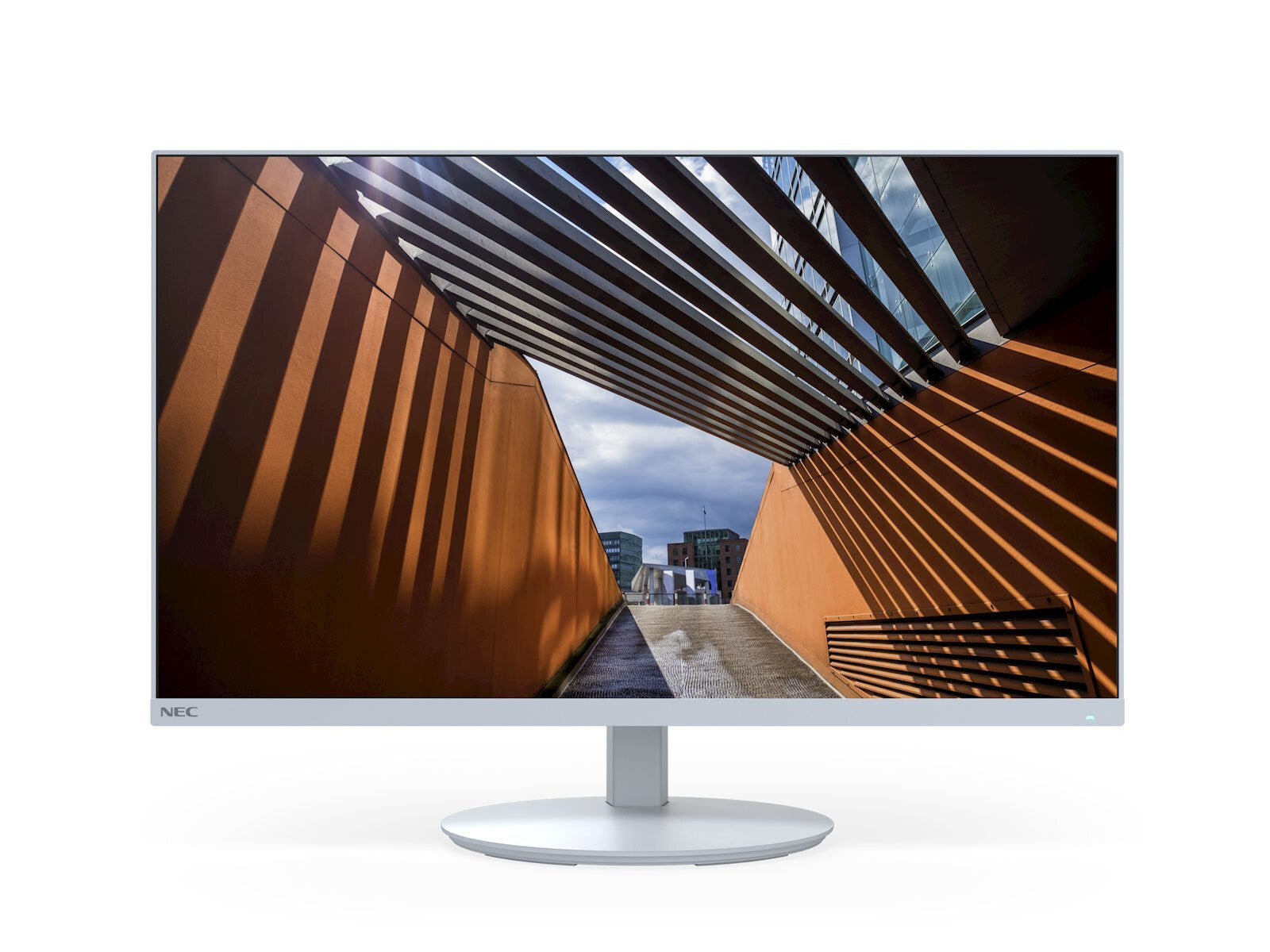

NEC MultiSync E224F computer monitor 55.9 cm (22″) 1920 x 1080 pixels Full HD LCD White
- Cost and time saving operation – based on an intuitive OSD design making set-up simpler

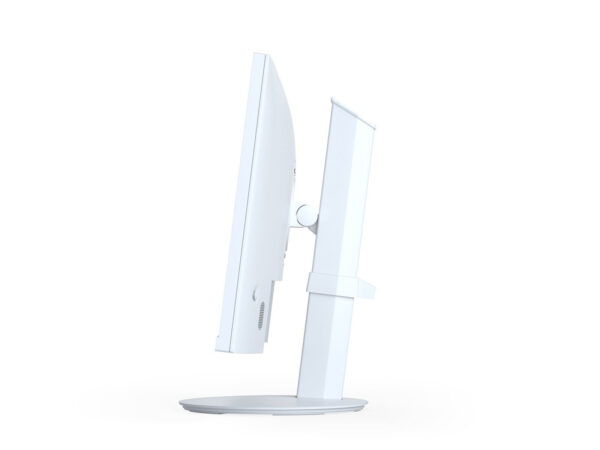

- Ergonomic Office – full height adjustability (120 mm), swivel, tilt and pivot functionality ensures perfect individual workspace set-up
- Black and white colour versions – white is is considered to reduce the impression of tunnel vision when placed in front of a white background such as office walls
- Safeguarding user wellbeing – built-in Low Blue Light technology filters out hazardous blue light emissions whilst Flicker-Free technology eliminates any backlight flickering, thus protecting the users’ eyes against cataracts and macular degeneration
- Best in form and function – future-ready design with 3-sided ultra-narrow bezel, available in black or white, complementing a fresh professional office interior
The workspace essential
Driving down costs without compromising quality, the desktop E Series presents all the reliable performance you expect from Sharp/NEC, against a very competitive price tag.
With user comfort prioritised, workspace ergonomics is a key design feature. Height adjustability to 120 mm with swivel, tilt and pivot functionality ensures a personalised set up, whilst built-in Low Blue Light and Flicker-Free technology protects the viewers’ eyes without sacrificing best picture quality. Available in black or white, choose the best fit to complement your office setting and ergonomics – white displays reduce the impression of tunnel vision when in front of white walls.
With a fresh On-Screen Display (OSD) design, users benefit from highly intuitive operation, saving time and frustration during set up and adjustment. This Full HD display with VA screen technology is well placed to equip the home office and small to medium sized businesses for general office applications.
Display |
Display diagonal (metric) |
55 cm |
Vertical scan range |
50 – 75 Hz |
Pixel pitch |
0.249 x 0.249 mm |
Display number of colours |
16.7 million colours |
Viewing angle, vertical |
178° |
Viewing angle, horizontal |
178° |
Maximum refresh rate |
60 Hz |
Contrast ratio (typical) |
3000:1 |
Screen shape |
Flat |
Response time |
6 ms |
Display brightness (typical) |
250 cd/m² |
Backlight type |
W-LED |
Panel type |
TFT |
HD type |
Full HD |
Touchscreen |
No |
Display technology |
LCD |
Native aspect ratio |
16:9 |
Display resolution |
1920 x 1080 pixels |
Display diagonal |
55.9 cm (22″) |
Performance |
Flicker-free technology |
Yes |
Multimedia |
Built-in camera |
No |
RMS rated power |
2 W |
Number of speakers |
2 |
Built-in speaker(s) |
Yes |
Design |
Front bezel colour |
White |
Product colour |
White |
Ports & interfaces |
Headphone out |
Yes |
DisplayPorts quantity |
1 |
HDMI ports quantity |
1 |
HDMI |
Yes |
VGA (D-Sub) ports quantity |
1 |
Built-in USB hub |
No |
Ergonomics |
On Screen Display (OSD) |
Yes |
Tilt angle range |
-5 – 25° |
Tilt adjustment |
Yes |
Swivel angle range |
-170 – 170° |
Swivelling |
Yes |
Pivot angle |
-90 – 90° |
Pivot |
Yes |
Adjustable height (max) |
12 cm |
Height adjustment |
Yes |
Cable lock slot type |
Kensington |
Cable lock slot |
Yes |
Cable management |
Yes |
Panel mounting interface |
100 x 100 mm |
VESA mounting |
Yes |
Power |
European Product Registry for Energy Labelling (EPREL) code |
1338529 |
Energy efficiency scale |
A to G |
Power consumption (PowerSave) |
0.22 W |
Power consumption (typical) |
14 W |
Energy consumption (SDR) per 1000 hours |
12 kWh |
Energy efficiency class (SDR) |
D |
Operational conditions |
Storage relative humidity (H-H) |
10 – 85% |
Operating relative humidity (H-H) |
20 – 80% |
Storage temperature (T-T) |
-10 – 60 °C |
Operating temperature (T-T) |
5 – 35 °C |
Weight & dimensions |
Bezel width (bottom) |
1.68 cm |
Bezel width (top) |
2.5 mm |
Bezel width (side) |
2.5 mm |
Weight (without stand) |
3.1 kg |
Weight (with stand) |
5.2 kg |
Height (with stand) |
483.4 mm |
Depth (with stand) |
233.2 mm |
Width (with stand) |
493.2 mm |
Packaging content |
Cables included |
AC, DisplayPort |
Stand included |
Yes |
General |
Product family |
MultiSync |
Other features |
Compliance certificates |
RoHS, cTUVus, WEEE |
