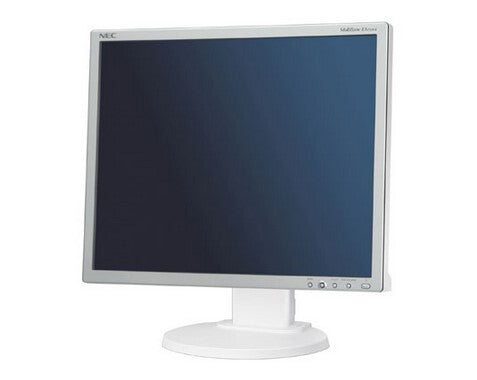

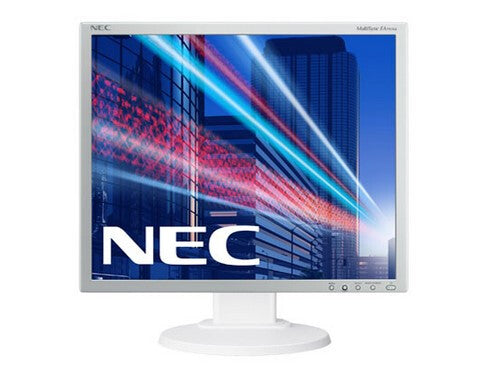

NEC MultiSync EA193Mi LED display 48.3 cm (19″) 1280 x 1024 pixels SXGA White
- 48.3 cm (19″) LED IPS
- SXGA 1280 x 1024 pixels 5:4
- 60 Hz 6 ms 250 cd/m² 1000:1
- D 10 kWh 14 W
The EA193Mi is a high-end 19″ 5:4 conventional format monitor with best IPS panel and latest energy saving LED backlight technology. It offers the latest DisplayPort connectivity and full ergonomic adjustability. Low power consumption and low operating costs make the display perfect for use in the professional office environment. Outstanding ergonomic comfort and intelligent features such as the Ambient Light Sensor make it very user-friendly and help to increase productivity.
– Ambient Light Sensor – with Auto Brightness function always sets optimised brightness level according to ambient light and content conditions.
– Ergonomic Office – full height adjustability (110 mm), swivel, tilt and pivot functionality ensures perfect individual ergonomic set-up.
– Green Product Concept – Eco Mode and Carbon Footprint Meter / Carbon Savings Meter, Ambient Light Sensor.
– Input – Display can be used with two digital (DVI-D, DisplayPort) and one analogue input.
– Sustainable Office – low power consumption with LED backlight and ambient light sensor.
– Image display – 19inch 5:4 IPS with LED backlight.
– Vesa Mount (100 mm) – allows to install the monitor via various mounting solutions, stand has a quick release for faster installations.
– Special Characteristics – 19″ (5:4) Highly efficient IPS panel with LED backlight saves more than 30% energy; Ambient light sensor for optimized brightness levels; Carbon Footprint Meter ; Carbon Savings Meter ; Energy Star 6.0; ErgoDesign® : Height adjustable stand (110 mm) with 90° Pivot features; sRGB Support; TORO™ Design ; Windows 7 compatible; Windows 8 compatible
| Display |
| 3D |
No |
| Colour gamut standard |
sRGB |
| DDC/CI |
Yes |
| Digital vertical frequency |
56 – 75 Hz |
| Digital horizontal frequency |
31.5 – 81.1 kHz |
| Pixel pitch |
0.293 x 0.293 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (typical) |
1000:1 |
| Aspect ratio |
5:4 |
| Supported graphics resolutions |
720 x 400, 832 x 624, 1152 x 870, 1280 x 768, 1280 x 960, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 640 x 480 (VGA), 800 x 600 (SVGA) |
| Screen shape |
Flat |
| Response time |
6 ms |
| Display brightness (typical) |
250 cd/m² |
| Backlight type |
W-LED |
| Panel type |
IPS |
| HD type |
SXGA |
| Touchscreen |
No |
| Display technology |
LED |
| Native aspect ratio |
5:4 |
| Display resolution |
1280 x 1024 pixels |
| Display diagonal |
48.3 cm (19″) |
| Multimedia |
| Built-in camera |
No |
| RMS rated power |
2 W |
| Number of speakers |
2 |
| Built-in speaker(s) |
Yes |
| Design |
| Product colour |
White |
| Ports & interfaces |
| HDCP |
Yes |
| DisplayPorts quantity |
1 |
| DVI-D ports quantity |
1 |
| DVI port |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| Built-in USB hub |
No |
| Network |
| Ethernet LAN |
No |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ergonomics |
| LED indicators |
Power |
| Plug and Play |
Yes |
| On Screen Display (OSD) |
Yes |
| Tilt angle range |
-5 – 20° |
| Tilt adjustment |
Yes |
| Swivel angle range |
-45 – 45° |
| Swivelling |
Yes |
| Pivot angle |
0 – 90° |
| Pivot |
Yes |
| Adjustable height (max) |
11 cm |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| European Product Registry for Energy Labelling (EPREL) code |
392063 |
| Energy efficiency scale |
A to G |
| AC input voltage |
100 – 240 V |
| Power consumption (max) |
18 W |
| Power consumption (typical) |
14 W |
| Energy consumption (SDR) per 1000 hours |
10 kWh |
| Energy efficiency class (SDR) |
D |
| Operational conditions |
| Operating relative humidity (H-H) |
20 – 80% |
| Operating temperature (T-T) |
5 – 35 °C |
| Weight & dimensions |
| Weight (without stand) |
3.9 kg |
| Height (without stand) |
338 mm |
| Depth (without stand) |
65 mm |
| Width (without stand) |
408 mm |
| Weight (with stand) |
5.9 kg |
| Height (with stand) |
386.4 mm |
| Depth (with stand) |
213.9 mm |
| Width (with stand) |
408 mm |
| Packaging content |
| Manual |
Yes |
| Cables included |
AC, DVI, VGA |
| Sustainability |
| Sustainability certificates |
EPEAT Gold, ENERGY STAR |
| General |
| Product family |
MultiSync |
| Other features |
| Certification |
CE; Energy Star 6.0; ErP; FCC Class B; ISO 9241-307 (pixel failure class I); MPR II/ MPR III; PCT/Gost; RoHS; TCO 6.0; TÜV Ergonomics; TÜV GS; UL/C-UL or CSA |
| Power management |
Yes |
| ECO mode |
Yes |
| Light sensor |
Yes |
| Power consumption (economy mode) |
10 W |
| TV tuner integrated |
No |
| On/off switch |
Yes |
| Display |
LED |
| Thin Client |
| Thin client installed |
No |
| Logistics data |
| Harmonized System (HS) code |
85285210 |
