NEC OPS-Sky-Cel-s4/64/W7e B 2.4 GHz Intel® Celeron® G 64 GB SSD 4 GB
OPS Slot-In PCs make digital signage simpler and more flexible without additional cables or devices

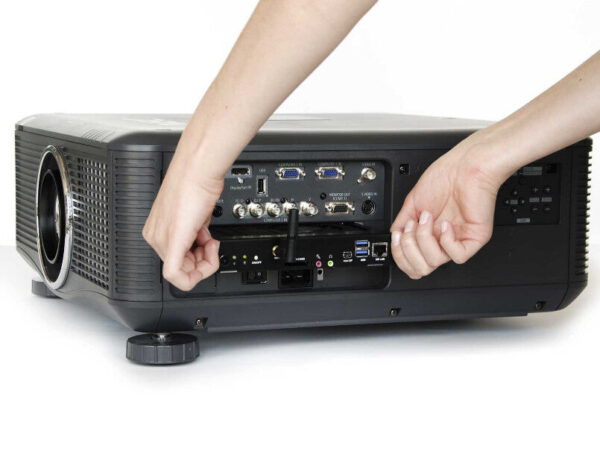

The full line-up of OPS Slot-in PCs supports a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 6th generation Intel® processors (Skylake) deliver a new class of computing to power the next generation of slot-in computing. The OPS concept provides a compact and fully embedded solution ensuring that all connectors are integrated including power, video & audio signals and RS-232. All NEC large format displays (except E series 32″ to 65″), PX and PH installation projectors feature this option slot
Delivering Genuine Benefits
– Powerful possibilities – the 6th generation Intel® processors deliver a new class of computing with a host of new features to power the next generation of embedded computing.
– Intel® HD graphics – provides Ultra HD resolution, intense detail and faster frame rates, giving you a remarkable visual experience.
– Tailor-made solution – extensive user configurations with a variety of processors, solid state drives, RAM and operating systems as well as W-LAN, TPM and G3.75 connectivity.
– High reliability – ideally suited for 24/7 operation due to the use of industrial grade components.
– Seamless and fully embedded – as all connectors are inside the display including power, video, audio signals and RS-232, no external cables are required.
– Secure greatness – 6th generation Intel® vProTM processors deliver security protection as well as AMT remote management functionality for the enterprise.
– Ideal for Digital Signage – compatible with OPS standard for option slot products enabling easier installation, operation and maintenance of digital signs.
– Economical – enjoy more performance whilst consuming less power.
| Processor | |
|---|---|
| Memory voltage supported by processor | 1.35 V |
| ECC supported by processor | Yes |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Conflict-Free processor | Yes |
| Maximum internal memory supported by processor | 64 GB |
| Tjunction | 100 °C |
| PCI Express configurations | 1×16, 1×8+2×4, 2×8 |
| Maximum number of PCI Express lanes | 16 |
| Processor series | Intel Celeron Processor G3000 series for Desktop |
| Thermal Design Power (TDP) | 35 W |
| Processor codename | Skylake |
| Bus type | DMI3 |
| Stepping | R0 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| PCI Express slots version | 3.0 |
| Processor threads | 2 |
| System bus rate | 8 GT/s |
| Processor cache type | Smart Cache |
| Processor cache | 2 MB |
| Processor socket | BGA 1440 |
| Processor cores | 2 |
| Processor model | G3900E |
| Processor family | Intel® Celeron® G |
| Processor frequency | 2.4 GHz |
| Memory | |
|---|---|
| Memory channels | Dual-channel |
| ECC | Yes |
| Memory clock speed | 2133 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 4 GB |
| Storage | |
|---|---|
| SSD capacity | 64 GB |
| SSD interface | Micro Serial ATA III |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Storage media | SSD |
| Total storage capacity | 64 GB |
| Graphics | |
|---|---|
| Number of displays supported (on-board graphics) | 3 |
| Discrete graphics card model | Not available |
| On-board graphics card ID | 0x1902 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card dynamic frequency (max) | 950 MHz |
| On-board graphics card base frequency | 350 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 510 |
| On-board graphics card | Yes |
| Network | |
|---|---|
| Wake-on-LAN ready | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |

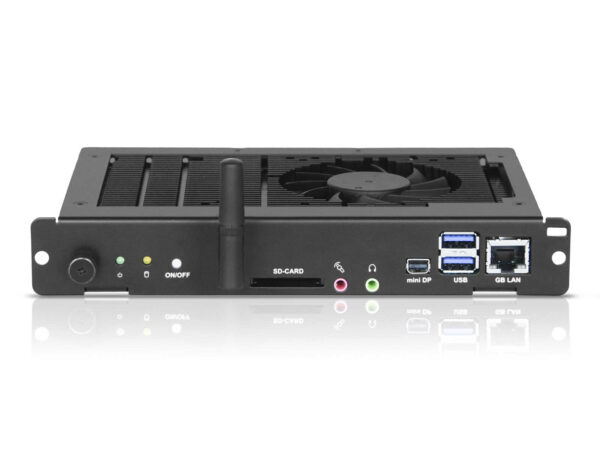

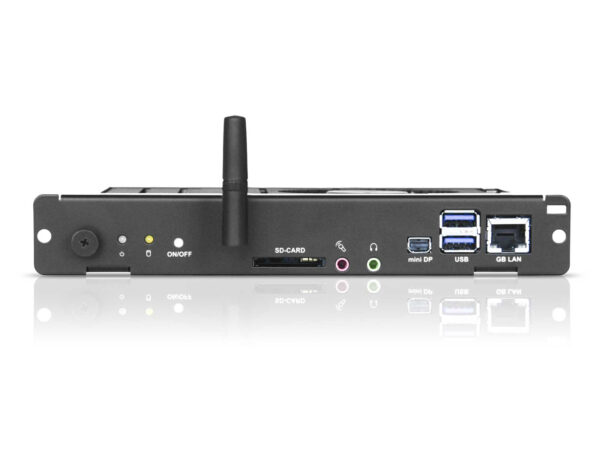

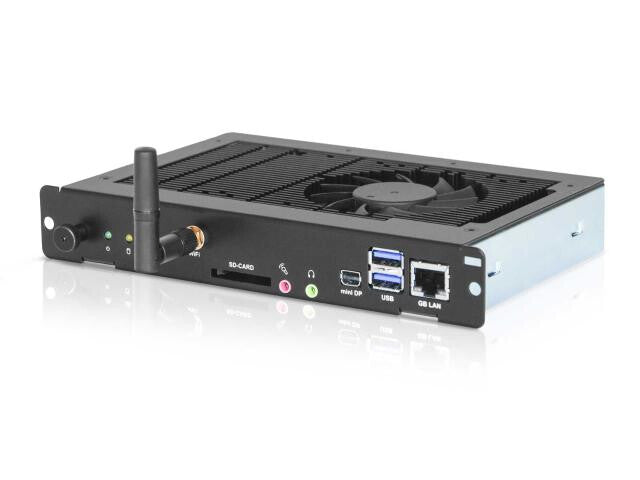

| Ports & interfaces | |
|---|---|
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Mini DisplayPorts quantity | 1 |
| DVI port | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Performance | |
|---|---|
| Product colour | Black |
| Software | |
|---|---|
| Operating system installed | Windows Embedded Standard 7 |
| Processor special features | |
|---|---|
| Processor ARK ID | 90713 |
| Processor package size | 42 x 28 mm |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel 64 | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Graphics & IMC lithography | 14 nm |
| Embedded options available | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel Enhanced Halt State | Yes |
| Scalability | 1S |
| Intel Trusted Execution Technology | No |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Insider™ | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Processor code | SR2GH |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Power | |
|---|---|
| Power consumption (typical) | 35 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 – 90% |
| Operating temperature (T-T) | 0 – 40 °C |
| Certificates | |
|---|---|
| Certification | CE, FCC |
| Weight & dimensions | |
|---|---|
| Package weight | 1 kg |
| Package height | 60 mm |
| Package depth | 200 mm |
| Package width | 260 mm |
| Weight | 900 g |
| Height | 30 mm |
| Depth | 120 mm |
| Width | 200 mm |
