NEC SB-07BC AV receiver
- AV receiver 1920 x 1200 pixels
- Maximum transfer distance: 100 m
- HDCP
- Wired Ethernet LAN

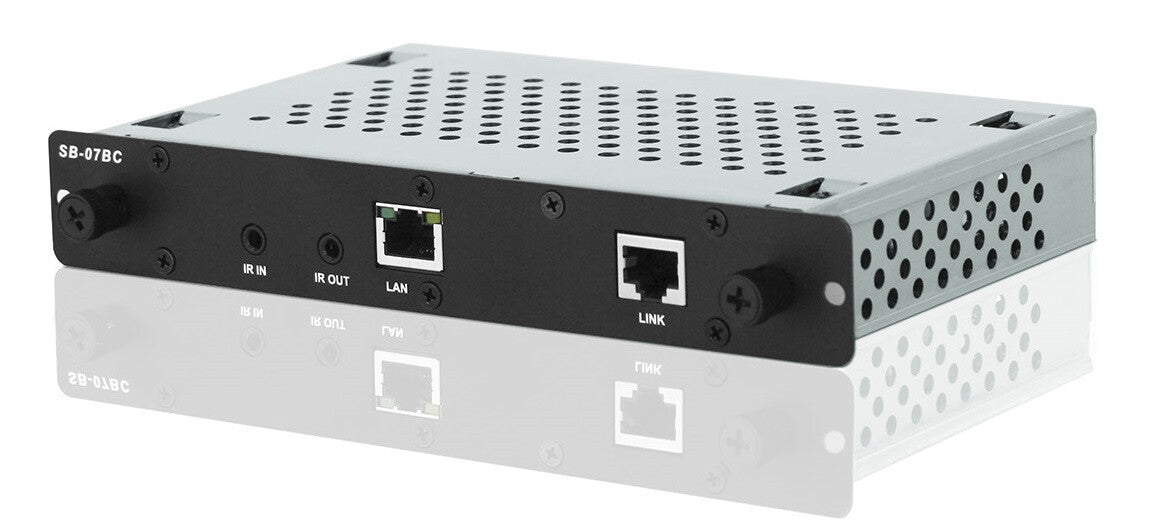

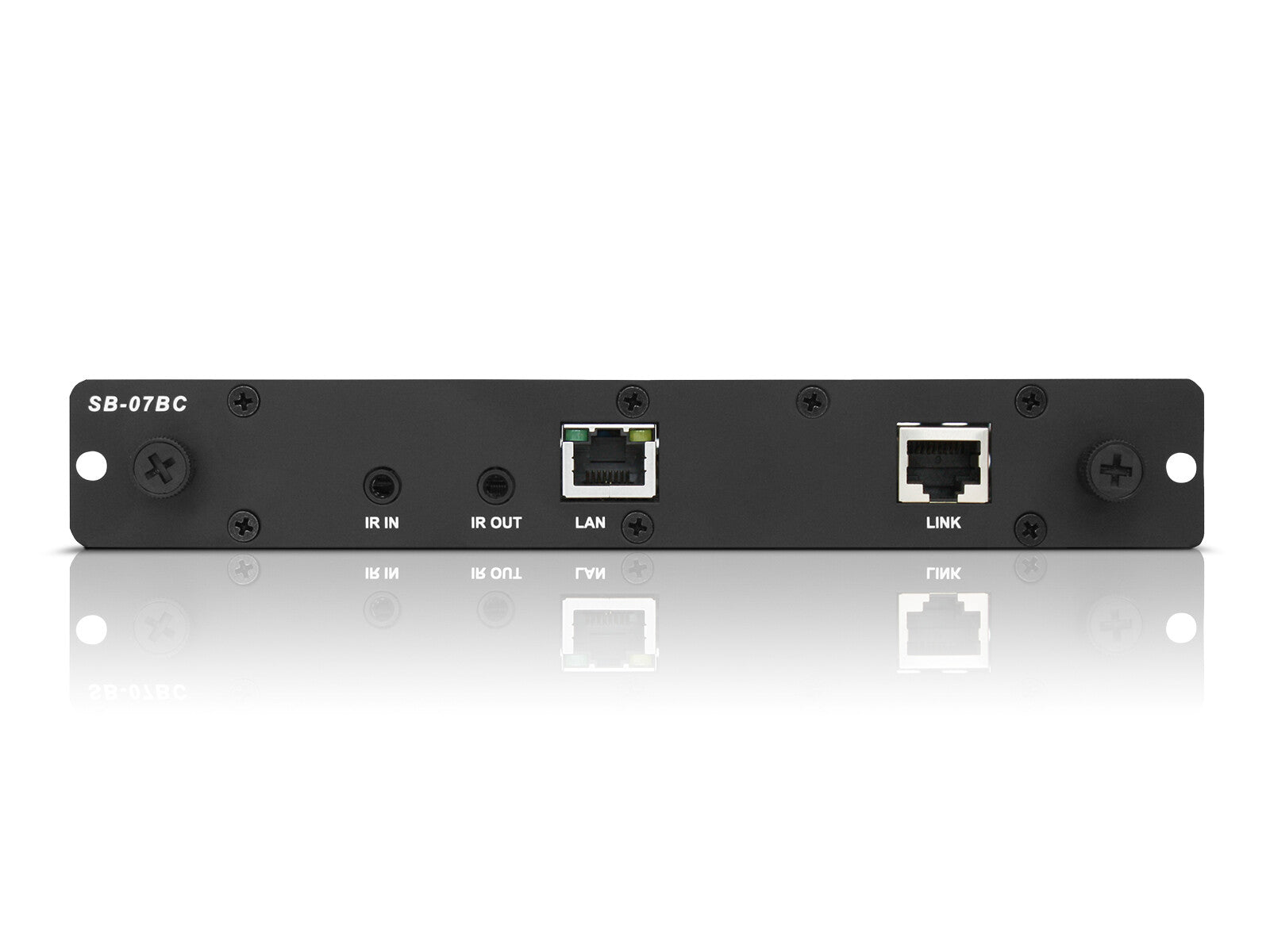

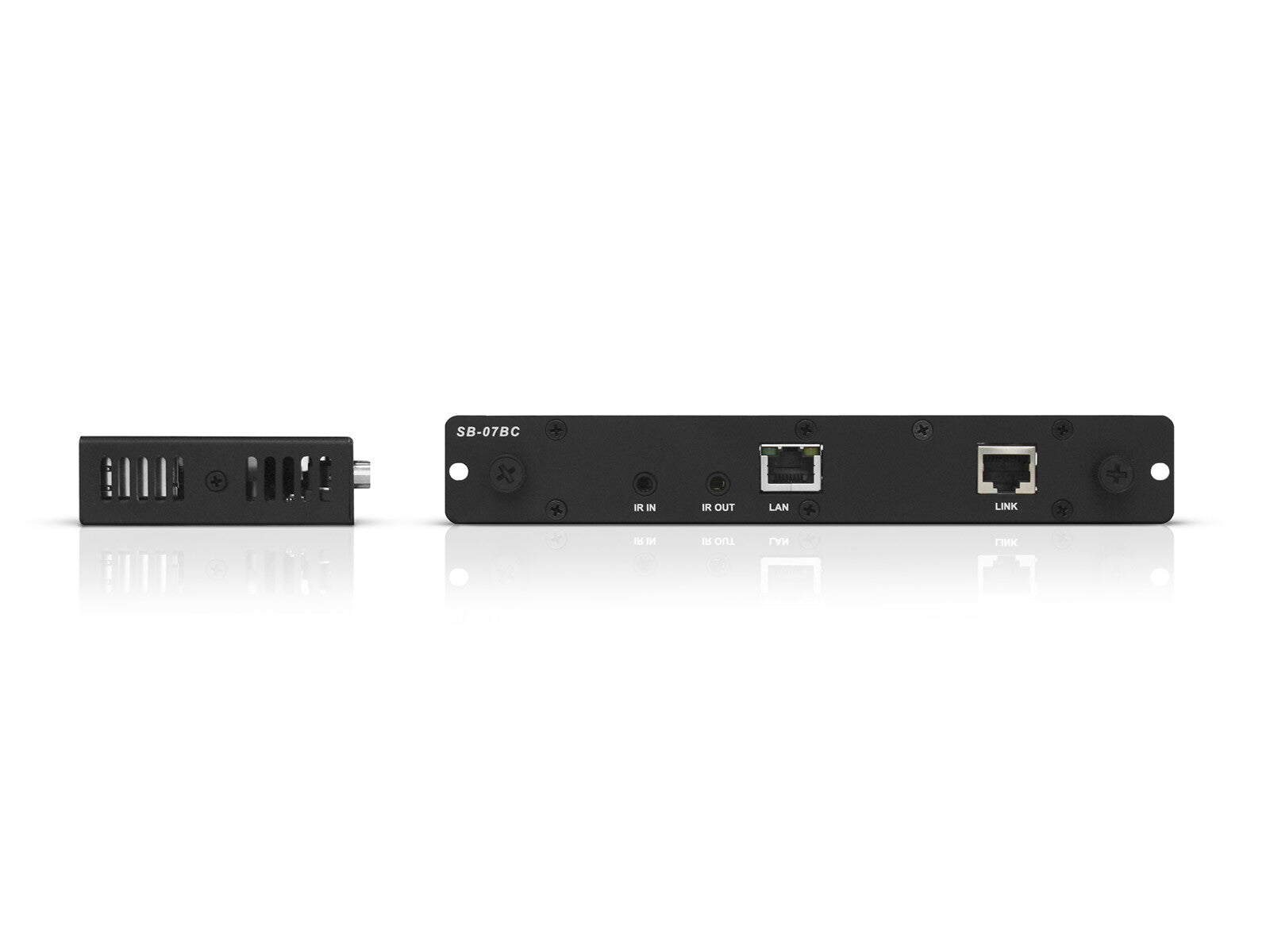

OPS HDBaseT Receiver SB-07BC
HDBaseT Transmitter and OPS Receiver – a clever solution allowing compressed HD multimedia content transmission up to 100 m through a single network cable.
HDBaseT delivers uncompressed full HD digital video plus audio, 100BaseT Ethernet and control signals through a single 100 m LAN cable. The HDBase T transmitter (KT-100TX1) converts the input signal source and provides the high quality signals using a network cable to the HDBaseT receiver (SB-07BC) unit that is embedded into the display.
Compatible with NEC large format displays and projectors featuring OPS technology and with the majority of third party HDBaseT senders.
– no more cable length limitations
– one single cable only
– easy setup and operation
– wide range of applications
– compact and fully embedded
– high flexibility
| Features | |
|---|---|
| Compatible products | NEC OPS |
| Certification | CE, VCCI, RCM, FCC |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| HDCP | Yes |
| Audio formats supported | PCM |
| Colour depth | 8 bit |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1200 (WUXGA) |
| Bandwidth | 10.2 Gbit/s |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat5, Cat6 |
| Maximum resolution | 1920 x 1200 pixels |
| Type | AV receiver |
| Ports & interfaces | |
|---|---|
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| RJ-45 input ports | 2 |
| Ethernet LAN | Yes |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Current | 0.33 A |
| Power consumption (max) | 5 W |
| Operating voltage | 16 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -10 – 60 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Storage relative humidity (H-H) | 10 – 90% |
| Weight & dimensions | |
|---|---|
| Receiver weight | 600 g |
| Receiver dimensions (WxDxH) | 200 x 120 x 30 mm |
| Packaging data | |
|---|---|
| Package weight | 1 kg |
| Package dimensions (WxDxH) | 280 x 200 x 70 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
