NETGEAR GS110TPP Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
- Managed L2/L3/L4 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 8
- MAC address table: 8000 entries Switching capacity: 20 Gbit/s
- Access Control List (ACL)
- Rack mounting Stackable
- Power supply included Power over Ethernet (PoE)

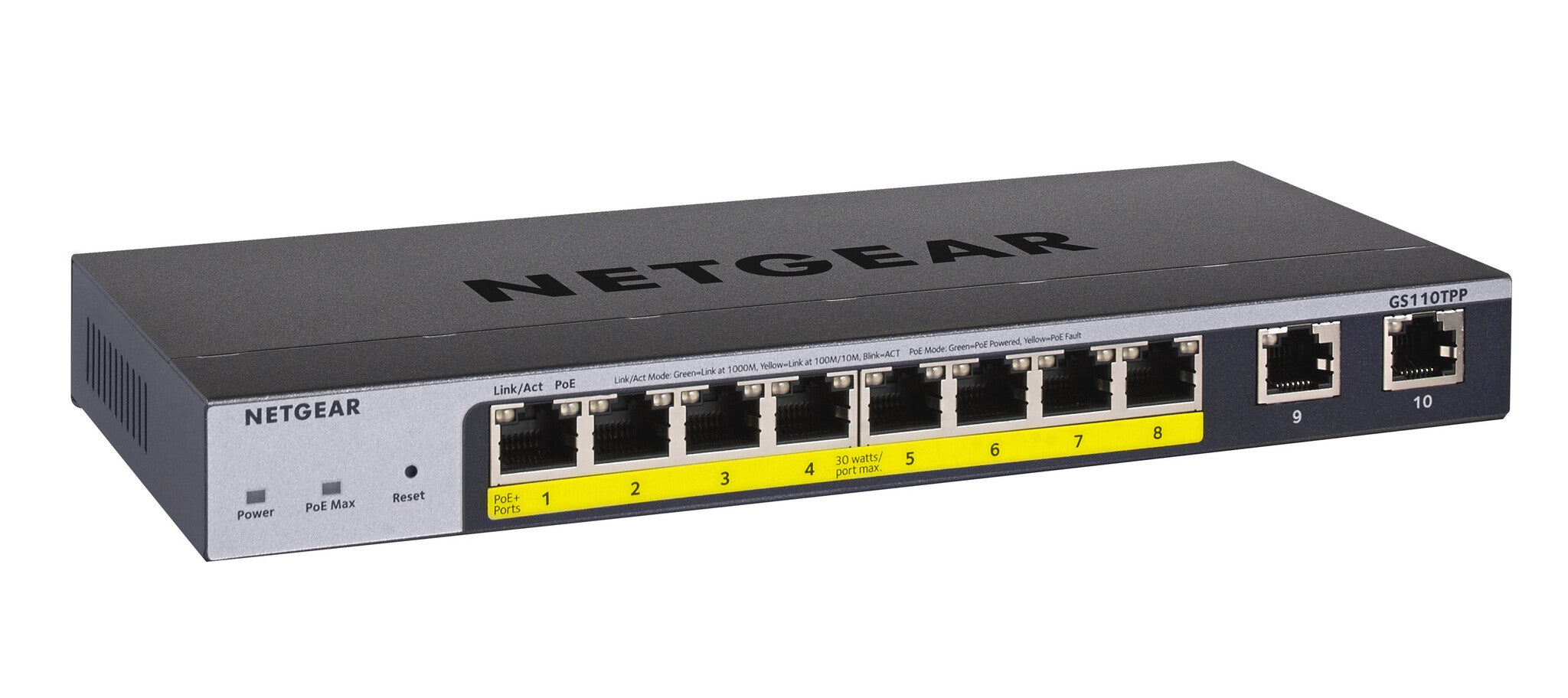

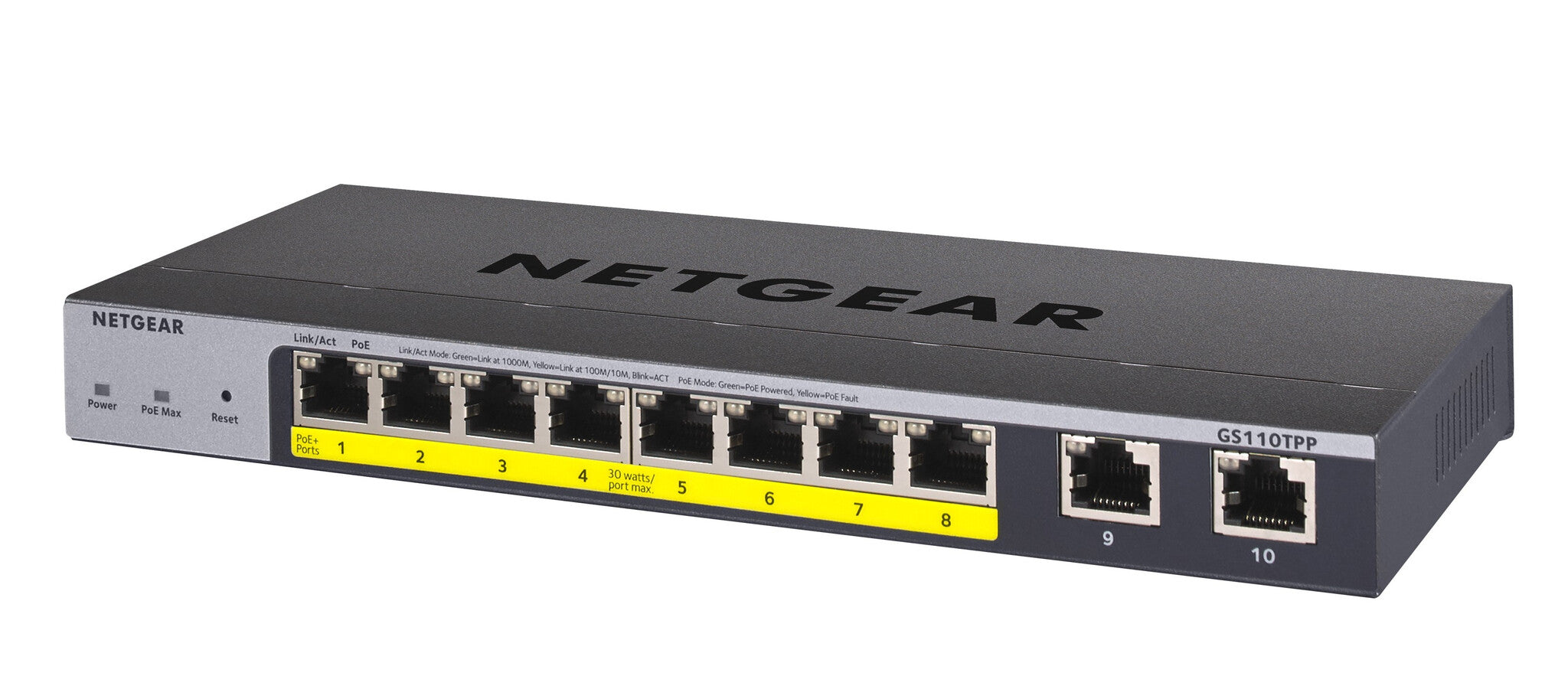

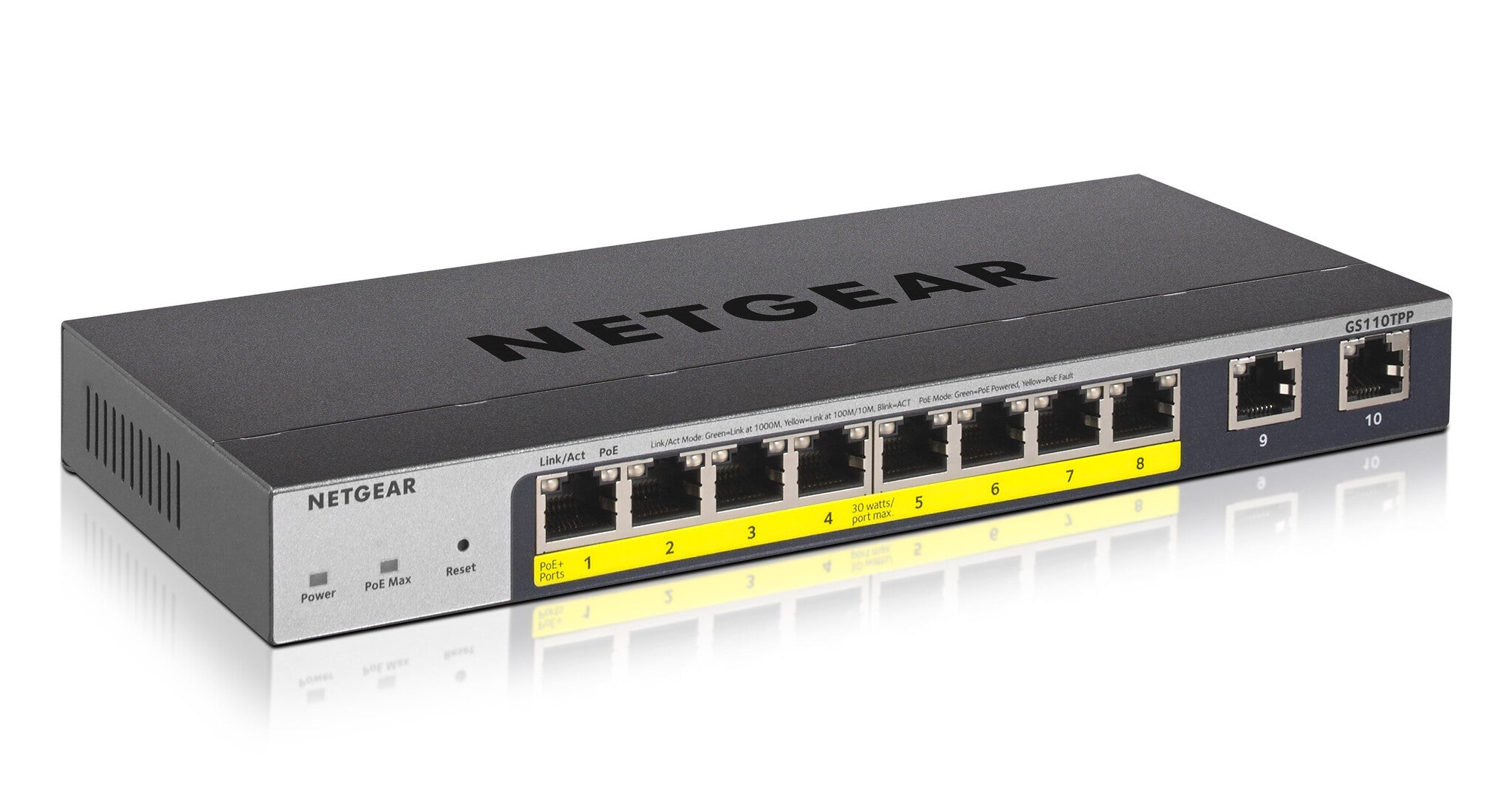

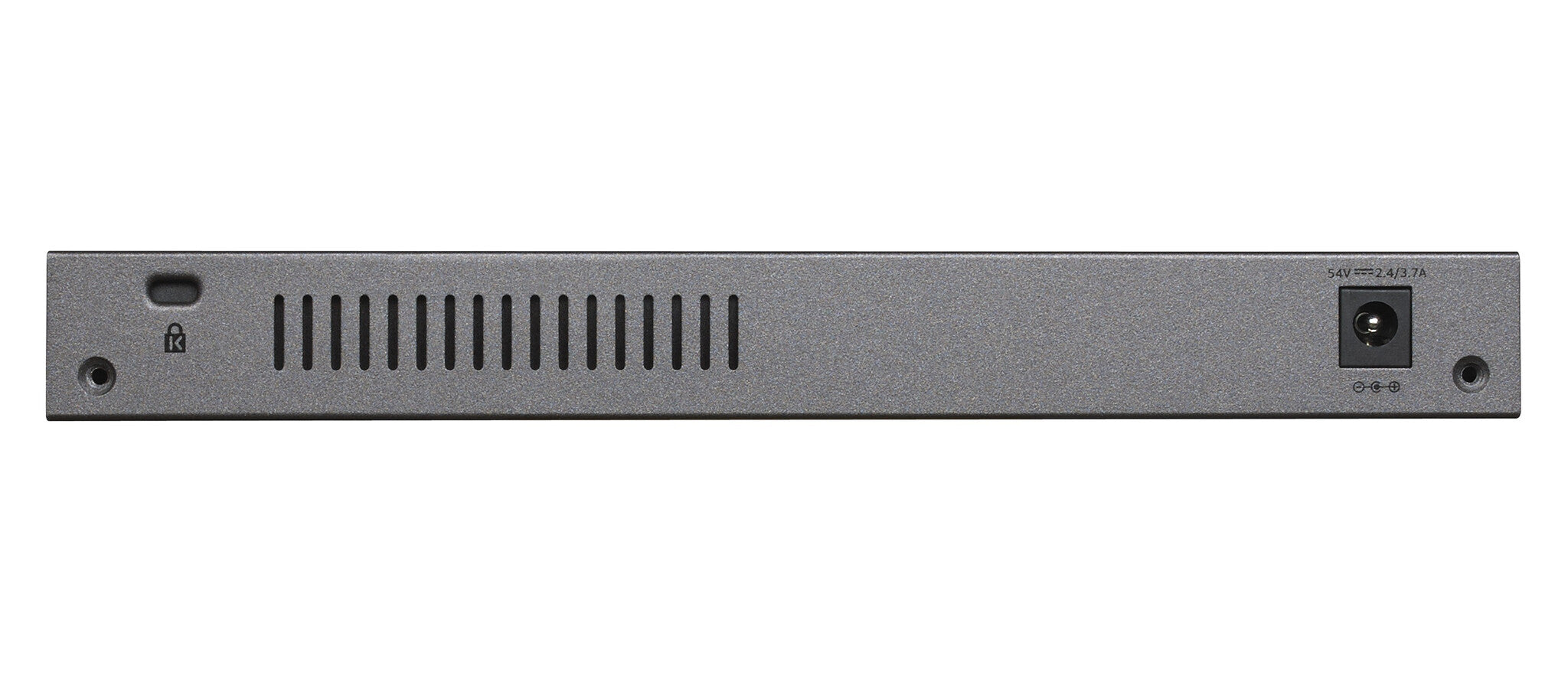

The NETGEAR GS110TPP 8-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch comes with 8 PoE+ copper ports and 2 dedicated Ethernet ports for uplinks. Organizations can now deploy PoE devices with a PoE power budget of 120W. Each PoE+ port can provide up to 30 watts to power up the connected devices. Fanless, the GS110TPP supports perfectly silent desktop operation or wall mounting. The GS110TPP Smart Managed Pro Switch offers an easy-to-use Web browser-based management GUI with configurable L2/L2+ network features like VLANs and PoE operation scheduling, allowing SMB customers to deploy PoE-based VoIP phones and IP surveillance. This switch also comes with NETGEAR Insight Cloud management activation (subscription-based) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Also, its Industry’s first flexible PoE+ integrated technology allows you to increase the PoE budget at any time to provide to your devices the power that they need with interchangeable optional external power adapter and an intuitive power selector.
Advanced features such as Layer 3 static routing including IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS110TPP is backed by NETGEAR’s ProSAFE Limited Lifetime Warranty and 24/7 technical support.
With its remote cloud manageability, large PoE budget, NETGEAR FlexPoE upgradable power and advanced L2 features, it’s the most versatile switch on the market for any environment!
| Management features |
| ARP inspection |
Yes |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3/L4 |
| Switch type |
Managed |
| Ports & interfaces |
| Power connector |
DC-in jack |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
| MAC address auto-aging supported |
Yes |
| Link aggregation |
Yes |
| Rate limiting |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
| Data transmission |
| Jumbo frames |
10000 |
| Jumbo frames support |
Yes |
| Switching capacity |
20 Gbit/s |
| MAC address table |
8000 entries |
| Security |
| Security algorithms |
802.1x RADIUS |
| MAC address filtering |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) IPv6 entries |
100 |
| Access Control List (ACL) IPv4 entries |
32 |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client, DHCP snooping |
| Design |
| LED indicators |
Activity, Link, PoE, Power, Speed |
| Product colour |
Grey |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
| Flash memory |
32 MB |
| Internal memory |
128 MB |
| Memory type |
RAM |
| Processor frequency |
500 MHz |
| Power |
| Power consumption (max) |
11.3 W |
| Power consumption (typical) |
141.3 W |
| Input current |
2.4 A |
| DC input voltage |
54 V |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
190 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Heat dissipation |
482.398 BTU/h |
| Non-operating altitude |
0 – 3000 m |
| Operating altitude |
0 – 3000 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
0 – 95% |
| Storage temperature (T-T) |
-20 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Weight |
640 g |
| Height |
27 mm |
| Depth |
101 mm |
| Width |
236 mm |
| Packaging content |
| Manual |
Yes |
| Packaging data |
| Package weight |
1.73 kg |
| Package height |
86 mm |
| Package depth |
267 mm |
| Package width |
161 mm |
| Logistics data |
| Products per master (outer) case |
6 pc(s) |
| Master (outer) case gross weight |
11.2 kg |
| Master (outer) case height |
309 mm |
| Master (outer) case length |
350 mm |
| Master (outer) case width |
274 mm |
