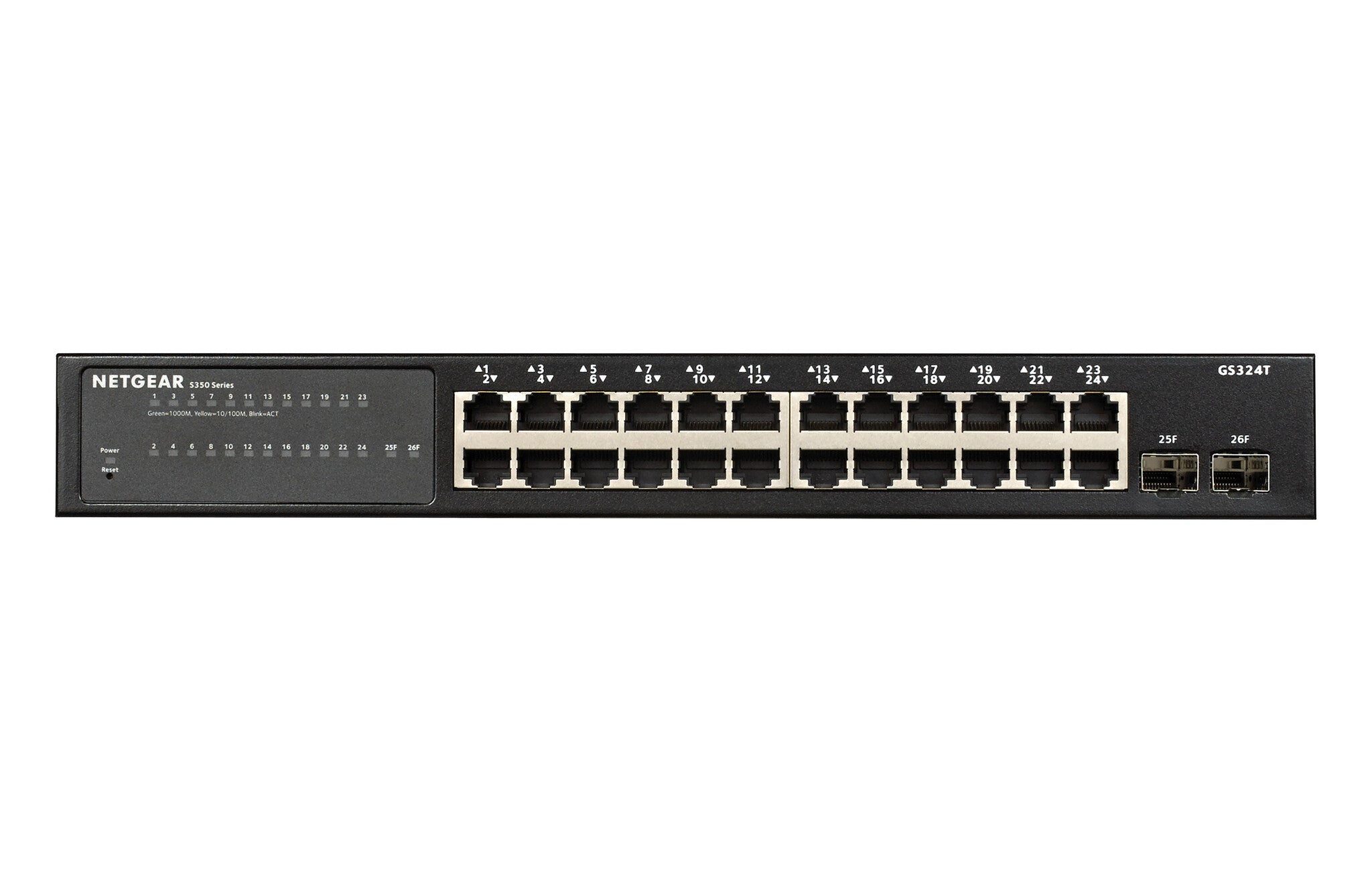

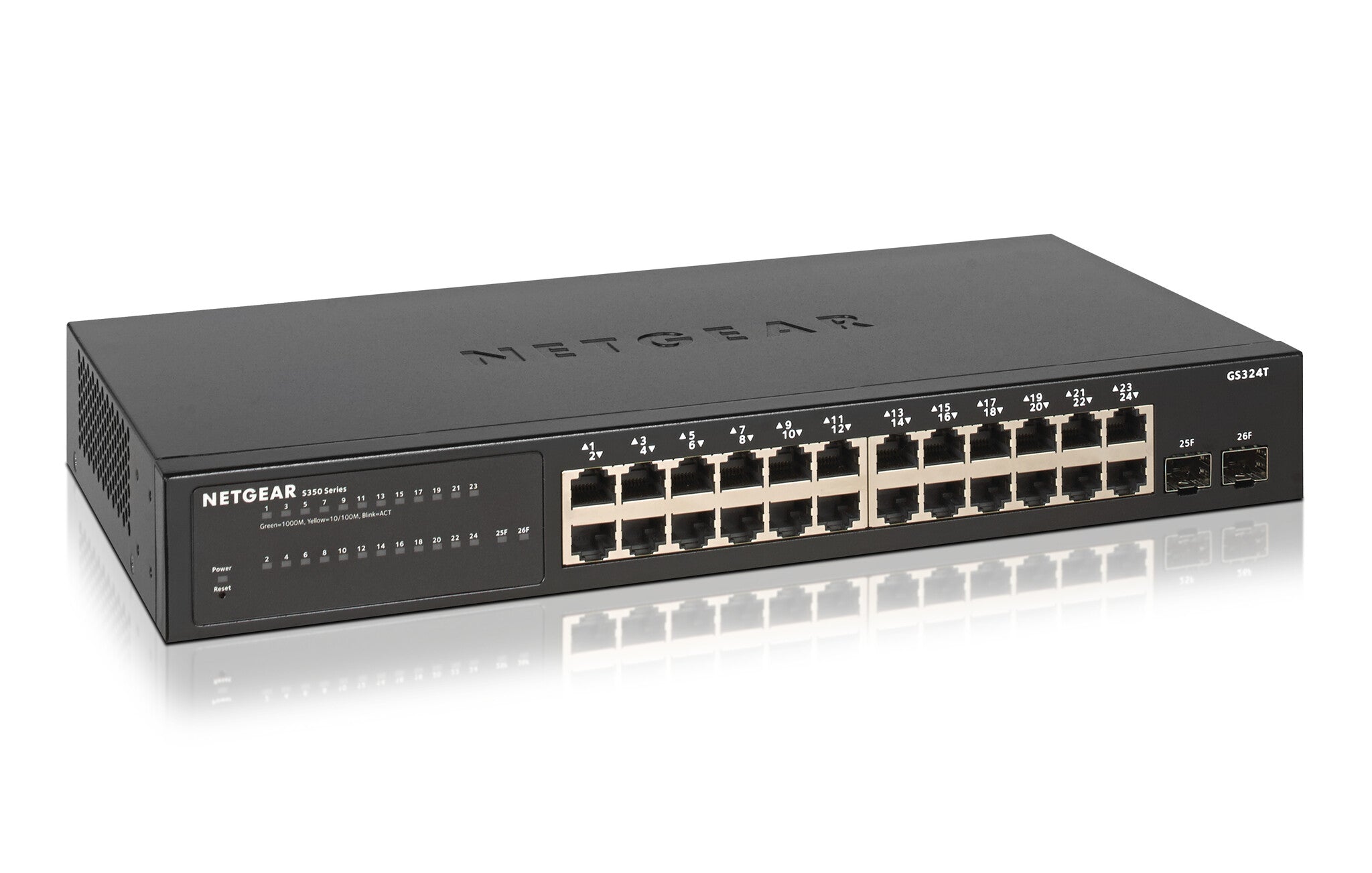

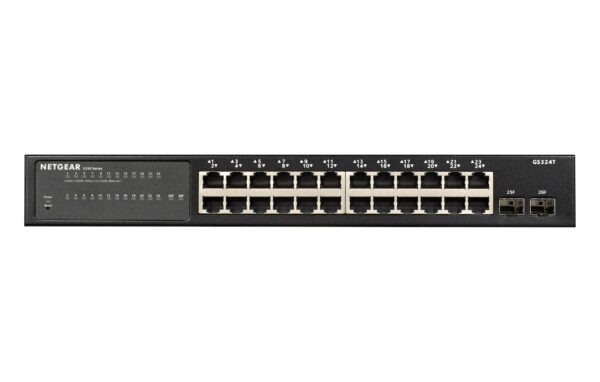

NETGEAR GS324T Managed L2/L3/L4 Gigabit Ethernet (10/100/1000) Black
- Managed L2/L3/L4
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24
- MAC address table: 16000 entries Switching capacity: 52 Gbit/s
- Access Control List (ACL)
- Rack mounting
Connectivity, Security and Affordability for Your Smart Business
As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of reliable and high performance networks that are SMB budget aware. With the growth of virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, SMB networks need to extend beyond simple reliability to performance and security. The NETGEAR S350 Gigabit Smart Managed Pro Switch series is tailored to these essential network needs of your business; delivering unprecedented non-blocking Gigabit bandwidth and solid network security at an affordable cost.
Designed for Converged Networks
NETGEAR Smart Managed Pro S350 series consists of five switch models, including 8-, 24- and 48-port Gigabit Ethernet switches and 8-, and 24-port Gigabit Ethernet PoE+ switches with 2 or 4 SFP ports for fiber uplinks, offering powerful Layer 2 features, enhanced performance and ease of use. They are purposely designed for converged networks where voice, video, data are all carried on a single network platform. Advanced features such as L2/L3/L4 Access Control Lists (ACLs), Quality of Service (QoS), Link Aggregation Control Protocol (LACP) and Spanning Tree Protocol (STP) will ensure a high-speed and highly secured network environment for your business.
Smart Managed switching features for security and performance
– Advanced VLAN support for better network segmentation
– L2/L3/L4 Access control lists (ACLs) for granular network access control including 802.1x port authentication
– QoS (Quality of Service) for traffic prioritization including port-based, 802.1p and L2/L3/L4 DSCP-based
– Auto “denial-of-service” (DoS) prevention
– Rate limiting and priority queuing for better bandwidth allocation
– Port mirroring for network monitoring
Network Development Made Easy
– Auto Voice VLAN for easy development of VoIP
– Auto Video for simple deployment of IP Surveillance
– ACL Wizard for a guided tour to set up your network access control
– Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrades
– PoE Timer for scheduling the on/off time of your PoE powered devices
– Easy to manage via web browser-based management GUI or Smart Control Center for multi-switch deployment
Management features | |
---|---|
Virtual Cable Test (VCT) | Yes |
ARP inspection | Yes |
Quality of Service (QoS) support | Yes |
Switch layer | L2/L3/L4 |
Switch type | Managed |
Ports & interfaces | |
---|---|

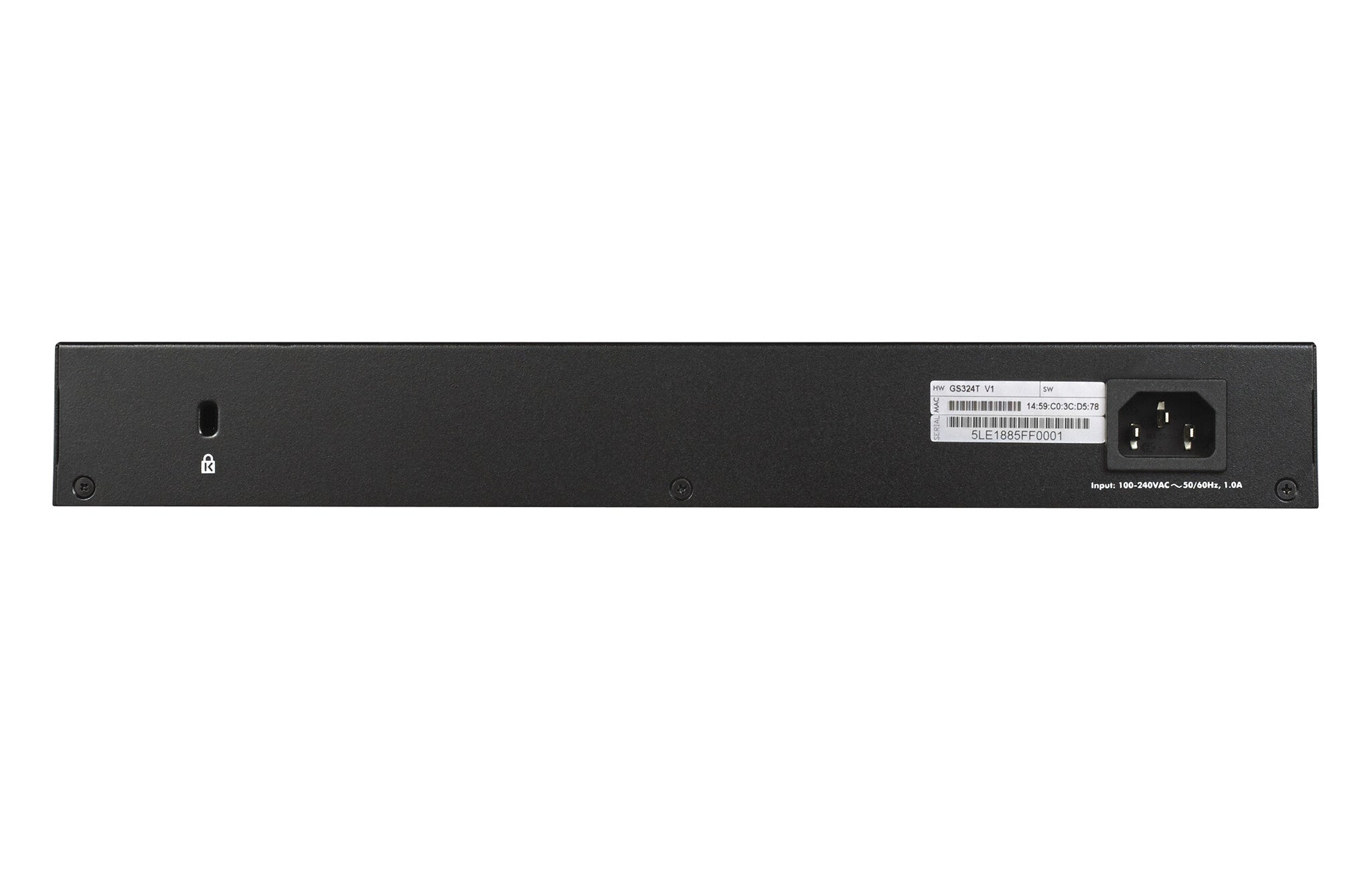

Power connector | AC-in jack |
SFP module slots quantity | 2 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Network | |
---|---|
Number of VLANs | 256 |
Virtual LAN features | Private VLAN, Voice VLAN, Port-based VLAN |
VLAN support | Yes |
Link aggregation | Yes |
Flow control support | Yes |
Auto-negotiation | Yes |
Rate limiting | Yes |
Broadcast storm control | Yes |
Spanning tree protocol | Yes |
Full duplex | Yes |
Port mirroring | Yes |
Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3az, IEEE 802.3x |
Data transmission | |
---|---|
Jumbo frames support | Yes |
Store-and-forward | Yes |
Switching capacity | 52 Gbit/s |
MAC address table | 16000 entries |
Security | |
---|---|
Loop protection | Yes |
ARP attack prevention | Yes |
DoS attack prevention | Yes |
IGMP snooping | Yes |
Access Control List (ACL) | Yes |
DHCP features | DHCP client |
Design | |
---|---|
LED indicators | Yes |
Product colour | Black |
Rack mounting | Yes |
Performance | |
---|---|
Buffer size | 512 KB |
Firmware upgradeable | Yes |
Power | |
---|---|
Power consumption (max) | 13.5 W |
Input current | 5 A |
AC input frequency | 50 – 60 Hz |
AC input voltage | 100 – 240 V |
Power over Ethernet (PoE) | |
---|---|
Power over Ethernet (PoE) | No |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 – 40 °C |
Weight & dimensions | |
---|---|
Weight | 1.62 kg |
Height | 43 mm |
Depth | 169 mm |
Width | 328 mm |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | AC |
Packaging data | |
---|---|
Package weight | 2.71 kg |
Package height | 79 mm |
Package depth | 465 mm |
Package width | 229 mm |
Package type | Box |
Mounting brackets included | Yes |
Logistics data | |
---|---|
Products per master (outer) case | 3 pc(s) |
Master (outer) case gross weight | 8.85 kg |
Harmonized System (HS) code | 85176990 |
Master (outer) case height | 271 mm |
Master (outer) case length | 481 mm |
Master (outer) case width | 270 mm |
