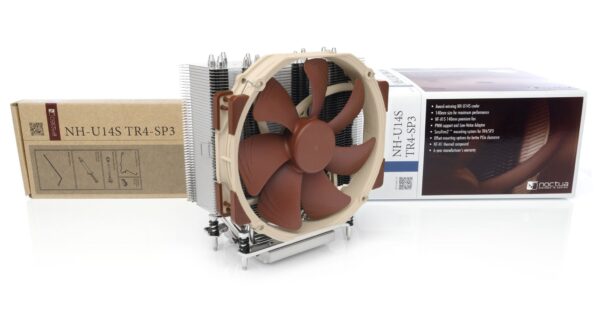

Noctua NH-U14S TR4-SP3 computer cooling system Processor Cooler 14 cm Aluminium, Beige
- Processor Cooler 14 cm 1500 RPM
- Supported processor sockets: Socket TR4, Socket SP3
- 19.2 dB Self-Stabilising Oil-pressure Bearing (SSO)
- 140 x 150 x 25 mm
- Aluminium, Beige
Continuing the legacy of Noctua’s classic NH-U-series, which has received more than a thousand awards and recommendations from international hardware websites and magazines, the NH-U14S has become a benchmark for high-end 140mm single tower coolers. The TR4-SP3 version is a tailored custom model for AMD’s TR4/SP3 platform (Ryzen Threadripper / Epyc) and features a larger contact surface as well as the latest SecuFirm2 mounting system for socket TR4/SP3. Topped off with the renowned quiet NF-A15 PWM 140mm fan, Noctua’s proven NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-U14S TR4-SP3 forms a complete premium-quality solution that combines maximum performance and superb acoustics for enthusiast-grade TR4/SP3 systems.
Award-winning NH-U series
The NH-U14S is the first 140mm model in Noctua’s award-winning NH-U series. First introduced in 2005, the NH-U series has become a standard choice for premium quality quiet CPU coolers and won more than 400 awards and recommendations from leading international hardware websites and magazines.
Tailored custom version for TR4/SP3 (Ryzen Threadripper / Epyc)Tailored custom version for TR4/SP3 (Ryzen Threadripper / Epyc)

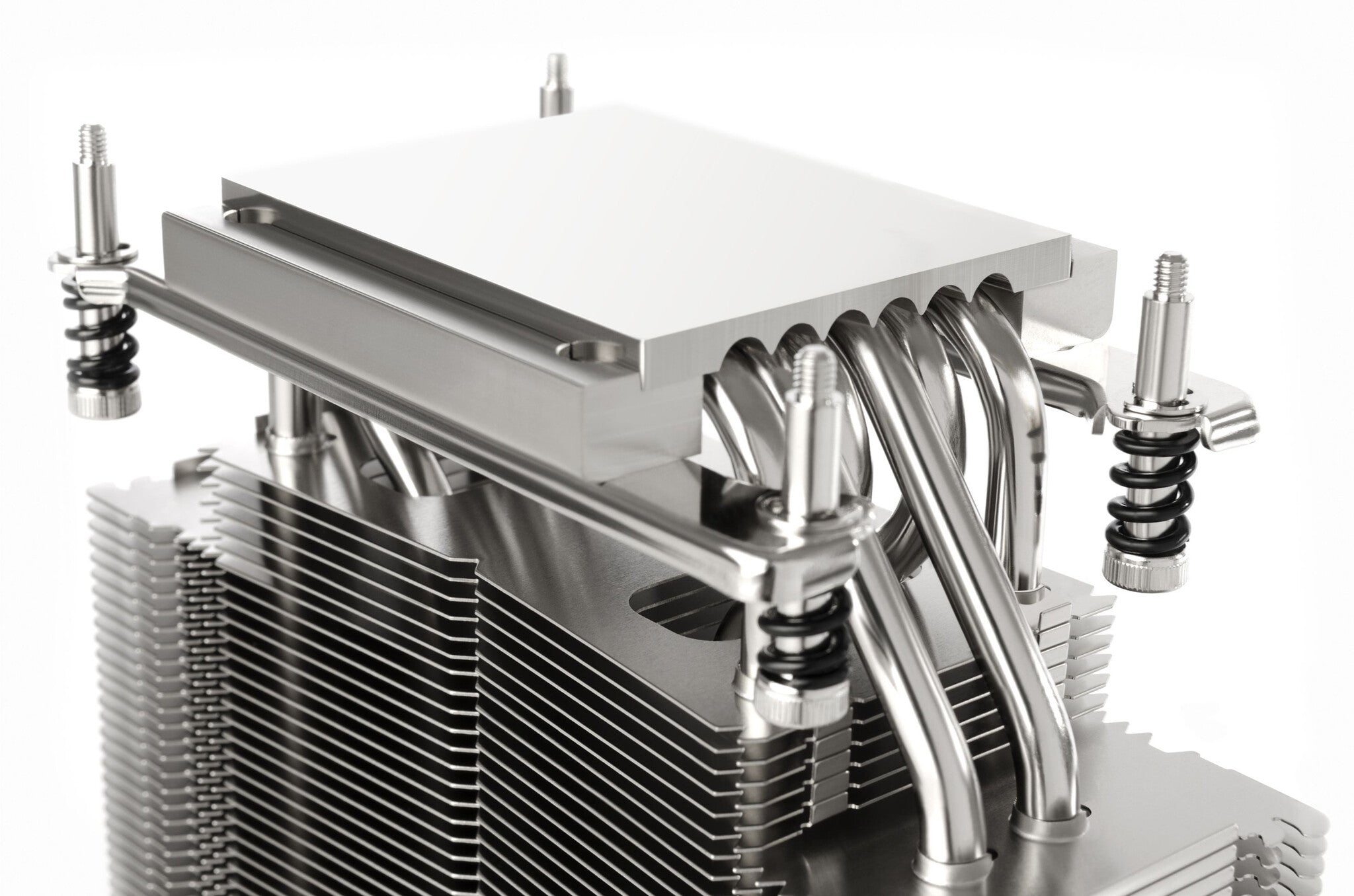

At 70x56mm, the copper contact surface of the TR4-SP3 version is more than double the size of the standard model. Tailored to fit the enormous integrated heat-spreaders (IHS) of AMD’s TR4/SP3-based processors, this customised design allows for an optimal heat flow from the CPU over the base to the heatpipes and on to the cooling fins.
140mm size for maximum performance140mm size for maximum performance
With six heatpipes, a fin surface area of more than 6000cm² and the large NF-A15 140mm fan, the NH-U14S TR4-SP3 provides a superior level of cooling performance that makes it ideal for the most high-end, enthusiast-grade TR4/SP3 systems.
NF-A15 140mm premium fanNF-A15 140mm premium fan
Complying with Noctua’s AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm heatsink fans on the market.
PWM support and Low-Noise AdaptorPWM support and Low-Noise Adaptor
The NF-A15 140mm fan supplied with the NH-U14S supports PWM for convenient automatic speed control through the mainboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.
Anti-vibration pads and fan-clips for second NF-A15 (optional)Anti-vibration pads and fan-clips for second NF-A15 (optional)
For users who want to achieve even better performance by adding a second, optional NF-A15 fan to create a push/pull setup, the NH-U14S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.
SecuFirm2 mounting system for TR4/SP3SecuFirm2 mounting system for TR4/SP3
Noctua’s SecuFirm2 mounting systems have become synonymous with quality, safety and ease of use. The TR4-SP3 variant has been completely custom-designed for the new socket and is particularly easy to install: Put on the heatsink, fix the four spring-loaded screws and you’re done!

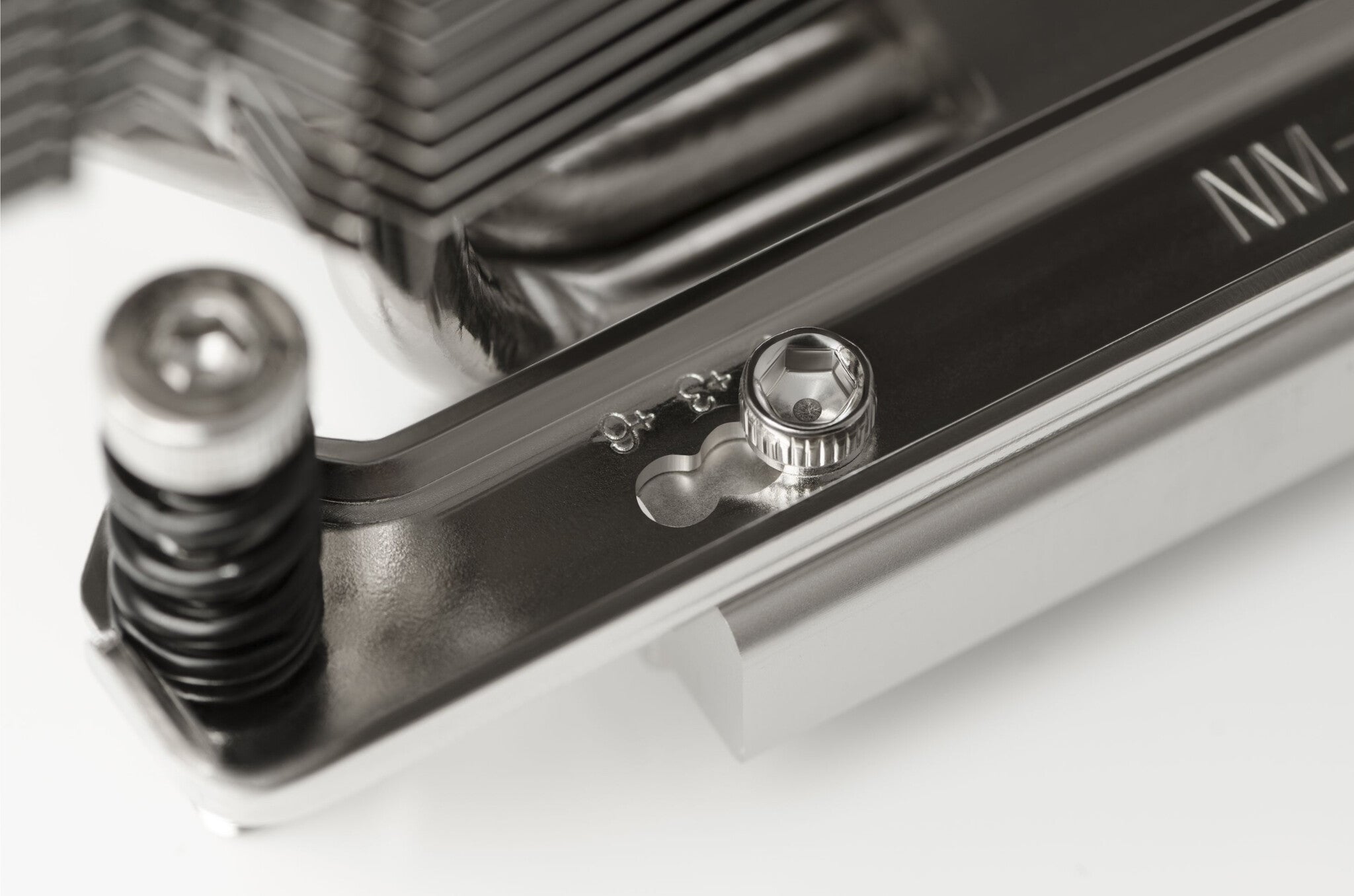

Offset mounting options for better PCIe clearanceOffset mounting options for better PCIe clearance
In order to assure optimal compatibility with SLI and CrossFire multi-GPU setups, the SecuFirm2 mounting for TR4/SP3 makes it possible to offset the cooler by 3 or 6mm towards the upper edge of the motherboard, thereby increasing clearance of the top PCIe slot.
NT-H1 thermal compoundNT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua’s NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.
6-year manufacturer’s warranty6-year manufacturer’s warranty
Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A15 features an MTTF rating of more than 150.000 hours and the entire NH-U14S package comes with a full 6-year manufacturer’s warranty.
| Performance | |
|---|---|
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Airflow with LNA (max) | 115.5 m³/h |
| Airflow | 140.2 m³/h |
| Noise level with LNA (max) | 24.6 dB |
| Noise level (high speed) | 19.2 dB |
| Rotational speed with LNA (max) | 1200 RPM |
| Rotational speed (max) | 1500 RPM |
| Rotational speed (min) | 300 RPM |
| Compatible processor series | AMD Ryzen |
| Supported processor sockets | Socket TR4, Socket SP3 |
| Fan diameter | 14 cm |
| Type | Cooler |
| Suitable location | Processor |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Fins material | Aluminium |
| Number of fan blades | 7 |
| Number of fans | 1 fan(s) |
| Material | Copper |
| Product colour | Aluminium, Beige |
| Power | |
|---|---|
| Voltage | 12 V |
| Power supply | 1.56 W |
| Weight & dimensions | |
|---|---|
| Package weight | 1.5 kg |
| Package height | 217 mm |
| Package depth | 113 mm |
| Package width | 226 mm |
| Heatsink weight | 865 g |
| Fan dimensions (W x D x H) | 140 x 150 x 25 mm |
| Weight | 1.03 kg |
| Height | 165 mm |
| Depth | 78 mm |
| Width | 150 mm |
| Packaging content | |
|---|---|
| Low-noise adaptor (LNA) | Yes |
| Other features | |
|---|---|
| Mean time to failure (MTTF) | 150000 h |
| Heatsink dimensions (W x D x H) | 150 x 52 x 165 mm |
| Logistics data | |
|---|---|
| Products per master (outer) case | 8 pc(s) |
| Master (outer) case gross weight | 13 kg |
| Harmonized System (HS) code | 84733080 |
