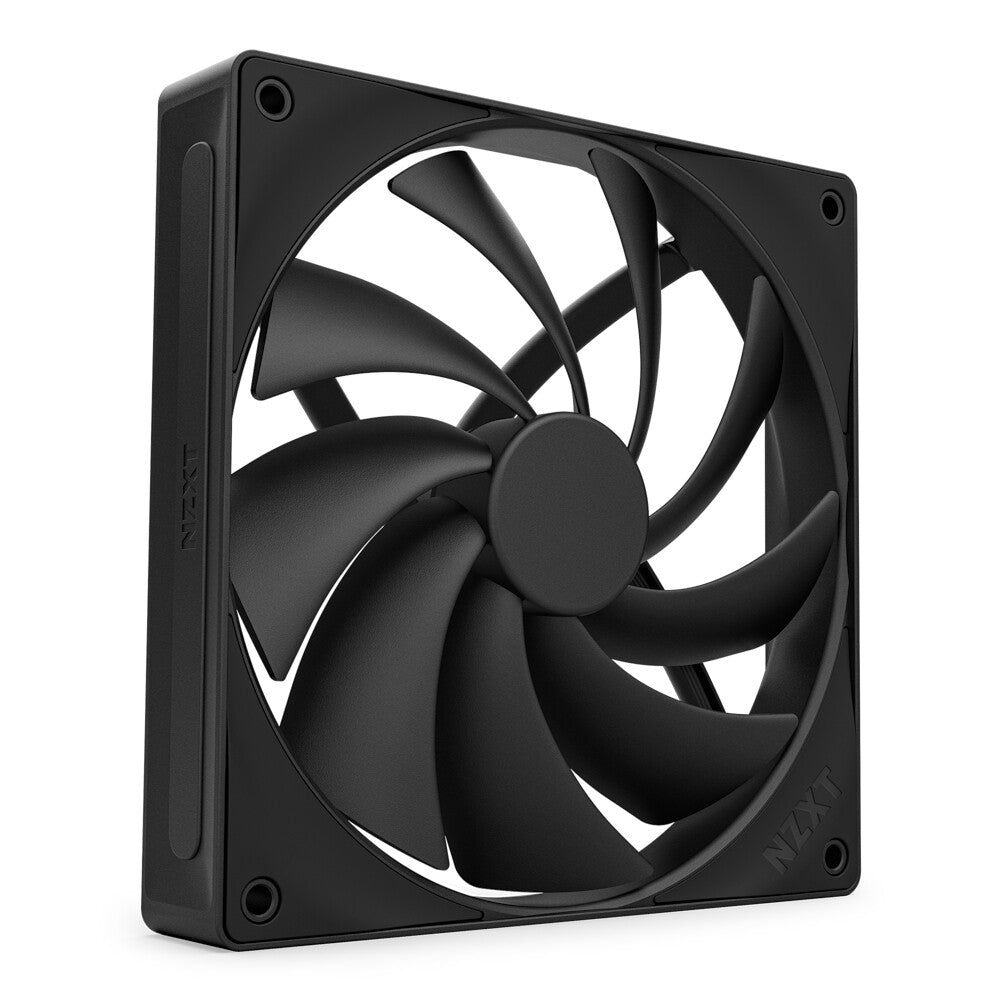

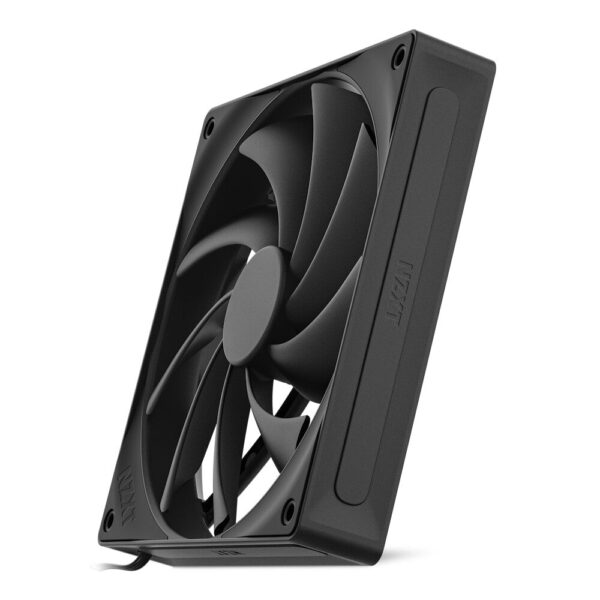

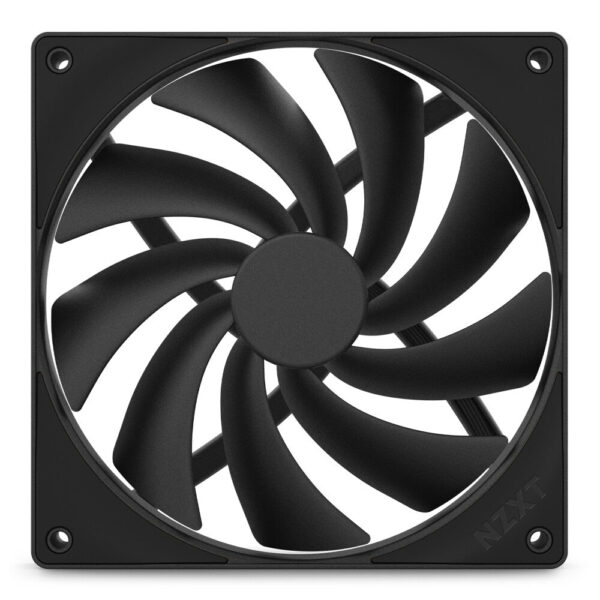

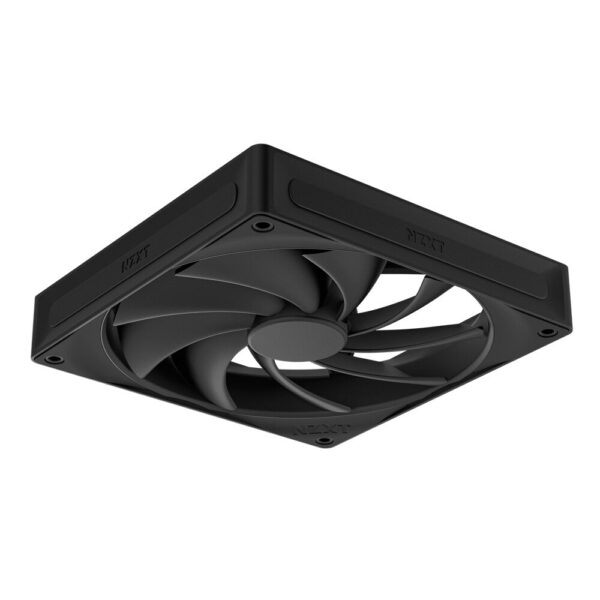

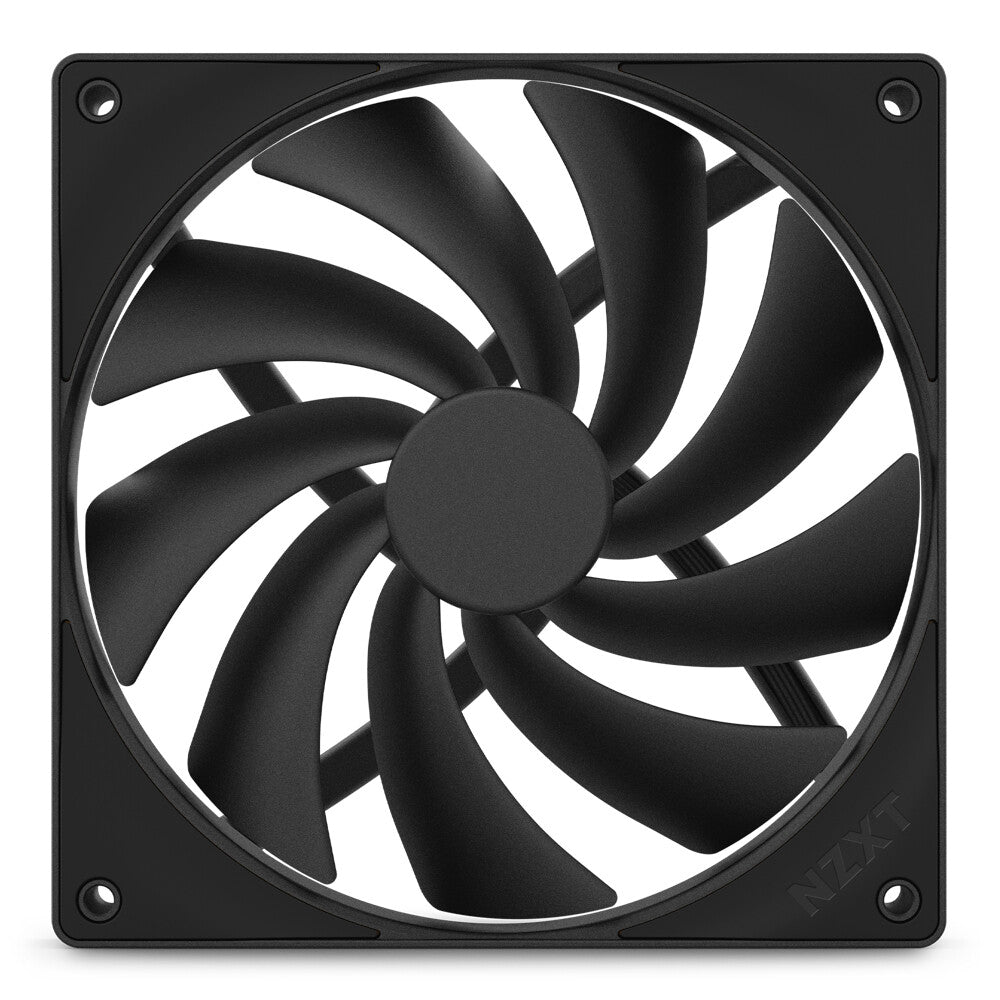

NZXT F140Q Computer case Fan 14 cm Black 1 pc(s)
- Nine sickle-style blades are optimized to move large amounts of air, ensuring versatile use for intake or exhaust
- Minimal gap between blade edges and frame maximizes the spinning area for higher airflow and reduced turbulence
- Chamfered frame design directs air in a powerful concentrated flow pattern, traveling far into the case to cool vital components
- Fluid dynamic bearings provide unwavering stability, low-noise operation, and a 60,000-hour lifespan
- PWM control dynamically adjusts fan speed for higher output or lower noise based on system temperatures for efficient cooling
- Sturdy frame with rubberized corners absorbs vibrations for low-noise operation, even at high speeds
140mm Quiet Airflow PWM Case Fan
NZXT Quiet Airflow Fans offer high-performance, low-noise cooling for heat-prone PCs. Optimized blades and a chamfered frame provide powerful concentrated air, while fluid dynamic bearings and PWM control keep things quiet and efficient.
Optimized for Airflow
Nine sickle-style blades move large amounts of air, whether used for intake or exhaust.
Efficient Design
Minimal blade-to-frame gap maximizes the spinning area for optimal performance.
Powerful Cooling
Chamfered frame directs air in a concentrated pattern that travels far into the case.
Low Noise, Long Lasting
Fluid dynamic bearings ensure quiet operation with a 60,000-hour lifespan.
Speed Regulation
PWM control adjusts speed based on system temperatures for efficient, quiet cooling.
Silent & Stable
Sturdy frame and rubberized corners absorb vibration noise.
Performance | |
---|---|
Mean time between failures (MTBF) | 60000 h |
Fan speed (max) | 1500 RPM |
Fan speed (min) | 500 RPM |
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 1.77 mmH2O |
Maximum airflow | 102.9 cfm |
Noise level (high speed) | 29.8 dB |
Rotational speed (max) | 1500 RPM |
Rotational speed (min) | 500 RPM |
Fan diameter | 14 cm |
Type | Fan |
Suitable location | Computer case |
Design | |
---|---|
Fan connector | 4-pin |
Illumination LED | No |
Number of fans | 1 fan(s) |
Material | Plastic, Rubber |
Product colour | Black |
Power | |
---|---|
Fan voltage | 12 V |
Fan current | 0.32 A |
Rated current | 0.32 A |
Rated voltage | 12 V |
Power consumption (typical) | 3.84 W |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
Height | 25 mm |
Depth | 140 mm |
Width | 140 mm |
