NZXT H5 Flow Midi Tower Black

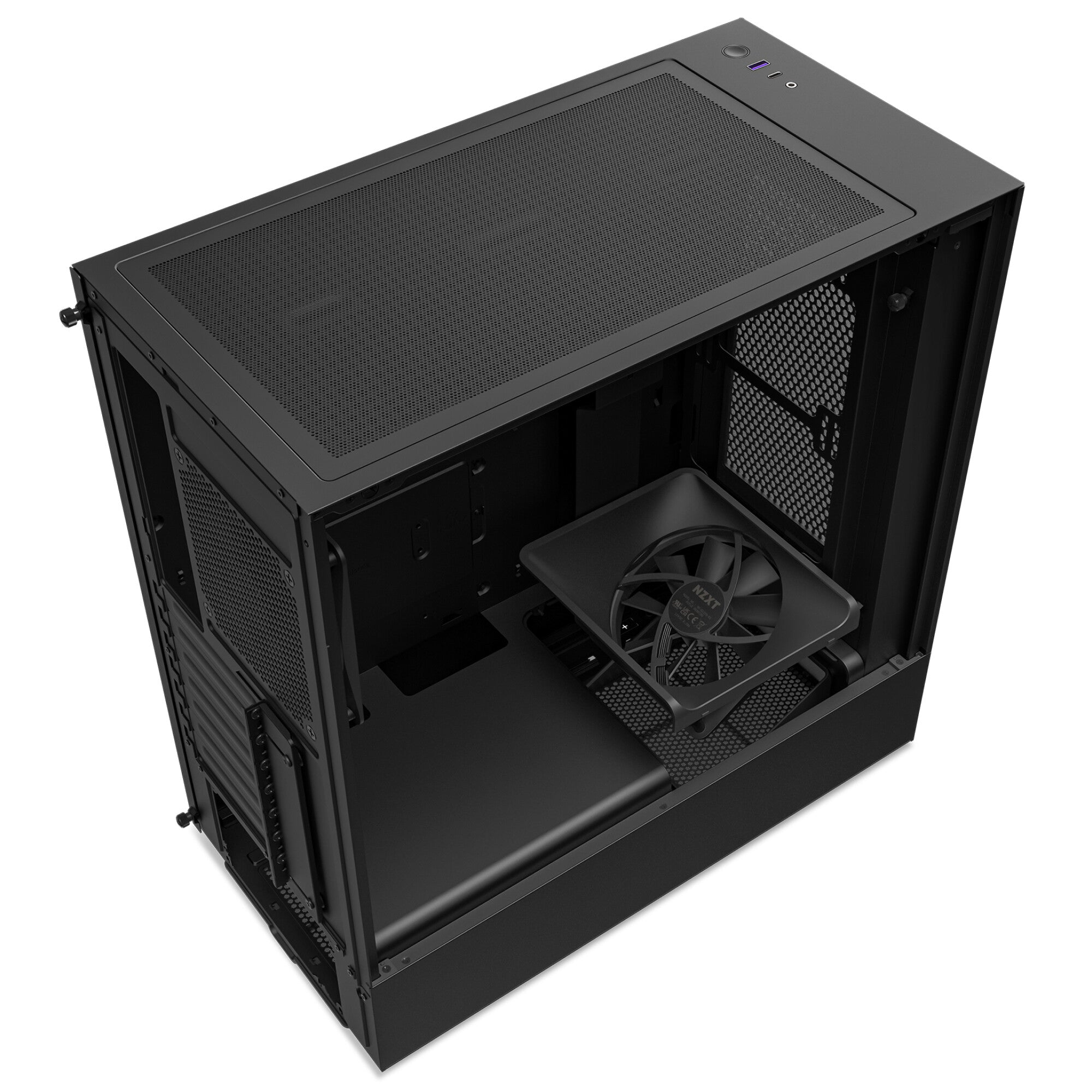

- Dedicated fan on bottom inside panel is angled to cool GPU

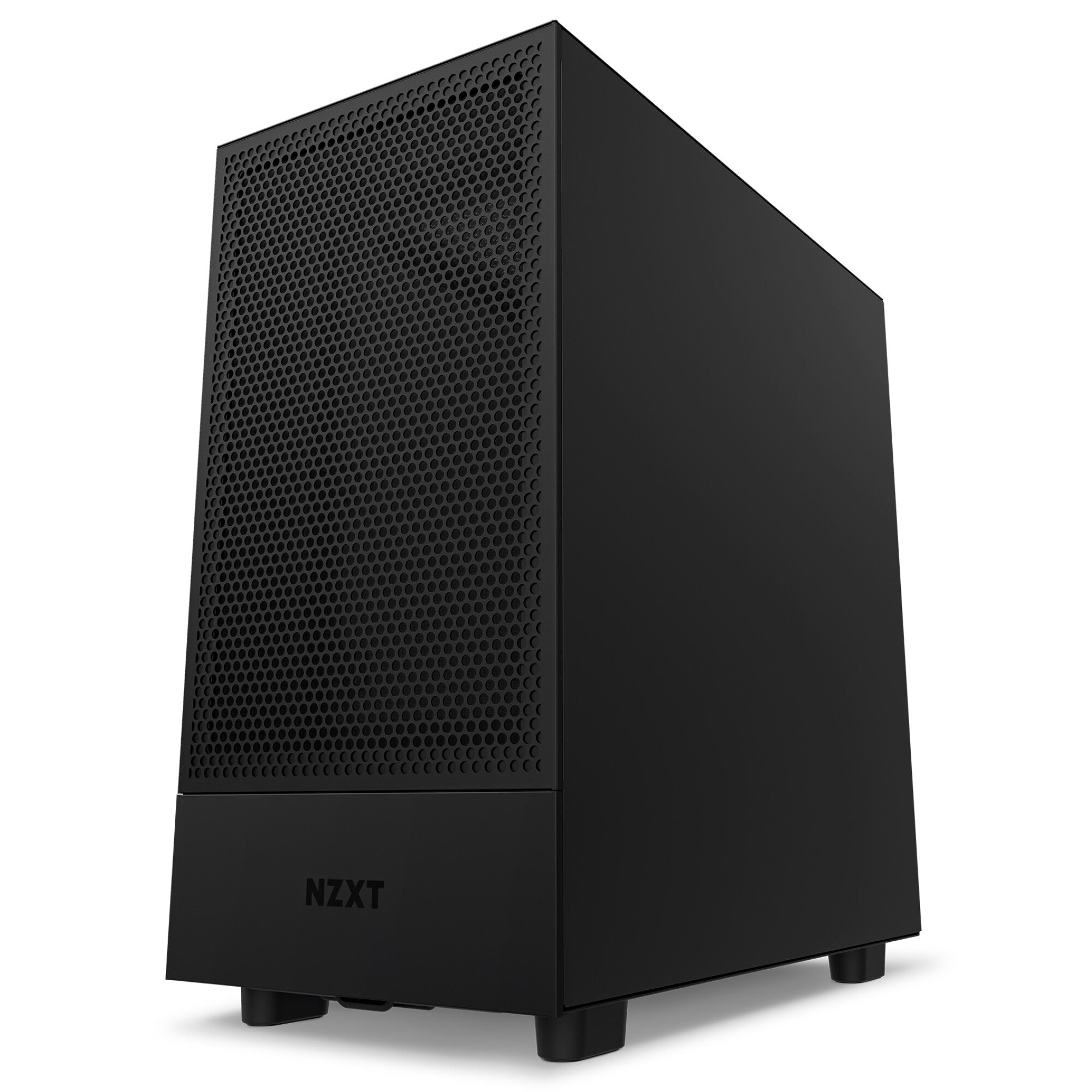

- Perforated front panel provides optimal ventilation
- Intuitive cable management system with wide channels, hooks, & straps
- Tool less access to front and side panels
- Front panel supports up to 2 x 140mm fans or 280mm radiator
- Top panel supports up to 2 x 120mm fans or 240mm radiator
- Includes two pre-installed F120Q fans
Fan Capacity
Fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.
Radiator Capacity
The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.
| Design |
| Maximum graphics card length |
36.5 cm |
| Maximum CPU cooler height |
16.5 cm |
| On/off button |
Yes |
| Cable management |
Yes |
| Anti-dust filter |
Yes |
| Tempered glass panel(s) |
Yes |
| Side window |
Yes |
| Number of expansion slots |
7 |
| Number of 2.5″ bays |
2 |
| Number of 3.5″ bays |
1 |
| Supported motherboard form factors |
ATX, EATX, micro ATX, Mini-ITX |
| Product colour |
Black |
| Material |
Steel, Tempered glass |
| Type |
PC |
| Form factor |
Midi Tower |
| Power supply |
| Power supply included |
No |
| Ports & interfaces |
| Audio input |
Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Cooling |
| Top radiator sizes supported |
120,140,180,240 mm |
| Rear radiator sizes supported |
80,92,120 mm |
| Front radiator sizes supported |
60,120,140,200,240,280 mm |
| Bottom fans installed |
1x 120 mm |
| Top fans diameters supported |
120 mm |
| Number of top fans supported (max) |
2 |
| Rear fans installed |
1x 120 mm |
| Front fans diameters supported |
120,140 mm |
| Number of front fans supported (max) |
2 |
| Storage |
| Supported HDD sizes |
2.5,3.5″ |
| Packaging content |
| Manual |
Yes |
| Weight & dimensions |
| Weight |
7.01 kg |
| Height |
464 mm |
| Depth |
446 mm |
| Width |
227 mm |
