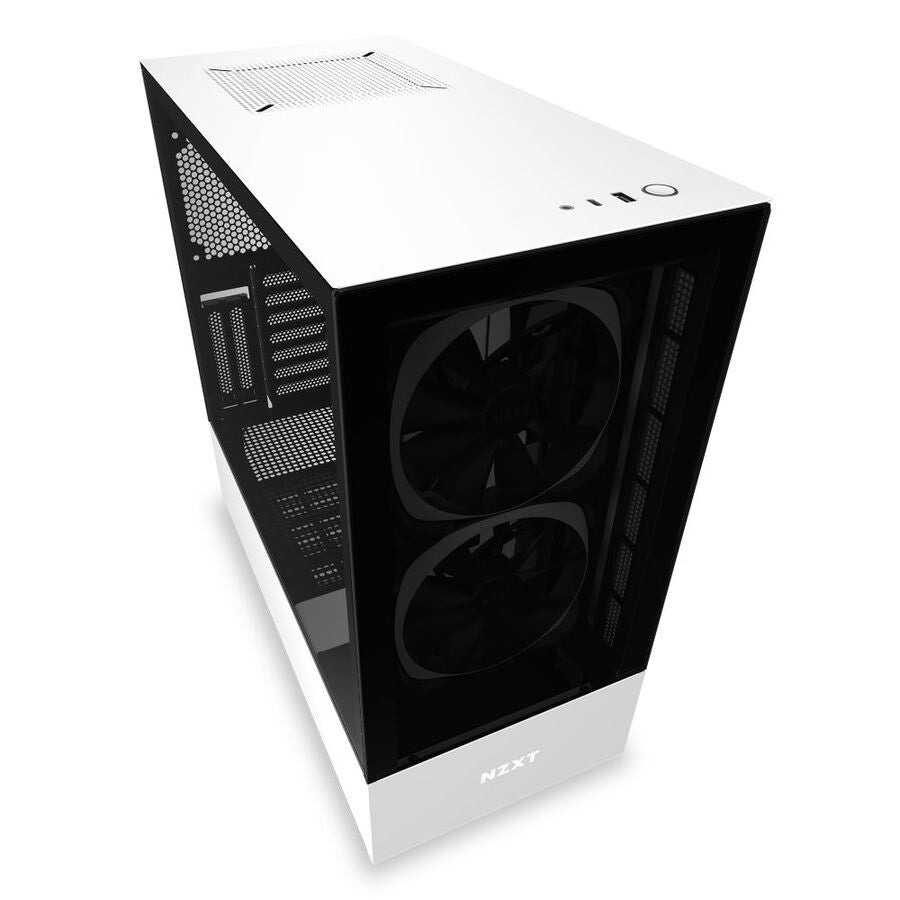

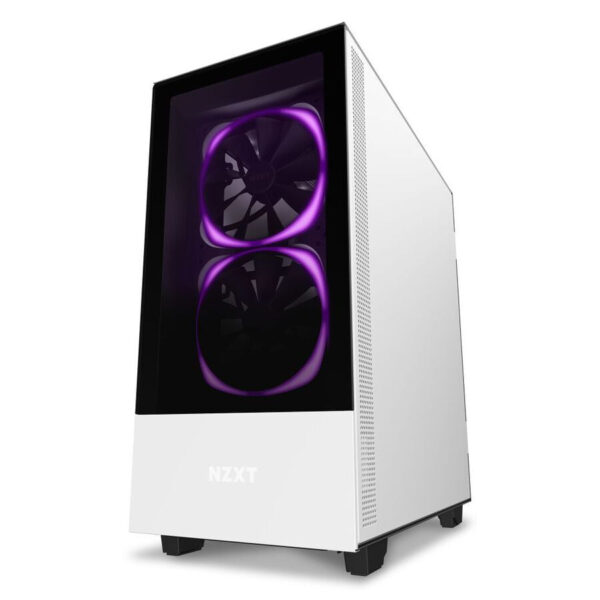

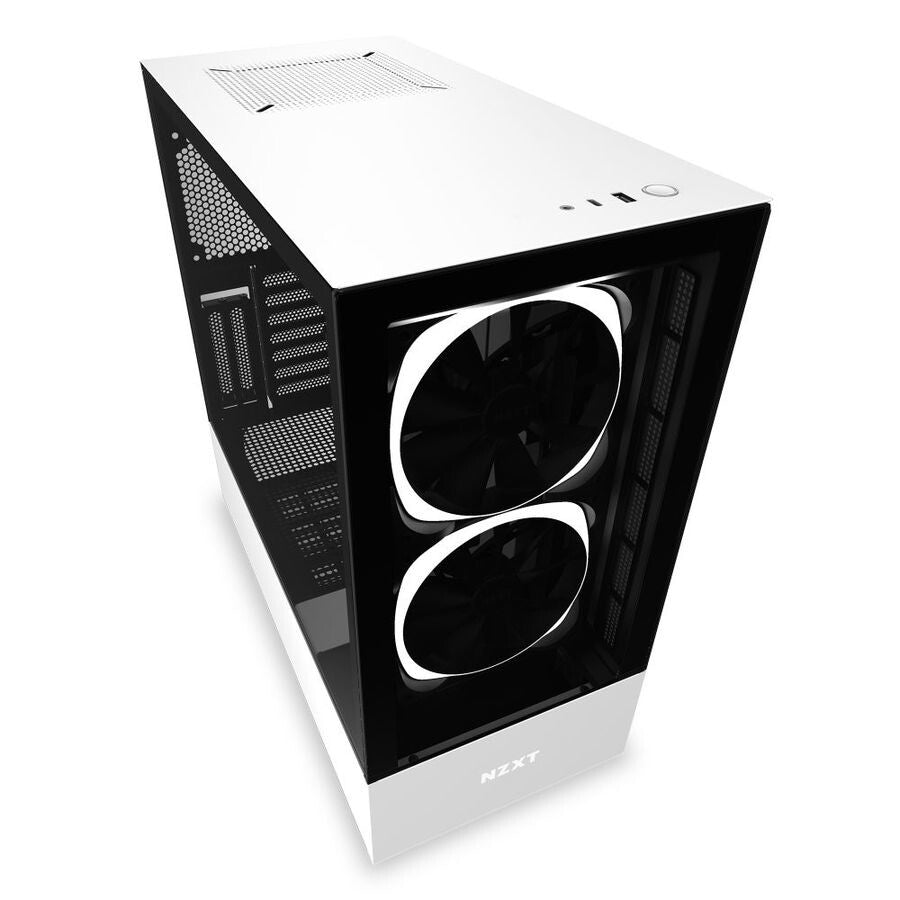

NZXT H510 Elite Midi Tower White
- Two tempered glass panels top off your build, perfectly showcasing your RGB build. We’ve included two Aer RGB 2 fans and an RGB LED strip to get you started
- The H510 Elite features a removable radiator mounting bracket, simple-to-use SSD trays, and a patented cable management system for a smarter, easier build experience. The new Smart Device 2 includes two HUE 2 RGB lighting channels, and three fan channels that support 0dB modes for voltage-regulated or PWM fans
- The USB 3.1 Gen 2-compatible USB-C connector on the front panel makes it easier than ever to connect smartphones, high-speed external storage, and the latest peripherals to your PC
- The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass panels all showcase your stunning build
- Use the intuitive NZXT CAM application to monitor and control your build, choosing from presets or custom controls for your RGB lighting and fans to create your dream PC
The H510 Elite compact ATX mid-tower is perfect for your RGB build. Behind the flush-mounted, tempered glass front panel, you’ll discover our renowned Aer RGB 2 fans keeping your components brilliantly cool. Well-engineered airflow, removable radiator mounting bracket, multiple fan filters, vertical GPU mount, a front panel USB-C connector, and an all-steel and tempered glass construction are just some of the key features you’ll get. The H510 Elite also includes the NZXT Smart Device V2, powering the built-in RGB light strips and case fans.
Design |
Maximum graphics card length |
38.1 cm |
Maximum CPU cooler height |
16.5 cm |
On/off button |
Yes |
Cable management |
Yes |
Anti-dust filter |
Yes |
Tempered glass panel(s) |
Yes |
Illumination colour |
Multi |
Illumination |
Yes |
Side window |
Yes |
Number of expansion slots |
7 |
Number of 2.5″ bays |
3 |
Number of 3.5″ bays |
3 |
Supported motherboard form factors |
ATX, micro ATX, Mini-ATX |
Product colour |
White |
Material |
SGCC, Steel, Tempered glass |
Type |
PC |
Form factor |
Midi Tower |
Power supply |
Power supply included |
No |
Ports & interfaces |
Audio output |
Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
Cooling |
Rear radiator sizes supported |
120 mm |
Front radiator sizes supported |
120,140 mm |
Top fans diameters supported |
120,140 mm |
Number of top fans supported (max) |
1 |
Rear fans diameters supported |
120 mm |
Number of rear fans supported (max) |
1 |
Front fans diameters supported |
120,140 mm |
Number of front fans supported (max) |
2 |
Storage |
Supported HDD sizes |
2.5,3.5″ |
Weight & dimensions |
Weight |
7.5 kg |
Height |
435 mm |
Depth |
428 mm |
Width |
210 mm |
Logistics data |
Harmonized System (HS) code |
84733080 |
