Phanteks D30-120 Computer case Fan 12 cm Black 3 pc(s)
- Computer case Fan 12 cm 2000 RPM
- 31.8 dB 61.5 cfm 2.72 mmH2O Fluid Dynamic Bearing (FDB)
- 120 x 120 x 30 mm 300 g
- Black
- 3 pc(s)

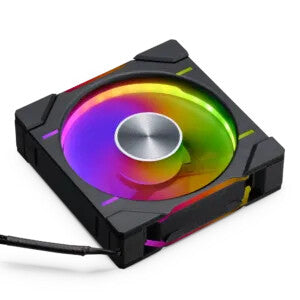

The Phanteks D30-120 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-120 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds.
The D30-120 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-120 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system.
Regular & Reverse Models
D30 REGULAR
Air moves from front to rear.
D30 REVERSED
Air moves from rear to front.
Clean look in both positions
Clean look with regular and reversed models combined.
Hub spokes blocked view with only regular models.

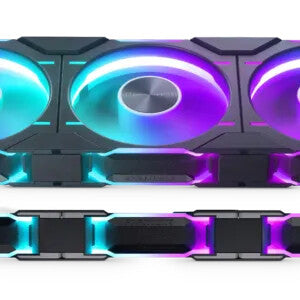

Link Together as One
Connect up to four D30 fans together with the bridge connectors.
Hide the fan screws with the screw covers for a super-clean look.
Standard PWM fan header to control directly from the motherboard.
30 mm of Performance
Increased thickness improves noise-normalized performance.
Designed to excel on radiators and mesh / dust filters.
D-RGB All the Way
The integrated D-RGB lighting is visible from all sides of the D30 frame.
The blades reflect the light coming from the HALOS lighting ring for a smooth lighting effect.
Compatible with Digital-RGB equipped motherboards and Phanteks Digital-RGB products.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 50000 h |
| Fan speed (max) | 2000 RPM |
| Fan static pressure | 2.72 mmH2O |
| Fan speed (min) | 250 RPM |
| Quantity per pack | 3 pc(s) |
| Fan noise level (max) | 31.8 dB |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Fan 2 maximum air pressure | 2.72 mmH2O |
| Fan 2 maximum airflow | 61.5 cfm |
| Fan 2 noise level (high speed) | 31.8 dB |
| Fan 2 rotational speed (max) | 2000 RPM |
| Fan 2 rotational speed (min) | 250 RPM |
| Maximum air pressure | 2.72 mmH2O |
| Maximum airflow | 61.5 cfm |
| Noise level (high speed) | 31.8 dB |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 250 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Number of LEDs | 30 |
| Illumination LED | Yes |
| Number of fan blades | 7 |
| Number of fans | 1 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Maximum current | 0.45 A |
| LED voltage | 5 V |
| Fan power consumption | 1.8 W |
| Voltage | 5 – 13.2 V |
| Power consumption (typical) | 1.8 W |
| Weight & dimensions | |
|---|---|
| Package weight | 990 g |
| Cable length | 0.7 m |
| Fan 2 weight | 300 g |
| Fan 2 dimensions (W x D x H) | 120 x 120 x 30 mm |
| Fan weight | 300 g |
| Fan thickness | 3 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 30 mm |
| Height | 120 mm |
| Depth | 30 mm |
| Width | 120 mm |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Packaging content | |
|---|---|
| Cables included | 4-pin |
| Package type | Box |
