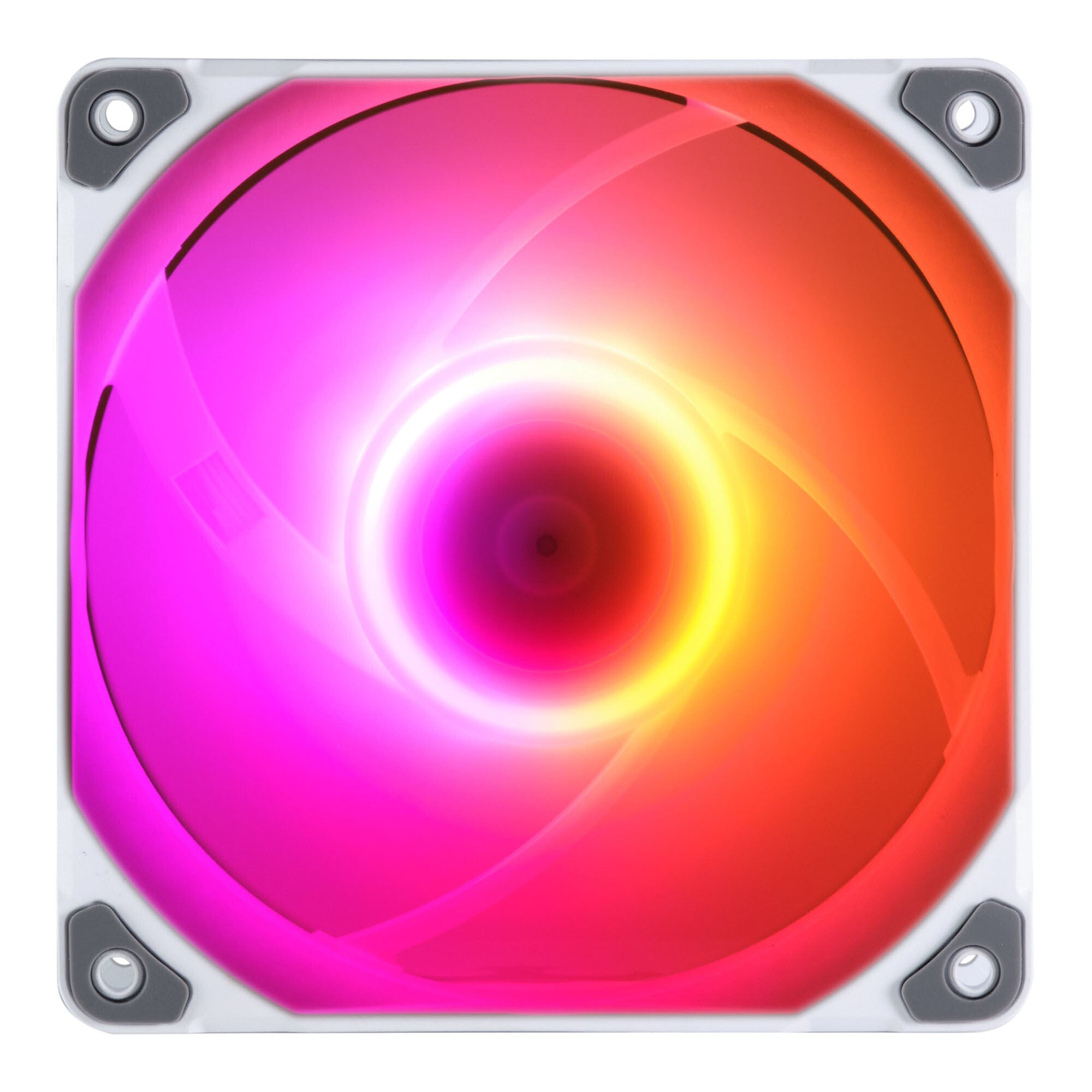

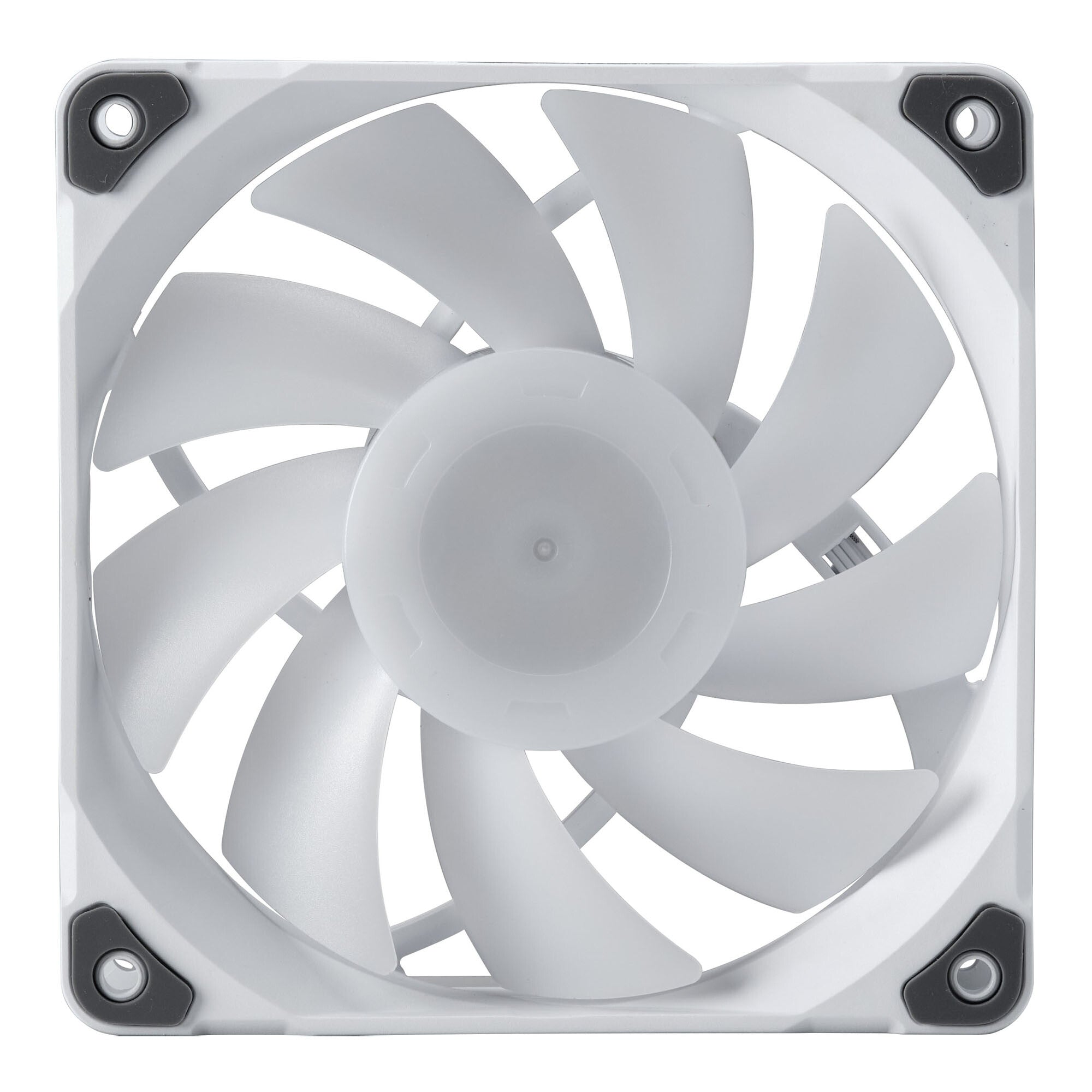

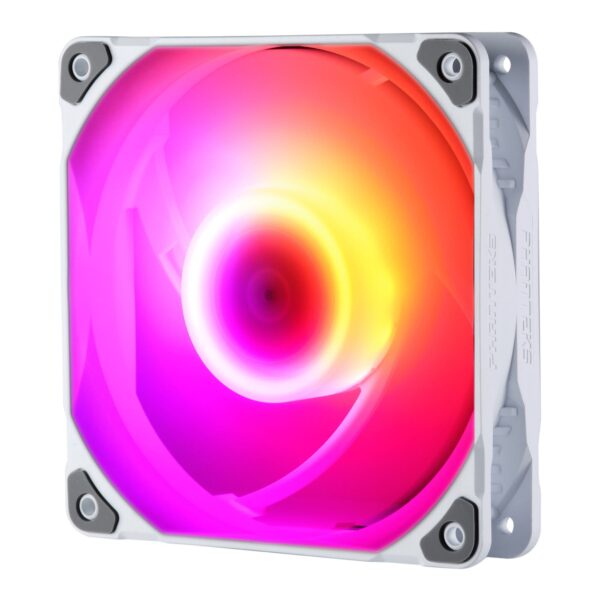

Phanteks M25 Computer case Fan 12 cm White 1 pc(s)
- Computer case Fan 12 cm 2000 RPM
- 84.26 cfm 2.67 mmH2O
- Pulse-width modulation (PWM) support
- 120 x 120 x 25 mm 155 g
- White
- 1 pc(s)
The Phanteks M25 fans build upon the award winning T30 fan to keep next gen hardware cool with high airflow cooling performance. The M25 fan blades are specifically optimized to perform the best with fine mesh/dust filters, heatsinks and radiators with reduced RPM levels. This optimization keeps unwanted bearing noises at a minimum while also leaving plenty of cooling headroom, when necessary, by going full speed. By sharing some of its design with the T30, the M25 stands out by delivering higher airflow through heatsinks and radiators with lower RPM levels with exceptional value. The wide RPM range, up to 2000 RPM, can be precisely controlled through PWM to ensure the M25 is excellent for both quiet and high-end gaming systems.
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 30000 h |
| Fan static pressure | 2.67 mmH2O |
| Quantity per pack | 1 pc(s) |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.67 mmH2O |
| Maximum airflow | 84.26 cfm |
| Rotational speed (max) | 2000 RPM |
| Rotational speed (min) | 500 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Daisy chain | Yes |
| Fan controller | Yes |
| Fan connector | 4-pin |
| Illumination colour | Multi |
| LED connector type | 3-pin |
| Number of LEDs | 12 |
| Illumination LED | Yes |
| Number of fan blades | 9 |
| Number of fans | 1 fan(s) |
| Product colour | White |
| Power | |
|---|---|
| Rated voltage | 12 V |
| Voltage | 7 – 13.2 V |
| Weight & dimensions | |
|---|---|
| Cable length | 0.12 m |
| Fan weight | 155 g |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Technical details | |
|---|---|
| Warranty period | 5 year(s) |
| Packaging content | |
|---|---|
| Number of screws | 4 |
| Screws included | Yes |
| Other features | |
|---|---|
| Noise level | 35.7 dB |
