Phanteks Revolt SFX power supply unit 750 W 24-pin ATX ATX Black
- 750 W 100 – 240 V 50/60 Hz
- Motherboard power connector: 24-pin ATX
- PC ATX 80 PLUS Platinum
- Active
- Black

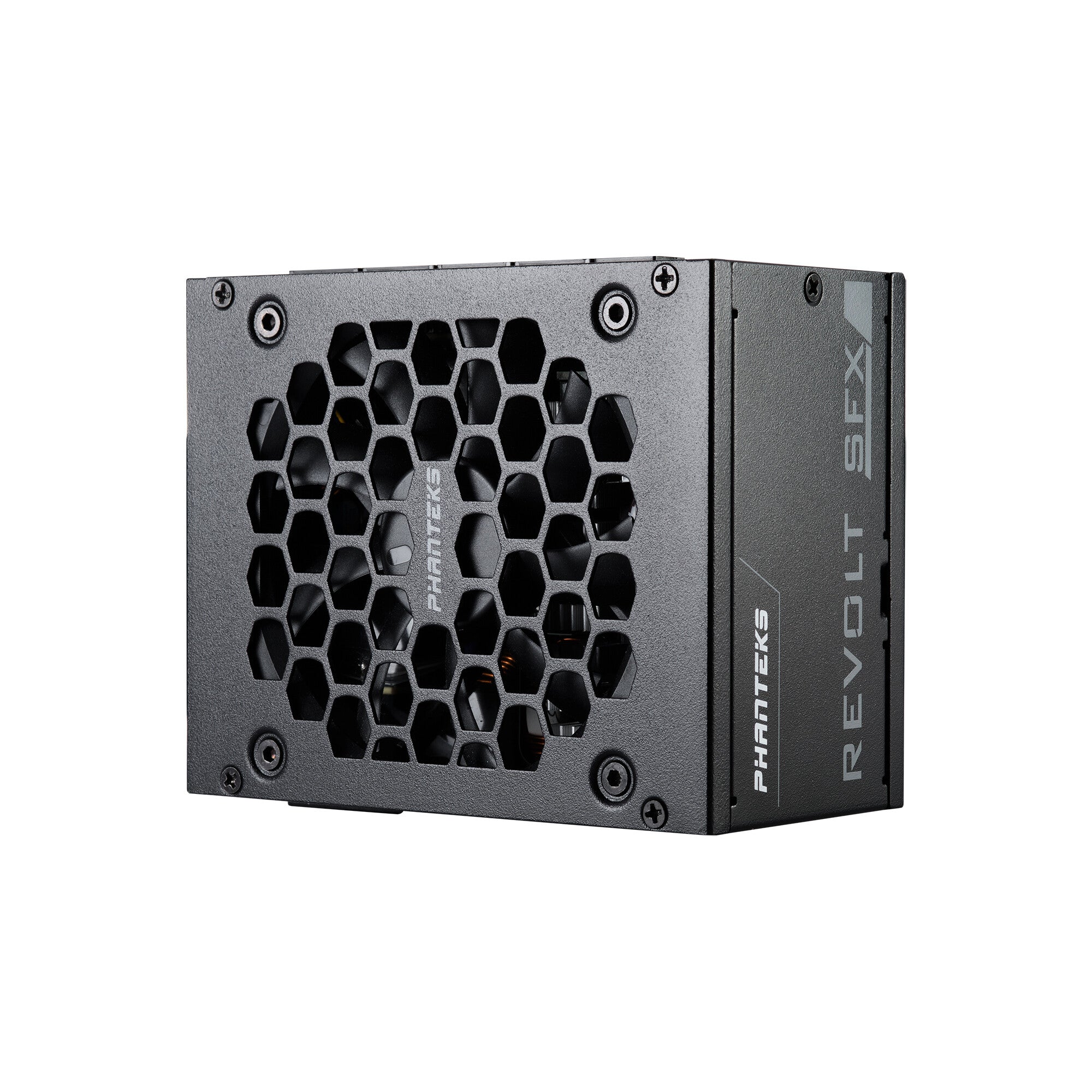

The Phanteks Revolt SFX power supplies bring the powerful Revolt series to a smaller footprint. The super-compact SFX form-factor maximizes its versatility to fit small form-factor chassis and free up space in larger chassis for better cable management. Developed with renowned power supply manufacturer Seasonic to ensure the best possible endurance and stability.
| Power | |
|---|---|
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 62 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 130 W |
| Combined power (+12V) | 744 W |
| Combined power (+3.3V) | 130 W |
| Power Factor Correction (PFC) type | Active |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Total power | 750 W |
| Ports & interfaces | |
|---|---|

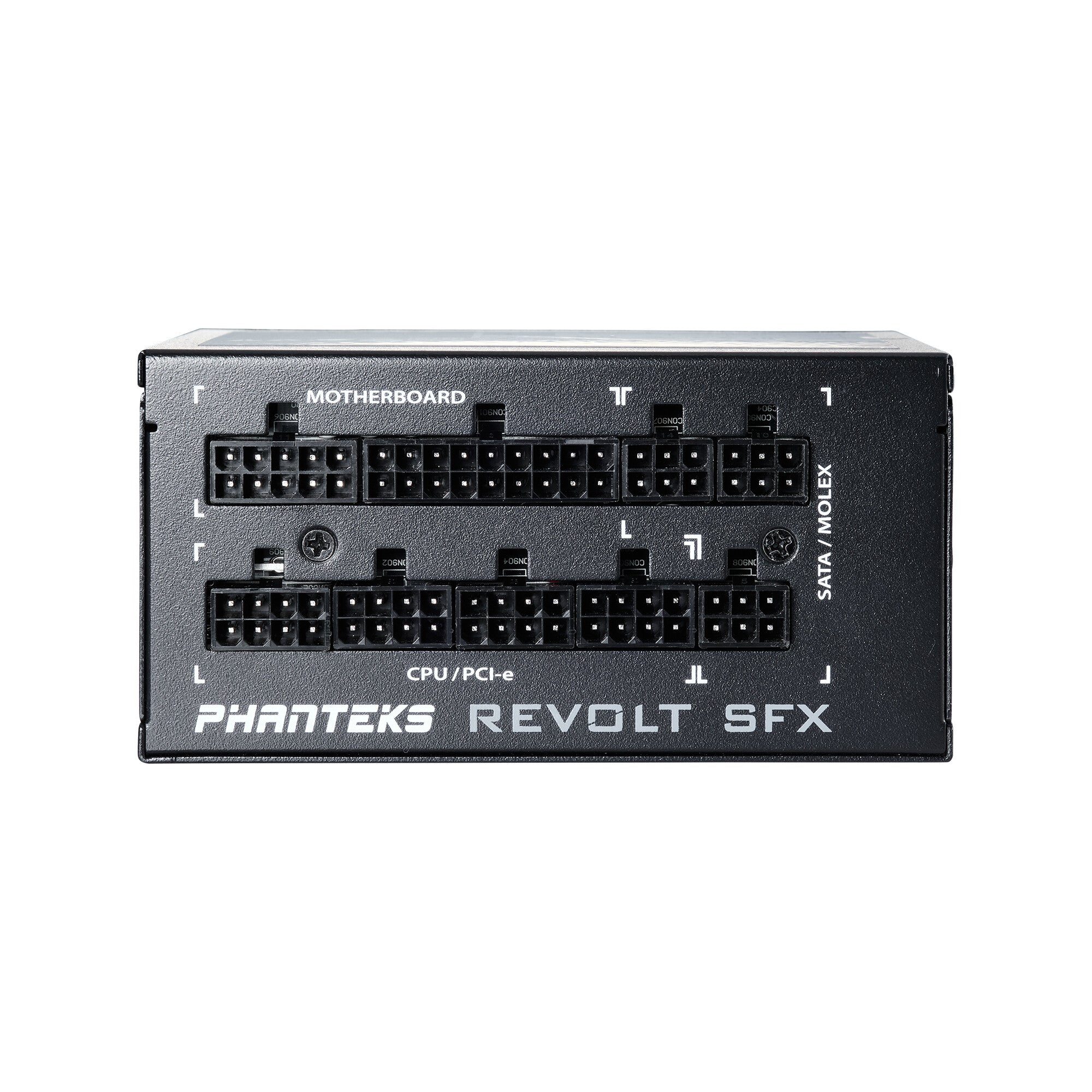

| Cabling type | Fully-Modular |
| ATX power connector (20+4 pin) | Yes |
| CPU power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 450 mm |
| Number of SATA power connectors | 10 |
| Motherboard power connector | 24-pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Supported motherboard form factors | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Cooling type | Active |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 – 85 °C |
| Weight & dimensions | |
|---|---|
| Height | 63.5 mm |
| Depth | 125 mm |
| Width | 100 mm |
| Packaging data | |
|---|---|
| Package height | 115 mm |
| Package depth | 310 mm |
| Package width | 180 mm |
| Logistics data | |
|---|---|
| Warranty period | 10 year(s) |
