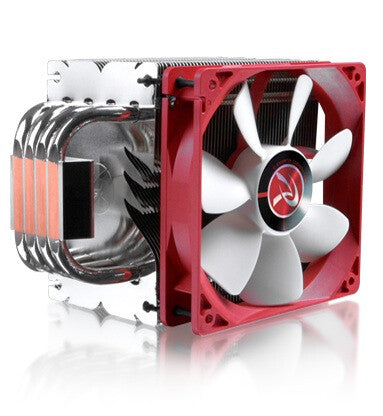

RAIJINTEK Themis Evo Processor Cooler 12 cm Metallic, Red, White
- Processor Cooler 12 cm 1500 RPM
- Supported processor sockets: Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket FM1, Socket FM2, Socket FM2+
- 24.53 dB 65.68 cfm 2.24 mmH2O
- 120 x 120 x 25 mm
- Metallic, Red, White
THEMIS Evo
THEMIS Evo, “Designed in Germany”, is manufactured by several patents to reach advanced performance, high quality & workmanship, environmental protection and ease of use. With Anti-vibration rubbers and supporting all modern sockets, THEMIS Evo is your professional choice of cooling.
– Non-Copper base design (C.D.C. – CPU Direct Contact);
– Patented pressing heat-pipe/fin technology to prevent the risk of heat-pipe damage;
– Patented solder-less louver fin assembly to increase heat-pipe ventilation;
– 100% Nickel heat-sink design;
– Compatible with all modern sockets of INTEL & AMD at market;
– Anti-Vibration rubber used to minimize movement and noise;
– Large dissipating area & elegant fin design;
– Easy installation and user friendly.
Performance |
Mean time between failures (MTBF) |
40000 h |
Maximum air pressure |
2.24 mmH2O |
Minimum air pressure |
1 mmH2O |
Maximum airflow |
65.68 cfm |
Minimum airflow (imperial) |
43.8 cfm |
Noise level (high speed) |
24.53 dB |
Rotational speed (max) |
1500 RPM |
Rotational speed (min) |
1000 RPM |
Compatible processor series |
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
Supported processor sockets |
Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket FM1, Socket FM2, Socket FM2+ |
Fan diameter |
12 cm |
Type |
Cooler |
Suitable location |
Processor |
Design |
Number of heat pipes |
4 |
Number of fans |
1 fan(s) |
Material |
Aluminium |
Product colour |
Metallic, Red, White |
Weight & dimensions |
Heat pipes diameter |
8 mm |
Heatsink weight |
614 g |
Fan thickness |
2.5 cm |
Fan dimensions (W x D x H) |
120 x 120 x 25 mm |
Other features |
Heatsink dimensions (W x D x H) |
122 x 82 x 165 mm |
Thermal resistance |
0.11 °C/W |
