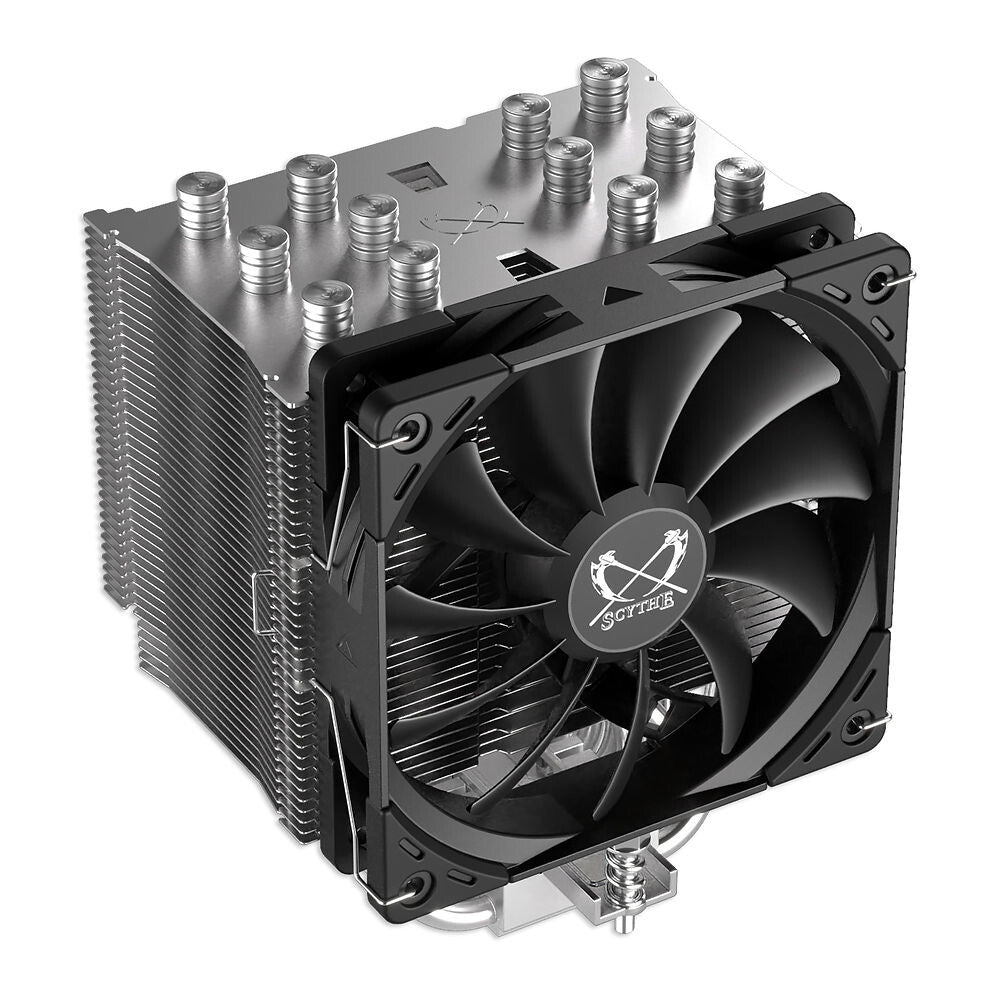

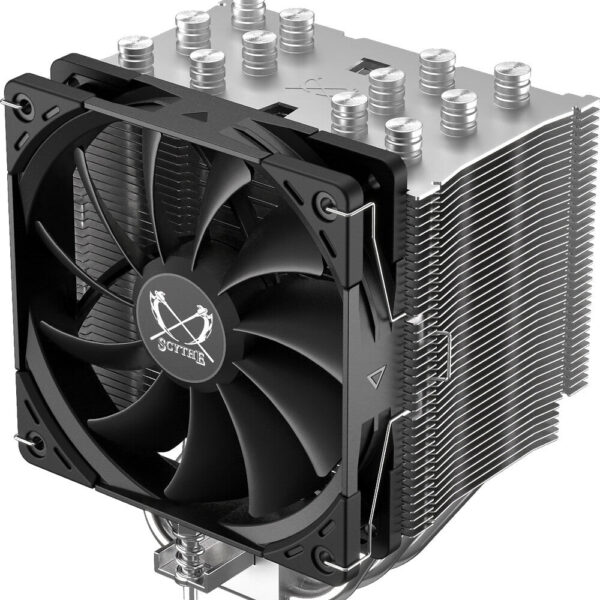

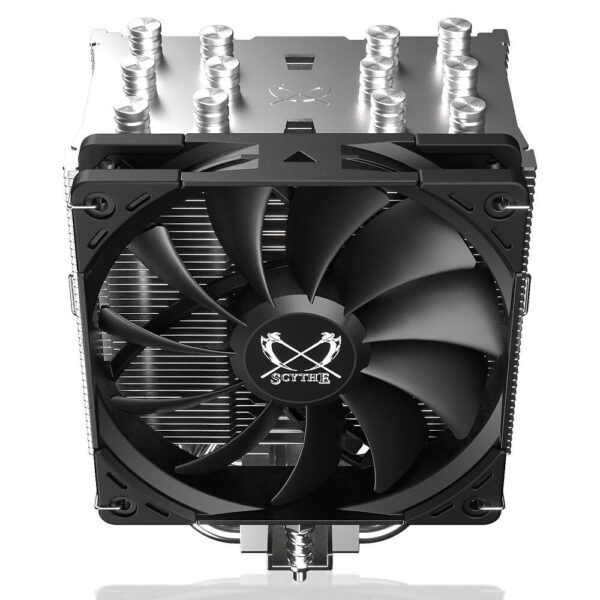

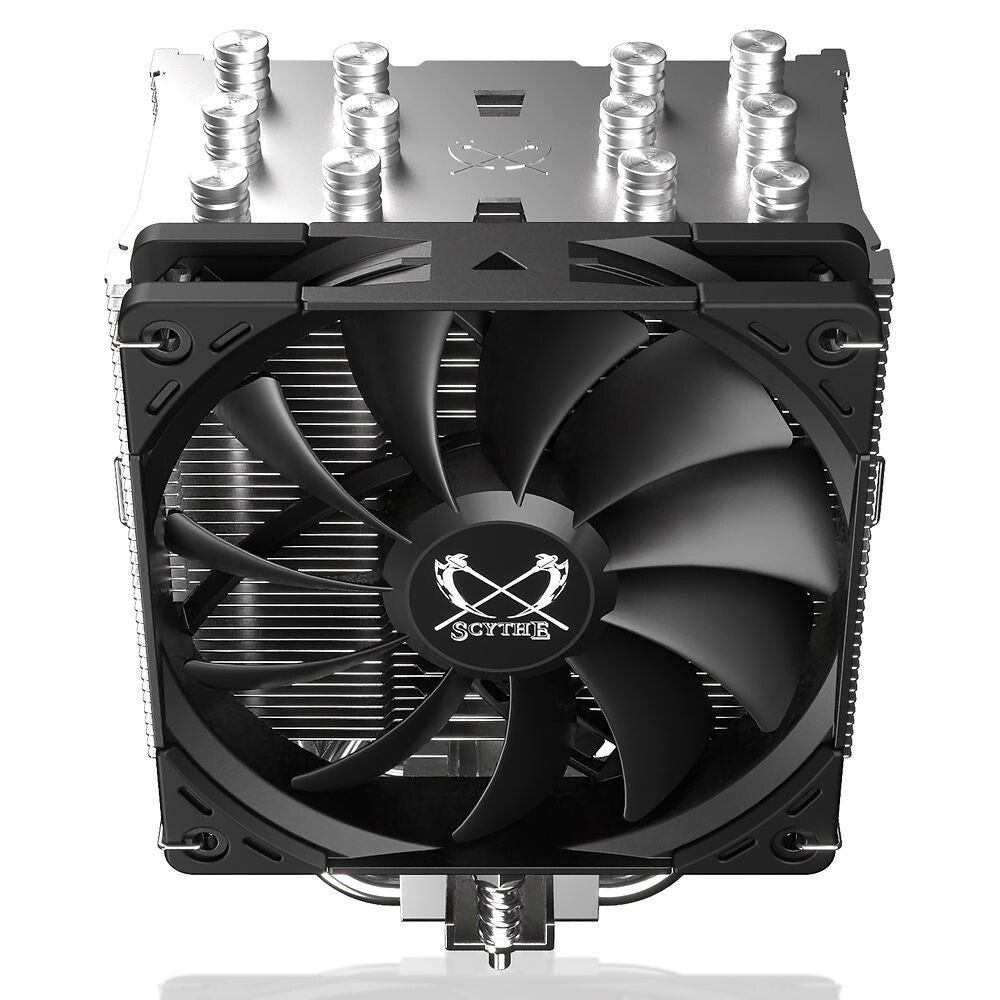

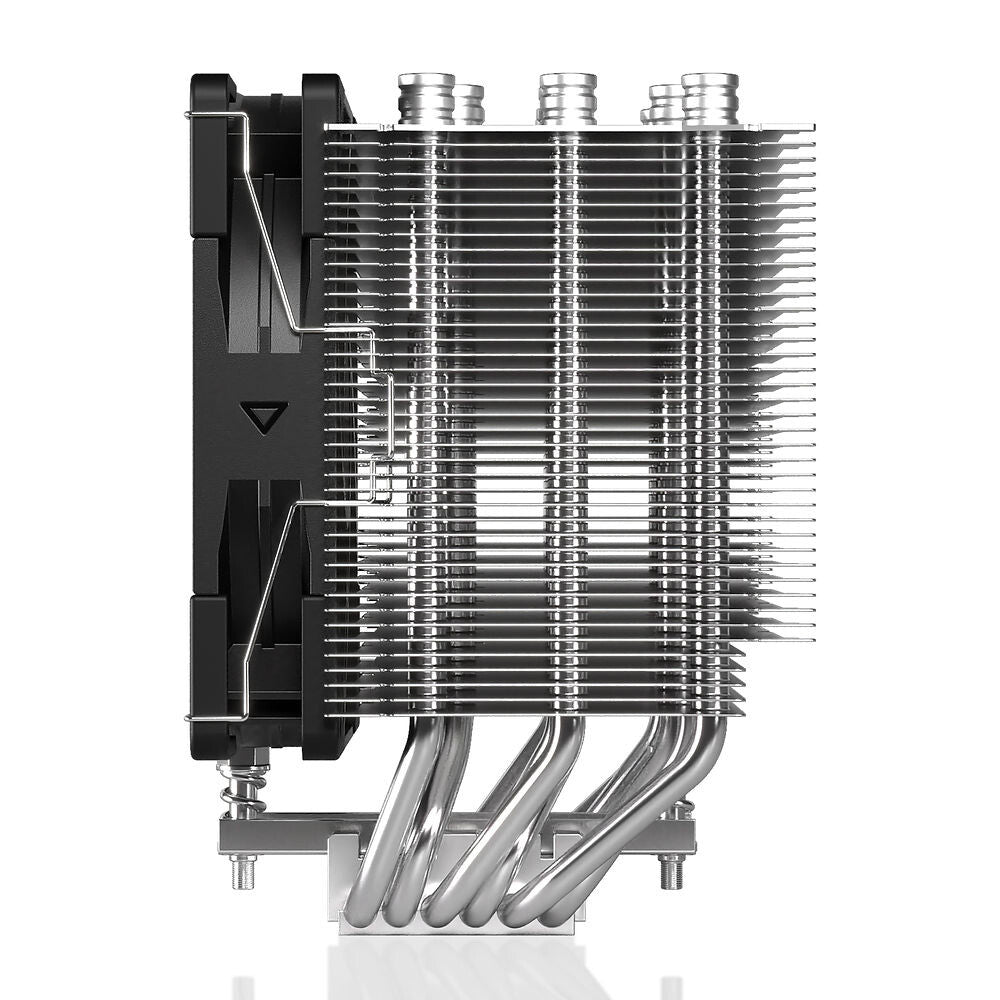

Scythe Mugen 5 Rev.C Processor Air cooler 12 cm Black, Silver 1 pc(s)
- Processor Air cooler 12 cm 1500 RPM
- Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+
- 26 dB
- 120 x 26 x 120 mm
- Black, Silver
- 1 pc(s)
Scythe most iconic CPU Cooler Mugen 5 has never been absent in the PC Builders discussion. The Mugen 5 Rev.C is optimal for high TDP PC users, now upgraded with a new Kaze Flex II PWM fan which ramp up to 1500rpm and offers H.P.M.S. IV to compatible with Intel LGA 1700.
Excellent Compatibility
Standing only 154.5mm tall, the cooler perfectly fits into the most popular tower cases on the market and keep your computer chassis spacious.
Asymmetrical Design
The asymmetrical design provides excellent access to memory slots (front bank) and would not overhang the RAM even with tall heat spreader, the cut-out fin(55mm) in the rear provide the best compatibility on LGA1700 and earlier generation motherboards and platforms.
Quiet & Performance
Kaze Flex II PWM Fan
With a new Kaze Flex II PWM 300-1500 RPM, the Mugen 5 Rev. C offers improved performance. Thanks to a new fan frame with Anti-Shocking rubber pads, the Mugen 5 Rev.C works silently to reduce the noise operation.
Hyper Precision Mounting System IV
(H.P.M.S. IV)
Scythe reliable H.P.M.S IV mounting system is a secure easy-to-install spring loaded mounting system, now ready for INTEL LGA 1700 support and provides optimal contact pressure to the motherboard.
Performance | |
---|---|
Fan’s mean time to failure (MTTF) | 120000 h |
Quantity per pack | 1 pc(s) |
Fan bearing technology | Fluid Dynamic Bearing (FDB) |
Airflow | 114.88 m³/h |
Minimum airflow (imperial) | 67.62 cfm |
Noise level (high speed) | 26 dB |
Noise level (low speed) | 4 dB |
Rotational speed (max) | 1500 RPM |
Rotational speed (min) | 300 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+ |
Fan diameter | 12 cm |
Type | Air cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Number of fans | 1 fan(s) |
Base plate material | Copper |
Radiator material | Aluminum |
Material | Aluminium, Cooper |
Product colour | Black, Silver |
Power | |
---|---|
Rated current | 0.16 A |
Voltage | 12 V |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 120 x 26 x 120 mm |
Weight | 900 g |
Height | 154.5 mm |
Depth | 109.5 mm |
Width | 136 mm |
Packaging content | |
---|---|
CPU socket spacer(s) | Yes |
Mounting kit | Yes |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
