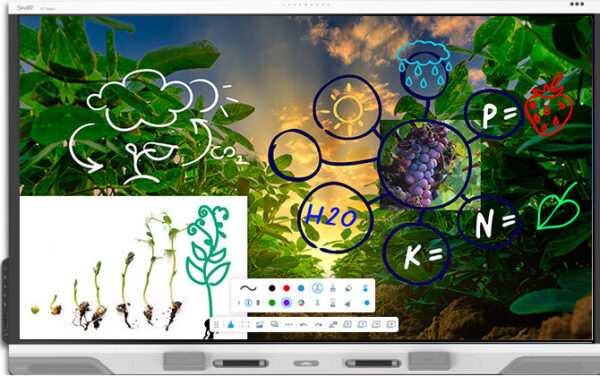

Smart RX275-5A interactive whiteboard 190.5 cm (75″) 3840 x 2160 pixels Touchscreen White USB / Bluetooth
- Touchscreen 190.5 cm (75″) White
- 4K Ultra HD 3840 x 2160 pixels 16:9
- 490 cd/m² 8 ms 60 Hz
- Built-in speaker(s) 40 W Built-in subwoofer
- Wi-Fi 6E (802.11ax) Bluetooth 5.2 Ethernet LAN
- VESA mounting 800 x 400 mm
| Display |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Touch object size (min) |
2 mm |
| Touch system response time |
4 ms |
| Number of simultaneous touchpoints |
40 |
| Touch technology |
Multi-touch |
| Touchscreen |
Yes |
| Maximum refresh rate |
60 Hz |
| Response time |
8 ms |
| Native aspect ratio |
16:9 |
| LED backlight |
Yes |
| HD type |
4K Ultra HD |
| Anti-glare screen |
Yes |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
490 cd/m² |
| Display diagonal |
190.5 cm (75″) |
| Computer system |
| RAM type |
DDR4 |
| RAM capacity |
8 GB |
| User memory |
64 GB |
| Processor cores |
8 |
| Built-in processor |
Yes |
| Operating system version |
13 |
| Operating system installed |
Android |
| Audio |
| Subwoofer RMS power |
15 W |
| Built-in subwoofer |
Yes |
| Speaker power |
40 W |
| Number of built-in speakers |
2 |
| Built-in speaker(s) |
Yes |
| Network |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Bluetooth |
Yes |
| Bluetooth version |
5.2 |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Ports & interfaces |
| RS-232 ports |
1 |
| Headphone connectivity |
3.5 mm |
| S/PDIF out port |
Yes |
| OPS slot |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB Power Delivery up to |
65 W |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| HDMI output ports quantity |
1 |
| HDMI version |
2.1 |
| USB Type-C ports quantity |
3 |
| HDMI ports quantity |
5 |
| USB connector type |
USB Type-A, USB Type-B, USB Type-C |
| USB 2.0 ports quantity |
1 |
| Interface module USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDCP version |
2.3 |
| HDCP |
Yes |
| Interface |
USB / Bluetooth |
| Ergonomics |
| Mean time between failures (MTBF) |
50000 h |
| Panel mounting interface |
800 x 400 mm |
| VESA mounting |
Yes |
| Product colour |
White |
| Performance |
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Yes |
| Proximity sensor |
Yes |
| Ambient light sensor |
Yes |
| Power |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50 – 60 Hz |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
105 W |
| System requirements |
| Mobile operating systems supported |
Android |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Operational conditions |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
5 – 80% |
| Operating temperature (T-T) |
5 – 35 °C |
| Weight & dimensions |
| Weight |
56 kg |
| Height |
1078 mm |
| Depth |
109 mm |
| Width |
1746 mm |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package weight |
67 kg |
| Package height |
1293 mm |
| Package depth |
180 mm |
| Package width |
1895 mm |
| Packaging content |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Eraser included |
Yes |
| Cables included |
AC, USB Type-A to USB Type-B, USB Type-C |
| USB cable length |
1.8 m |
| Sustainability |
| Compliance certificates |
CB, CE, Federal Communications Commission (FCC), ISED, Low Voltage Directive (LVD), REACH, RoHS, UKCA, UL, WEEE |
