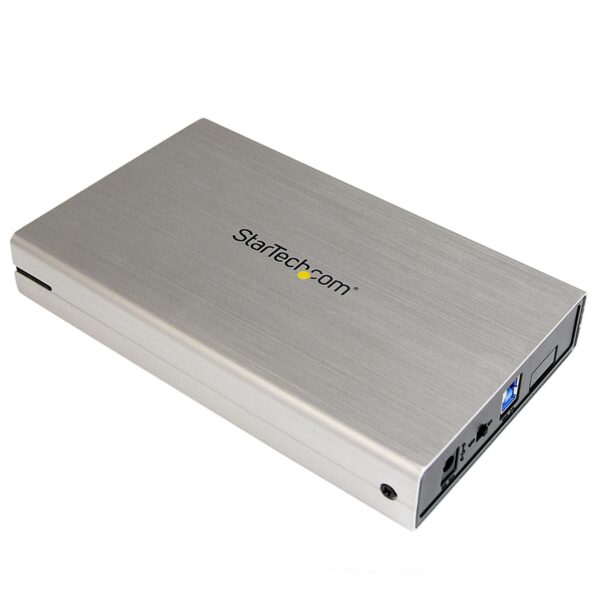

StarTech.com Hard Drive Enclosure for 3.5in SATA Drives – USB 3.0
- HDD enclosure Serial ATA, Serial ATA II, Serial ATA III 3.5″
- Number of storage drives supported: 1
- Hot-swap
- USB connectivity
- UASP support
- 6 Gbit/s
- Power source type: AC
- Silver
Turn a 3.5” SATA Hard Drive into a UASP-supported USB 3.0 External Hard Drive
The S3510SMU33 USB 3.0 hard drive enclosure enables you to connect a 3.5in SATA hard drive through an available USB port.
With support for UASP, the enclosure performs up to 70% faster than conventional USB 3.0, when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.
The HDD enclosure offers a versatile solution for increasing the storage/backup capabilities of your computer, with support for SATA I/II/III hard drives at capacities of up to 4TB. Plus, the enclosure features high-quality aluminum construction and a stylish silver design that looks great in any application.
To ensure compatibility with your computer system, the S3510SMU33 supports all of the leading operating systems, including: Windows, OSX, Linux and Google Chrome.
The S3510SMU33 USB 3.0 HDD enclosure is backed by a 2-year StarTech.com warranty and free lifetime technical support.

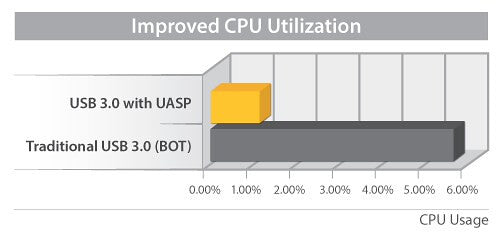

Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP enabled StarTech.com Enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
| Storage | |
|---|---|
| Maximum storage capacity | 14 TB |
| Hot-swap | Yes |
| Number of storage drives supported | 1 |
| Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive size | 3.5″ |
| Ports & interfaces | |
|---|---|
| Integrated USB cable | No |
| USB ports quantity | 1 |
| USB connector gender | Female |
| USB connector type | USB Type-B |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connectivity | Yes |
| Design | |
|---|---|
| Certification | CE, FCC, REACH |
| Number of fans | 0 fan(s) |
| LED indicators | Activity, Power |
| Material | Aluminium, Plastic |
| Product colour | Silver |
| Product type | HDD enclosure |
| Performance | |
|---|---|
| Plug and Play | Yes |
| UASP support | Yes |
| Chipset | ASMedia – ASM1153 |
| Data transfer rate | 6 Gbit/s |
| Power | |
|---|---|
| AC adapter input current | 0.6 A |
| External power adapter | Yes |
| AC adapter output voltage | 12 V |
| Compatible power plug types | AU, EU, JP, UK, US |
| AC adapter input voltage | 100 – 240 V |
| AC adapter output current | 2 A |
| Power source type | AC |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Storage temperature (T-T) | -10 – 65 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 797 g |
| Package height | 106 mm |
| Package depth | 220 mm |
| Package width | 135 mm |
| Weight | 321 g |
| Height | 115 mm |
| Depth | 191 mm |
| Width | 31.4 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
| Screws included | Yes |
| Stand included | Yes |
| Cables included | USB |
| AC adapter included | Yes |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case height | 290 mm |
| Master (outer) case length | 550 mm |
| Master (outer) case width | 460 mm |
| Harmonized System (HS) code | 84733080 |
