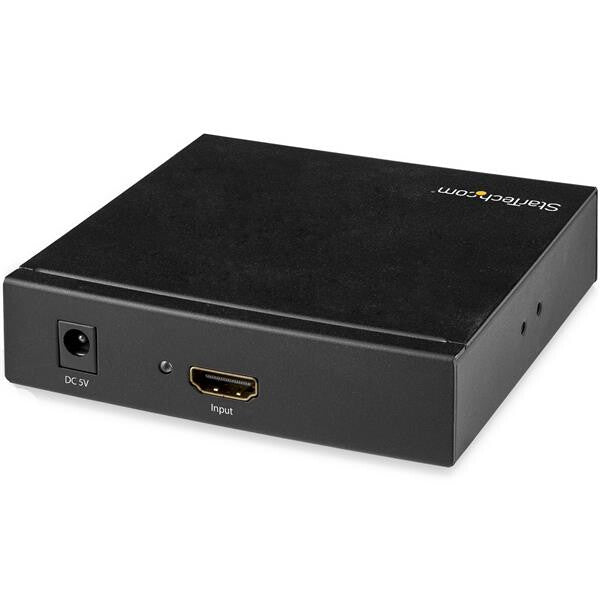

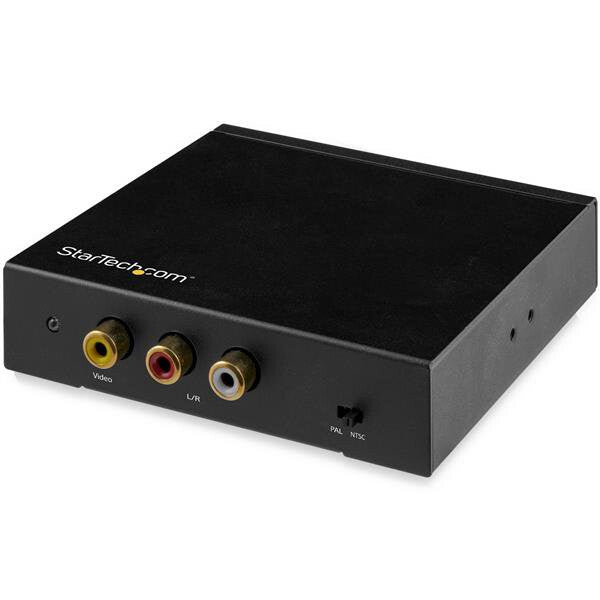

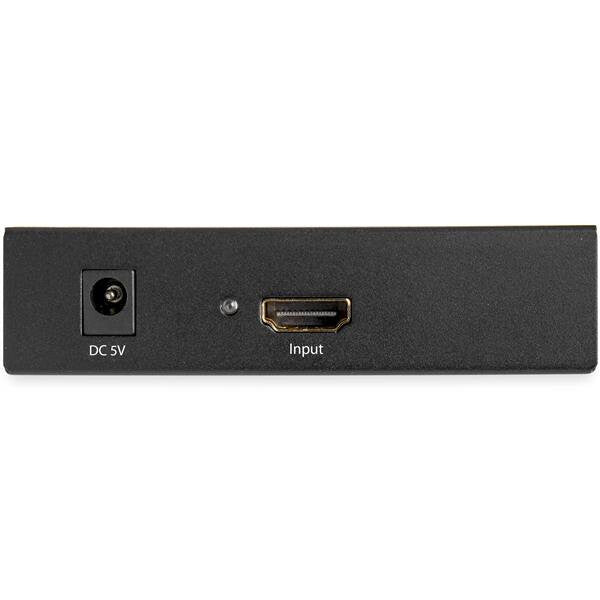

StarTech.com HDMI to RCA Converter Box with Audio
- Active video converter
- 1920 x 1080 pixels
- Host interface: HDMI
- External power adapter
- Black
Composite Video Adapter | NTSC/PAL | 1080p
This HDMI to RCA converter box with audio converts a digital HDMI video source (with supporting audio) to work with analog RCA composite video televisions and displays, in both NTSC and PAL systems.
Uncompromised Quality
This HDMI to composite video converter provides features that ensure the highest quality output image, such as noise reduction, frame rate conversion and adaptive contrast enhancement.
With support for high-definition input resolutions up to 1080p, this RCA adapter lets you convert your HDMI signal to composite video and audio while still producing a crystal-clear picture.
Ultimate Convenience
This lightweight composite adapter is compact and highly portable, so you can use it virtually anywhere. Offering support for a wide range of HDTV and PC input resolutions, this versatile RCA converter is a perfect solution for using newer devices with your existing legacy displays.
The ability to convert and use your new HDMI equipped device with your older televisions or displays not only offers flexibility but also saves you the cost of upgrading hardware, making it extremely convenient for home or office applications.
Hassle-Free Setup
To ensure easy operation and installation, this unique RCA composite video converter allows for plug-and-play installation without any additional software or drivers.
HD2VID2 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage

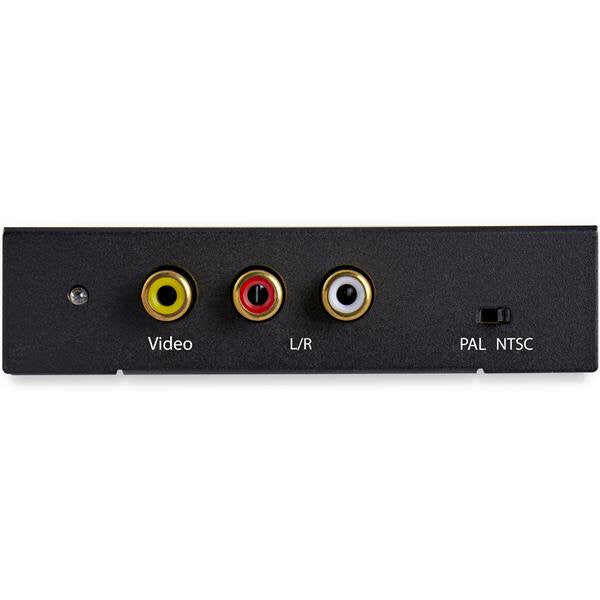

– Convert your current HDMI source to composite video and audio (yellow, white and red outputs)
– Achieve HDTV resolutions with support for up to 1080p
– Support for multiple HDTV and PC input resolutions, compatible with almost any HDMI source device
| Features | |
|---|---|
| Certification | REACH, FCC |
| Product colour | Black |
| Converter type | Active video converter |
| Video | |
|---|---|
| Supported video modes | 480p, 576p, 720p, 1080p |
| Video resolutions | 640 x 480,800 x 600,1920 x 1080 |
| Maximum video resolution | 1920 x 1080 pixels |
| Audio | |
|---|---|
| Audio sampling rate | 48 kHz |
| Audio output channels | 2.0 channels |
| Ports & interfaces | |
|---|---|
| Host interface | HDMI |
| Power | |
|---|---|
| Input voltage | 100 – 240 V |
| Operating current | 2 A |
| Input current | 0.4 A |
| Power plug type | Type M |
| External power adapter | Yes |
| Operating voltage | 5 V |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 – 90% |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 225 g |
| Height | 25 mm |
| Depth | 104 mm |
| Width | 103 mm |
| Packaging data | |
|---|---|
| Package weight | 545 g |
| Package height | 52 mm |
| Package depth | 210.5 mm |
| Package width | 150 mm |
| Manual | Yes |
| Mounting bracket(s) included | Yes |
| Included power plug types | ANZ, EU, JP, NA, UK |
| AC adapter included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
