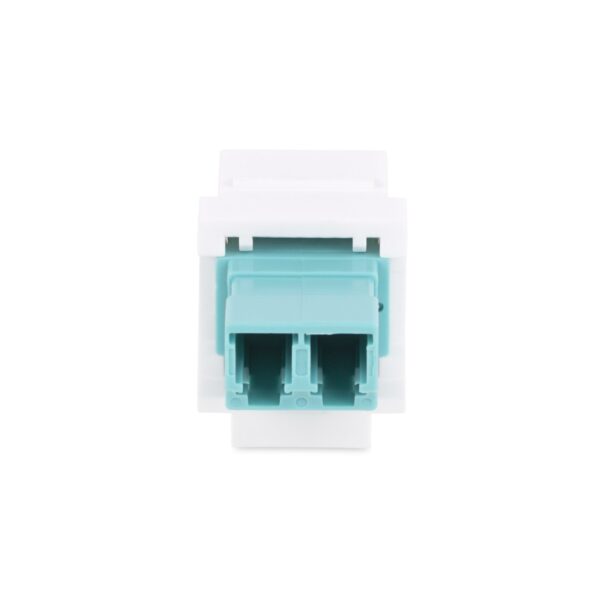

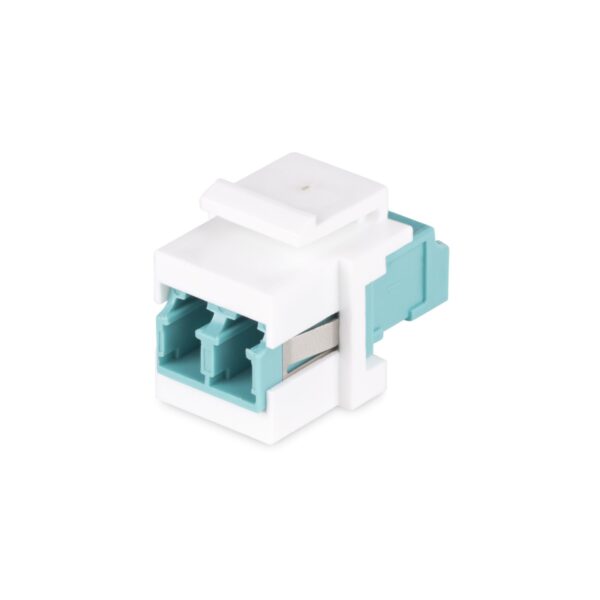

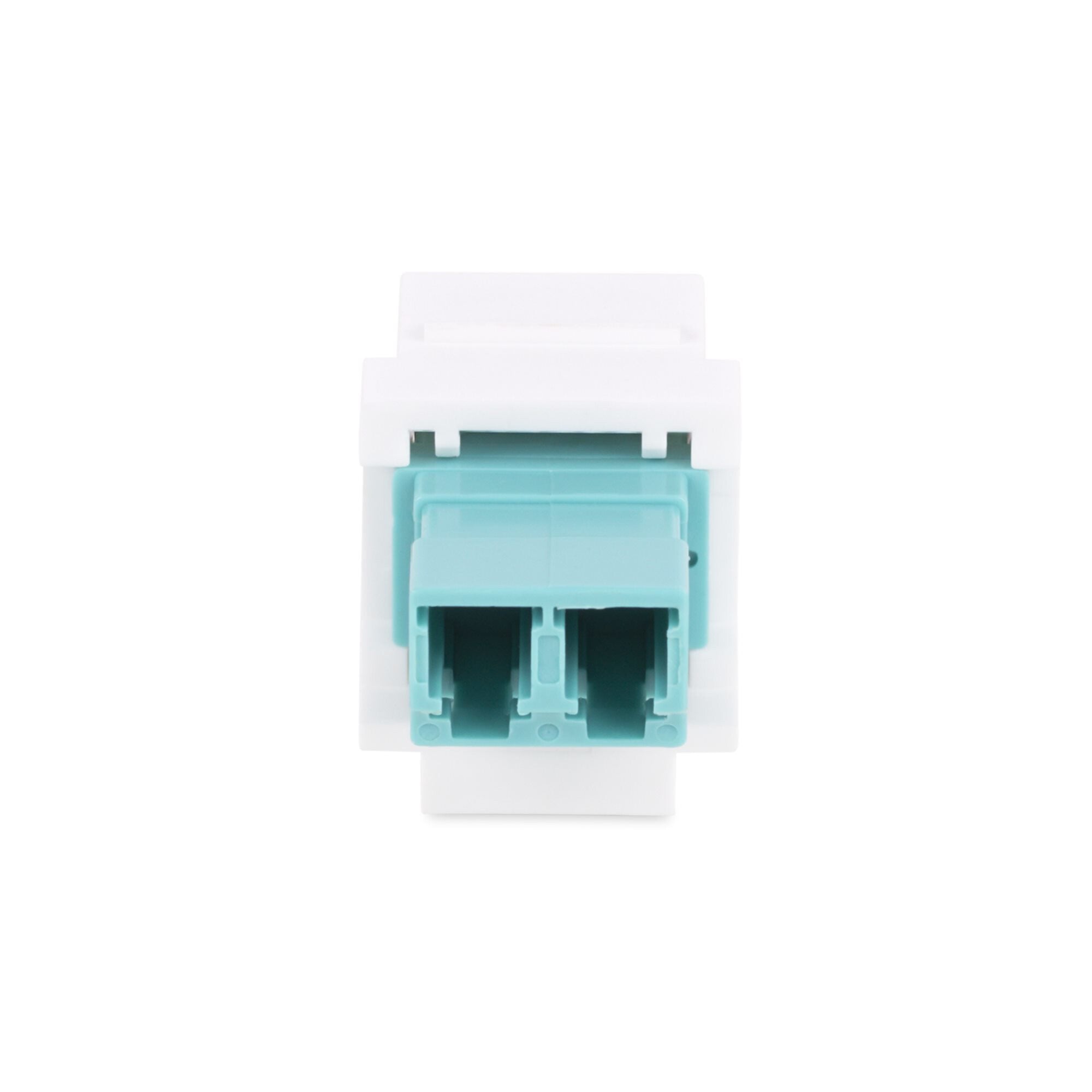

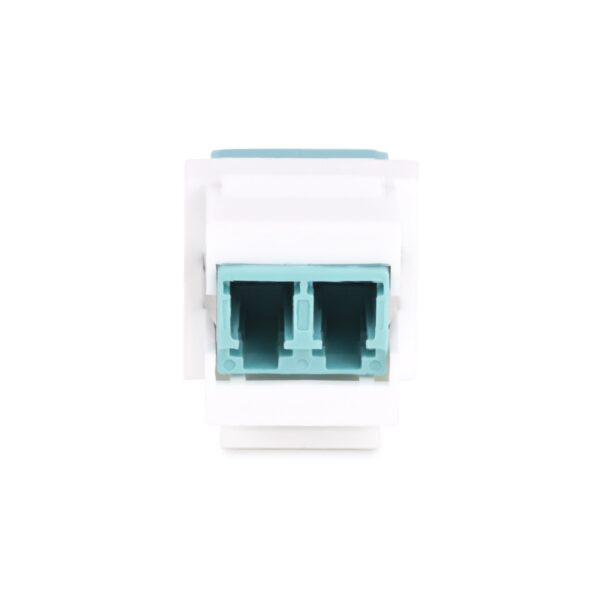

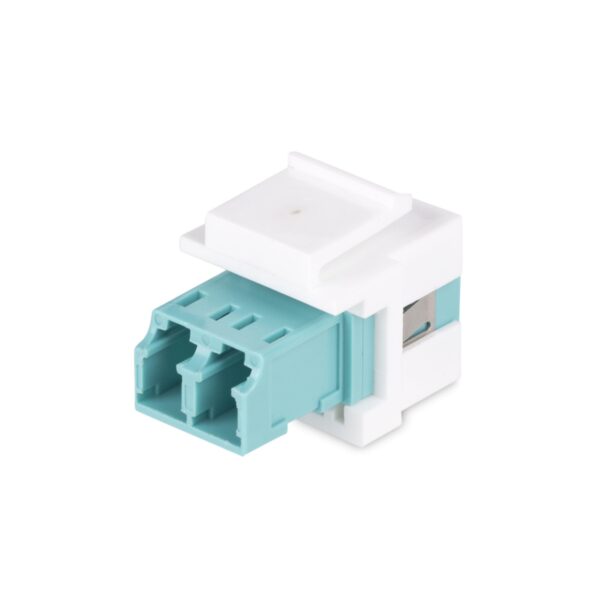

StarTech.com LC to LC Coupler, LC Fiber Coupler, LC/UPC Keystone Jack, Duplex Fiber Optic LC Keystone Coupler for Patch Panel
- LC KEYSTONE COUPLER: LC to LC Coupler features a compact design with removable Keystone Jack; Join two LC fiber cables or extend fiber connectivity in a network setup; Ideal for keystone patch panels and wall plate installations
- ROBUST CONSTRUCTION: ABS outer housing enhances durability and wear protection; Ceramic-lined inner sleeves enables precise alignment of fiber ends; Rated for 500 insertion cycles with minimal insertion loss; Includes protective dust covers
- RELIABLE DATA TRANSMISSION: LC coupler supports 1/10/40/100Gbps for reliable transfer rates between devices; Insertion Loss below 0.2dB exceeds TIA 568 B.3 industry standards; Supports both LED and VCSEL sources
- COMPATIBILITY: Versatile compatibility with Single Mode and Multimode fiber; Compatible with OS1/OS2, and OM1/OM2/OM3/OM4/OM5 cables; Supports 9/125µm, 62.5/125µm, and 50/125µm fiber cores; NOTE: Best paired with LC/LC fiber cables with UPC polished ends
- QUICK INSTALLATION: Simple plug-and-play design requires no tools for quick and hassle-free setup; LC fiber coupler snaps securely into keystone jack with metal tabs; Deploy the coupler to an existing keystone wall plate or patch panel
Connect two LC fiber cables or establish fiber connectivity on a keystone patch panel
Connect two LC Duplex fiber cables featuring UPC polished ends to extend a network connection, using this LC to LC Keystone Coupler. The female to female fiber coupler maintains optimal signal integrity while achieving low insertion loss that exceeds industry standards.
Compatible with Single Mode and Multimode Fiber Cables
The LC Fiber Coupler supports Single Mode and Multimode LC/LC fiber cables. It is compatible with OS1/OS2 (9/125µm) and OM1/OM2/OM3/OM4/OM5 (62.5/125µm and 50/125µm) fiber core/cladding. The coupler fits securely into the keystone jack which can be installed in a keystone patch panel or wall plate without requiring additional tools.
Durable Construction
The LC/LC Keystone Coupler features a durable ABS housing and ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.
The StarTech.com Advantage
| Features | |
|---|---|
| Product colour | White |
| Fiber mode structure | Multi-mode, Single-mode |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Duplex | Yes |
| Connector type | LC |
| Number of connectors | 2 |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Certificates | |
|---|---|
| Compliance certificates | CE |
| Weight & dimensions | |
|---|---|
| Width | 19 mm |
| Depth | 18 mm |
| Height | 20 mm |
| Packaging data | |
|---|---|
| Package weight | 6 g |
| Package height | 20 mm |
| Package depth | 90 mm |
| Package width | 125 mm |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 1000 pc(s) |
| Master (outer) case height | 230 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case width | 410 mm |
