StarTech.com Portrait/Vertical TV Wall Mount – Heavy Duty TV Wall Mount – 40-55″ VESA Display (110lb/50kg)- Tilting Low Profile Television Digital Signage Mount with Lockable Security Bar
- 40″”-55″” PORTRAIT TV WALL MOUNT: This heavy-duty vertical TV wall mount supports VESA displays from 40 to 55 inches (110lb/50kg); durable tilting steel frame & powder-coated finish; Ideal for menu boards or digital signage in hotels, airports & lobbies
- ADJUST TILT BY HAND: 3 different tilting angles (0°, +5°, +10°) which can be adjusted by hand & secured in place using the tilt pin; With a low profile of just 3in from the wall when set at the straight angle (0°)
- EASY INSTALLATION AND LOCKABLE SECURITY: Flat panel/flat screen TV mount with hook-and-mount design & included long screwdriver (23.6in/60cm long) make for an easy installation; Includes a locking security bar to secure your TV (padlock not incl.)
- EASY MICRO-HEIGHT ADJUSTMENTS: Make micro-height adjustments by hand with the built-in ratchet/lever screw handle; Micro-height adjustable with a range of 0.4″” (10mm), enables precise alignment of multiple screens
- COMPATIBILITY: Universal LCD/LED television mount supports LG, Samsung, Sony, Sharp, others (screws/spacers incl) & VESA bracket hole patterns 200×200, 200×300, 200×400, 300×200, 300×300, 400×400, 400×500, 400×600

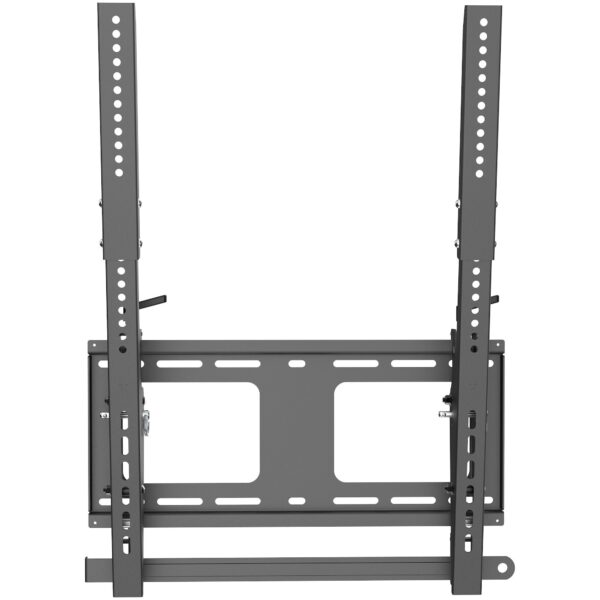

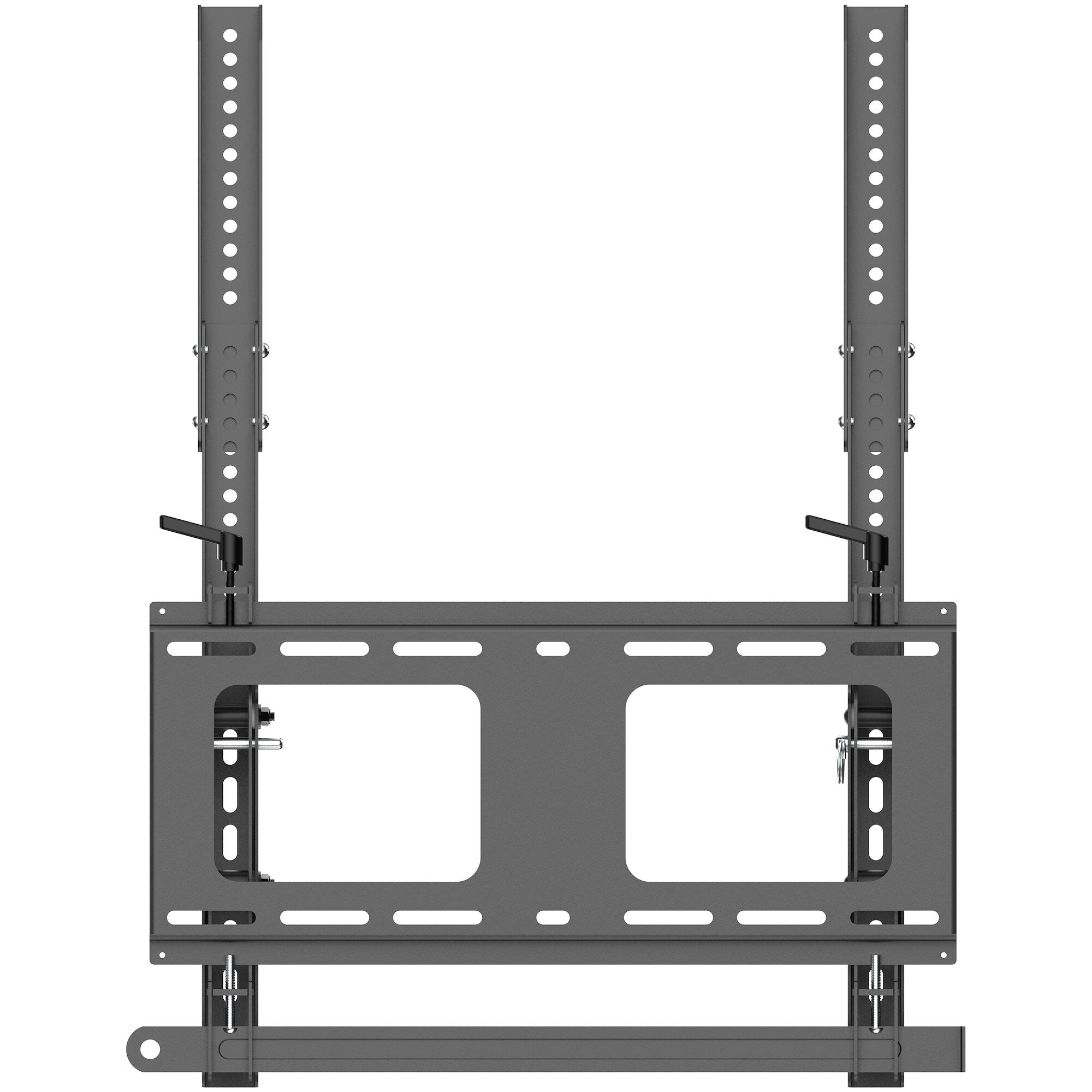

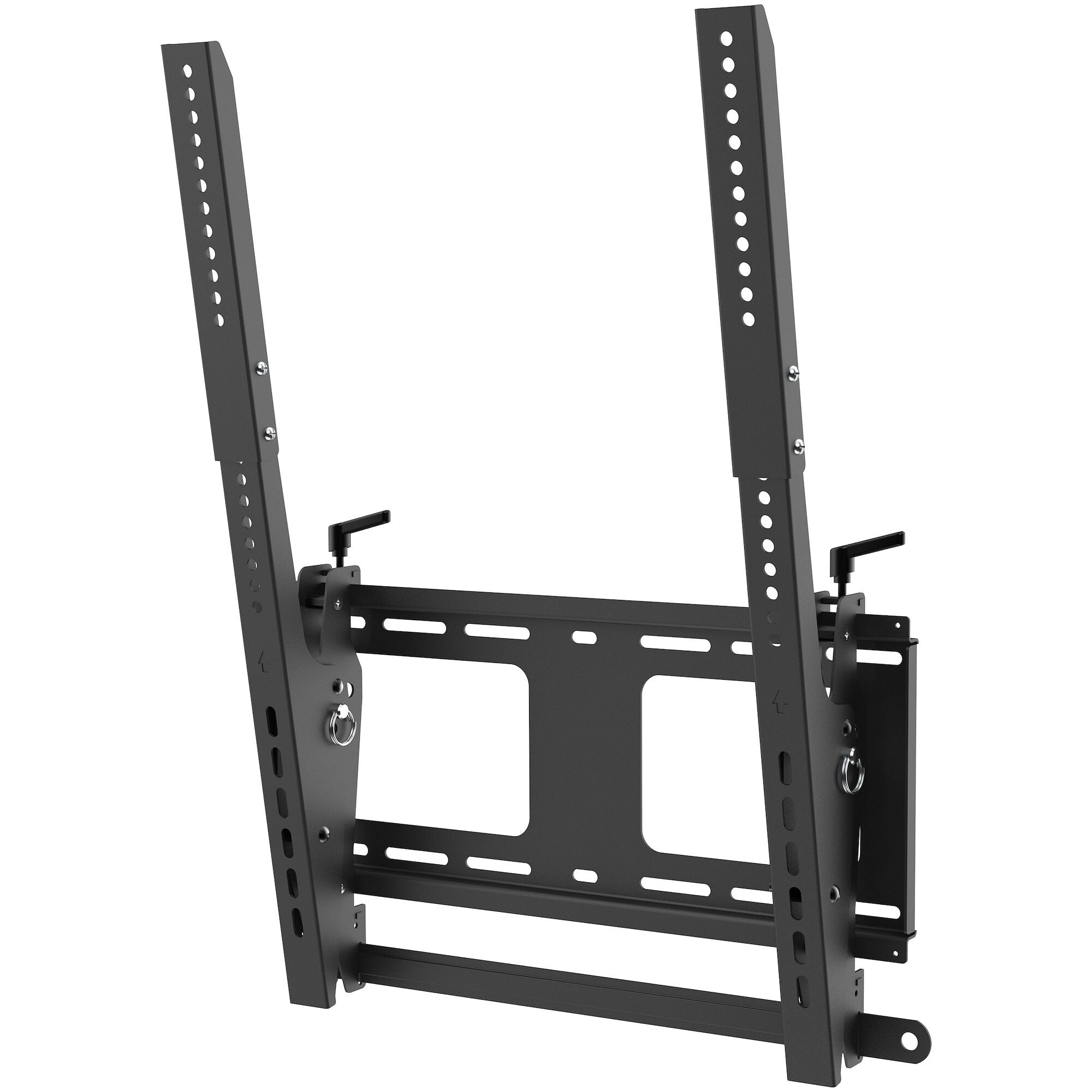

Portrait TV Wall Mount | Steel | For 40″ to 55″ TVs
This Universal Portrait TV Wall Mount is ideal for customer-facing applications like menu boards or digital signage in hotels requiring the flexibility of portrait / landscape setup. Thanks to its durable steel frame, it can support VESA compatible displays from 40″ to 55″ and up to 110lb / 50kg in weight. It provides a sleek and professional look thanks to its low profile (3in / 78mm from the wall at the straight angle), and its powder coated finish.
Tilt and height adjustments

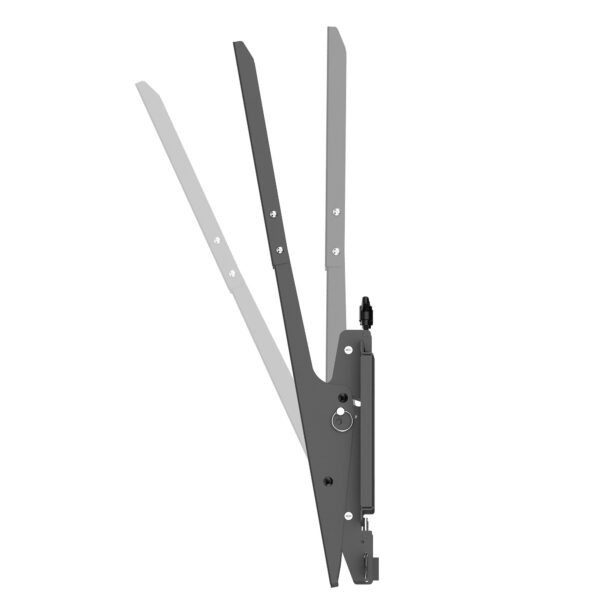

This vertical TV wall mount enables you to adjust the tilting angle by hand (0/+5/+10) using the tilt pin to adjust to the ideal viewing angle. Using the built-in ratchet/lever screw handle this wall mount lets you make micro-height adjustments by hand (range of 10mm) to precisely align your TV when used as part of a multi-display setup (video wall).
Easy Installation and Security
The hook-and-mount design of the vertical TV wall mount allow for an easy and fast installation by hanging the TV to the wall mount and securing it using the locking screws. The included long screwdriver has been specially design to make the installation easier.
The portrait TV wall mount provides an extra level of security with the included locking bar, this enables you to lock your TV using a padlock (not included), specially for public setups where you need to leave your equipment unattended.
FPWTLTPORT is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Panel mounting interface | 200 x 200,200 x 300,200 x 400,300 x 200,300 x 300,400 x 400,400 x 500,400 x 600 |
| Maximum VESA mount | 400 x 600 mm |
| Minimum VESA mount | 200 x 200 mm |
| Mounting type | Wall |
| Maximum screen size | 139.7 cm (55″) |
| Minimum screen size | 101.6 cm (40″) |
| Maximum weight capacity | 50 kg |
| Ergonomics | |
|---|---|
| Distance to the wall (min) | 7.62 cm |
| Cable management | No |
| Tilt angle range | -10 – 0° |
| Tilt adjustment | Yes |
| Design | |
|---|---|
| Anti-theft function | Yes |
| Housing material | Steel |
| Product colour | Black |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Packaging content | |
|---|---|
| Number of wrenches included | 1 |
| Mounting brackets included | Yes |
| Number of mounting brackets | 2 |
| Hex key included | Yes |
| Number of screws | 35 |
| Screws included | Yes |
| Number of spacers included | 16 |
| Spacer included | Yes |
| Number of washers included | 12 |
| Washers included | Yes |
| Number of anchors included | 6 |
| Anchors included | Yes |
| Safety bar | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 4.3 kg |
| Height | 83 mm |
| Depth (max) | 68 cm |
| Width | 500 mm |
| Packaging data | |
|---|---|
| Package weight | 4.5 kg |
| Package height | 83 mm |
| Package depth | 240 mm |
| Package width | 555 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
| Products per master (outer) case | 3 pc(s) |
| Master (outer) case height | 270 mm |
| Master (outer) case length | 260 mm |
| Master (outer) case width | 570 mm |
