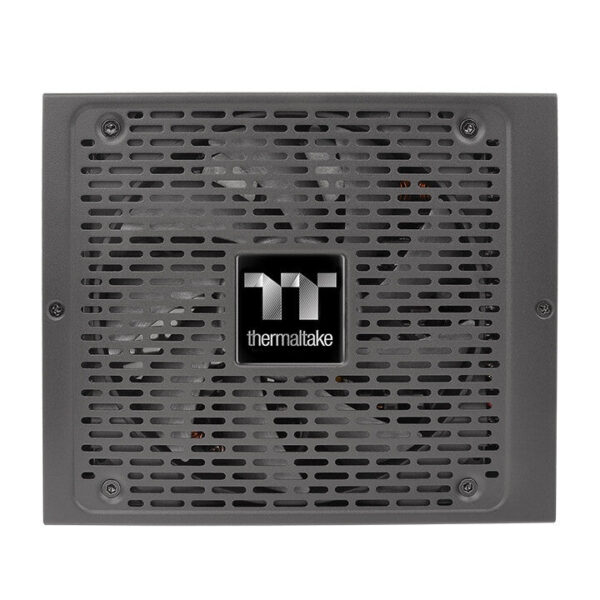

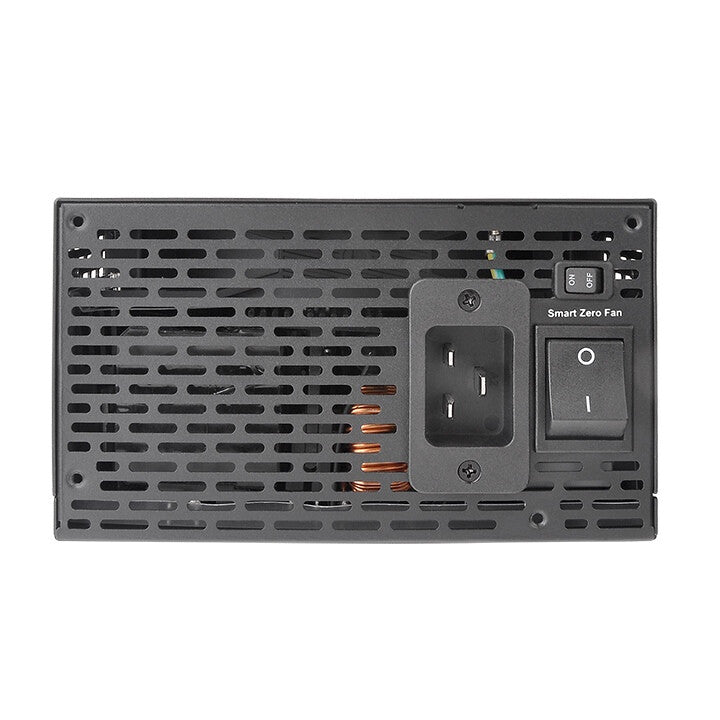

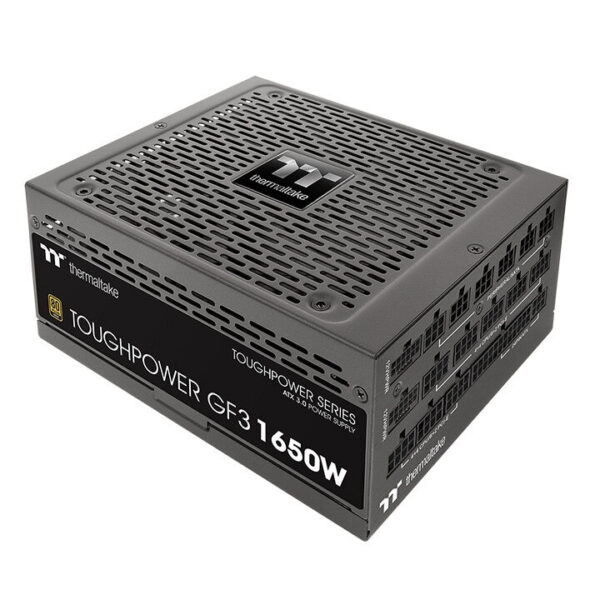

Thermaltake Toughpower GF3 power supply unit 1650 W 24-pin ATX ATX Black
- 1650 W 100 – 240 V 50 – 60 Hz
- Motherboard power connector: 24-pin ATX
- PC ATX 80 PLUS Gold
- 14 cm
- Black
Thermaltake Toughpower GF3 1650W Fully Modular Native PCIE 5 80 Plus Gold Power
| Power |
| Power protection features |
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Max output current (+5Vsb) |
3 A |
| Max output current (-12V) |
0.3 A |
| Max output current (+5V) |
25 A |
| Max output current (+12V) |
137.5 A |
| Max output current (+3.3V) |
25 A |
| Combined power (+5Vsb) |
15 W |
| Combined power (-12V) |
3.6 W |
| Combined power (+5V) |
130 W |
| Combined power (+12V) |
1650 W |
| Combined power (+3.3V) |
130 W |
| Power Factor Correction (PFC) type |
Active |
| AC input frequency |
50 – 60 Hz |
| AC input voltage |
100 – 240 V |
| Total power |
1650 W |
| Ports & interfaces |
| Cabling type |
Fully-Modular |
| Floppy drive power connector |
1 |
| CPU power connector (4+4 pin) |
Yes |
| PCI Express power cable length |
60 cm |
| PCI Express power connectors (16-pin) |
2 |
| PCI Express power connectors (6+2 pin) |
9 |
| Peripheral (Molex) power cable length |
600,750,900,1050 mm |
| Peripheral (Molex) power connectors (4-pin) |
8 |
| SATA power cable length |
600,750,900,1050 mm |
| Number of SATA power connectors |
16 |
| Motherboard power cable length |
60 cm |
| Motherboard power connector |
24-pin ATX |
| Performance |
| Mean time between failures (MTBF) |
100000 h |
| Bearing technology |
HDB |
| Silent mode |
Yes |
| 80 PLUS certification |
80 PLUS Gold |
| Power supply unit (PSU) form factor |
ATX |
| Purpose |
PC |
| Design |
| On/off switch |
Yes |
| Number of fans |
1 fan(s) |
| Fan diameter |
14 cm |
| Product colour |
Black |
| Operational conditions |
| Storage relative humidity (H-H) |
20 – 95% |
| Operating relative humidity (H-H) |
20 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| Packaging content |
| Cable tie(s) included |
Yes |
| Certificates |
| Certification |
CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/BIS/KCC |
| Weight & dimensions |
| Weight |
2.14 kg |
| Height |
86 mm |
| Depth |
180 mm |
| Width |
150 mm |
| Packaging data |
| Package type |
Box |
