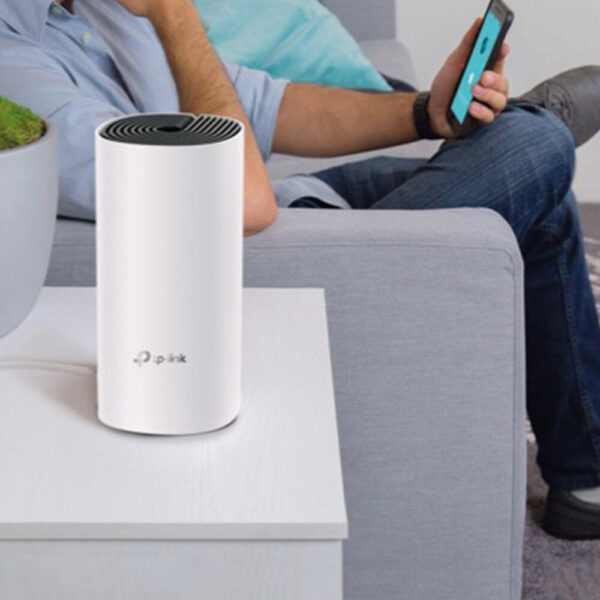

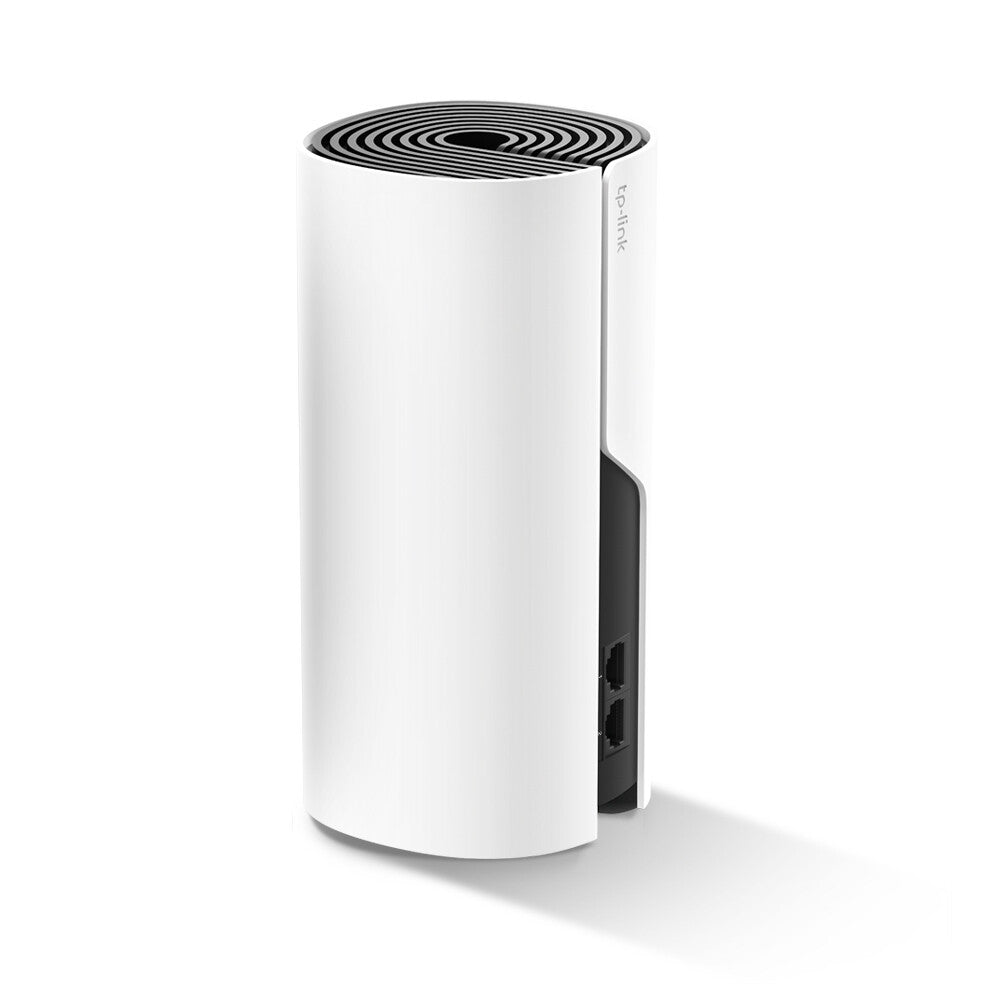

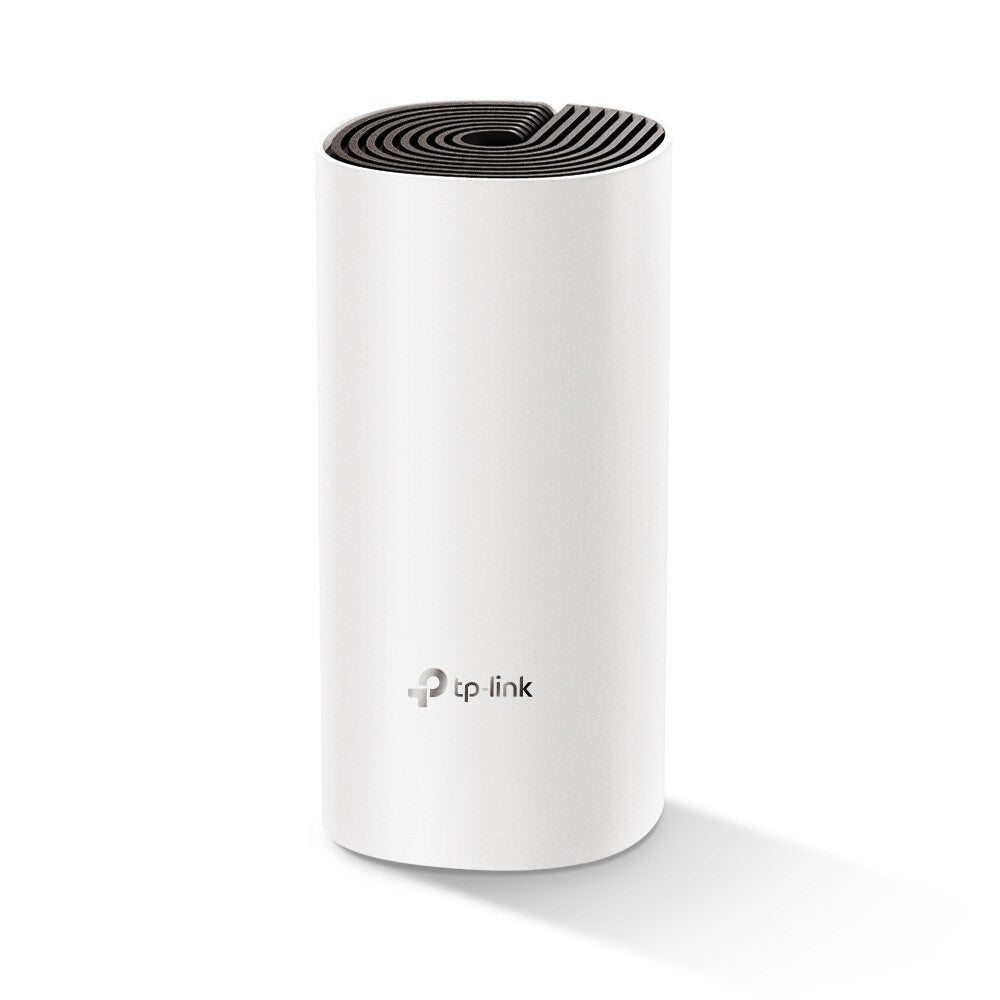

TP-Link AC1200 Whole Home Mesh Wi-Fi System
- Deco uses a system of units to achieve seamless whole-home Wi-Fi coverage — eliminate weak signal areas once and for all!
- With advanced Deco Mesh Technology, units work together to form a unified network with a single network name. Devices automatically switch between Decos as you move through your home for the fastest possible speeds
- A Deco M4 delivers Wi-Fi to an area of up to 180 square metres. And if that’s not enough, simply add more Decos to the network anytime to increase coverage
- Deco M4 provides fast and stable connections with speeds of up to 1167 Mbps and works with the major internet service provider (ISP) and modem
- Deco can handle traffic from even the busiest of networks, providing lag-free connections for up to 100 devices
- Parental Controls limits online time and block inappropriate websites according to unique profiles created for each family member
- Setup is easier than ever with the Deco app there to walk you through every step
Fast. Stable. Everywhere.
Whole Home Mesh Wi-Fi System
AC1200 Dual-Band Wi-Fi
Experience Wi-Fi Like Never Before
Deco M4 uses TP-Link Mesh technology to cover your entire home in powerful Wi-Fi. Multiple units seamlessly work together to create a home network like nothing you’ve ever experienced.
Wi-Fi Dead-Zone Killer
Deco M4 is the simplest way to guarantee a strong Wi-Fi signal in every corner of your home up to 180 square metres. Wireless connections and optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage.
Want more coverage? Simply add another Deco.
Seamless Roaming with One Wi-Fi Name
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience.
No More Buffering
Network speeds three times faster than previous generation routers, thanks to 802.11ac wireless technology, make Deco capable of providing a lag-free connection to up to 100 devices.
2-in-1 Router and Access Point Modes
Flexible and multifunctional, the Deco M4 includes a variety of features allowing it to serve as a router or access point. Just choose the mode for your actual network demands and experience the maximum wireless flexibility.
| Design | |
|---|---|
| Reset button | Yes |
| Antennas quantity | 2 |
| Antenna type | Internal |
| LED indicators | Power, Status |
| Product type | Mesh router |
| Product colour | White |
| Wireless LAN features | |
|---|---|
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Security algorithms | WPA-PSK, WPA2-PSK |
| Number of guest networks (5 GHz) | 1 |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (max) | 1167 Mbit/s |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Features | |
|---|---|
| Parental control | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Mobile operating systems supported | Android 4.4, Android 5.0, Android 5.1, Android 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0, iOS 10.0, iOS 11.0, iOS 11.4, iOS 12, iOS 13, iOS 9.0, iOS 9.1, iOS 9.2, iOS 9.3 |
| BeamForming | Yes |
| Firewall security | SPI |
| Port forwarding | Yes |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| AC adapter output current | 1.2 A |
| AC adapter output voltage | 12 V |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Certificates | |
|---|---|
| Certification | FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC |
| Compliance certificates | RoHS, CE |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 360 g |
| Height | 190 mm |
| Depth | 90.7 mm |
| Width | 90.7 mm |
| Packaging content | |
|---|---|
| Ethernet cable | Yes |
| Number of units included | 1 pc(s) |
| AC adapter included | Yes |
| Number of products included | 1 pc(s) |
| Packaging data | |
|---|---|
| Package weight | 950 g |
| Package height | 105 mm |
| Package depth | 241 mm |
| Package width | 225 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85171800 |
