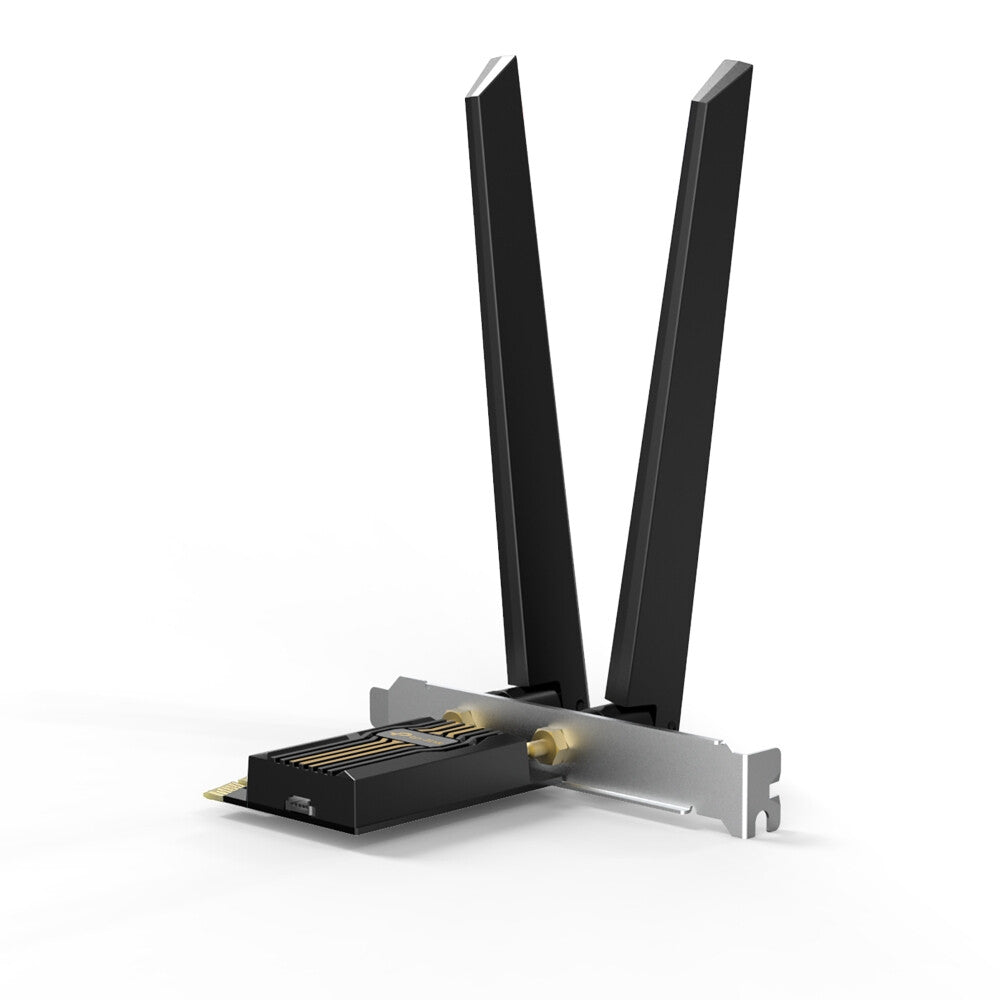

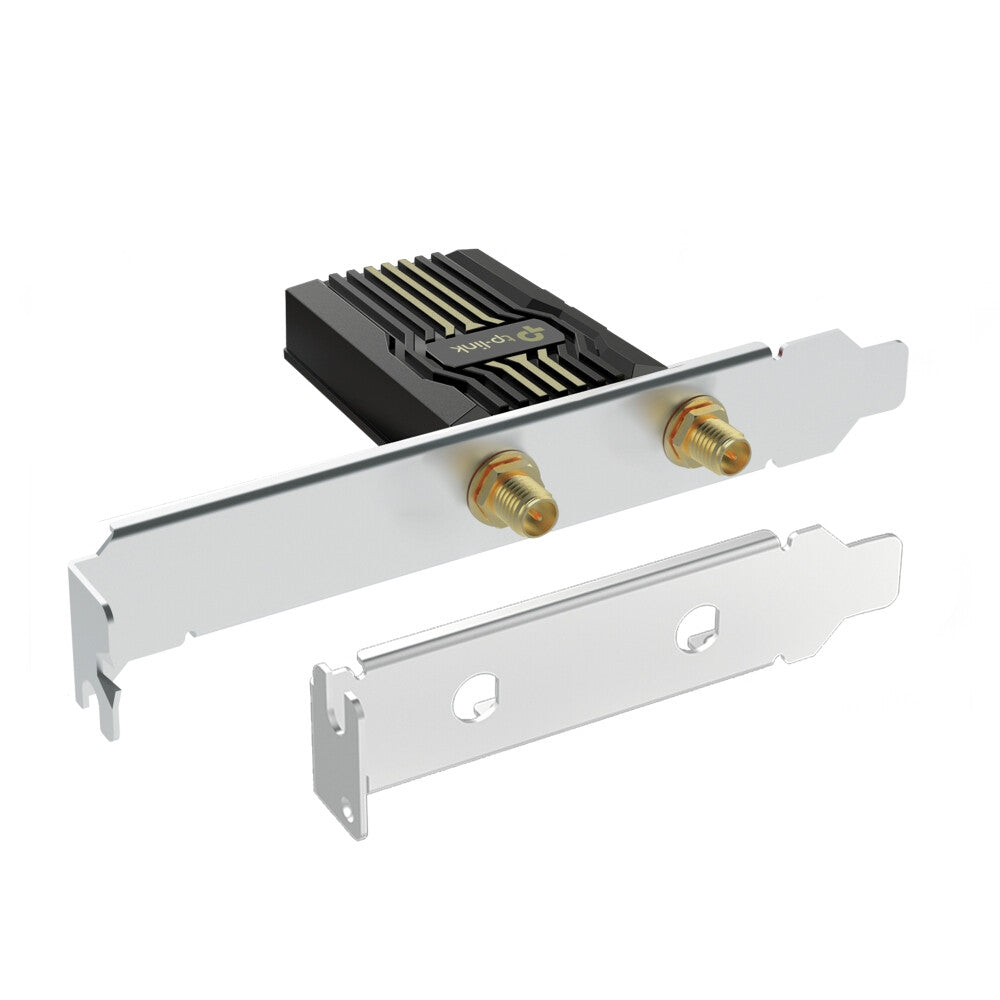

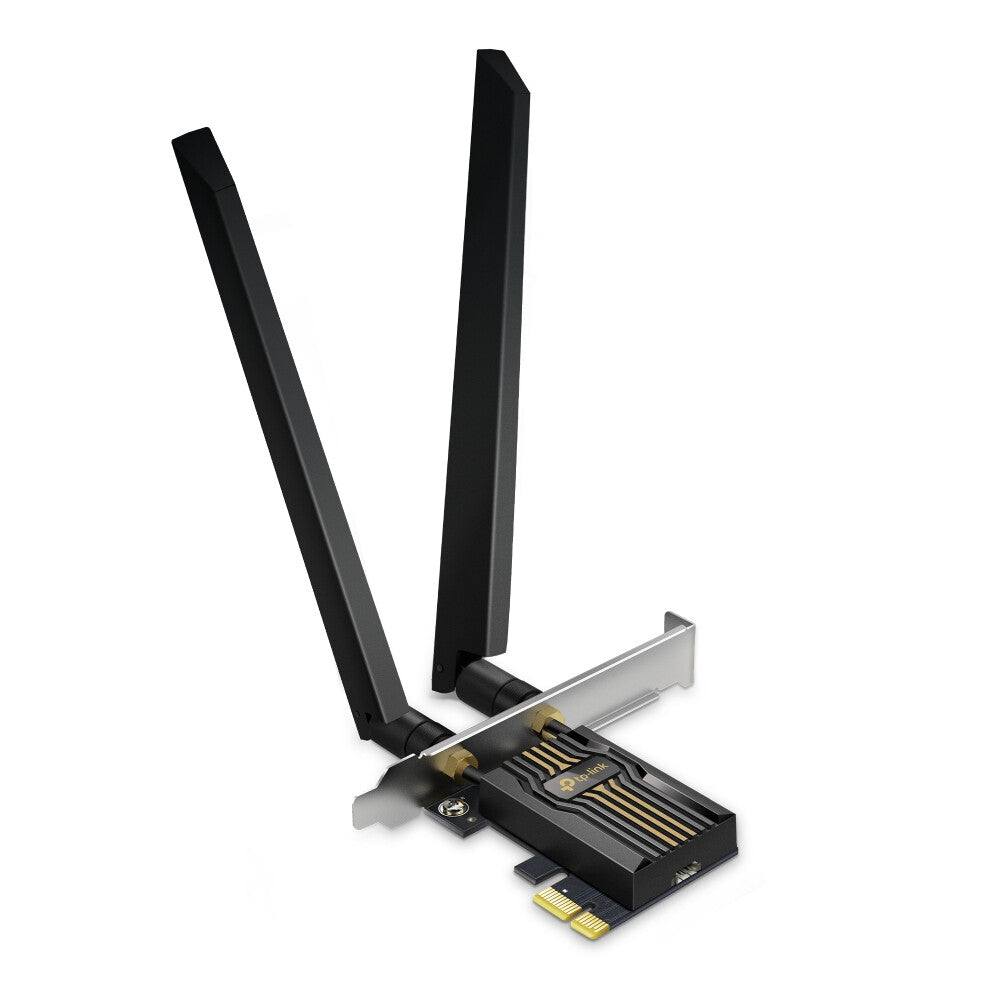

TP-Link Archer TBE552E network card WLAN / Bluetooth 5760 Mbit/s
- Wireless
- PCI Express WLAN / Bluetooth
- 5760 Mbit/s
- Tri-band (2.4 GHz / 5 GHz / 6 GHz) Bluetooth 5.4
- Component for: PC
Your Desktop Upgrade to Next-Gen Wi-Fi Technology
BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter
Unrivaled Wi-Fi 7 Technology
Wi-Fi 7 unlocks the full potential of the 6 GHz band, doubling the bandwidth of previous generation. TBE552E delivers incredible wireless speeds and versatile bandwidth, enabling seamless multi-stream media playback. Install, connect, and experience unparalleled wireless performance.
Superior WiFi Reception
Archer TBE552E takes your PC’s Wi-Fi reception to the next level with the revolutionary combination of OFDMA and MU-MIMO. This ensures the efficiency of your PC’s Wi-Fi connection by allowing more devices to communicate with your router simultaneously, rather than waiting in turn for data.
Reliable Bluetooth 5.4
Building on its predecessor’s high-speed and wide-range capabilities, Bluetooth 5.4 offers improved reliability and security. Enjoy seamless interoperability with game controllers, headphones, keyboards, and more.
High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.
Advanced Security
The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.
| Ports & interfaces | |
|---|---|
| Interface | WLAN / Bluetooth |
| Host interface | PCI Express |
| Connectivity technology | Wireless |
| Network | |
|---|---|
| Bluetooth version | 5.4 |
| Bluetooth | Yes |
| Security algorithms | WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Modulation | 4096-QAM |
| WLAN data transfer rates supported | 11,54,300,574,1732,2402,688,2880 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| Frequency range | 2.4 – 6 GHz |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Maximum data transfer rate | 5760 Mbit/s |
| Design | |
|---|---|
| Certification | FCC/CE/IC/NCC/JRF/VCCI/BSMI |
| Transmitting power (FCC) | 20 – 24 dBm |
| Transmitting power (CE) | 20 dBm |
| Antenna gain level (max) | -95 dBi |
| Antenna direction type | Omni-directional |
| Antenna type | 2×2 |
| Antenna | Yes |
| Antenna design | External |
| Component for | PC |
| Internal | No |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 11 x64 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 90% |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Resource CD | Yes |
| Mounting brackets included | Yes |
| General | |
|---|---|
| Product family | Archer |
