TP-Link AV1300 Gigabit Passthrough Powerline ac Wi-Fi Extender
- HomePlug AV2 Standard – Provides ultra-fast powerline transfer speeds of up to 1300 Mbps*
- AC1200 Dual-Band Wi-Fi – Extends ultra-fast dual-band Wi-Fi with speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz*

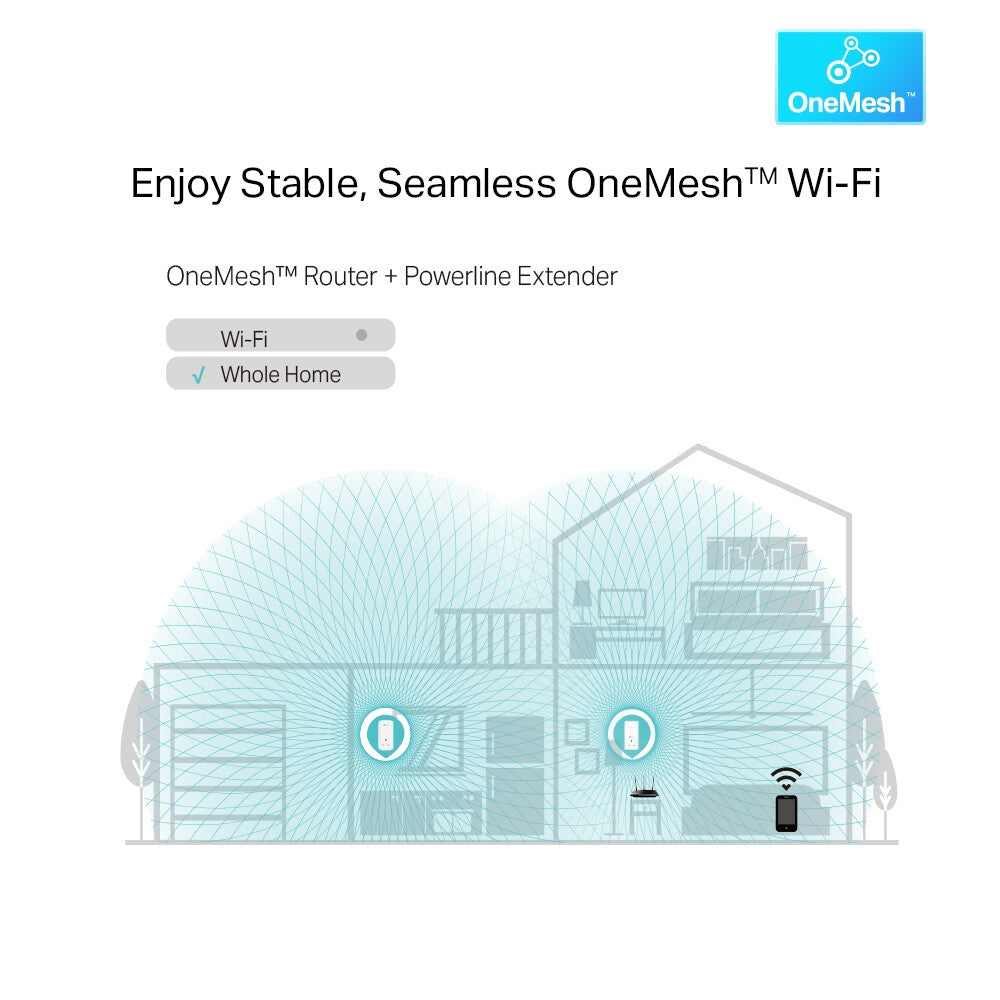

- OneMeshTM – Works with your OneMeshTM router to form a unified mesh network for seamless streaming while moving around your home
- 2 × 2 MIMO – Establishes multiple simultaneous connections for you to enjoy higher powerline speeds and greater stability
- One-Touch Wi-Fi Configuration – One press of the Wi-Fi button copies the network name and password from your router. Any setting changes will be automatically applied to the entire Powerline network
- Wi-Fi Auto-Sync – Add additional extenders to your powerline network by pair button, uniformly sync settings such as SSID, password, Wi-Fi Schedule and LED Schedule for all network devices
- Plug and Play – Set up your powerline network and start enjoying fast, seamless wired/wireless connections in minutes
- Extra Power Socket – Get power from the outlet for your other devices with the integrated power socket
- 3 × Gigabit Ports – Provide secure wired networks for desktops, smart TVs or games consoles
More Stable Connections
2×2 MIMO is like adding extra lanes to a highway. It establishes multiple simultaneous connections for you to enjoy higher speeds and greater stability.
Enhanced Long-Distance Performance
2×2 MIMO with Beamforming technology also offers the benefit of improved coverage throughout the home, particularly for previously hard-to-reach outlets.
One Tap for a Unified Network
One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup.
Wi-Fi Auto-Sync
Automatically applies any setting changes across the network. Your existing Wi-Fi settings will synchronize to the new extender instantly.

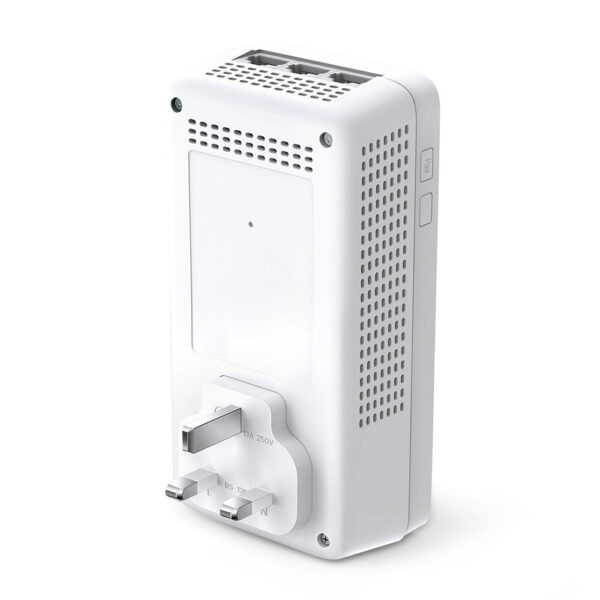

Don’t Lose an Outlet
The TL-WPA8631P can be used like a traditional electrical socket, ensuring no power socket goes to waste. The built-in noise filter helps prevent electrical signal noise from affecting powerline performance.
More Gigabit Ethernet Ports,
More Devices
Equipped with 3× gigabit Ethernet ports, it provides wired connections for 4K video, IPTV streaming,
lag-free gaming, and more.
| Performance | |
|---|---|
| Plug and Play | Yes |
| Encryption button | Yes |
| Maximum operating distance | 300 m |
| Security algorithms | 128-bit AES, WEP, WPA-PSK, WPA2-PSK |
| Modulation | OFDM |
| Built-in power socket | Yes |
| Power plug | Type G |
| Networking standards | IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| WLAN data transfer rates supported | 300,867 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Maximum data transfer rate | 1300 Mbit/s |
| Power | |
|---|---|
| Power consumption (typical) | 11 W |
| Design | |
|---|---|
| Certification | CE, RoHS |
| Product colour | White |
| LED indicators | Activity, LAN, Power, WLAN |
| Antenna type | Internal |
| System requirements | |
|---|---|
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 – 90% |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 152 mm |
| Depth | 42 mm |
| Width | 75 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Packaging content | |
|---|---|
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85171800 |
