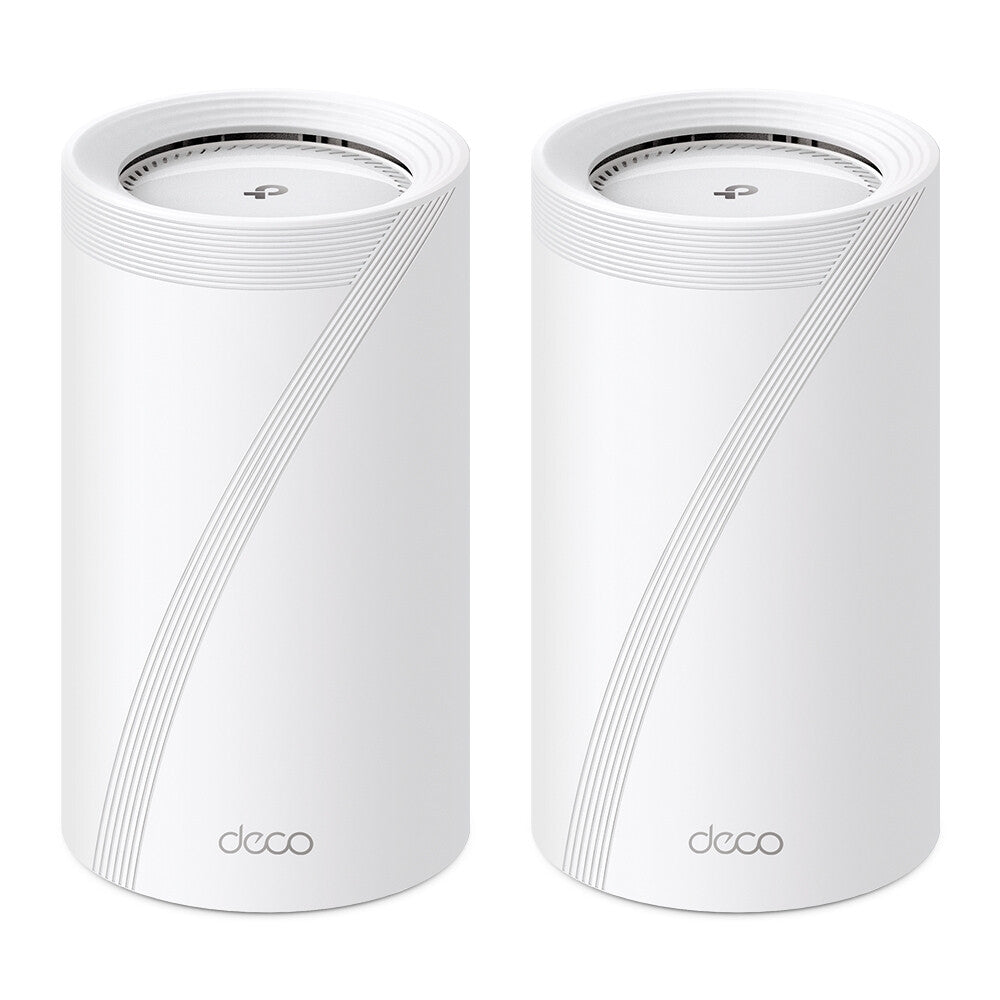

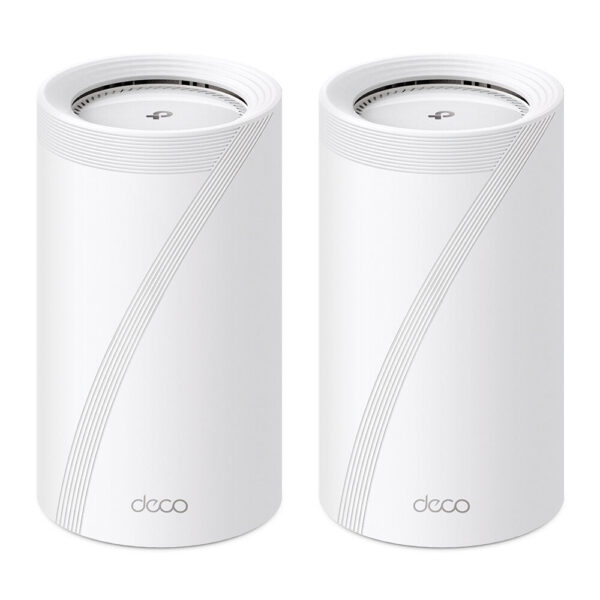

TP-Link BE19000 Tri-Band Whole Home Mesh WiFi 7 System
- 12-Stream 19 Gbps Tri-Band WiFi – 11520 Mbps (6 GHz) + 5760 Mbps (5 GHz) + 1376 Mbps (2.4 GHz)
- Unprecedented 10 Gbps Network – 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 10 Gbps WAN/LAN port + 2× 2.5 Gbps ports ensure max flexibility and boosted throughput
- Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency
- Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability
- 320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds
- Works on the 6 GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections
- TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security
- Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem
A True Whole Home
Multi-Gigabit Mesh WiFi
BE19000 Whole Home Mesh WiFi 7 System
WiFi 7, WiFi Like Never Before
WiFi 7 has arived with jam-dropping performance – offering accelerated throughput, lower latency, stronger anti-jamming and higher efficiency. Join the league of pros and experiance the sheer performance of the next generation WiFi.
High-End, Powerful, Exquisite
Blazing-Fast WiFi for Top Performance
Experience a high-end Tri-Band Whole Home WiFi 7 Mesh system with blazing-fast WiFi speeds up to 19 Gbps. Now, every device in your home network will run at top performance. The exclusive 6 GHz band provides exceptional bandwidth and congestion-free channels exclusive to your devices.
Whole Home Multi-Gigabit Connectivity
Deco BE85 Speed Heatmap
10 Gbps Wired Backhaul
Every room where a Deco BE85 is located receives 6-7.5 Gbps of wireless speeds, gradually decreasing with distance. Most of the tested villa clocks in at 6-6.5 Gbps. Due to a large number of walls, the edge of the home receives around 5 Gbps.
Wireless Backhaul
The 1st-floor Deco BE85 remains the same as with a wired backhaul. But due to the walls and ceiling between the two floors, the center of the other Deco BE85s receives around 3.5 Gbps with the rest of the house’s speed reaching 3-3.5 Gbps.
Outstanding 10 Gbps Wired Performance

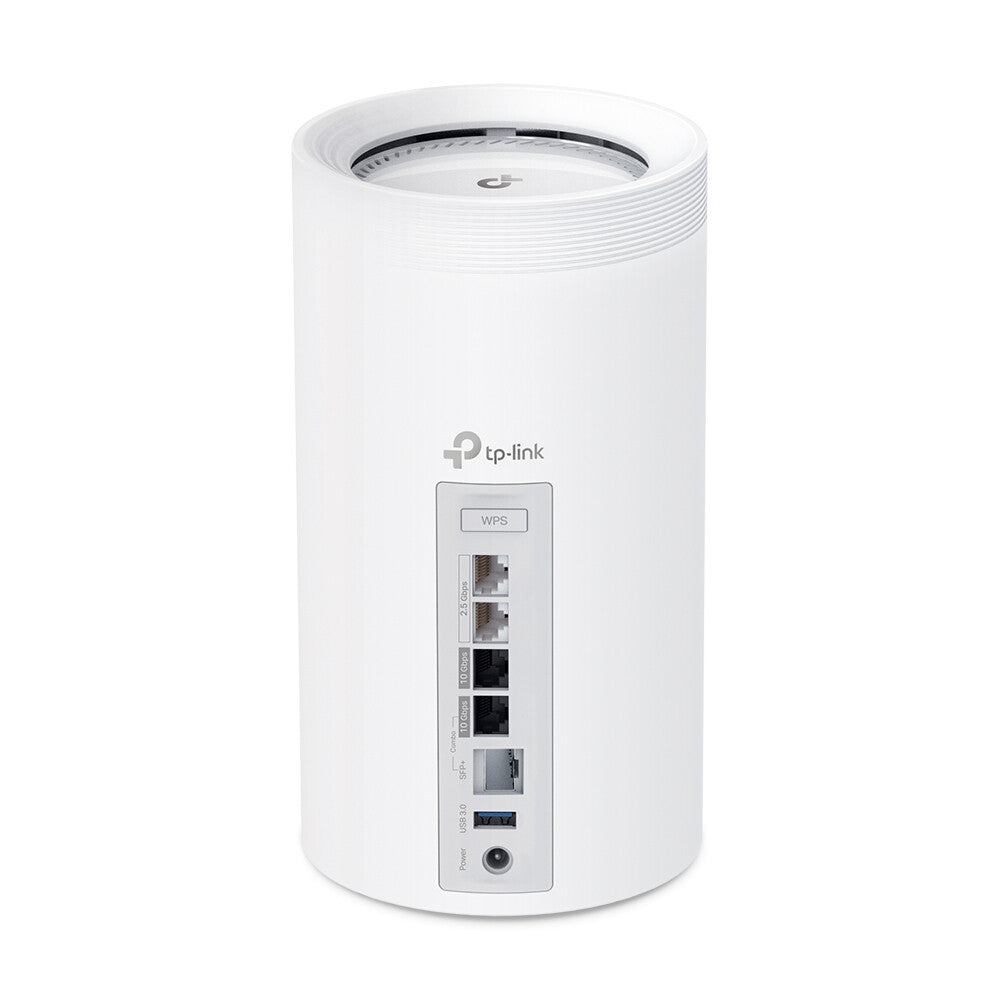

Equipped with two 10 Gbps WAN/LAN ports — one RJ45 port and a RJ45/SFP+ combo port — Deco BE85 provides flexible support for both fiber and copper connections.§ The additional 2.5 Gbps ports and USB 3.0 port make it an ideal solution for future-proofing your home network.
Down to the Last Detail
TP-Link’s in-house component research and thorough hardware selection ensure the quality and value of the entire Deco BE85 system. Everything comes together to form the perfect Mesh device.
The Ultimate Backhaul: Stronger and More Flexible
Through our self-developed technology, Deco BE85 can connect a wireless and wired backhaul with each unit simultaneously. What’s more, with the latest WiFi 7 MLO technology, the system’s wireless and wired combined backhaul aggregation flow rate is increased. This way, it greatly improves overall throughput and reduces latency, delivering broader coverage with more stable and reliable connections.
Smart Security for Smart Living
HomeShield provides a series of built-in services that protect all your devices comprehensively with various features for when you’re at home or on the go. With HomeShield, safer internet experiences bring more happiness to your smart living.
Network Protection
Simply configure your gateway and achieve whole home network security. HomeShield examines your network by scanning and identifying potential risks, stopping them in their tracks before they harm your network.
Parental Controls
Parental Controls protect your kids, while helping them maintain healthy digital habits. Parents can set app blocking, web filtering, YouTube restrictions, SafeSearch, and online time limits to keep kids safe while they’re having fun online.
Maintain Protection Away from Home
Devices remain secure everywhere with devices security app. And through KidShield, parents can monitor their kids’ locations and set geofencing. This way, kids stay digitally protected even on the go.
Seamless AI-Driven Mesh
Uninterrupted Streaming when Moving Between Rooms
Deco Mesh forms a unified network with a single network name. With built-in AI-Roaming technology, it creates the ideal WiFi solution with its advanced algorithms and self-learning. Walk through your home and enjoy seamless streaming at the fastest possible speeds.
Simple. Easy. Yet Powerful.
Setup and manage your network anytime and anywhere on the friendly TP-Link Deco app. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.
Easy Management
Manage your WiFi at home or away on the Deco app. See every connected device, prioritize your own, and set up a guest network.
Voice Control
Use an Amazon Alexa or Google Assistant-enabled device to control Deco BE85 with just your voice.
All Decos Work Together
Deco BE85 is compatible with every other Deco model to form a Mesh network. Expand Mesh WiFi coverage anytime by adding more Decos.
Design | |
---|---|
Reset button | Yes |
Transmit power | CE: |
Antennas quantity | 8 |
Antenna type | Internal |
LED indicators | Yes |
Product type | Mesh system |
Product colour | White |
Wireless LAN features | |
---|---|
VPN support | OpenVPN ClientPPTP VPN ClientL2TP VPN ClientOpenVPN ServerPPTP VPN ServerL2TP VPN Server |
Apps supported | TP-Link Deco |
Dynamic DNS (DDNS) | Yes |
Guest access | Yes |
IGMP proxy | Yes |
IGMP snooping | Yes |
Tagged VLAN | Yes |
Dynamic IP | Yes |
Static IP | Yes |
Number of guest networks (2.4 GHz) | 1 |
Security algorithms | WPA, WPA2, WPA2-PSK, WPA3 |
Number of guest networks (5 GHz) | 1 |
WLAN data transfer rate (third band) | 11520 Mbit/s |
WLAN data transfer rate (second band) | 5760 Mbit/s |
WLAN data transfer rate (first band) | 1376 Mbit/s |
WLAN data transfer rate (max) | 19000 Mbit/s |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
Mobile network | |
---|---|
Mobile network generation | Not supported |
Features | |
---|---|
MU-MIMO technology | Yes |
Firmware upgradeable via | Network |
Parental control | Yes |
Parental control features | Bedtime, Content filter, Custom profiles, Family time, Pause the Internet, Time controls, Time rewards, Weekly/monthly reports |
Works with Amazon Alexa | Yes |
DHCP client | Yes |
DHCP server | Yes |
Universal Plug and Play (UPnP) | Yes |
Mobile operating systems supported | Android, iOS |
Firewall security | SPI Firewall |
Port forwarding | Yes |
Quality of Service (QoS) support | Yes |
Ports & interfaces | |
---|---|
DC-in jack | Yes |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Ethernet WAN | Yes |
Ethernet LAN (RJ-45) ports | 4 |
Power | |
---|---|
AC adapter output current | 5 A |
AC adapter output voltage | 15 V |
AC adapter input current | 2 A |
AC input frequency | 50 – 60 Hz |
AC input voltage | 100 – 240 V |
Certificates | |
---|---|
Compliance certificates | RoHS, CE |
Sustainability | |
---|---|
Sustainability compliance | Yes |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 5 – 90% |
Operating relative humidity (H-H) | 10 – 90% |
Storage temperature (T-T) | -40 – 60 °C |
Operating temperature (T-T) | 0 – 40 °C |
Weight & dimensions | |
---|---|
Height | 236 mm |
Depth | 128 mm |
Width | 128 mm |
Packaging content | |
---|---|
Ethernet cable | Yes |
Number of units included | 2 pc(s) |
AC adapter included | Yes |
Number of products included | 2 pc(s) |
