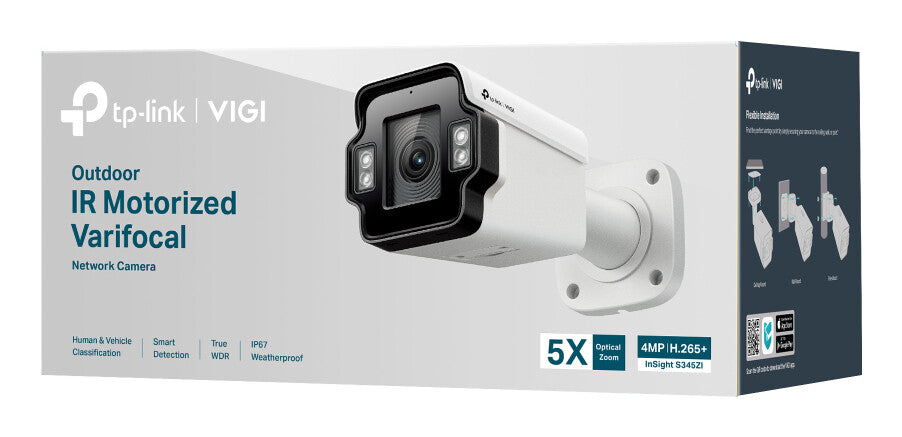

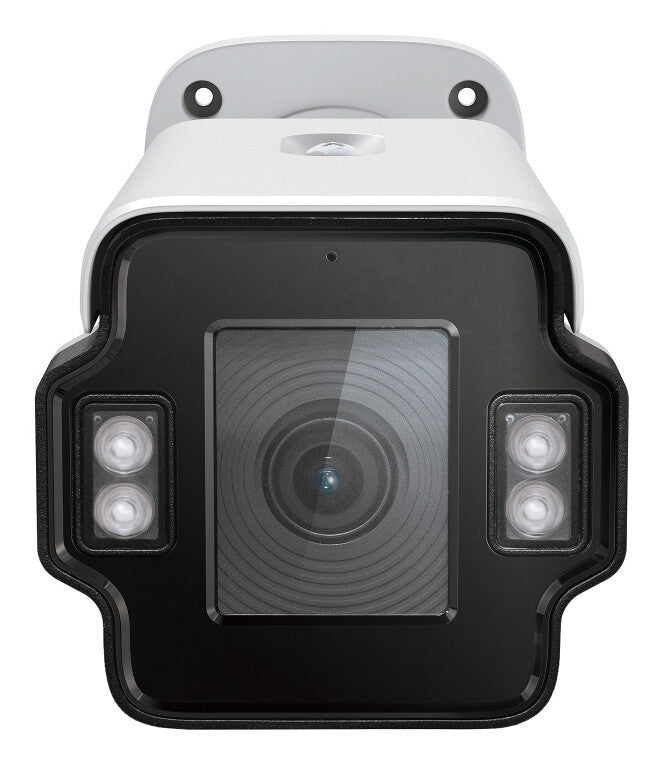

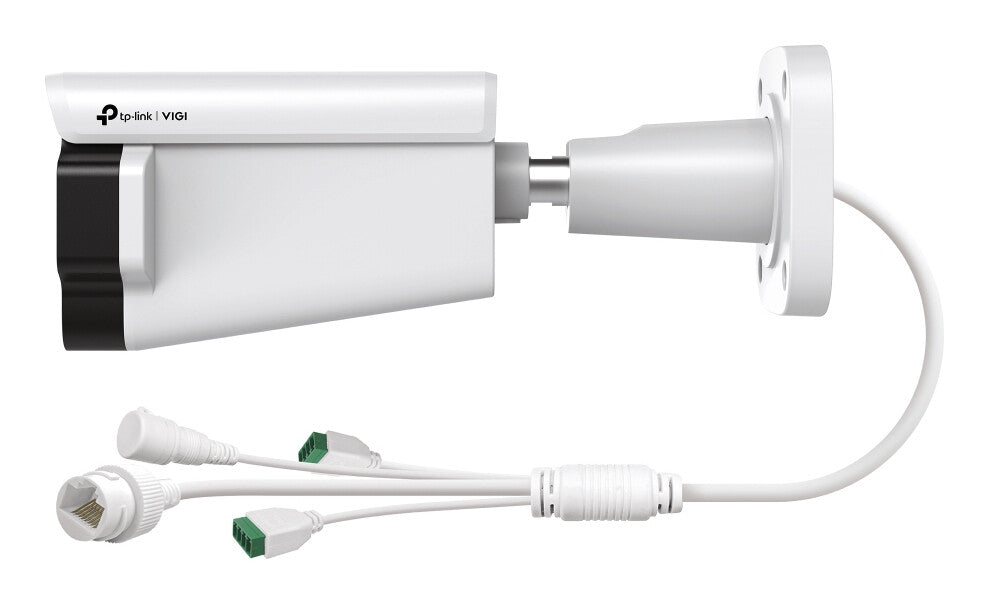

TP-Link INSIGHT S345ZI security camera Bullet IP security camera Outdoor 2688 x 1520 pixels Wall
- 5X Optical Zoom for Easy Installation and Monitoring
- 4MP Super-High Definition and IR Range Up to 60m (197ft)
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP67 Weatherproof and IK10 Vandal Proof
- H.265+ Compression Technology
VIGI 4MP Outdoor IR Motorized Varifocal Bullet Network Camera
- 5X Optical Zoom for Easy Installation and Monitoring
- 4MP Super-High Definition and IR Range Up to 60m (197ft)
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP67 Weatherproof and IK10 Vandal Proof
- H.265+ Compression Technology
Motorized Varifocal
By adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Learn more about VIGI AI technology >>
Smart Video Enhancement Technology
- True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
- Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
- 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
- White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
| Performance |
| Dynamic range |
120 dB |
| Remote viewing |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Day/night mode |
Yes |
| Wide Dynamic Range (WDR) |
Yes |
| Maximum operating distance |
60 m |
| Connectivity technology |
Wired |
| Placement supported |
Outdoor |
| Type |
IP security camera |
| Design |
| Weatherproof |
Yes |
| International Protection (IP) code |
IP67 |
| Protection features |
Waterproof |
| Housing material |
Metal |
| Product colour |
White |
| Mounting type |
Wall |
| Form factor |
Bullet |
| Camera |
| Camera shutter speed |
1/3 to 1/10000 |
| Tilt angle range |
0 – 90° |
| Lens viewing angle, diagonal |
34.1–122.8 |
| Lens viewing angle, vertical |
16.8–53.8 |
| Lens viewing angle, horizontal |
29.6–102.0 |
| Minimum illumination |
0 lx |
| Image sensor |
| Progressive scan |
Yes |
| Optical sensor size |
25.4 / 2.9 mm (1 / 2.9″) |
| Sensor type |
CMOS |
| Lens system |
| Identify distance |
21 m |
| Maximum aperture number |
1.6 |
| Focus |
Motorized |
| Focal length range |
2.7 – 13.5 mm |
| Recognize distance |
41 m |
| Observe distance |
86 m |
| Detect distance |
207 m |
| Optical zoom |
5x |
| Night vision |
| LED type |
IR |
| Night vision |
Yes |
| Video |
| Image quality adjustment |
Brightness, Contrast, Mirror, Saturation, Sharpness |
| Bit rate |
Main Stream: 256 Kbps to 6 Mbps, Sub-Stream: 512 Kbps to 1024 Kbps |
| Back Light Compensation (BLC) |
Yes |
| Digital Wide Dynamic Range (DWDR) |
Yes |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) |
Yes |
| Noise reduction |
Yes |
| Video recording |
Yes |
| Supported graphics resolutions |
1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 2688 x 1520 |
| Video compression formats |
H.264, H.264+, H.265, H.265+ |
| Total megapixels |
4 MP |
| Maximum resolution |
2688 x 1520 pixels |
| Audio |
| Audio detection |
Yes |
| Bit rate range |
0 – 64 Kbit/s |
| Number of microphones |
1 |
| Built-in microphone |
Yes |
| Sample rate |
8 kHz |
| Audio formats supported |
G.711 A-law |
| Audio output channels |
1 channels |
| Audio input channels |
1 channels |
| Audio system |
1-way |
| Built-in speaker(s) |
Yes |
| Network |
| Live view |
Yes |
| Supported network protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Maximum memory card size |
512 GB |
| Compatible memory cards |
MicroSD (TransFlash) |
| Ports & interfaces |
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Security |
| Human and vehicle targets classification |
Yes |
| Video motion detection |
Yes |
| Motion sensor |
Yes |
| IP address filtering |
Yes |
| HTTPS encryption |
Yes |
| Mirror |
Yes |
| Digest authentication |
Yes |
| Alert notification type |
Push notification |
| Password protection |
Yes |
| Built-in siren |
Yes |
| Management features |
| Reset button |
Yes |
| Cloud-managed |
Yes |
| Web browser |
Yes |
| Web-based management |
Yes |
| Power |
| DC output voltage |
12 |
| Power consumption (Power over Ethernet (PoE)) |
12 W |
| Power consumption (max) |
10.8 W |
| Power source type |
DC, PoE |
| Operational conditions |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
0 – 95% |
| Storage temperature (T-T) |
-40 – 60 °C |
| Operating temperature (T-T) |
-30 – 60 °C |
| Weight & dimensions |
| Length |
256 mm |
| Height |
101 mm |
| Width |
100 mm |
| Packaging data |
| Package type |
Box |
| Packaging content |
| Number of cameras |
1 |
