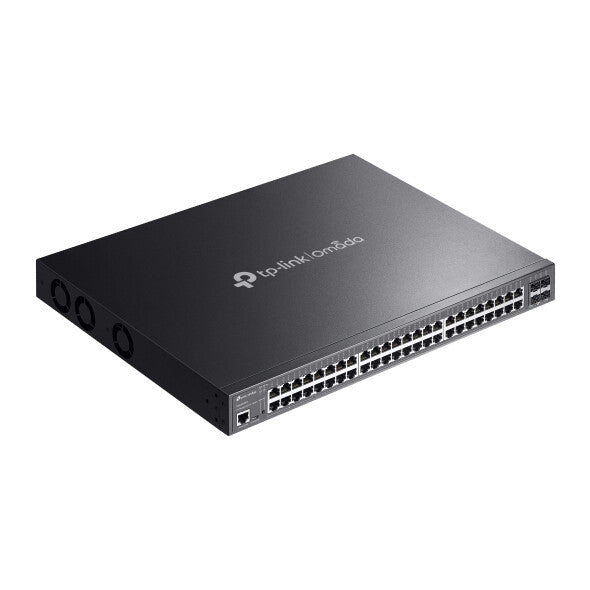

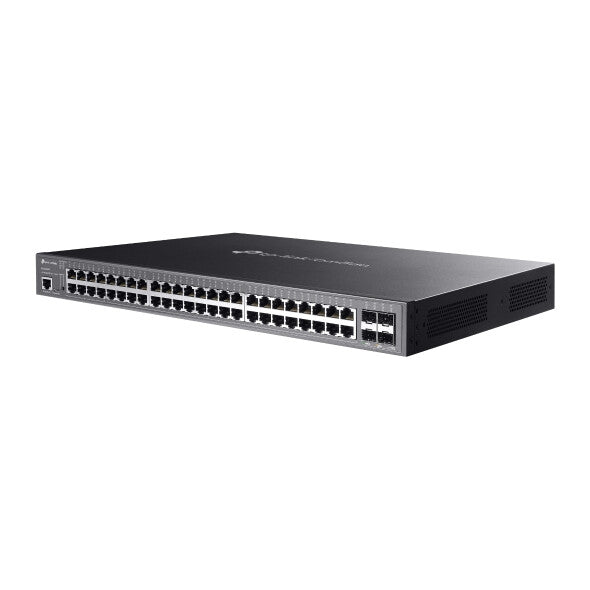

TP-Link Omada SG3452XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
- 4× 10 Gbps SFP+ slots
- 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
- 40× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
- 750 W total PoE budget*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++
- 4x 10 Gbps SFP+ slots
- 8x Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
- 40x Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
- 750 W total PoE budget
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
| Management features |
| System event log |
Yes |
| ARP inspection |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2+ |
| Switch type |
Managed |
| Ports & interfaces |
| Power connector |
AC-in jack |
| Console port |
RJ-45/Micro-USB |
| SFP+ module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
| VLAN support |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Rate limiting |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| Port mirroring |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Data transmission |
| Packet buffer memory |
12 MB |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
130.9 Mpps |
| Switching capacity |
176 Gbit/s |
| MAC address table |
16000 entries |
| Security |
| Authentication |
Auto VLAN, Guest VLAN |
| MAC address filtering |
Yes |
| SSH/SSL support |
Yes |
| BPDU filtering/protection |
Yes |
| IP-MAC-Port binding |
Yes |
| Static port security |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client, DHCP relay, DHCP server |
| Multicast features |
| Multicast support |
Yes |
| Design |
| Number of fans |
3 fan(s) |
| LED indicators |
Yes |
| Reset button |
Yes |
| Product colour |
Black |
| Form factor |
1U |
| Rack mounting |
Yes |
| Power |
| Power consumption (max) |
635.7 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
750 W |
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity |
8 |
| Power over Ethernet plus (PoE+) ports quantity |
40 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Heat dissipation |
2169.2 BTU/h |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Height |
44 mm |
| Depth |
330 mm |
| Width |
440 mm |
| Packaging content |
| Quick start guide |
Yes |
| Cables included |
AC |
| General |
| Product family |
Omada |
| Certificates |
| Certification |
CE, FCC, RoHS |
