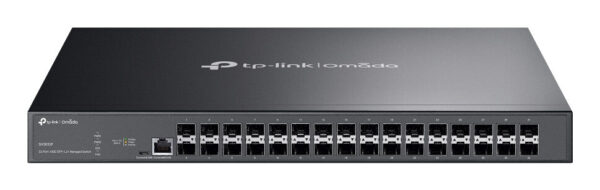

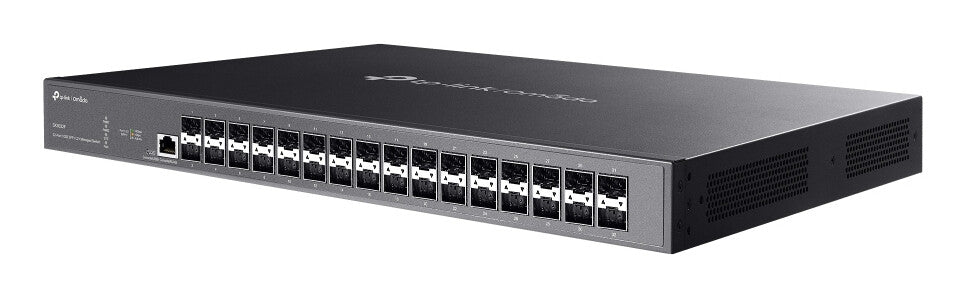

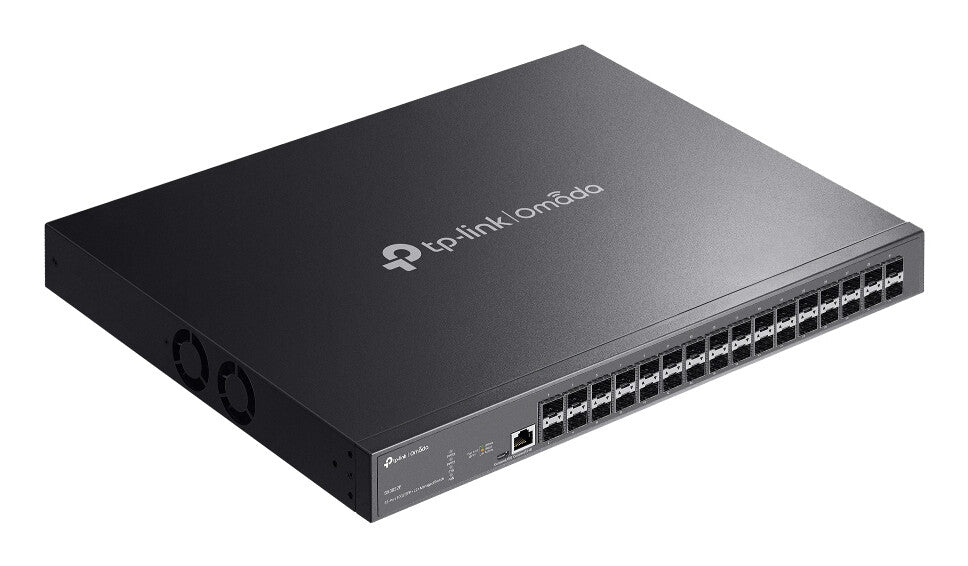

TP-Link Omada SX3032F network switch Managed L2+ Black
- 32× 10 Gbps SFP+ slots
- 640 Gbps switching capacity

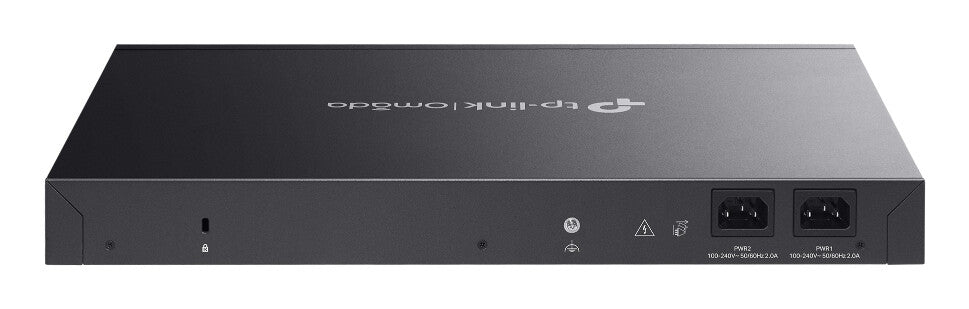

- Two internal fixed power supply modules back each other up
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Omada 32-Port 10GE SFP+ L2+ Managed Switch
Easily Build a Whole 10G Multi-gigabit Network
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
| Management features |
| MIB support |
• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIB |
| ARP inspection |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Cloud-managed |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2+ |
| Switch type |
Managed |
| Ports & interfaces |
| Console port |
RJ-45/Micro-USB |
| Installed SFP+ modules quantity |
32 |
| Basic switching RJ-45 Ethernet ports quantity |
1 |
| Network |
| Number of VLANs |
30 |
| Virtual LAN features |
Protocol-based VLAN, SSID-based VLAN assignment, Tagged VLAN, VLAN mapping, Voice VLAN |
| VLAN support |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| IPv4 routes |
48 |
| IPv6 routes |
48 |
| Rate limiting |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| Networking standards |
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3x |
| Data transmission |
| Packet buffer memory |
24 MB |
| Jumbo frames |
9 |
| Jumbo frames support |
Yes |
| Number of IP interfaces |
128 |
| Number of static routes |
128 |
| Static route |
Yes |
| Number of queues |
8 |
| Forwarding rate |
240 Mpps |
| Switching capacity |
640 Gbit/s |
| MAC address table |
32000 entries |
| Security |
| Loop protection |
Yes |
| Authentication |
MAC-based authentication, Port-based authentication |
| Authentication type |
AAA, TACACS+ |
| Queue scheduling algorithms |
Priority queuing (PQ), SP, Weighted Round Robin (WRR) |
| Password protection |
Yes |
| SSH/SSL support |
Yes |
| IP-MAC-Port binding |
Yes |
| Static port security |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP relay, DHCP server, DHCPv6 snooping |
| Multicast features |
| Multicast Listener Discovery (MLD) snooping |
Yes |
| Number of multicast groups filtered |
4000 |
| Multicast support |
Yes |
| Protocols |
| IP Source Guard (IPSG) |
Yes |
| IPv4 & IPv6 features |
Dual stack IPv4/IPv6, ICMPv6, IPv6 TFTP |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Design |
| Number of fans |
2 fan(s) |
| Redundant fans support |
Yes |
| Product colour |
Black |
| Rack mounting |
Yes |
| Power |
| Power consumption (max) |
49.4 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 90% |
| Operating relative humidity (H-H) |
10 – 90% |
| Storage temperature (T-T) |
40 – 70 °C |
| Operating temperature (T-T) |
-5 – 45 °C |
| Weight & dimensions |
| Height |
44 mm |
| Depth |
330 mm |
| Width |
440 mm |
| Packaging content |
| Quick start guide |
Yes |
| Cables included |
Power |
| General |
| Product family |
Omada |
| Certificates |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
