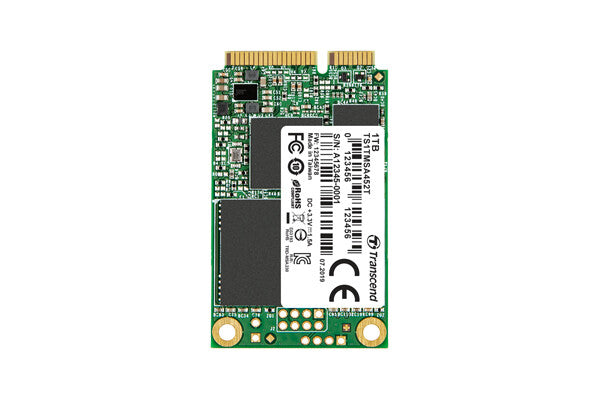

Transcend MSA452T-I 512 GB mSATA Serial ATA III 3D TLC NAND
- DRAM Cache embedded
- Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
- Wide-temperature model available: promised operational reliability in a wide temperature range (from -40℃ to 85℃)
- Advanced Global Wear-Leveling and Block management for reliability
- Advanced Garbage Collection
- Security Command
- Built-in ECC (Error Correction Code) functionality
- Enhanced S.M.A.R.T. function for durability
- Compliant with RoHS 2.0 standards
- Power-saving DevSleep (Device Sleep) mode (optional)
Supporting the Serial ATA interface and built around a powerful controller, Transcend’s SATA III 6Gb/s MSA452T mSATA SSD delivers blazing-fast performance, long-term reliability, and high cost-effectiveness. Featuring DRAM cache for fast access and state-of-the-art 96-layer 3D NAND flash, the MSA452T is fully tested to guarantee reliability in mission-critical applications, boasting an endurance rating of 3K Program/Erase cycles. The compact mSATA form factor is just one-eighth the size of a standard 2.5″ SSD, making it perfect for use in space-constricted portable devices such as Ultrabooks, tablet PCs, and slim servers.
Transcend also offers the MSA452T-I with wide temperature (-40℃ ~ 85℃) capabilities to ensure sustained functionality, enhanced endurance and optimal reliability in mission-critical applications.
| Features |
| Certification |
CE/FCC/BSMI |
| TBW rating |
1760 |
| Mean time between failures (MTBF) |
3000000 h |
| ECC |
Yes |
| S.M.A.R.T. support |
Yes |
| DevSlp (device sleep) support |
Yes |
| Random write (4KB) |
85000 IOPS |
| Random read (4KB) |
95000 IOPS |
| Write speed |
520 MB/s |
| Read speed |
560 MB/s |
| Data transfer rate |
6 Gbit/s |
| Hardware encryption |
No |
| Component for |
Server/workstation |
| Memory type |
3D TLC NAND |
| NVMe |
No |
| Interface |
Serial ATA III |
| SSD form factor |
mSATA |
| SSD capacity |
512 GB |
| Power |
| Power consumption (sleep) |
0.4 W |
| Power consumption (average) |
2.4 W |
| Operating voltage |
3.3 V |
| Weight & dimensions |
| Weight |
8 g |
| Height |
4.85 mm |
| Depth |
29.9 mm |
| Width |
50.8 mm |
| Operational conditions |
| Operating shock |
1500 G |
| Operating vibration |
20 G |
| Operating relative humidity (H-H) |
5 – 95% |
| Minimum operating temperature |
-40 °C |
| Maximum operating temperature |
85 °C |
| Storage temperature (T-T) |
-40 – 85 °C |
| Operating temperature (T-T) |
-40 – 85 °C |
| Other features |
| Compliance certificates |
RoHS |
