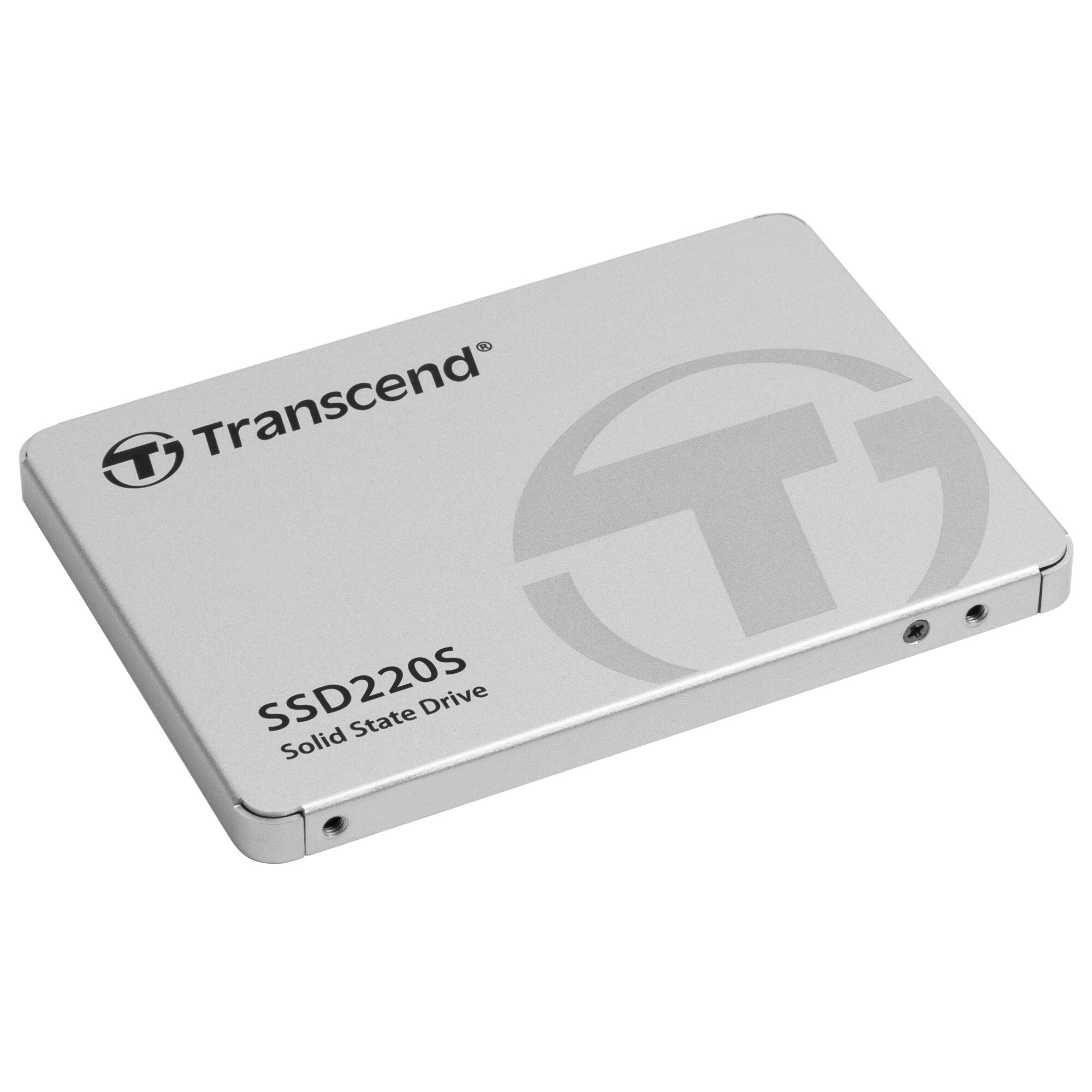

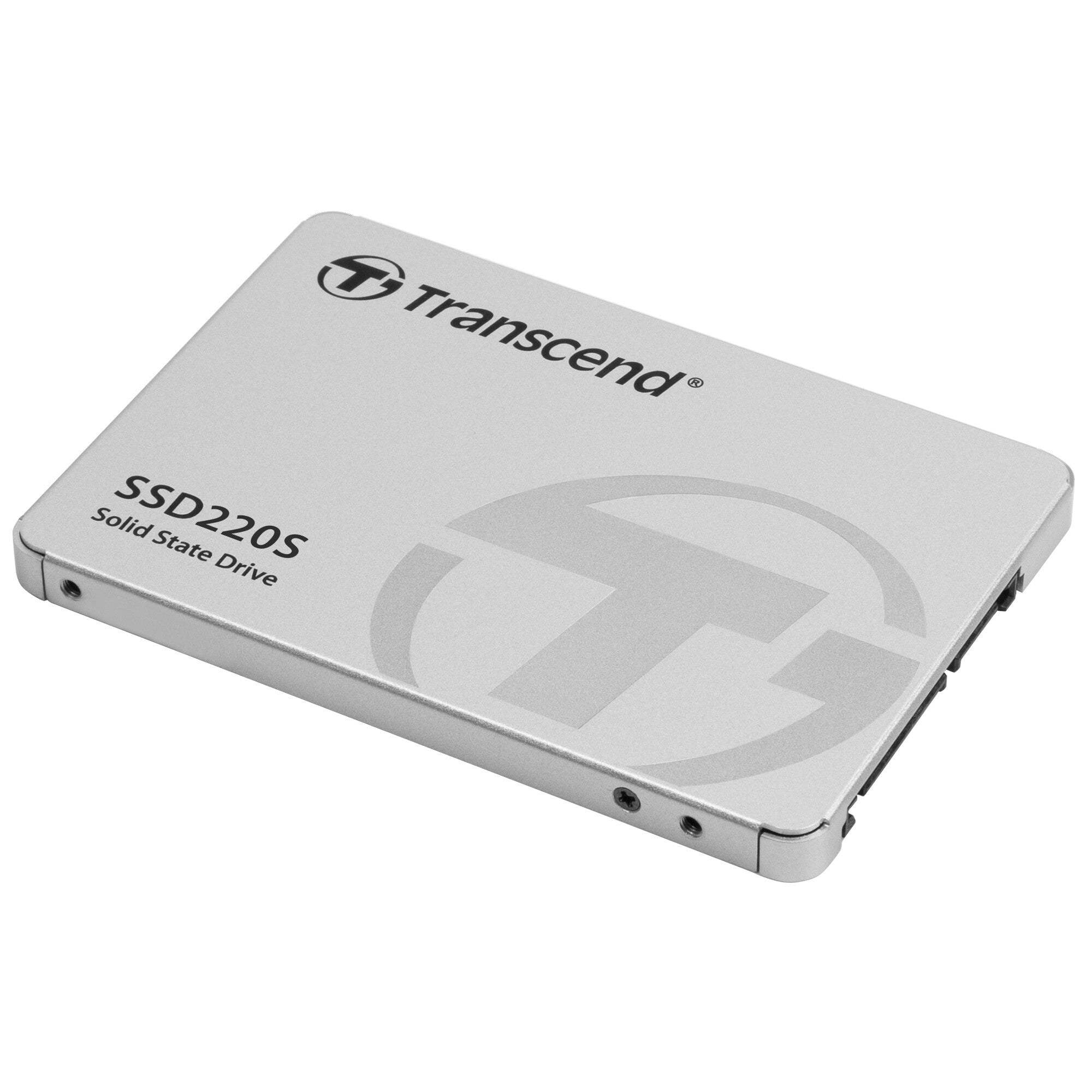

Transcend SATA III 6Gb/s SSD220S 120GB
- Up to 550 MB/s read; 500 MB/s write
- 3D NAND flash memory
- Engineered with a RAID engine and LDPC (Low-Density Parity Check) coding to ensure data integrity; built-in SLC caching technology for exceptional transfer speeds
- Supports DevSleep ultra low power state, S.M.A.R.T., TRIM and NCQ commands
- Download the SSD Scope software from Transcend’s official website
Transcend’s SATA III 6Gb/s SSD220S uses the latest 3D NAND technology that features vertical, stacked expansion of storage cells. By using high-quality flash memory and enhanced firmware algorithms, the SSD220S delivers greater performance and reliability.
3D expansion to break through limits
Unlike planar NAND memory, 3D NAND flash features memory cells stacked certically in multiple layers. 3D NAND overcomes density limitations of 2D planar NAND and delivers a higher level of performance and endurance.
Performance boost for everyday computing
Taking full advantage of the SARA III 6Gb/s interface and built-in SLC caching technology, Transcend’s SSD220S achieves exceptional transfer speeds of up to 550MB/s read and 500MB/s write.
Guaranteed endurance and reliability
Transcend’s SSD220S offers great Terabytes Written (TBW) values (up to 320 TB) indicating the total amount of data you can write onto the drive over it’s lifetime.
A better choice than HDD
Solid-state drives dominate the marketing for PC upgrades because they are faster and lighter than hard disk drives. SSDs also feature less power, create less noise when in operations, and are more shock-resistant than traditional hard drives.
3 easy steps to upgrade your PC
Transcend’s SSD220S measures just 6.8mm in height and features short access times, making it a perfect choice for upgrading desktops, laptops and the latest gaming consoles in just 3 easy steps!
SSD Scope software
Transcend SSD Scope is advanced, user-friendly software thatmakes it easy to ensure your Transcend SSD remains healthy, and continues to run fast and error-free by determining the conditions and optimizing the performance of your drive.
Guaranteed quality
Transcend’s solid state drives are built to the highest standards, are rigorously tested and offer outstanding quality, performance and reliability.
| Features | |
|---|---|
| Certification | CE/FCC/BSMI/KC/RCM |
| TBW rating | 40 |
| Linux operating systems supported | Kernel 2.6.31 |
| Mac operating systems supported | No |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
| Mean time between failures (MTBF) | 2000000 h |
| ECC | Yes |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| DevSlp (device sleep) support | Yes |
| Sequential write speed (CDM) | 300 MB/s |
| Sequential read speed (CDM) | 500 MB/s |
| Random write (4KB) | 75000 IOPS |
| Random read (4KB) | 28000 IOPS |
| Write speed | 300 MB/s |
| Read speed | 500 MB/s |
| Data transfer rate | 6 Gbit/s |
| Component for | PC/Laptop |
| Memory type | 3D NAND |
| NVMe | No |
| Interface | Serial ATA III |
| SSD form factor | 2.5″ |
| SSD capacity | 120 GB |
| Power | |
|---|---|
| Operating voltage | 5 V |
| Weight & dimensions | |
|---|---|
| Weight | 45 g |
| Height | 69.8 mm |
| Depth | 6.8 mm |
| Width | 100 mm |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 – 70 °C |
| Other features | |
|---|---|
| Product colour | Silver |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
