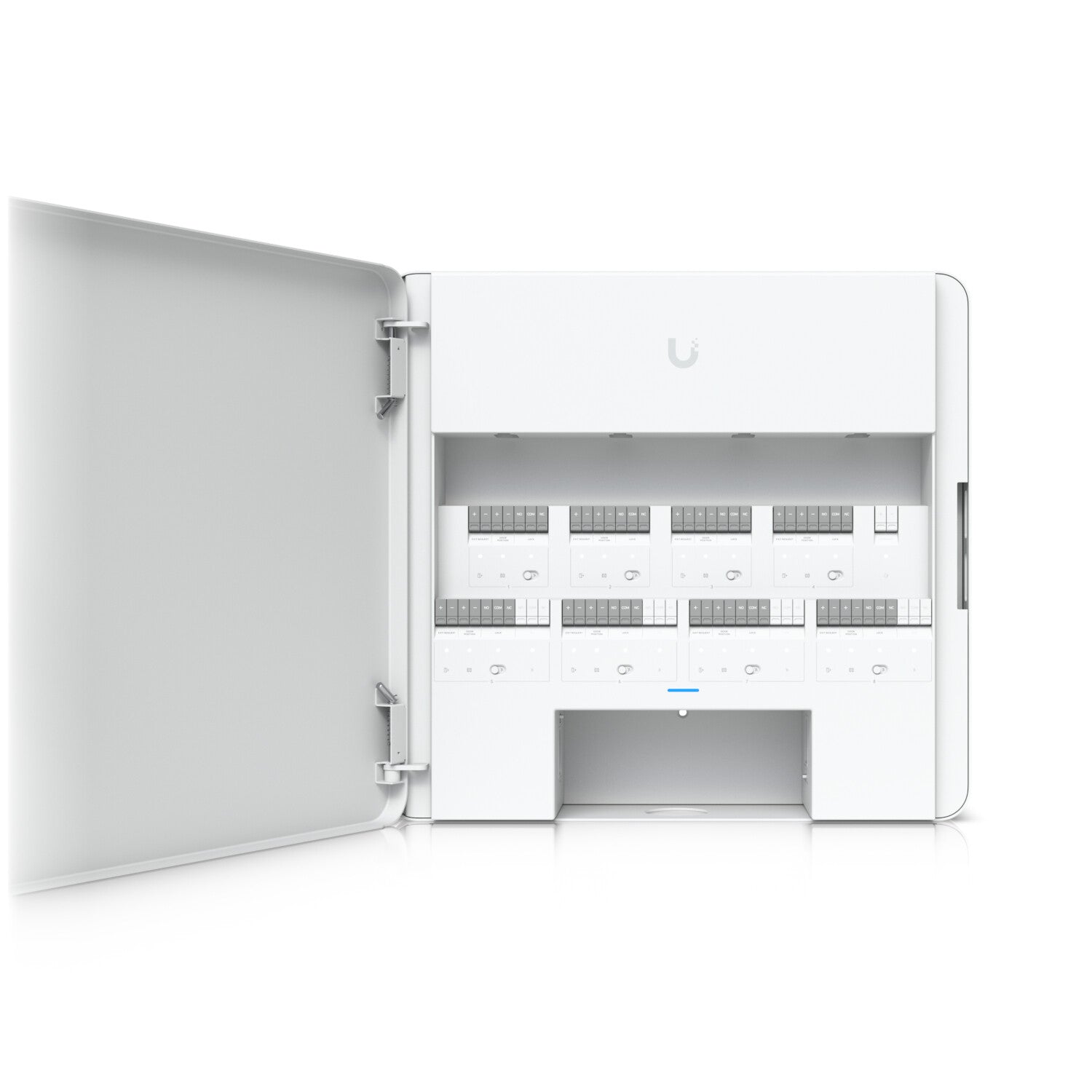

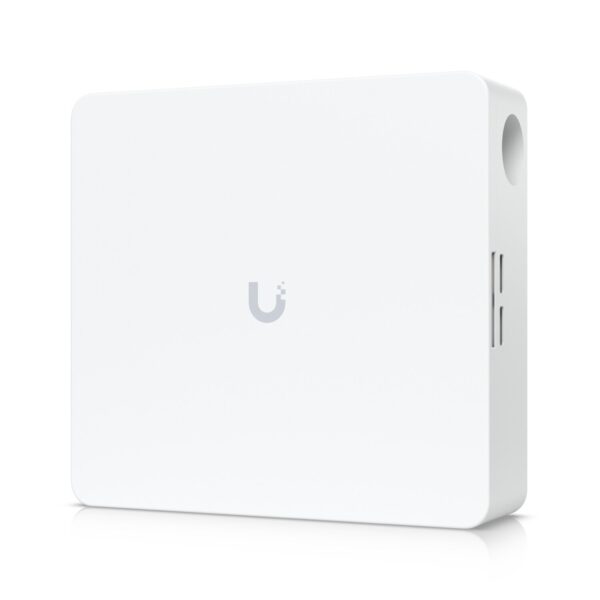

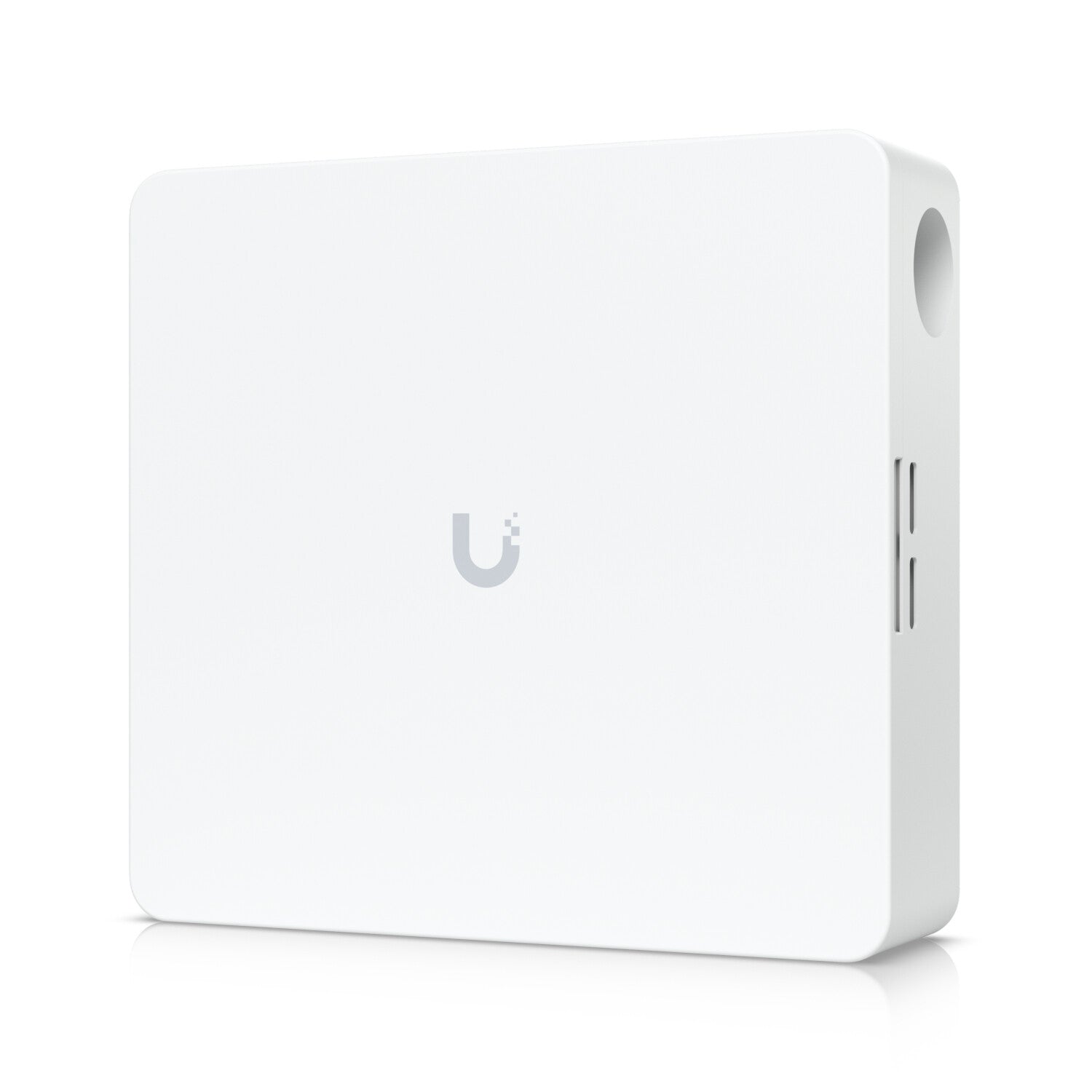

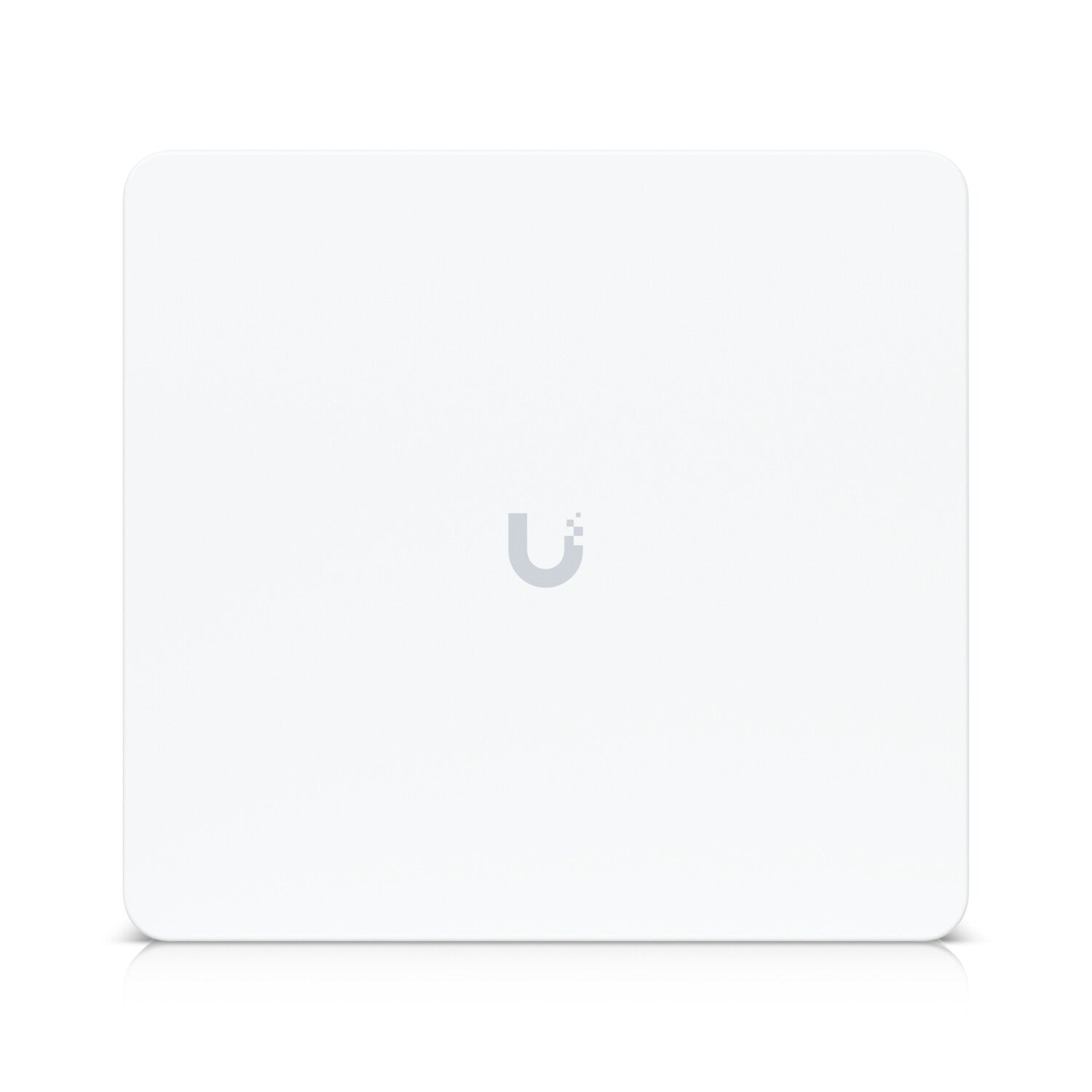

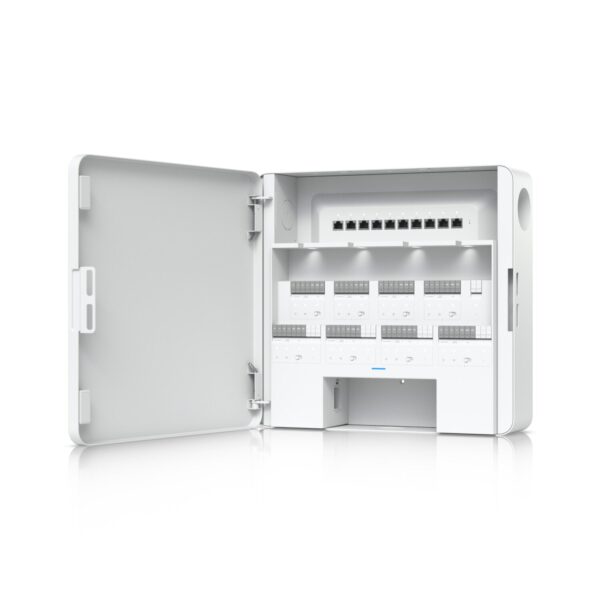

Ubiquiti EAH-8 security door controller Cabinet 8 door(s) Ethernet
- (8) Lock terminals (12V or Dry)
- (8+8) Inputs for request-to-exit devices and door position sensors
- (8) PoE ports for Access Readers
- (4) AUX terminals for chimes, sirens, or door openers
- (1) Battery backup input (32–48V)
Enterprise-grade access hub with entry and exit control to eight doors and battery backup support.
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Interface | Ethernet |
| Maximum number of doors | 8 door(s) |
| Case design | Cabinet |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 10 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 – 95% |
| Operating temperature (T-T) | 0 – 40 °C |
| Weight & dimensions | |
|---|---|
| Width | 355 mm |
| Depth | 379 mm |
| Height | 105 mm |
| Weight | 9.1 kg |
