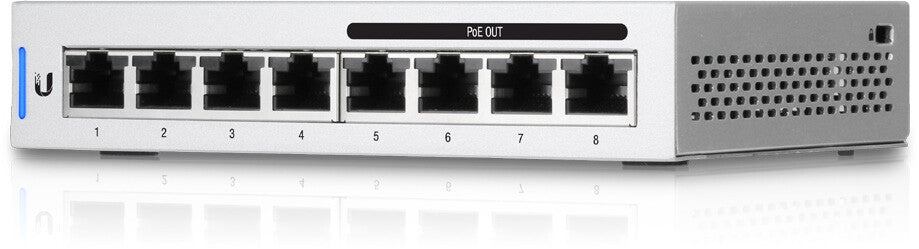

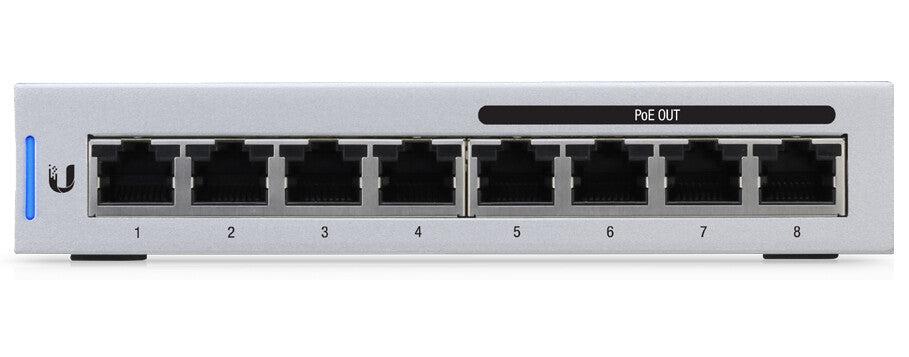

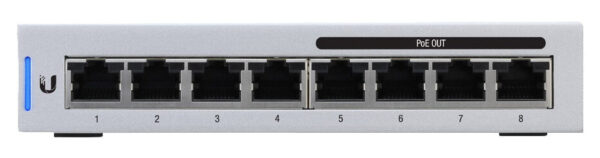

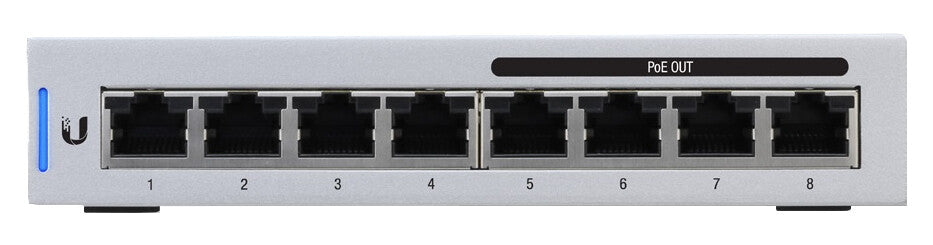

Ubiquiti UniFi Switch 8 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
- Managed
- Basic switching RJ-45 Ethernet ports quantity: 8
- Switching capacity: 16 Gbit/s
- Power over Ethernet (PoE)
8-Port Managed Gigabit Switches
The US-8-60W is an 8-port gigabit switch with four 802.3af PoE ports. Its auto-sensing PoE ports deliver up to 15.4W of power per port.
The US-8 is a PoE Powered 8-port gigabit switch with PoE Passthrough. Perfect for cleanly adding Ethernet ports where needed, with passthrough to keep your PoE device powered.
Non-Blocking Throughput
The new 8-port models feature Gigabit Ethernet ports in a compact form factor. For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps.
Switching Capacity
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, with a switching capacity of 16 Gbps.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
| Management features |
| Switch type |
Managed |
| Ports & interfaces |

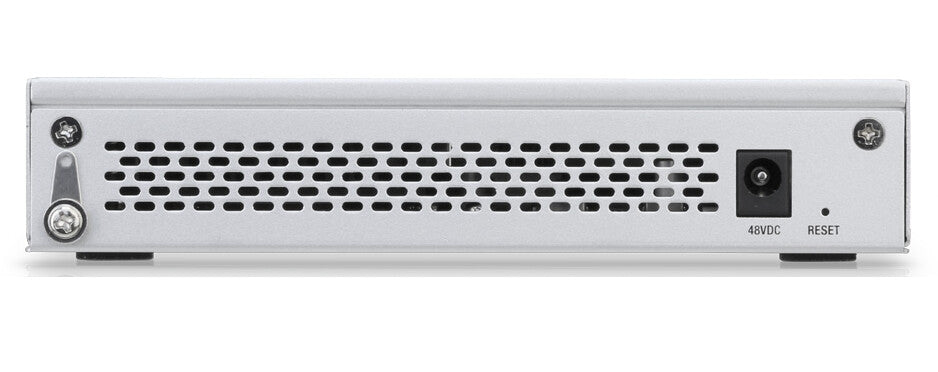

| Power connector |
DC-in jack |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
| VLAN support |
Yes |
| Auto-sensing |
Yes |
| Flow control support |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1x, IEEE 802.3af |
| Data transmission |
| Jumbo frames support |
Yes |
| Forwarding rate |
11.9 Mpps |
| Throughput |
8 Mpps |
| Switching capacity |
16 Gbit/s |
| Security |
| Security algorithms |
802.1x RADIUS |
| Design |
| Wall mountable |
Yes |
| LED indicators |
Activity, Link, PoE, Speed |
| Reset button |
Yes |
| Housing material |
Steel |
| Product colour |
Grey |
| Performance |
| Flash memory |
32 MB |
| Internal memory |
256 MB |
| Memory type |
DDR3-SDRAM |
| Processor frequency |
400 MHz |
| Built-in processor |
Yes |
| Power |
| Power consumption (max) |
12 W |
| Output current |
1.25 A |
| Output voltage |
48 V |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
60 W |
| Power over Ethernet (PoE) power per port |
15.4 W |
| Power over Ethernet (PoE) voltage range |
57 – 44 V |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating relative humidity (H-H) |
5 – 95% |
| Operating temperature (T-T) |
-5 – 45 °C |
| Weight & dimensions |
| Weight |
432 g |
| Height |
30.7 mm |
| Depth |
99.5 mm |
| Width |
148 mm |
| Packaging data |
| AC adapter included |
Yes |
| General |
| Product family |
UniFi |
| Certificates |
| Certification |
ETSI300-019-1.4, CE, FCC, IC |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
