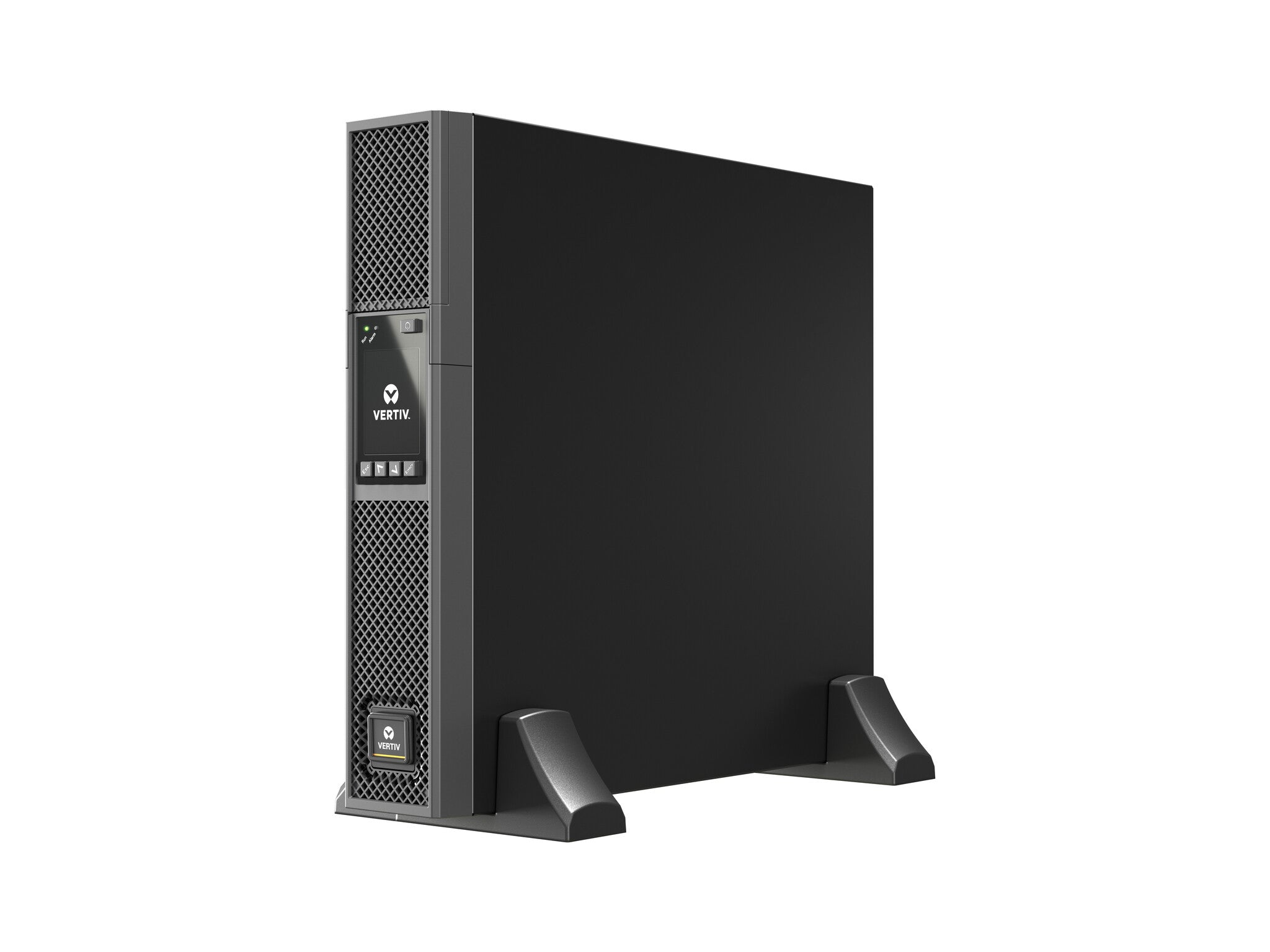

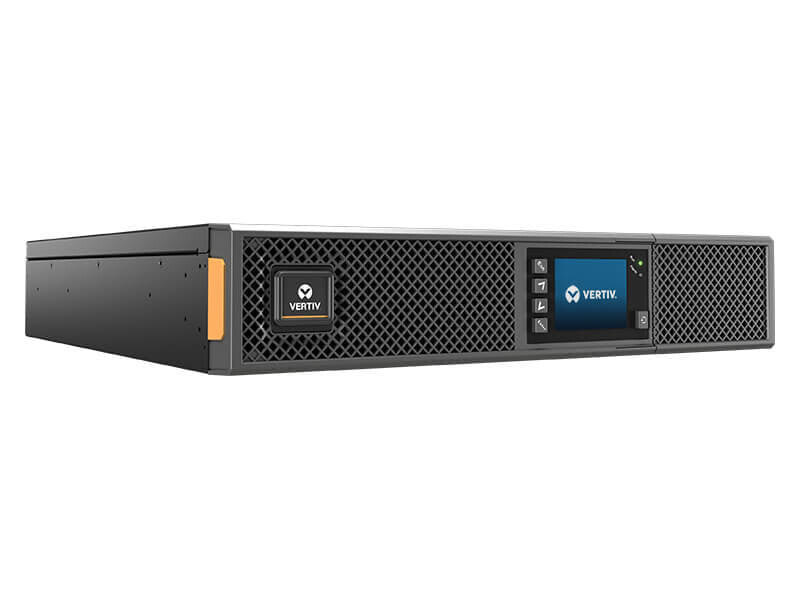

Vertiv Liebert GXT5 uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 3000 W 7 AC outlet(s)
- Reliable, easy-to-manage power protection and battery backup with 3000VA (3000W) capacity
- Highest power factor available on standard input connections
- Four individual programmable output receptacle for device control and management for optimum battery usage
- Its user-friendly interface includes color graphic display with gravity sensing feature
- 2019 ENERGY STAR 2.0 certified and has higher operating efficiency in standard and eco-mode
The Vertiv Liebert GXT5 UPS 3000VA/3000W, is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environment including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It has a two-year factory warranty. It offers premium power protection for critical infrastructure in centralized and edge applications.
| Features | |
|---|---|
| Audible alarm(s) | Yes |
| Power protection features | Overload |
| Noise level | 58 dB |
| Emergency Power Off (EPO) | Yes |
| Input power factor | 0.99 |
| Efficiency (ECO mode) | 98% |
| Efficiency (On-line mode) | 95% |
| Efficiency | 95% |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Response time | 0 ms |
| Output voltage regulation | 3% |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 288 V |
| Input operation voltage (min) | 115 V |
| Waveform | Pure sine |
| Output power | 3000 W |
| Output power capacity | 3 kVA |
| UPS topology | Double-conversion (Online) |
| Ports & interfaces | |
|---|---|
| Serial ports quantity | 1 |
| Serial interface type | RS-232, RS-485 |
| USB port | Yes |
| AC outlets quantity | 7 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Battery | |
|---|---|
| Hot-swap battery | Yes |
| Battery recharge time | 3 h |
| Typical backup time at half load | 9 min |
| Typical backup time at full load | 3 min |
| Battery voltage | 12 V |
| Battery capacity | 9 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| International Protection (IP) code | IP20 |
| Display type | LCD |
| Product colour | Black |
| Form factor | Rackmount/Tower |
| General | |
|---|---|
| Product family | Liebert |
| Operational conditions | |
|---|---|
| Operating altitude | 0 – 3000 m |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage temperature (T-T) | -15 – 40 °C |
| Operating temperature (T-T) | 0 – 40 °C |
| Certificates | |
|---|---|
| Certification | IEC/EN/AS 62040-2 2nd Ed (Cat 2 – 6);FCC 15 ACISPR22 A(RFI) |
| Compliance certificates | RoHS |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Safety regulation & standards | |
|---|---|
| Safety | IEC62040-1:2008, GS; UL1778, c-UL |
| Weight & dimensions | |
|---|---|
| Weight | 28.2 kg |
| Height | 85 mm |
| Depth | 540 mm |
| Width | 430 mm |
| Packaging data | |
|---|---|
| Package weight | 33 g |
| Package height | 262 mm |
| Package depth | 617 mm |
| Package width | 517 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Other features | |
|---|---|
| Non-operating relative humidity (non-condensing) | 0 – 95% |
| Bypass | Yes |
| Overload protection | Yes |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
| Input connection type | C20 |
| Output connections | IEC320 C13 & C19 |
| Battery type | VRLA |
