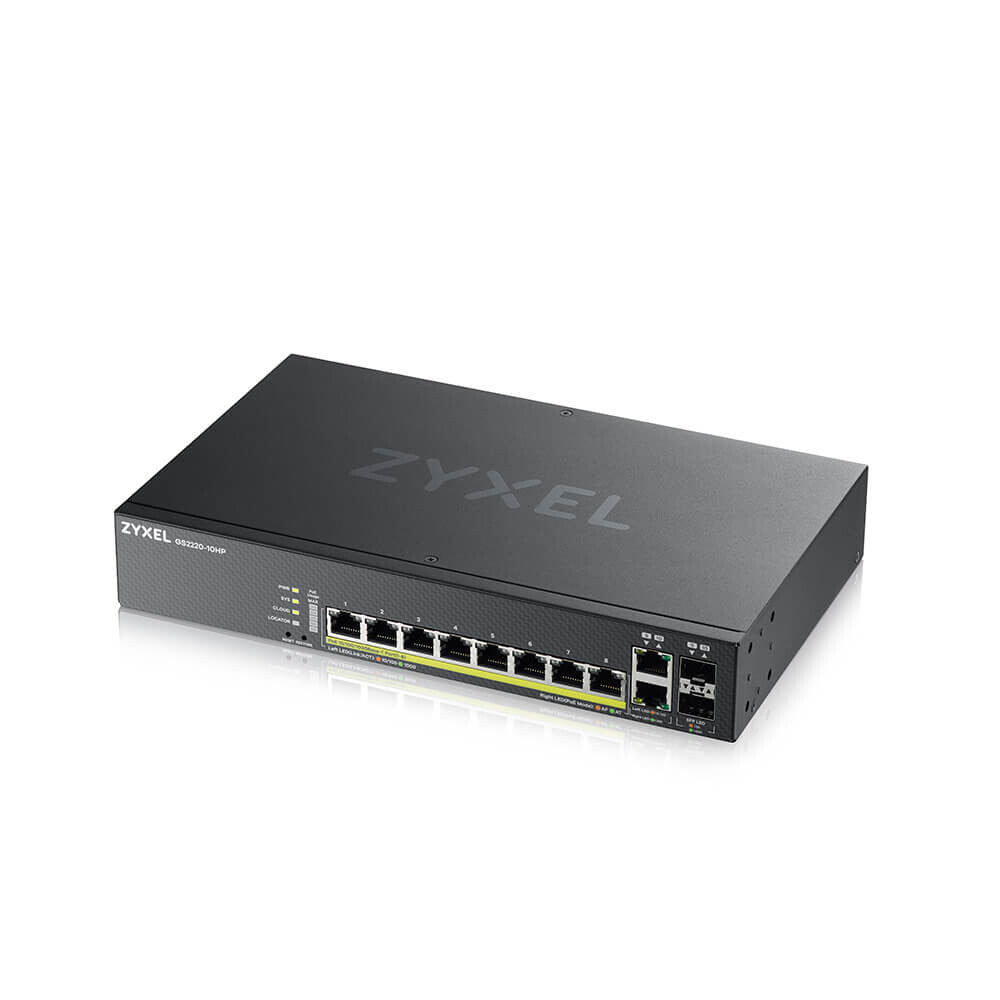

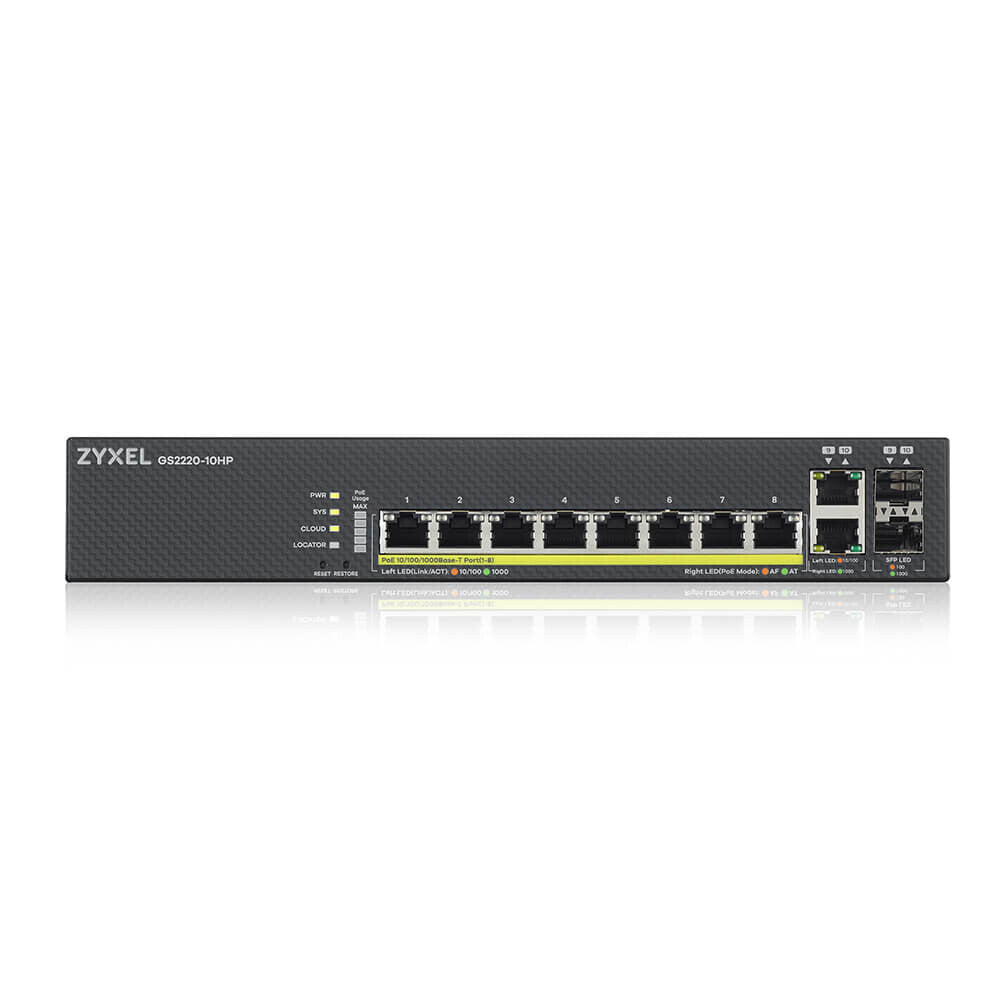

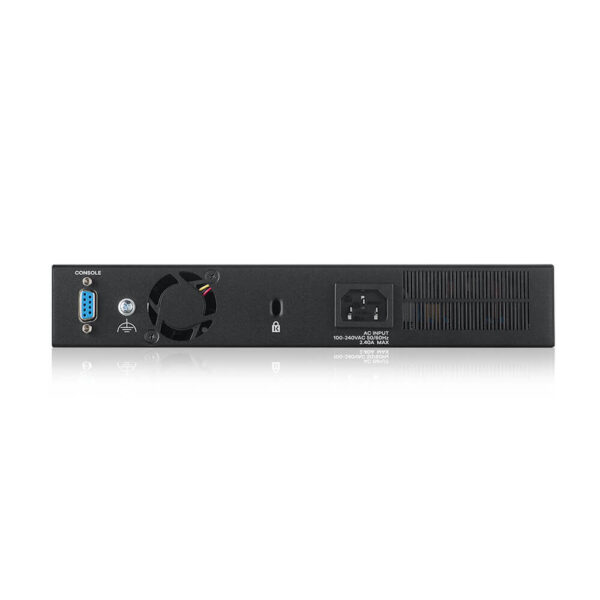

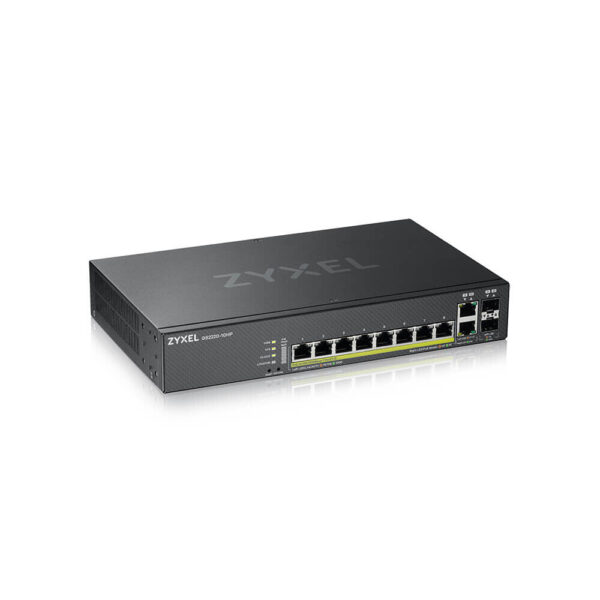

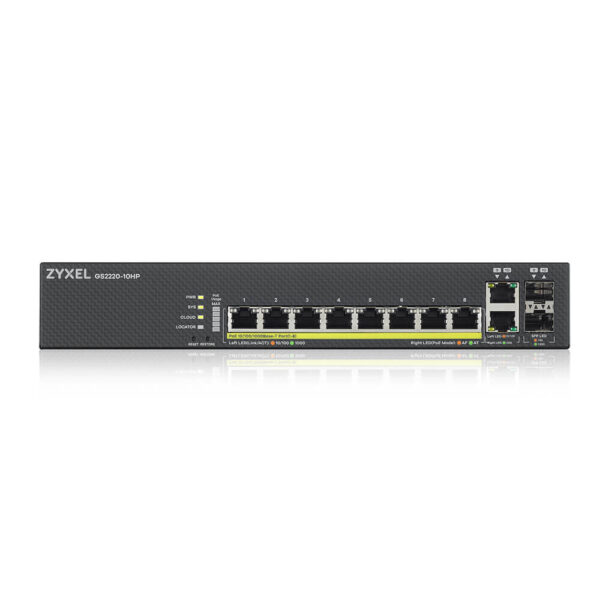

Zyxel GS2220-10HP Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
- Fully managed layer 2 switching solution. 8 port PoE+ GbE 100/1000 Mbps + 2 port GbE combo (SFP/RJ-45) (10 ports total)
- 180W PoE+ (802.3af/ 802.3at) power budget with intuitive 5-segment PoE indicator which gives quick view of current PoE usage
- NebulaFlex Pro gives you the flexibility to switch between standalone and intuitive Nebula cloud managed mode with 1-Year Pro Pack bundled
- L2 multicast, IGMP snooping, MVR and voice VLAN for convergence. Enhanced network protection with IP source guard, DHCP Snooping, ARP inspection, CPU protection
- Smart fan design delivers whisper-silent operation
Designed for converged networks
GS2220 Series
Zyxel’s new generation of Layer 2 Managed Switch GS2220 Series are fully featured Layer 2 Gigabit access switches designed to meet converged data, video and voice networking needs. This latest series’ eye-catching new look comes in 10-, 28-, and 50-port models with a combination of PoE and non-PoE. On top of the fully manageable L2 features set comes with the state-ofart Zyxel NebulaFlex Pro technology for cloud manageability.
Industry first tri-mode switch.
The GS2220 Series is the first managed hybrid switch with Nebula Cloud management, Standalone management, and SNMP.
Powerful L2 features.
The GS2220 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference and IPTV deployments. Advanced traffic control features of the GS2220 Series such as L2 multicast, IGMP snooping, MVR provide businesses greater agility and more effective traffic management for the converged applications of today.
Manage it your way!
The support of Zyxel NebulaFlex Pro allows you to easily switch standalone management and intuitive Nebula cloud management platform with 1-YEAR Pro Pack bundled anytime with just a few simple clicks.
Intelligent PoE+ powers more devices.
The intelligent consumption mode delivers only the actual power required by your networked devices, reserves the rest and optimizes its power budget. That means a single switch can power more APs, IP cameras and VoIP phones, ensuring a better ROI for your business. The switch supports the IEEE 802.3at providing a maximum of 30W per port and 180W total budget.
Experience whisper-silent operations.
This Series includes both fan-less and built-in smart fan models. The smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the switch is operating.
Flexible port combination.
The GS2220 Series includes copper ports and combo ports, 50 and 50HP models even come with additional dedicated SFP ports for uplinks. This flexible port combination can fit in every Layer 2 switching applications easily.
| Management features | |
|---|---|
| System event log | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Combo SFP ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Network | |
|---|---|
| Virtual LAN features | Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Copper ethernet cabling technology | 10BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission | |
|---|---|
| Packet buffer memory | 1.5 MB |
| Forwarding rate | 15 Mpps |
| Switching capacity | 20 Gbit/s |
| MAC address table | 16000 entries |
| Security | |
|---|---|
| Security algorithms | SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS |
| Authentication | Guest VLAN, MAC-based authentication |
| Authentication type | IEEE 802.1x, RADIUS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 587477 h |
| Firmware upgradeable | Yes |
| Noise level | 41 dB |
| Flash memory | 32 MB |
| Internal memory | 256 MB |
| Power | |
|---|---|
| Power consumption (max) | 210.8 W |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 180 W |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 718.828 BTU/h |
| Storage relative humidity (H-H) | 10 – 95% |
| Operating relative humidity (H-H) | 10 – 95% |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.8 kg |
| Height | 44 mm |
| Depth | 162 mm |
| Width | 267 mm |
| Packaging content | |
|---|---|
| Cables included | AC |
| Packaging data | |
|---|---|
| Package weight | 2.7 kg |
| Package height | 61 mm |
| Package depth | 235 mm |
| Package width | 375 mm |
| Certificates | |
|---|---|
| Certification | LVD, BSMIFCC 15 A, CE EMC A, BSMI ENCRoHS A |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
